1. Киришүү
This manual provides essential information for the safe and efficient operation of your TORNADO Smart LED TV 43ES1500E. Please read these instructions thoroughly before using your television and retain them for future reference.
Image: The TORNADO Smart LED TV 43ES1500E displayed in a modern living room environment.
The TORNADO Smart LED TV 43ES1500E features a 43-inch Full HD display, integrated Wi-Fi, and multiple connectivity options including RF, USB, and HDMI. It operates on the TORNADO Smart Portal operating system, offering access to various applications and internet browsing capabilities.
Видео: Бүттүview of the TORNADO Smart LED TV, demonstrating its features and setup process.
2. Орнотуу
2.1 Кутудан чыгаруу жана Мазмуну
Carefully open the television packaging. Ensure all components are present and undamaged. The box should contain:
- TORNADO Smart LED TV Unit
- Алыстан башкаруу
- Телевизор үчүн стенддер (2 даана)
- Стенд орнотуу үчүн бурамалар
- Электр кабели
- Колдонуучунун колдонмосу жана Кепилдик картасы
Image: The TORNADO Smart LED TV and its accompanying accessories, including the remote control, stands, and documentation.
2.2 Стендди орнотуу
To install the TV stands:
- Сыналгы экранын сызып кетпеши үчүн жумшак, тегиз бетке ылдый каратып кой.
- Ар бир стендди телевизордун астындагы тиешелүү уячаларга тууралаңыз.
- Берилген бурамалар менен ар бир стендди бекитиңиз. Алардын бекем кысылганын текшериңиз.
Сүрөт: алдыңкы view of the TORNADO Smart LED TV 43ES1500E with its two stands securely attached.
2.3 Дубалга орнотуу (кошумча)
If you choose to wall-mount your TV, ensure you use a compatible wall mount bracket for the TV's size and weight. It is recommended to have a qualified technician perform the installation to ensure safety and proper mounting.
- Remove any pre-installed screws from the back of the TV if they interfere with the wall mount.
- Attach the wall mount brackets to the TV using the appropriate screws, ensuring they are securely fastened to the VESA mounting points.
- Mount the TV to the wall bracket according to the wall mount manufacturer's instructions.

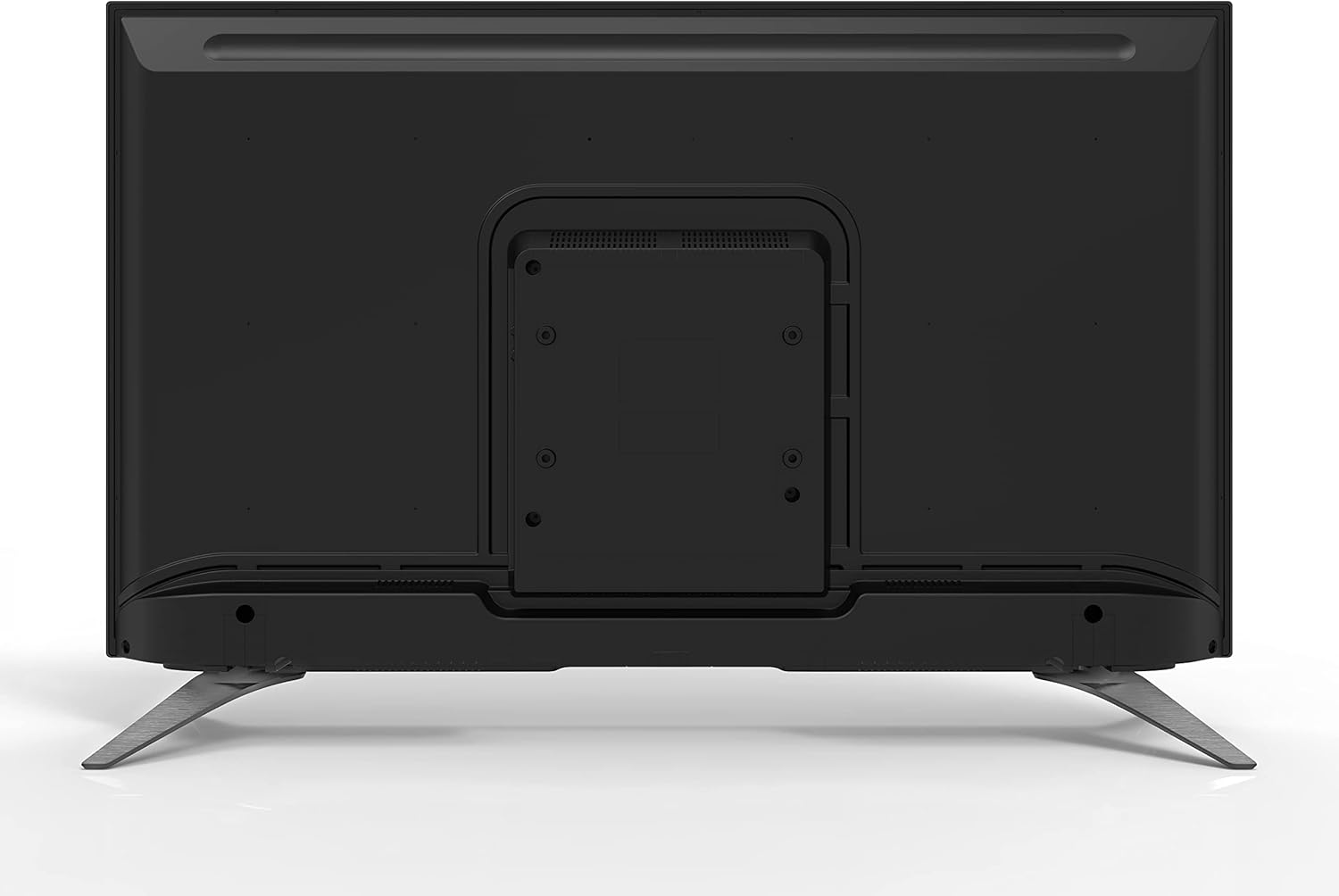

Сүрөт: Арткы view of the TORNADO Smart LED TV 43ES1500E, highlighting the VESA mounting points for wall installation.
2.4 Connecting Power and Initial Power-Up
Connect the power cable to the TV's power input and then to a wall outlet. Ensure the outlet is easily accessible. Press the power button on the remote control or the TV to turn it on. Follow the on-screen instructions for initial setup, including language selection, network connection, and channel scanning.
Сүрөт: Side profile of the TORNADO Smart LED TV 43ES1500E, displaying its connectivity ports including HDMI and USB.
3. Иштөө нускамалары
3.1 Алыстан башкаруу функциялары
The remote control allows you to navigate the TV's menus and control various functions. Familiarize yourself with the button layout for optimal use.
Image: The remote control for the TORNADO Smart LED TV 43ES1500E, showing its various buttons and layout.
3.2 Smart TV өзгөчөлүктөрү
Your TORNADO Smart LED TV runs on the TORNADO Smart Portal operating system, providing access to a range of smart features:
- Web Браузер: Access the internet directly from your TV.
- Алдын ала орнотулган колдонмолор: Enjoy popular streaming services like Netflix, YouTube, and Prime Video.
- Экранды чагылдыруу: Connect your mobile device to the TV to display content from your phone or tablet on the larger screen.

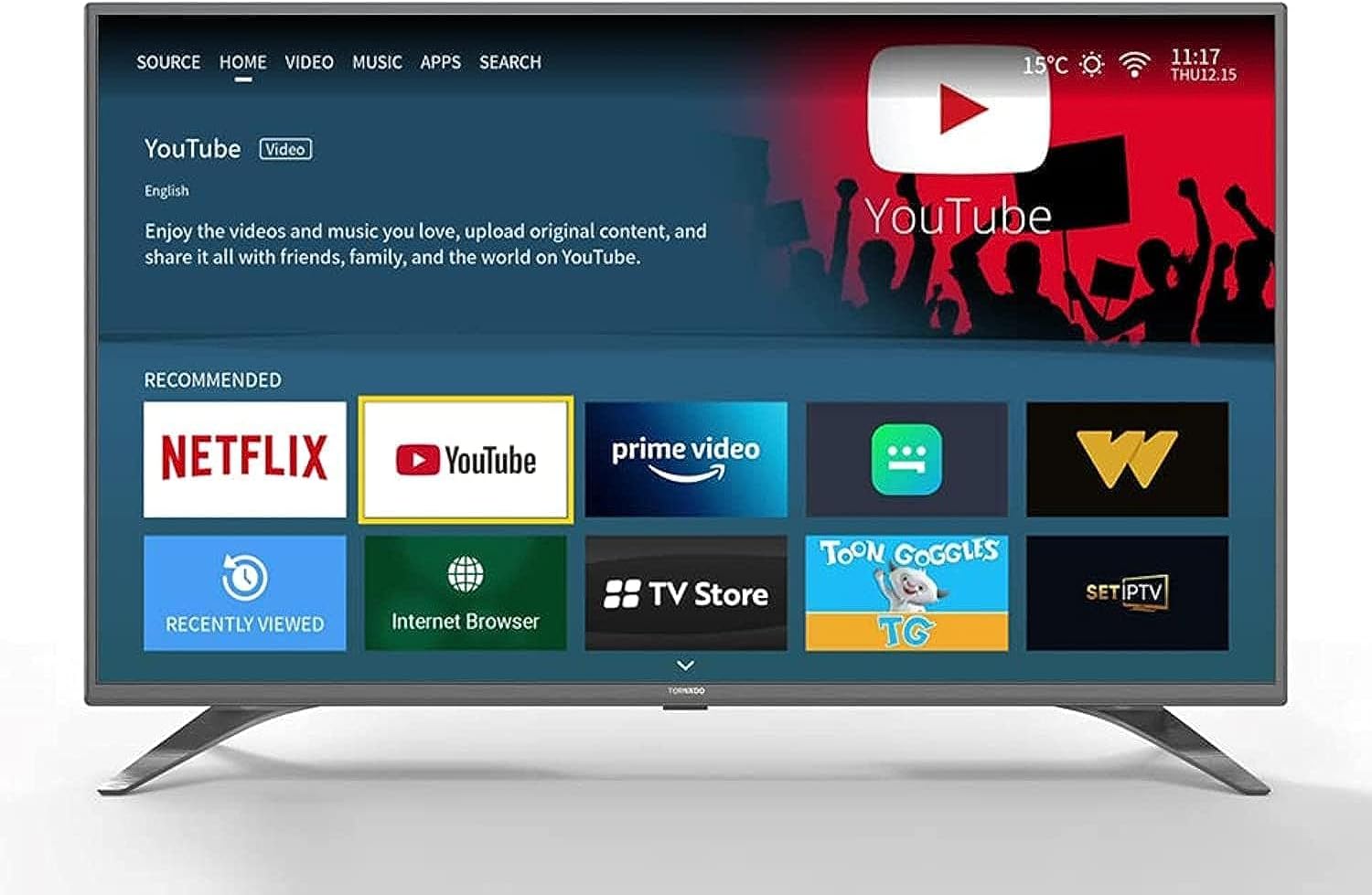

Image: The smart TV interface of the TORNADO 43ES1500E, showing recommended applications like Netflix, YouTube, and Prime Video.
3.3 PVR (Personal Video Recorder) Function
The PVR function allows you to record live television broadcasts directly to a USB storage device connected to your TV. To use this feature, ensure a USB drive with sufficient storage is connected.
3.4 Time Shift Function
With the Time Shift function, you can pause live TV and resume watching later. This feature also requires a USB storage device to be connected to the TV.
Video: A demonstration of the TORNADO Smart LED TV's PVR and Time Shift functions, showing how to record and pause live television.
4. Техникалык тейлөө
To ensure the longevity and optimal performance of your TORNADO Smart LED TV, follow these maintenance guidelines:
- Экранды тазалоо: Экранды жумшак, кургак, түксүз чүпүрөк менен акырын сүртүңүз. өжөр белгилери үчүн, бир аз гampчүпүрөккө суу же атайын экран тазалагыч (экранга түздөн-түз чачпаңыз).
- Денени тазалоо: Use a soft, dry cloth to clean the TV's frame and back panel.
- Вентиляция: Ашыкча ысып кетүүнүн алдын алуу үчүн телевизордун артындагы желдетүү тешиктери жабылбагандыгын текшериңиз.
- Өчүрүү: Always turn off the TV and unplug it from the power outlet before cleaning or when it will not be used for an extended period.
5. Кыйынчылыктарды
This section addresses common issues you might encounter with your TORNADO Smart LED TV.
5.1 Image Distortion or Interference
If the image appears distorted, blurry, or has interference (repeated or overlapping images):
- Байланыштарды текшерүү: Ensure all antenna/satellite (RF) and HDMI cables are securely connected to the TV and external devices.
- Интерференцияны азайтуу: Keep the TV away from other electronic devices that might cause electromagnetic interference, such as hair dryers or other appliances. Ensure signal cables are not running parallel to power cables.
5.2 TV Turns Off Automatically
If the TV turns off by itself:
- Check Sleep Timer: Verify that the sleep timer function is not activated in the TV settings.
- Автоматтык күтүү режими: Ensure the automatic standby feature (if available) is not set to turn off the TV after a specific period of inactivity. Adjust or disable this setting in the system menu.
5.3 Алыстан башкаруу иштебейт
If the remote control is unresponsive:
- Батареяларды текшерүү: Replace the batteries in the remote control with new ones, ensuring correct polarity.
- Тоскоолдуктар: Алыстан башкаруу куралы менен сыналгынын инфракызыл сенсорунун ортосунда эч кандай тоскоолдуктар жок экенин текшериңиз.
Video: Troubleshooting guide for common issues with the TORNADO Smart LED TV, including image problems and remote control functionality.
6. Техникалык шарттар
Detailed technical specifications for the TORNADO Smart LED TV 43ES1500E:
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | 43ES1500E |
| Screen Size | 43 дюйм |
| Дисплей технологиясы | LED |
| Резолюция | 1920 x 1080 (Full HD) |
| Аспект катышы | 16:9 |
| Контраст катышы | 1:3000 |
| Viewбурч | 178° |
| Жаңыртуу ылдамдыгы | 60 Гц |
| Broadcasting Type | Digital (DVB-T/T2/S2) |
| Операция системасы | TORNADO Smart Portal |
| Байланыш | Wi-Fi, RF, USB (2), HDMI (2), Video In (1) |
| Аудио чыгаруу күчү | 2 x 10 Ватт |
| Өзгөчөлүктөр | Built-in Receiver, Web Browser, Netflix, YouTube, Screen Mirroring, PVR, Time Shift |
| Өлчөмдөрү (Стандыксыз) | 970 x 566 x 85 мм |
| Өлчөмдөр (стенд менен) | 970 x 618 x 220 мм |
| Таза Салмак | 7.3 кг |
| Жалпы салмак | 9.8 кг |
| Энергия эффективдүүлүгү классы | A |
| Келип чыккан өлкө | Мысыр |
Image: The TORNADO Smart LED TV 43ES1500E with its key dimensions (width, height, depth) clearly indicated.
7. Кепилдик жана колдоо
Your TORNADO Smart LED TV 43ES1500E comes with a 3-year full free warranty from the manufacturer. For warranty claims, technical support, or service inquiries, please refer to the contact information provided on your warranty card or visit the official Tornado service center.
Кепилдикти текшерүү үчүн сатып алганыңыздын далилин сактап коюңуз.
