1. Киришүү
Thank you for choosing the Volteck Ringing Bell Type 2, Model 48101. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new ringing bell. Please read this manual thoroughly before use and retain it for future reference.
2. Коопсуздук маалыматы
Травматизмди же буюмга зыян келтирбөө үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз:
- Электр коопсуздугу: This device operates on an electrical circuit. Ensure power is disconnected at the main breaker before any installation or maintenance work.
- Квалификациялуу кадрларды: Installation and wiring should be performed by a qualified electrician or a knowledgeable individual familiar with electrical systems.
- Туура куралдар: Электр менен иштөө үчүн тиешелүү изоляцияланган шаймандарды колдонуңуз.
- Экологиялык шарттар: Do not expose the bell to excessive moisture or extreme temperatures unless specifically rated for such conditions. Refer to the IP rating in the specifications.
- Коопсуз орнотуу: Ensure the bell is securely mounted to a stable surface to prevent it from falling.
3. Продукт бүтүп калдыview
The Volteck Ringing Bell Type 2 is a durable and reliable signaling device designed for various applications. It features a robust construction for long-lasting performance.
Figure 3.1: Volteck Ringing Bell Type 2, Model 48101.
Негизги компоненттер
Figure 3.2: The bell features a durable ABS (Acrylonitrile Butadiene Styrene) base and a steel bell for clear sound output.
Өлчөмдөр

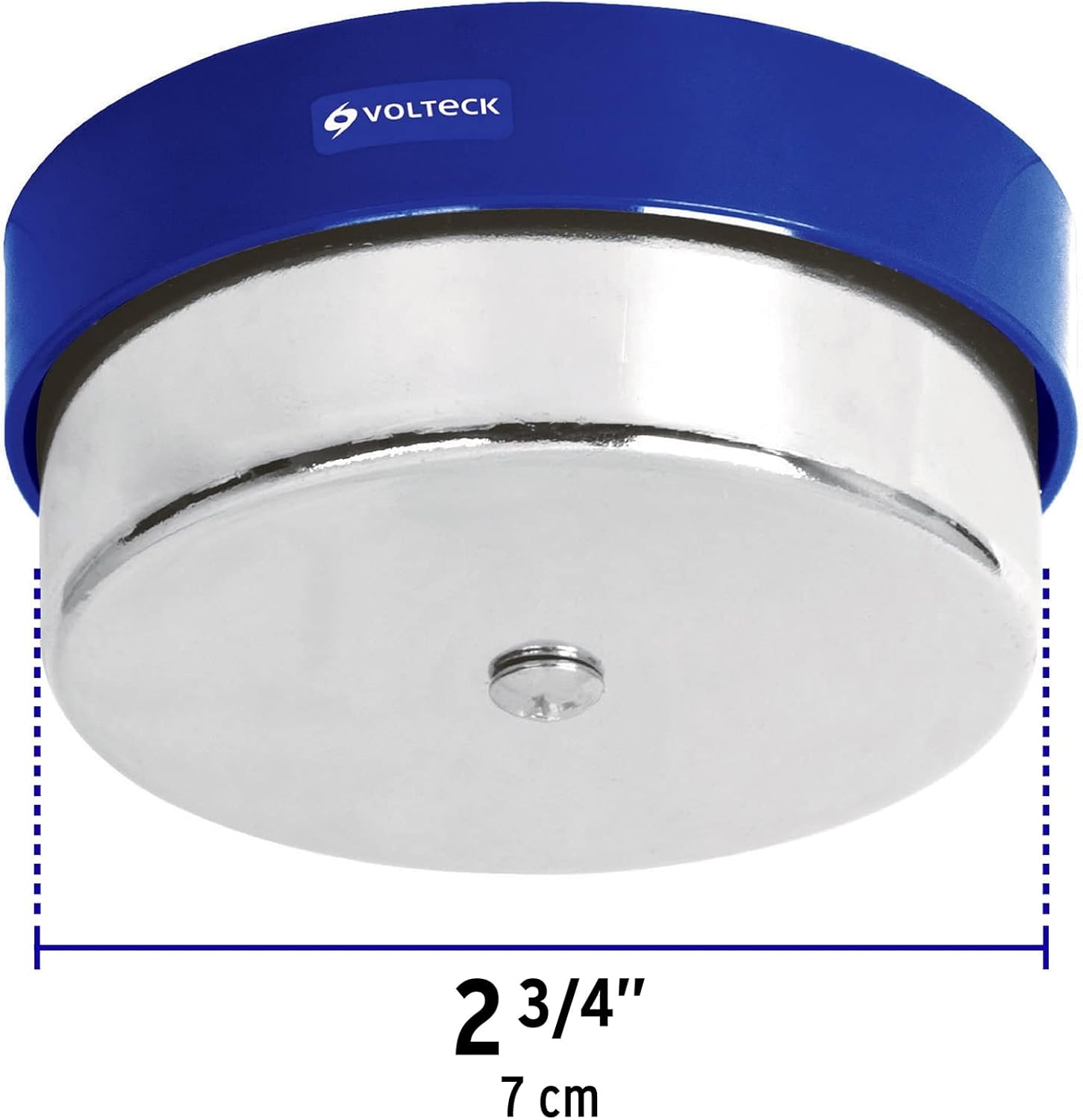

Figure 3.3: The bell has a diameter of 2 3/4 inches (7 cm).
4. Орнотуу жана орнотуу
Follow these steps for proper installation of your Volteck Ringing Bell. Ensure all safety precautions are observed.
- Кубатты өчүрүү: Before beginning any installation, ensure the power supply to the installation area is completely disconnected at the circuit breaker or fuse box.
- Монтаждоо ордун тандоо: Select a suitable, stable surface for mounting the bell. Consider sound propagation and protection from environmental elements.
- Mount the Bell: Secure the bell to the chosen surface using appropriate screws or fasteners (not included). Ensure it is firmly attached and does not wobble.
- Зымдар: Connect the bell to the appropriate electrical circuit. This bell is designed for wired operation and does not require batteries. Refer to local electrical codes and the bell's voltage requirements (typically low voltage, but verify with product packaging or a qualified electrician). Ensure all connections are secure and insulated.
- Сыноо операциясы: Once installation and wiring are complete, restore power to the circuit. Activate the bell's trigger mechanism (e.g., push button) to confirm proper operation.
5. Операция
The Volteck Ringing Bell Type 2 operates by producing an audible signal when its circuit is closed. Typically, this involves pressing a connected push button or activating a switch that completes the electrical circuit to the bell.
- Жандандыруу: Press the connected push button or activate the switch to make the bell ring.
- Өчүрүү: Release the push button or deactivate the switch to stop the bell from ringing.
6. Техникалык тейлөө
The Volteck Ringing Bell Type 2 requires minimal maintenance to ensure continued performance.
- Тазалоо: Periodically wipe the exterior of the bell with a soft, dry cloth to remove dust and dirt. Do not use abrasive cleaners or solvents. Ensure no liquids enter the internal components.
- Текшерүү: Regularly inspect the mounting and wiring for any signs of loosening, damage, or corrosion. Address any issues promptly.
- Колдонуучу тейлей турган бөлүктөр жок: The internal components of the bell are not user-serviceable. Do not attempt to open or repair the unit yourself.
7. Кыйынчылыктарды
If you encounter issues with your Volteck Ringing Bell, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Bell does not ring | Схемага кубат жок Бошоң же туура эмес зымдар Faulty push button/switch Internal damage to the bell | Автоматтык өчүргүчтү/ сақтандыргычты текшериңиз Inspect all wiring connections; ensure they are secure and correct Test the push button/switch for continuity If other solutions fail, the bell may need replacement |
| Bell rings weakly or intermittently | Электр энергиясы жетишсиз Бошоң зымдар байланыштары Partial internal damage | Туура томду текшериңизtagэлектрондук камсыздоо Бардык зым байланыштарын текшерип, бекемдеңиз If problem persists, consider professional inspection or replacement |
If troubleshooting steps do not resolve the issue, contact Volteck customer support or a qualified electrician.
8. Техникалык шарттар
Technical details for the Volteck Ringing Bell Type 2, Model 48101:
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Volteck |
| Модель номери | 48101 |
| Материал | Акрилонитрил бутадиен стиролу (ABS), болоттон жасалган эритме |
| Элемент Салмагы | 1 Kilogram (approximately 2.2 pounds) |
| Элементтин пакетинин саны | 1 |
| Аяктоо түрү | Powder капталган |
| Иштөө режими | Ring |
| Пакеттин өлчөмдөрү | 3.1 x 3 x 1.3 дюйм |
| Батареялар талап кылынат | Жок |
| IP рейтинги | IP53 (Protected from limited dust ingress and water spray less than 60 degrees from vertical) |

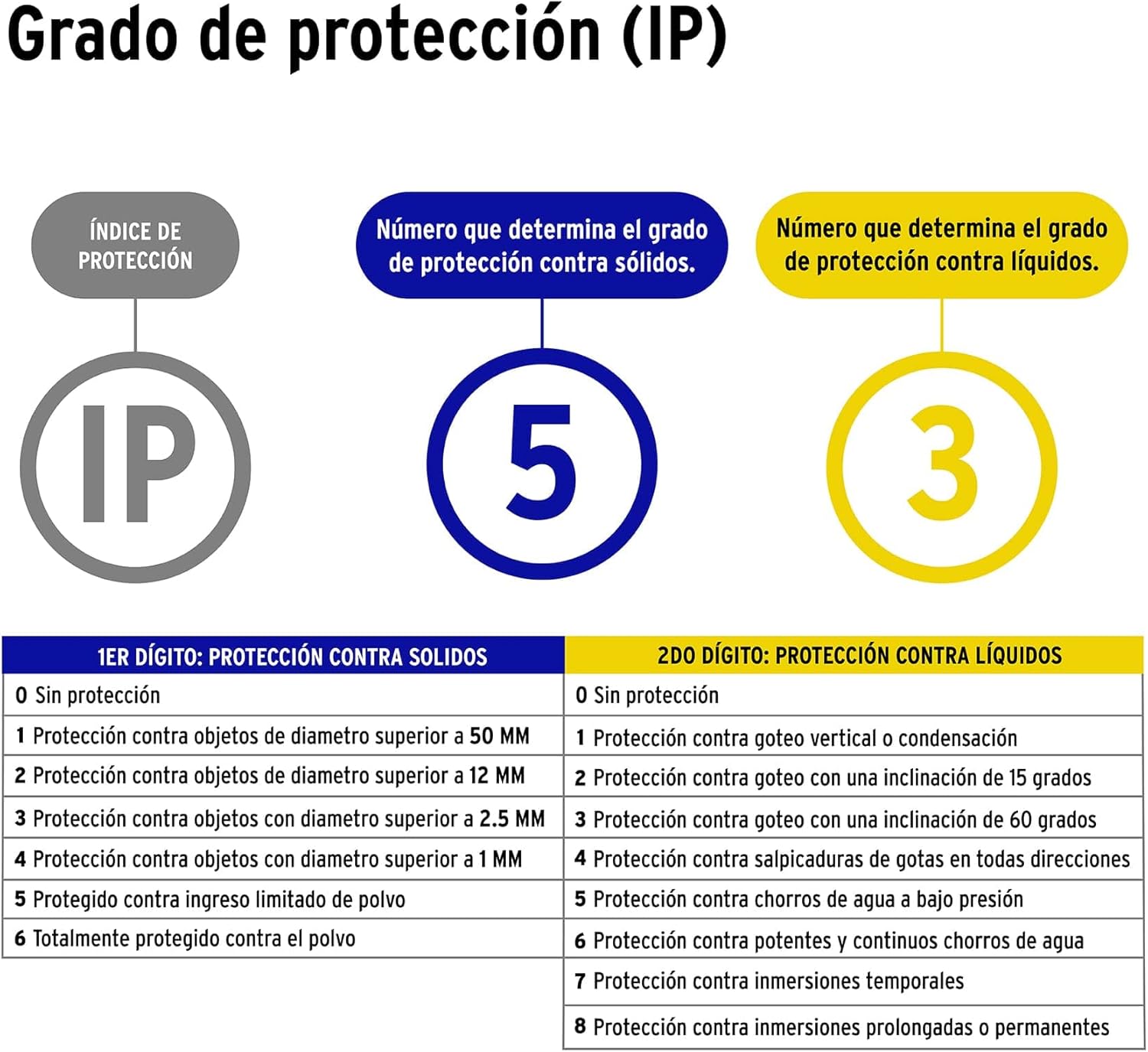

Figure 8.1: IP Rating explanation. The Volteck Ringing Bell has an IP53 rating.
9. Кепилдик жана колдоо
The Volteck Ringing Bell Type 2, Model 48101, comes with a 1 жылдык кепилдик сатып алынган күндөн тартып өндүрүш кемчиликтерин жабуу.
Figure 9.1: Product packaging indicating a 1-year warranty.
For warranty claims, technical assistance, or further inquiries, please contact Volteck customer support through their official webсайт же сатып алуу документтери менен камсыз байланыш маалыматы.
Кепилдикти текшерүү үчүн сатып алганыңыздын далилин сактап коюңуз.
