1. Киришүү
Thank you for choosing the Hecht 142 BTS Gasoline Brush Cutter. This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new brush cutter. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.
The Hecht 142 BTS is a powerful and lightweight gasoline-powered brush cutter designed for effective trimming and clearing of overgrown areas in your garden. It features a robust 2-stroke engine, an anti-vibration handle, and a durable cutting blade.
1.1 Коопсуздук маалыматы
Always wear appropriate personal protective equipment (PPE) including eye protection, hearing protection, sturdy footwear, and gloves when operating the brush cutter. Ensure the work area is clear of bystanders, children, and pets. Never operate the machine under the influence of alcohol or drugs. Keep all guards and safety devices in place and in working order.
2. Продукциянын компоненттери
Familiarize yourself with the main components of your Hecht 142 BTS brush cutter.

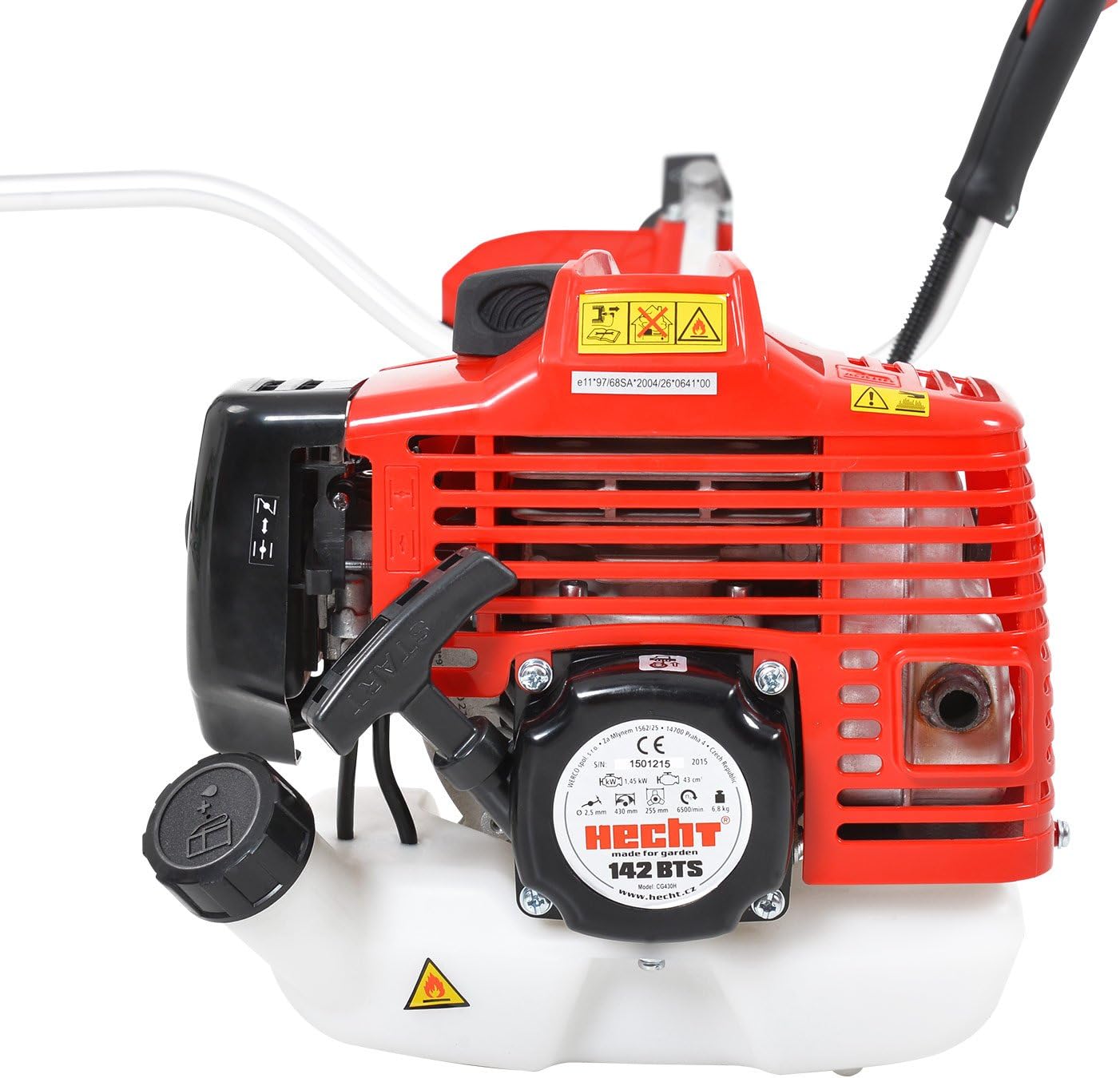

- Кыймылдаткыч блогу: Contains the 2-stroke gasoline engine, fuel tank, and air filter.
- Вал: The long tube connecting the engine to the cutting head.
- Рул: The ergonomic two-hand handle with anti-vibration features for comfortable control.
- Башкаруу туткасы: Located on the handlebar, includes the throttle trigger and engine stop switch.
- Кесүү башчысы: Where the 3-tooth steel blade or trimmer line is attached.
- Коопсуздук күзөтчүсү: Protects the user from debris thrown by the cutting head.
- Жабуу: A backpack-style strap for distributing the weight of the machine.
3. Орнотуу жана чогултуу
3.1 Таңгактан чыгаруу жана алгачкы текшерүү
Carefully remove all components from the packaging. Inspect for any damage that may have occurred during shipping. If any parts are missing or damaged, contact your dealer immediately.
3.2 Рулдун монтажы
- Attach the handlebar to the shaft using the provided clamp жана болттар.
- Ensure the handlebar is centered and securely tightened to prevent rotation during operation.

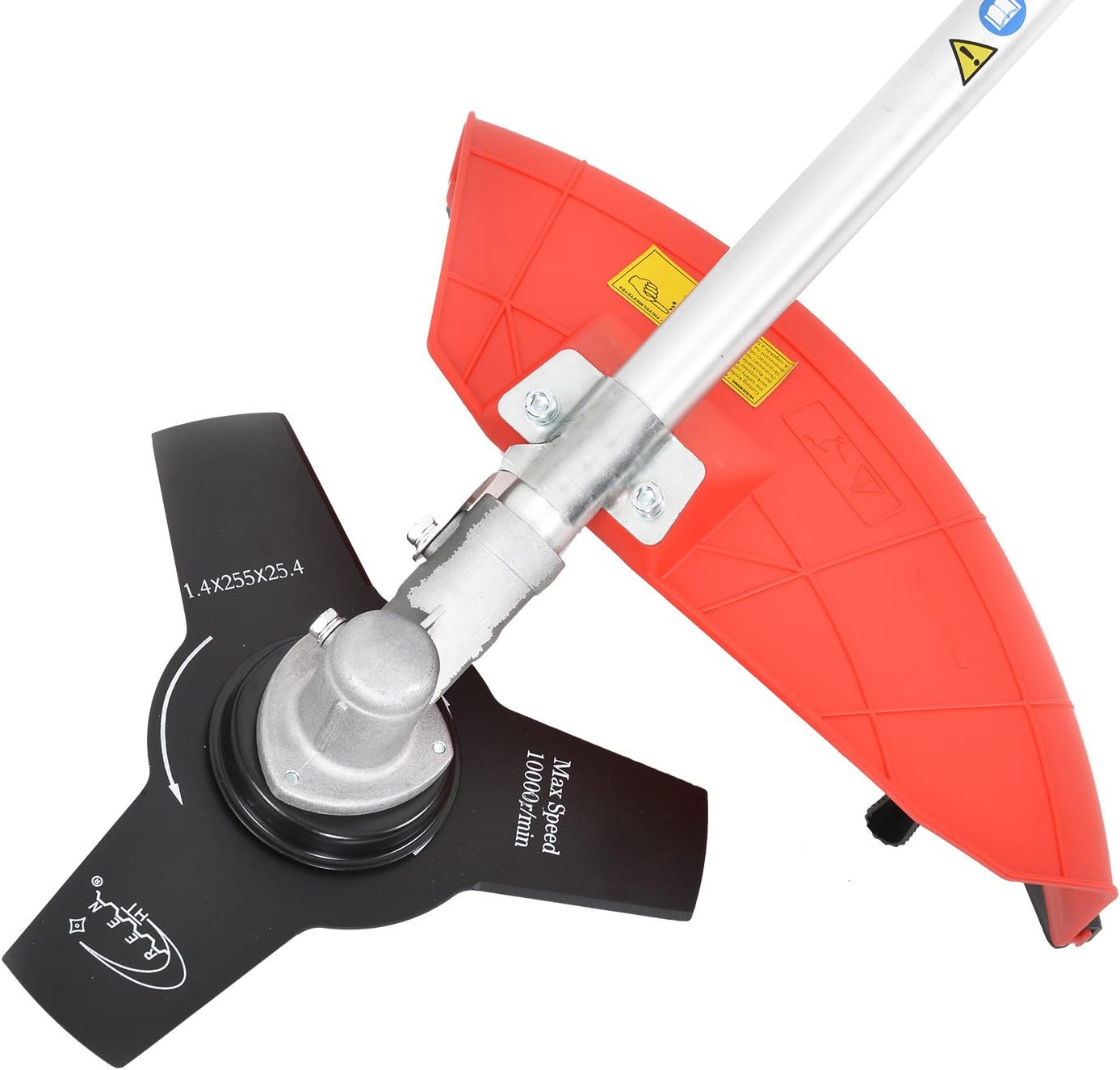

3.3 Guard and Cutting Head Installation
- Mount the safety guard to the shaft above the cutting head, ensuring it is firmly secured.
- Install the 3-tooth steel blade onto the cutting head, following the rotation direction indicated on the blade. Use the provided tools to tighten the retaining nut securely.
- Alternatively, if using a trimmer line head, ensure the line is properly spooled and secured.
3.4 Fueling the Engine
The Hecht 142 BTS uses a 2-stroke engine and requires a specific fuel mixture of unleaded gasoline and 2-stroke engine oil. Refer to the engine unit for the exact mixing ratio (typically 25:1 or 40:1, consult engine label).
- Always mix fuel in a separate, approved fuel container.
- Pour the correct amount of 2-stroke oil into the gasoline and shake well to ensure thorough mixing.
- Carefully pour the mixed fuel into the brush cutter's fuel tank. Do not overfill.
- Күйүүчү майдын капкагын бекем жабыңыз.
Абайлаңыз: Gasoline is highly flammable. Handle with extreme care. Do not refuel while the engine is hot or running. Refuel in a well-ventilated area away from open flames or sparks.
4. Иштөө нускамалары
4.1 Моторду ишке киргизүү
- Щетка кескичти тегиз, туруктуу бетке коюңуз.
- Кыймылдаткычты токтотуучу которгучту "ON" абалына коюңуз.
- Engage the choke lever (if the engine is cold).
- Кайтаруу сызыгында күйүүчү май көрүнгүчө, праймер лампочкасын бир нече жолу басыңыз.
- Pull the starter cord firmly and steadily until the engine starts. Do not pull the cord to its full extension.
- Once the engine starts, gradually disengage the choke. Allow the engine to warm up for a few moments before operating at full throttle.
4.2 Operating the Brush Cutter
Attach the backpack harness and adjust it for comfortable weight distribution. Hold the brush cutter firmly with both hands on the handlebar. Maintain a balanced stance. Apply throttle gradually to increase cutting speed. Use a sweeping motion to cut vegetation. Avoid striking hard objects like rocks or metal.
4.3 Моторду токтотуу
To stop the engine, release the throttle trigger and move the engine stop switch to the "OFF" position. Allow the engine to cool down before storing.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your brush cutter.
5.1 Тазалоо
After each use, clean the exterior of the machine, especially the cutting head and guard, to remove grass, dirt, and debris. Do not use high-pressure water directly on the engine or electrical components.
5.2 Аба чыпкасын тейлөө
Check the air filter regularly (e.g., every 10 operating hours). A dirty air filter can reduce engine performance. Clean or replace the air filter as needed. Refer to the engine manual for specific instructions on accessing and cleaning the air filter.
5.3 Учкунды текшерүү
Inspect the spark plug periodically (e.g., every 25 operating hours). Clean or replace if it is fouled or worn. Ensure the correct spark plug gap is maintained.
5.4 Cutting Blade Care
Regularly inspect the 3-tooth steel blade for sharpness and damage. A dull or damaged blade can reduce cutting efficiency and increase vibration. Sharpen or replace the blade as necessary. Always wear heavy-duty gloves when handling the blade.
5.5 Сактоо
For long-term storage, drain the fuel tank or run the engine until it runs out of fuel to prevent fuel degradation. Clean the machine thoroughly. Store in a dry, well-ventilated area, out of reach of children.
6. Кыйынчылыктарды
Бул бөлүмдө кеңири таралган операциялык маселелердин чечимдери камтылган.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Мотор иштебейт | Күйүүчү май же туура эмес күйүүчү май аралашмасы жок Engine stop switch in OFF position Учкун булганган же бошоп калган Choke not engaged (cold engine) | Күйүүчү майдын деңгээлин жана аралашмасын текшериңиз Которгучту ON абалына жылдырыңыз Clean or replace spark plug, ensure tight Engage choke for cold start |
| Иш учурунда электр кубатын жоготуу | Кир аба чыпкасы Туура эмес күйүүчү май аралашмасы Dull or damaged cutting blade | Аба чыпкасын тазалаңыз же алмаштырыңыз Ensure correct fuel-oil ratio Бычакты курчутуңуз же алмаштырыңыз |
| Ашыкча термелүү | Damaged or unbalanced cutting blade Бош компоненттер | Inspect and replace damaged blade; ensure it's balanced Check all bolts and fasteners for tightness |
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модел | Hecht 142 BTS |
| Мотор түрү | 2-stroke, Gasoline Powered |
| Мотордун жылышы | 43 cc |
| Мотор күчү | 2 HP |
| Максималдуу кыймылдаткыч ылдамдыгы | 9000 tr/min (RPM) |
| Кесүү туурасы (бычак) | 25.5 cm (3-tooth steel blade) |
| Салмагы (кургак) | Болжол менен 6.8 кг |
| Handle Type | Professional Anti-vibration 2-hand handle |
| Өзгөчөлүктөр | Ultra lightweight, Automatic line feed (for compatible heads), Backpack strap included |
| Бычактын материалы | Болот |
8. Кепилдик жана колдоо
8.1 Өндүрүүчүнүн кепилдиги
This Hecht 142 BTS Gasoline Brush Cutter comes with a manufacturer's warranty of 24 ай сатып алынган күндөн тартып. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз. Кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт.
8.2 Кардарларды колдоо
For any questions, technical assistance, or warranty claims, please contact your authorized Hecht dealer or the point of purchase. The full French manual is sent via Amazon messaging upon shipment confirmation.
