Introduction
The Foscam R2 Home Security Camera is designed to provide comprehensive surveillance for your home, children, pets, or business. This Full HD 1080P WiFi IP camera offers real-time video at 25 frames per second, pan and tilt capabilities with 8X digital zoom, and intelligent motion detection with alerts. It supports various recording methods including local storage via MicroSD card, Network Video Recorder (NVR), and optional cloud service, giving you full control over your security footage.
Сүрөт 1: Алдыңкы view of the Foscam R2 Home Security Camera.
Пакеттин мазмуну
Пакетиңизде бардык буюмдар бар экенин текшериңиз:
- Foscam R2 Security Camera
- Зымсыз Антенна
- Кронштейн орнотуу
- Power Supply / Security Camera Adapter
- Ыкчам орнотуу көрсөтмөсү
- User Manual
Figure 2: Contents included in the Foscam R2 product package.
Негизги өзгөчөлүктөрү
- Full HD 1080P токтому: Captures video at 1920x1080 pixels at 25 frames per second, powered by an Ambarella chipset for real-time video streaming.
- Strong WiFi Signal: Equipped with a 2.4G antenna for extended range and optional higher gain antenna (5db) support.
- Булуттагы сактагыч: Offers 8 hours of free cloud storage with 12 months' validity for Foscam Cloud subscribers, with no data space limitation during the last 8 hours. Utilizes US-based AWS servers for high-level encrypted security.
- Кең талаа View & Pan/Tilt: Features a 2.0 MP optical lens (f=2.8mm) with a 110° view angle, 350° horizontal pan, and 100° vertical tilt for 360° coverage.
- Түнкү көрүнүш: Provides clear night vision up to 26 feet using 13 IR LEDs.
- Easy Setup & Compatibility: Quick setup via the Foscam App for iOS and Android devices. Compatible with Foscam VMS (Video Management Software), third-party VMS like Blue Iris, ONVIF recording devices, and web browsers (IE, Chrome).
- Эки тараптуу сүйлөшүү: High-quality two-way audio with noise reduction.
Figure 3: Visual representation of Foscam R2's key features.
Жайгашуу
Initial Setup with Foscam App
- Download the Foscam App: Издөө "Foscam" in your device's app store (iOS/Android) and install it.
- Камераны күйгүзүү: Connect the camera to the power supply using the provided adapter. The camera will initiate its startup sequence.
- Тармакка туташуу:
- WPS Setup (Recommended for quick setup): Ensure your router has a WPS button. Press the WPS button on your router, then press the WPS button on the side of the camera's base. The camera will connect to your WiFi network automatically.
- QR кодун жөндөө: Open the Foscam App, select "Add New Device," and scan the QR code located on the camera. Follow the on-screen prompts, which may include connecting your phone to the camera's temporary WiFi hotspot and then selecting your home WiFi network.
- Зымдуу орнотуу: For initial setup or if wireless connection is difficult, connect the camera directly to your router using an Ethernet cable.
- Колдонуучунун каттоо эсебин түзүү: Follow the Voice Setup Wizard and app prompts to create a secure username and password for your camera. This is crucial for security.
Figure 4: Using the Foscam app for pan and tilt control.
MicroSD Card Installation (for Local Recording)
The Foscam R2 supports local recording to a MicroSD card (not included). This allows the camera to record footage directly without requiring a constant internet connection or cloud subscription. The camera records to the SD card when motion is detected.
- Locate the MicroSD card slot on the camera (refer to the physical camera for exact location, typically on the side or bottom).
- MicroSD картаны ордуна чыкылдаганча акырындык менен уячага салыңыз.
- Within the Foscam App or web interface, navigate to the storage settings to format the MicroSD card and enable local recording.

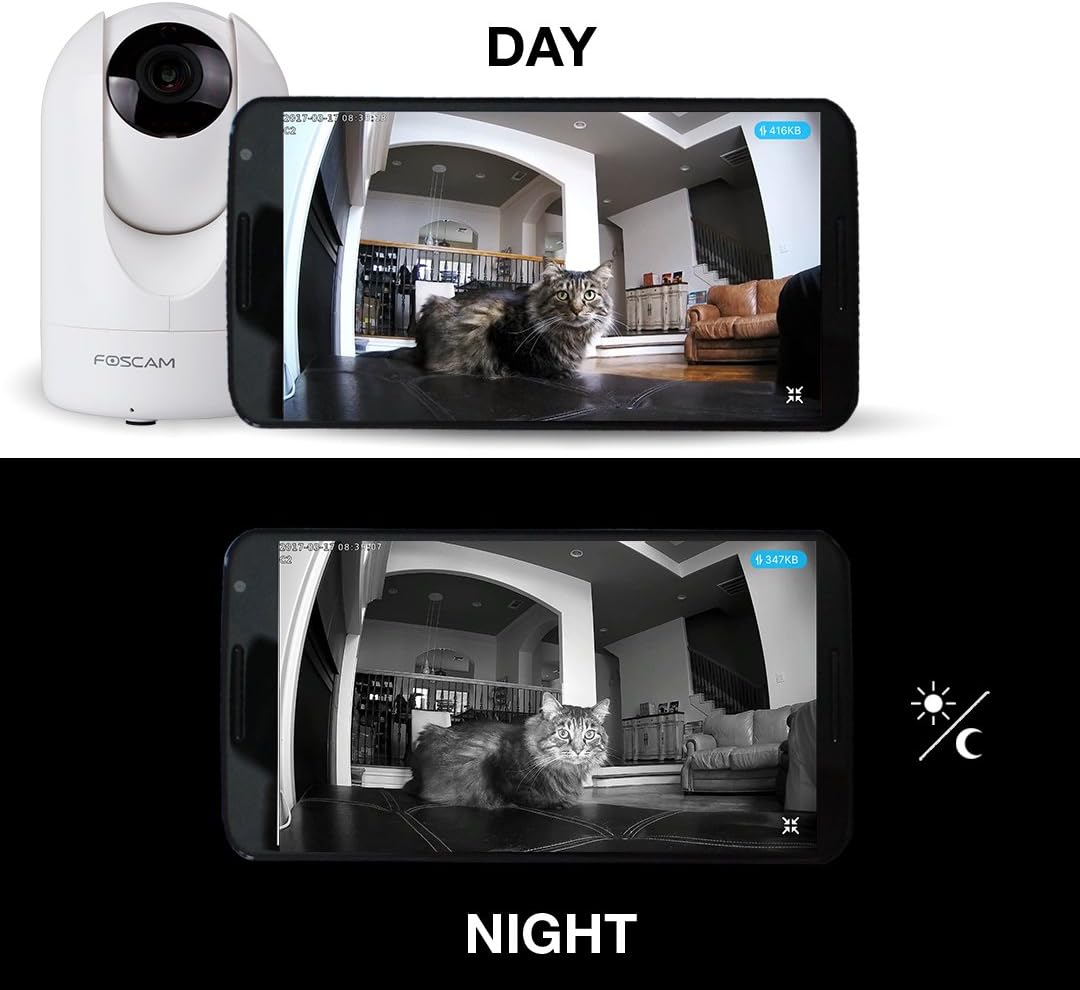

Figure 5: Day and Night vision capabilities of the Foscam R2.
Иштөө нускамалары
Live View жана Control
Access live video streams and control your camera through the Foscam App or the web interface. The app provides intuitive controls for pan, tilt, and digital zoom.
6-сүрөт: Viewing 1080P HD live feed on mobile and desktop.
Кыймылды аныктоо жана эскертүүлөр
The camera features intelligent motion detection. When motion is detected, the camera can:
- Мобилдик түзмөгүңүзгө push эскертмелерин жөнөтүңүз.
- Record video clips to the MicroSD card or cloud storage.
- Send email alerts.
You can configure motion detection zones and sensitivity settings within the Foscam App or web interface to minimize false alarms.
Figure 7: Motion detection alert displayed on a smartphone.
Эки тараптуу аудио
Utilize the built-in microphone and speaker for two-way communication. This feature allows you to listen in on the camera's environment and speak through the camera from your mobile device.
Түнкү көрүнүш
The Foscam R2 automatically switches to infrared night vision mode in low-light conditions, providing clear black-and-white video up to 26 feet.
Cloud Recording
Foscam offers an optional cloud service for storing recorded video. This provides off-site backup and access to your footage from anywhere. Review recorded events via the cloud recording timeline in the Foscam App or web интерфейс.
Video 1: Official Foscam video demonstrating various features of the Foscam Home Security Camera, including remote viewing, motion detection, and two-way audio. This video highlights the camera's capabilities for home monitoring.
Техникалык тейлөө
To ensure optimal performance and longevity of your Foscam R2 camera:
- Тазалоо: Камера линзасын жана корпусун жумшак, кургак чүпүрөк менен акырын сүртүңүз. Катуу химиялык заттарды же абразивдүү тазалоочу каражаттарды колдонуудан алыс болуңуз.
- Жайгашкан жери: Камераны туруктуу жерге, түз күн нурунан, жылуулук булактарынан жана ашыкча нымдуулуктан алыс коюңуз.
- Программалык камсыздоонун жаңыртуулары: Regularly check for and install firmware updates through the Foscam App or web interface to ensure the camera has the latest features and security enhancements.
Проблемаларды чечүү
If you encounter issues with your Foscam R2 camera, consider the following:
- Connectivity Issues (Offline/Lagging Video):
- Камеранын Wi-Fi роутериңиздин диапазонунда экенин текшериңиз.
- Интернет байланышыңызды текшериңиз.
- Камераны жана роутериңизди өчүрүп күйгүзүңүз.
- If using the Foscam app and experiencing lag, consider using a third-party app or accessing the camera via a web browser (e.g., Firefox) on a desktop, as some users report smoother performance.
- Кыймылды аныктоо ишке киргизбейт/өтө сезгич:
- Колдонмодогу кыймылды аныктоо сезгичтик жөндөөлөрүн тууралаңыз.
- Define specific motion detection zones to exclude areas with frequent irrelevant movement (e.g., trees swaying).
- Видеонун сапаты начар:
- Линзанын таза экенин текшериңиз.
- Check your network bandwidth, especially if streaming over a limited internet connection, as the MJPEG format can consume significant data.
- Электр шнурунун узундугу: The provided power cord may be short for ceiling mounting. An extension or alternative power supply (5V, 2000mA rated) may be required.
Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель аты | Foscam Security camera (R2W) |
| Видео тартуунун резолюциясы | 1080p (1920x1080) at 25FPS |
| Байланыш технологиясы | Wireless (Wi-Fi, 2.4G band), Ethernet |
| Pan/Tilt диапазону | 350° Горизонталдык панорамдоо, 100° Вертикалдык жантайтуу |
| Field Of View | 110 градус |
| Digital Zoom | 8x |
| Түнкү көрүү диапазону | Up to 26 Feet (13 IR LEDs) |
| Аудио | Two-Way Talk (Built-in mic & speaker) |
| Сактагыч параметрлери | MicroSD Card (up to 128GB), NVR, Cloud Service |
| Power Source | AC/DC (5V, 2000mA) |
| Өлчөмдөрү (L x W x Y) | 2.91 x 4.6 x 2.91 дюйм |
| Элемент Салмагы | 8 унция (227 грамм) |
| Ички/тышкы колдонуу | Indoor |
Кепилдик жана колдоо
The Foscam R2 Home Security Camera comes with a full 1-year USA Warranty, ensuring peace of mind regarding your purchase.
For detailed instructions, advanced configurations, or further assistance, please refer to the official User Manual (PDF) and User Guide (PDF) available through the following links:
