1. Киришүү
This manual provides essential information for the proper use and care of your Nixon Women's Bullet Chrono 36 Analog Display Japanese Quartz Silver Watch, model A9492195-00. This timepiece features a Miyota Japanese quartz 6-hand chronograph movement with day, date, dual time, and 24-hour functions. It is designed for everyday wear with a durable stainless steel case and band, and a mineral crystal.

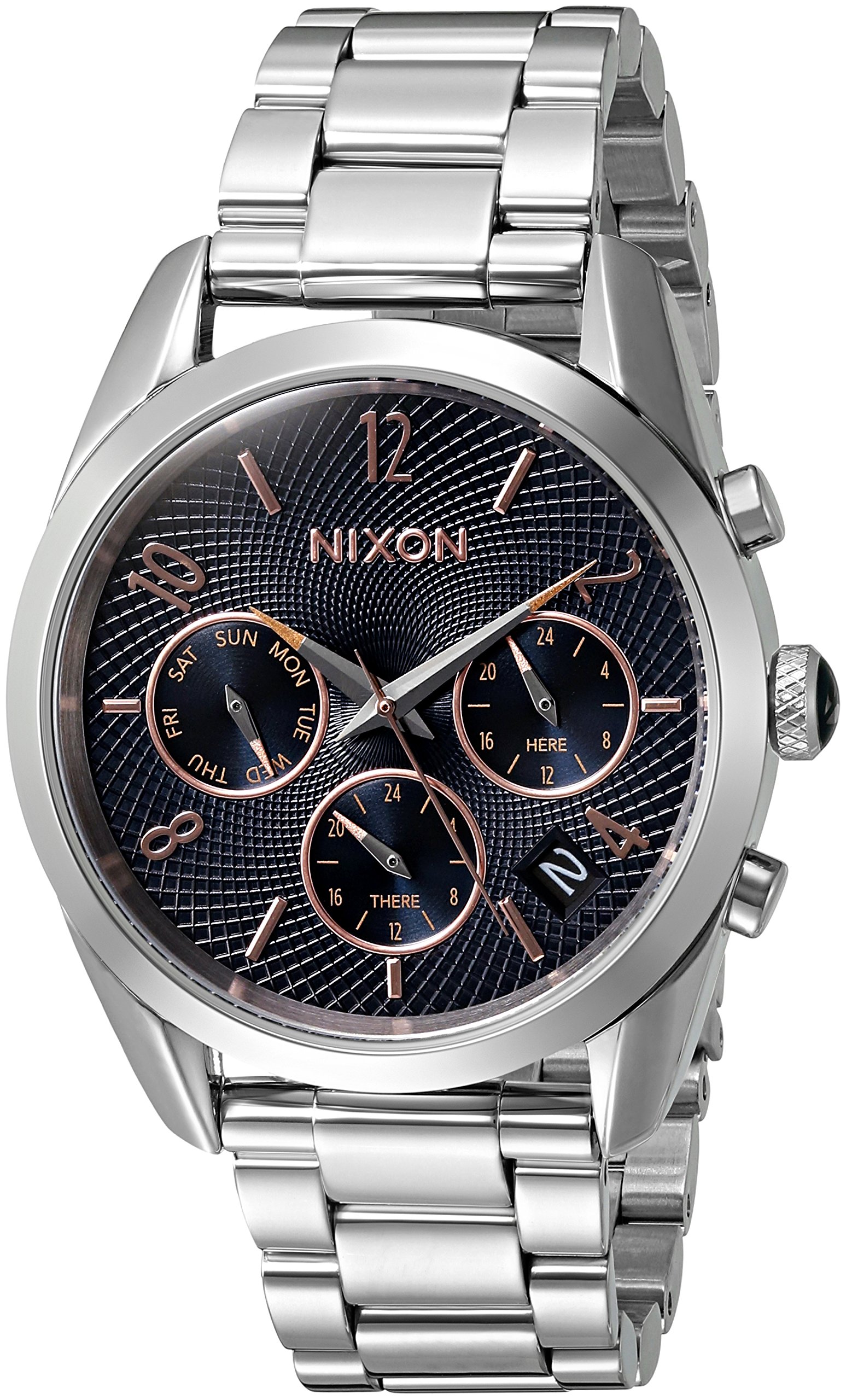

Сүрөт 1.1: Алдыңкы view of the Nixon Bullet Chrono 36 watch, showcasing its silver stainless steel band and dark blue dial with three sub-dials and gold-tone markers.
2. Коопсуздук маалыматы
- Суу каршылык: This watch is water resistant to 10 meters (33 feet). It is suitable for splashes and rain but is жок designed for immersion in water, swimming, or diving. Avoid operating the crown or pushers when the watch is wet.
- Батарея: The watch uses 1 C battery (included). Battery replacement should be performed by a qualified watch technician to ensure water resistance is maintained.
- Тазалоо: Use a soft, dry cloth for cleaning. Avoid harsh chemicals or abrasive materials that may damage the watch's finish or crystal.
3. Орнотуу
3.1 Убакытты жана датаны орнотуу
- Pull the crown out to position 2 (first click) to set the date. Turn the crown clockwise or counter-clockwise until the correct date is displayed.
- Pull the crown out to position 3 (second click) to set the time. Turn the crown to move the hour and minute hands. Ensure the 24-hour sub-dial is correctly aligned for AM/PM.
- Once the time and date are set, push the crown back into position 1 (normal operating position).
3.2 Adjusting the Chronograph
The chronograph features three sub-dials for measuring elapsed time. Refer to the operating section for detailed usage.
3.3 Band жөндөө
The stainless steel bracelet can be adjusted for a comfortable fit. It is recommended to have a professional jeweler or watch technician adjust the band by removing or adding links to prevent damage to the watch or band.

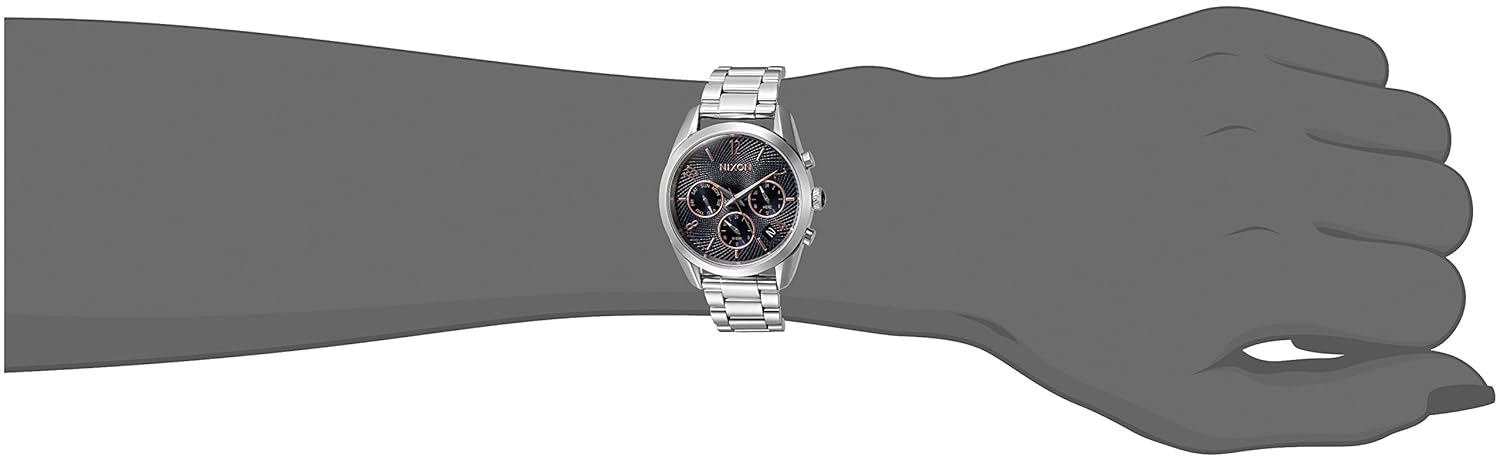

Image 3.1: The Nixon Bullet Chrono 36 watch worn on a wrist, illustrating how the band fits. Professional adjustment may be required for optimal comfort.
4. Иштөө
4.1 Using the Chronograph Function
The Bullet Chrono 36 features a 6-hand chronograph for precise time measurement.
- Баштоо/Токтоо: Хронографты иштетүү үчүн үстүнкү баскычты (A) басыңыз. Токтотуу үчүн аны кайра басыңыз.
- Кайтаруу: Хронограф токтоп турганда, бардык хронограф жебелерин нөлдүк абалына келтирүү үчүн астыңкы түрткүчтү (B) басыңыз.
- Кошумча терүүлөр: The watch includes sub-dials for seconds, minutes, and hours of the chronograph, along with a 24-hour indicator and a dual time display. Consult the specific movement diagram for exact sub-dial functions if available.
5. Техникалык тейлөө
5.1 Тазалоо
To maintain the appearance of your watch, regularly wipe the case and band with a soft, dry, lint-free cloth. For stainless steel bands, a slightly damp cloth can be used, followed by immediate drying. Avoid using detergents, solvents, or abrasive cleaners.
5.2 Батареяны алмаштыруу
When the watch stops or the hands move erratically, the battery may need replacement. It is strongly recommended to have the battery replaced by an authorized Nixon service center or a professional watchmaker. This ensures the correct battery type is used and the watch's water resistance is properly resealed.
5.3 Сактоо
When not wearing your watch, store it in a cool, dry place, away from direct sunlight, extreme temperatures, and strong magnetic fields. The original watch box provides suitable protection.
6. Кыйынчылыктарды
- Watch Not Running: Сааттын таажысы толугу менен ичине салынганын текшериңиз. Эгер саат дагы эле иштебесе, батарейканы алмаштыруу керек болушу мүмкүн.
- Туура эмес убакыт/дата: Refer to Section 3.1 for instructions on setting the time and date.
- Хронографтын жебелери нөлгө кайтып келбейт: This may indicate a need for chronograph calibration or service. Consult a professional watch technician.
- Кристалл астындагы конденсация: If condensation appears under the crystal, it may indicate a loss of water resistance. Have the watch inspected by a professional immediately to prevent internal damage.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | A9492195-00 |
| Кыймыл | Miyota Japanese Quartz 6-hand Chronograph |
| Иштин диаметри | 42 мм |
| Иштин материалы | Дат баспаган болот |
| Топтун материалы | Дат баспаган болот |
| Кристалл материалы | Минералдык |
| Суу каршылык | 10m (33ft) - Withstands splashes and rain, not immersion |
| Функциялар | Chronograph, Day, Date, Dual Time, 24-hour function |
| Батарея | 1 C батарейка (кошулган) |
Image 7.1: A visual guide illustrating different watch case diameters for reference.
8. Кепилдик
The warranty for this product is provided by the seller of record. For any warranty claims or inquiries, please contact the seller directly through your purchase platform.
9. Колдоо
For further assistance, troubleshooting not covered in this manual, or service requests, please refer to the official Nixon website or contact their customer support. Always provide your model number (A9492195-00) when seeking support.
