Snow Joe ION18SB-HYB 18-Inch 40 Volt Single Stage Brushless Snow Blower Instruction Manual

Introduction

The Snow Joe iON18SB-HYB is a revolutionary hybrid snow blower designed for clearing snow from sidewalks, mid-sized driveways, and walkways. It offers the flexibility of both corded electric power and cordless battery operation, powered by iONMAX technology. This state-of-the-art unit features a powerful 13.5-amp brushless motor and a heavy-duty 2-blade rubber auger, capable of moving up to 500 pounds of snow per minute. It clears a path 18-inches wide by 8-inches deep with each pass and includes a 180° adjustable chute and an integrated 3W LED headlight for enhanced visibility.

Маанилүү коопсуздук маалыматы

Read and understand all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Ар дайым тиешелүү жеке коргонуу шаймандарын, анын ичинде көздү коргоо жана тайгаланбаган бут кийимдерди кийиңиз.
• Колдорду, буттарды жана кийимдерди кыймылдуу бөлүктөрдөн алыс кармаңыз.
• Жумушчу аймактын таштандылардан, таштардан жана шнек ыргытып жибериши мүмкүн болгон башка нерселерден тазаланганын текшериңиз.
• Кар тазалагычты тик капталдарда иштетпеңиз.
• Never leave the snow blower unattended while it is running.
• Disconnect power (unplug cord or remove battery) before performing any maintenance or clearing clogs.

Жайгашуу

Before first use, ensure all components are present and properly assembled. Refer to the included assembly guide for detailed instructions on attaching the handle and chute.

Батареяны заряддоо жана орнотуу

The Snow Joe iON18SB-HYB comes with a 40 V 4.0 Ah EcoSharp rechargeable lithium-ion battery and an Energy Star certified quick charger. Fully charge the battery before initial use.

1. Insert the battery into the charger and plug the charger into a standard electrical outlet.
2. Allow the battery to charge completely until the indicator light on the charger shows a full charge.
3. Once charged, remove the battery from the charger and insert it securely into the battery compartment on the snow blower. Ensure it clicks into place.

Power Source Selection (Hybrid Technology)

This hybrid snow blower allows you to choose between battery power for cordless operation or corded electric power for continuous use.

• Зымсыз иштөө үчүн: Ensure the fully charged battery is installed and the power source selector switch is set to 'DC' (Battery).
• For Corded Operation: Connect a suitable outdoor extension cord (12-gauge, extreme-weather rated) to the snow blower's power inlet. Ensure the power source selector switch is set to 'AC' (Electric). The battery does not need to be installed for corded operation, and it is recommended to remove it to prevent unnecessary wear.

Сүрөт: The Snow Joe ION18SB-HYB Hybrid Snow Blower, showcasing its compact design and blue and black color scheme. This image provides an overview of the product's main body and handle assembly.

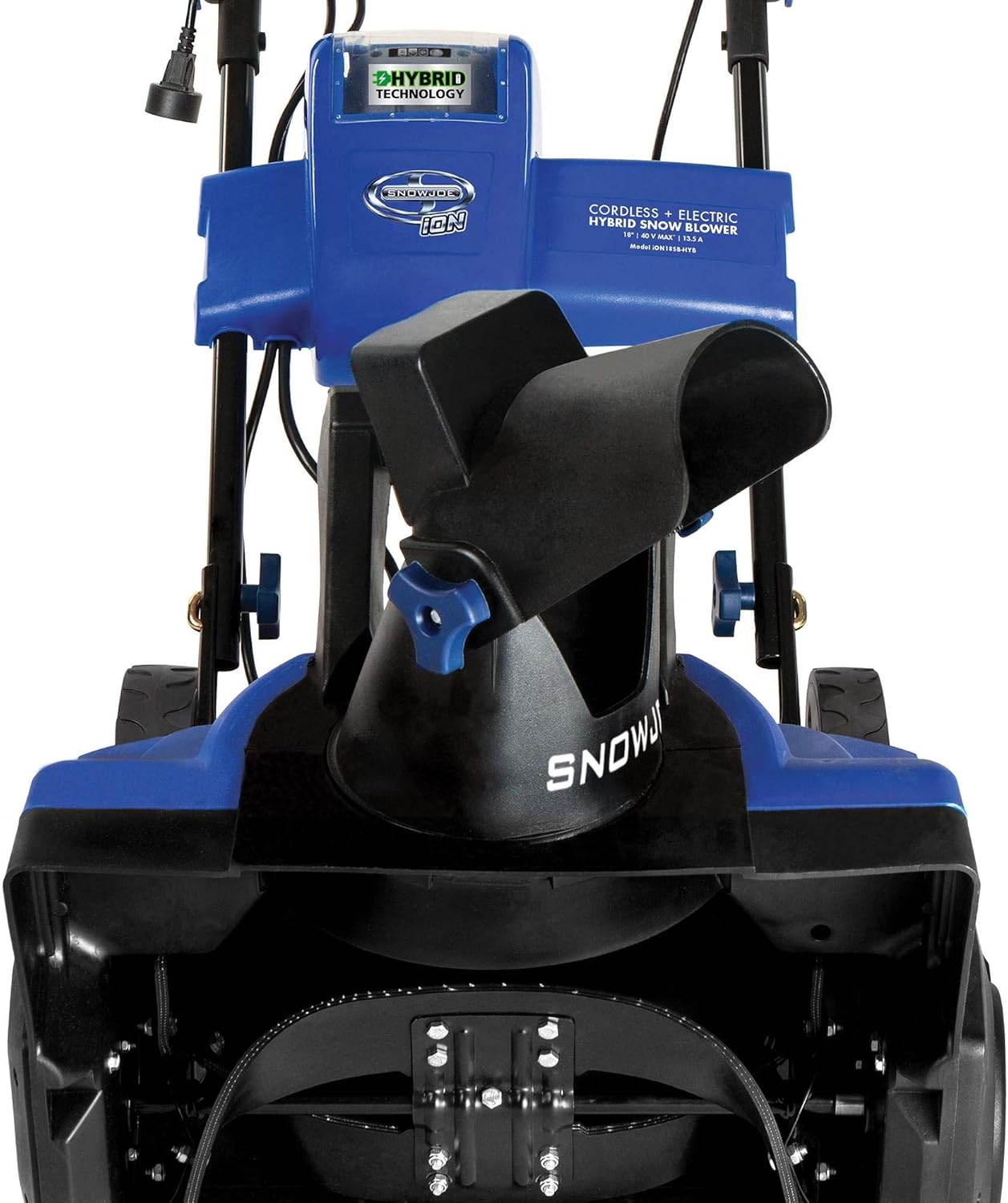

Сүрөт: Жакын план view of the hybrid technology power source selector on the Snow Joe ION18SB-HYB. This shows the battery compartment and the electrical cord connection point, highlighting the dual power options.

Продукт бүттүview Video

Видео: An official product video from Snow Joe providing an overview of the iON18SB-HYB 40-Volt iONMAX Hybrid Brushless Single Stage Snowblower Kit, including its features and benefits.

Иштөө нускамалары

Follow these steps for safe and effective snow removal.

1. Кар тазалагычты ишке киргизүү: Ensure the correct power source (battery or corded) is selected. Press and hold the safety button, then pull the bail switch lever towards the handle. The auger will begin to rotate.
2. Кар тазалоо: Push the snow blower forward at a comfortable pace. The 18-inch clearing width and 8-inch clearing depth are ideal for light to moderate snowfalls. Avoid forcing the machine through heavy, wet snow, as this can cause it to bog down.
3. Трубаны жөндөө: Use the 180° adjustable chute control to direct the snow stream up to 20 feet away. This helps to prevent snow from being thrown onto cleared areas or neighboring properties.
4. Using the LED Headlight: For nighttime operation, activate the integrated 3W LED headlight to illuminate your path and enhance visibility.
5. Скрепер тилкеси: The integrated scraper bar at the base of the unit allows you to clear snow right down to the ground without damaging your deck or pavement.
6. Кар тазалагычты токтотуу: Release the bail switch lever to stop the auger. For complete shutdown, remove the battery or unplug the extension cord.

Сүрөт: A person operating the Snow Joe ION18SB-HYB Hybrid Snow Blower on a snowy path, demonstrating its use in clearing snow. The snow is being efficiently thrown to the side.

Сүрөт: A close-up of the 3W LED headlight on the handle of the Snow Joe ION18SB-HYB, showing its design and illumination for use in low-light conditions.

Операциянын демонстрациялык видеосу

Видео: A short video demonstrating the Snow Joe iON18SB-HYB in action, showing how it clears a path and moves snow effectively.

Техникалык тейлөө

Үзгүлтүксүз тейлөө оптималдуу иштешин камсыздайт жана кар тазалоочу аппаратыңыздын иштөө мөөнөтүн узартат.

• Тазалоо: After each use, clear any remaining snow or debris from the auger housing and chute. Use a non-abrasive cloth to wipe down the exterior.
• Шнекти текшерүү: Periodically inspect the rubber auger blades for wear or damage. Replace worn blades to maintain effective snow clearing.
• Батареяга кам көрүү: Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, ensure the battery is partially charged (around 50%).
• Шнур текшерүү: If using corded operation, regularly inspect the extension cord for any cuts, fraying, or damage. Replace damaged cords immediately.

Проблемаларды чечүү

If you encounter issues with your Snow Joe iON18SB-HYB, refer to the following common troubleshooting tips:

• Snow Blower Does Not Start:
  • Check if the battery is fully charged and properly inserted (for cordless mode).
  • Ensure the extension cord is securely plugged in and functional (for corded mode).
  • Verify that the power source selector switch is set to the correct position (DC or AC).
  • Confirm that the safety button is pressed before pulling the bail switch lever.
• Кар ыргытуу аралыгынын кыскарышы:
  • Clear any clogs from the auger housing or discharge chute. Always disconnect power before clearing clogs.
  • Ensure the auger blades are not excessively worn.
  • The snow blower may struggle with very heavy or wet snow. Try taking smaller passes.
• Мотор иштөө учурунда токтойт:
  • The motor may have overheated due to heavy load. Allow it to cool down before resuming operation.
  • Check for obstructions in the auger.
  • If using battery power, the battery may be depleted. Recharge or switch to corded operation.

Техникалык шарттар

Кепилдик жана колдоо

The Snow Joe iON18SB-HYB comes with a full 2-year warranty, ensuring peace of mind regarding your purchase. For warranty claims, technical assistance, or to order replacement parts, please contact Snow Joe customer support directly. Keep your proof of purchase for warranty validation.

• Кепилдик мөөнөтү: 2 жыл
• Колдоо: Refer to the contact information provided in your product packaging or visit the official Snow Joe webкардарларды тейлөө кызматынын чоо-жайы үчүн сайт.
