Ambach Pressure Spring Instruction Manual

1. Продукт бүтүп калдыview

The Ambach Pressure Spring is a precision-engineered replacement component designed for use in various Ambach kitchen appliances. This spring is crucial for maintaining proper tension and functionality within the appliance's mechanical systems. It is compatible with specific models including GRG-70, SIE-105, SIEC-105, and SIG-105, and is suitable for applications in gas cookers, ceramic hobs, electric ovens, gas ovens, and hot plates.

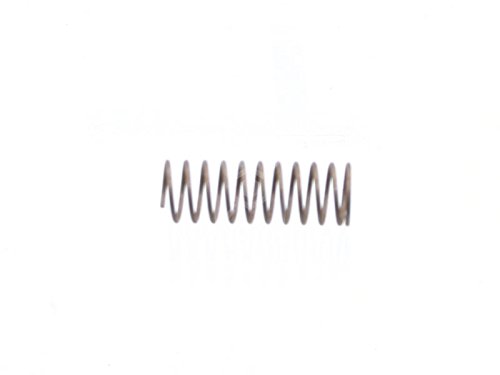

1-сүрөт: An Ambach Pressure Spring. This image displays the spring's coiled structure and metallic finish, indicating its robust construction for appliance mechanisms.

2. Коопсуздук нускамалары

Before attempting any installation or maintenance, please read and adhere to the following safety guidelines:

• Кубатты өчүрүү: Always ensure the appliance is completely disconnected from its power source (unplugged or circuit breaker off) before beginning any work.
• Жеке коргонуу каражаттары: Wear appropriate safety gear, such as gloves and eye protection, to prevent injury from sharp edges or unexpected spring release.
• Этияттык менен мамиле кылуу: Springs can be under tension. Exercise caution when removing or installing to avoid sudden release.
• Туура жайгаштыруу: Ensure the spring is installed in its correct orientation and securely seated to prevent malfunction.
• Кесиптик жардам: If you are unsure about any step or encounter difficulties, consult a qualified technician.

3. Продукциянын компоненттери

The package contains one Ambach Pressure Spring. Please verify the dimensions against your appliance's requirements before installation.

• Диаметри: 14 мм
• Узундугу: 40 мм
• Зым калыңдыгы: 1.15 мм

4. Орнотуу

Follow these general steps for installing the Ambach Pressure Spring. Specific appliance disassembly and reassembly procedures may vary.

1. Шайманды даярдоо: Ensure the appliance is cool and completely disconnected from all power sources.
2. Access Area: Carefully disassemble the necessary parts of your appliance to gain access to the spring's location. Refer to your appliance's specific service manual if available.
3. Эски пружиналарды алып салуу: Identify the old or damaged spring. Using appropriate tools, carefully remove it, noting its exact position and orientation.
4. Жаңы пружина орнотуу: Position the new Ambach Pressure Spring in the same location and orientation as the old one. Ensure it is securely seated and properly engaged with any connecting components.
5. Кайра чогултуу: Reassemble the appliance components in reverse order, ensuring all parts are correctly fitted and secured.
6. Сыноо функциясы: Before restoring power, manually check the mechanism where the spring is installed to ensure smooth and correct movement.
7. Күчтү калыбына келтирүү: Once confident in the installation, reconnect the appliance to its power source and test its full functionality.

5. Операция

The Ambach Pressure Spring operates as an internal component within your appliance. Once correctly installed, it functions automatically as part of the appliance's mechanical system. It is designed to provide consistent tension or resistance, facilitating the proper movement and positioning of other parts. No direct user interaction with the spring is required during normal appliance operation.

6. Техникалык тейлөө

To ensure the longevity and optimal performance of your Ambach Pressure Spring, consider the following maintenance guidelines:

• Үзгүлтүксүз текшерүү: Periodically inspect the spring for any visible signs of wear, corrosion, deformation, or breakage. This should be done during any routine appliance maintenance or if a malfunction is suspected.
• Тазалоо: If accessible and necessary, gently clean the spring with a dry, soft cloth to remove any dust or debris. Avoid using harsh chemicals or abrasive materials that could damage the spring's surface.
• Алмаштыруу: If the spring shows any signs of damage, loss of tension, or is not functioning correctly, it should be replaced immediately with a genuine Ambach replacement part to ensure appliance safety and performance.

7. Кыйынчылыктарды

If your appliance is not functioning as expected after replacing the pressure spring, consider the following troubleshooting steps:

• Туура эмес орнотуу: Double-check that the spring is installed correctly and securely in its designated position. Ensure it is not misaligned or obstructed.
• Spring Damage: Inspect the newly installed spring for any manufacturing defects or damage that might have occurred during installation.
• Башка компоненттери: Verify that other related components in the appliance mechanism are also in good working order and not causing the issue. The spring may not be the sole cause of the malfunction.
• Кесиптик жардам: If the problem persists after checking these points, it is recommended to consult a qualified appliance technician for diagnosis and repair.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Information regarding specific warranty terms for this Ambach Pressure Spring is not available in the provided product data. For warranty inquiries or technical support, please refer to the documentation provided with your original appliance or contact the seller or Ambach customer service directly. Please have your product model and part number ready when seeking support.
