Introduction
This manual provides essential information for the proper use and maintenance of the Hakko T18 Series Chisel Soldering Tip Pack. This pack includes five distinct chisel tips: T18-D08, T18-D12, T18-D24, T18-D32, and T18-S3. These tips are designed for use with Hakko FX-8801, FX-888, 900M, 907, and 913 soldering irons, offering versatility for various soldering applications.
Image: The complete Hakko T18 Series Chisel Soldering Tip Pack, featuring all five tips.
Product Features and Tip Descriptions
The Hakko T18 series tips are constructed from alloy steel and copper, designed for efficient heat transfer and durability. Each tip in this pack serves a specific purpose:
T18-D08 Chisel Tip (0.8 x 14.5mm)
Сүрөт: Жакын план view of the T18-D08 chisel tip.
This fine chisel tip is suitable for precision soldering tasks, such as working with small pins or components under magnification. Its narrow profile allows access to confined spaces on circuit boards.
T18-D12 Chisel Tip (1.2 x 14.5mm)

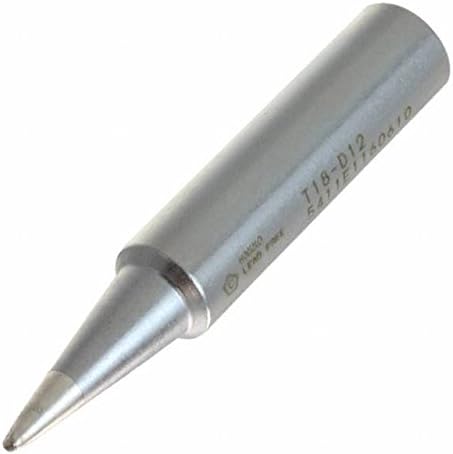

Сүрөт: Жакын план view of the T18-D12 chisel tip.
A versatile tip for delicate pins and general electronics. It offers a balance between fine control and sufficient contact area for common components like resistors and integrated circuit chips.
T18-D24 Chisel Tip (2.4 x 14.5mm)
Сүрөт: Жакын план view of the T18-D24 chisel tip.
This medium-sized chisel tip is well-suited for general electrical work, including soldering medium-gauge wires or attaching larger modules to circuit boards. It provides a good thermal mass for consistent heat delivery.
T18-D32 Chisel Tip (3.2 x 14.5mm)
Сүрөт: Жакын план view of the T18-D32 chisel tip.
A larger chisel tip designed for components with higher thermal capacity or for soldering medium to heavy-gauge wires. It ensures efficient heat transfer to larger solder joints.
T18-S3 Chisel Tip (5.2 x 18mm)
Сүрөт: Жакын план view of the T18-S3 chisel tip.
This is the largest chisel tip in the pack, intended for applications requiring significant thermal mass, such as soldering large components, heat sinks, or heavy-gauge wires. It is also suitable for tasks like spot welding with solder or large glass soldering projects.
Орнотуу жана орнотуу
Proper installation of soldering tips is crucial for optimal performance and safety. Follow these general guidelines:
- Өчүрүү: Always ensure your soldering station is powered off and unplugged before changing tips.
- Муздатуу: Allow the existing tip to cool completely to prevent burns.
- Эски кеңешти алып салуу: Carefully remove the retaining nut or sleeve, then slide out the old tip.
- Жаңы кеңеш киргизүү: Insert the desired Hakko T18 series tip into the heating element. Ensure it is fully seated.
- Коопсуз кеңеш: Re-attach and tighten the retaining nut or sleeve. Do not overtighten.
- Баштапкы калайлоо: After installation and powering on the soldering station, allow the tip to reach operating temperature. Immediately tin the new tip with a small amount of solder to prevent oxidation and ensure proper heat transfer.
Refer to your specific Hakko soldering iron or station manual for detailed instructions on tip replacement.
Иштөө нускамалары
Effective soldering requires proper technique and tip selection. Consider the following:
- Tip Selection: Choose the appropriate T18 tip size for the component and pad/wire size. Smaller tips (T18-D08, T18-D12) are for fine pitch components, while larger tips (T18-D24, T18-D32, T18-S3) are for larger components or those with high thermal mass.
- Температураны жөндөө: Set your soldering station to the recommended temperature for your solder type and application. Avoid excessively high temperatures, which can degrade tips faster.
- Калайылоо: Always keep the tip tinned with a thin layer of solder. This improves heat transfer and protects the tip from oxidation.
- Contact and Heat Transfer: Apply the tip to both the component lead and the pad simultaneously to heat them evenly. Once both are hot, apply solder to the joint, not directly to the tip.
- Тазалык: Жарнаманы колдонуп, учун үзгүлтүксүз тазалап туруңузamp ашыкча ширетүүнү жана флюс калдыктарын кетирүү үчүн иштөө учурунда губка же жез жүн колдонуңуз.
- Сактагыч: When not in use, ensure the tip is tinned before returning the iron to its stand.
Техникалык тейлөө
Proper maintenance extends the life of your Hakko T18 soldering tips:
- үзгүлтүксүз тазалоо: Жарнама колдонууamp cellulose sponge or brass wire cleaner to wipe the tip frequently during soldering. This removes oxidized solder and flux.
- Кайра калайлоо: If a tip becomes oxidized and solder does not adhere well, clean it thoroughly and re-tin it immediately. Specialized tip activators can be used for heavily oxidized tips, but sparingly.
- Абразивтерден качыңыз: Do not use abrasive materials like sandpaper or files to clean tips, as this removes the protective plating and significantly shortens tip life.
- Туура сактоо: Always tin the tip with fresh solder before storing the iron or turning off the station. This protective layer prevents oxidation when the tip cools.
- Зыянды текшерүү: Periodically inspect tips for pitting, excessive wear, or damage to the plating. Replace worn tips to maintain soldering quality.
Проблемаларды чечүү
Common issues encountered with soldering tips and their potential solutions:
- Ширетүүчү учка жабышпай жатат:
- Себеби: Учтун кычкылданышы же калайлоо жетишсиз.
- Чечим: Clean the tip thoroughly with brass wool or a damp sponge, then immediately re-tin with fresh solder. If heavily oxidized, use a tip tinner/activator.
- Жылуулук өткөрүмдүүлүгү начар:
- Себеби: Oxidized tip, incorrect temperature, or loose tip installation.
- Чечим: Ensure the tip is clean and well-tinned. Verify the soldering station temperature setting. Check that the tip is securely seated in the iron.
- Учтун чуңкурланышы же эрозия:
- Себеби: Excessive temperature, aggressive flux, or prolonged contact with components.
- Чечим: Lower the soldering temperature if possible. Use appropriate flux for your application. Avoid leaving the tip in contact with components for extended periods. Replace severely pitted tips.
Техникалык шарттар
| Бренд | Hakko |
| Модель номери | 43211-16103 |
| UPC | 818497013058 |
| Tip Types Included | T18-D08, T18-D12, T18-D24, T18-D32, T18-S3 |
| Tip Dimensions | 0.8mm x 14.5mm (D08) to 5.2mm x 18mm (S3) |
| Blade Edge | Flat (Chisel) |
| Бычактын материалы | Эритме болот |
| Дене материалы | Жез |
| Элемент Салмагы | 1.44 ounces (total pack) |
| Шайкештик | Hakko FX-8801, FX-888, 900M, 907, 913 Soldering Irons |
Кепилдик жана колдоо
For specific warranty information and technical support regarding your Hakko T18 Series Soldering Tips, please refer to the documentation provided with your Hakko soldering station or visit the official Hakko website. Hakko products are known for their quality and durability, and proper care ensures long-lasting performance.
For further assistance, you may contact Hakko customer service directly through their official channels.
