beyerdynamic DT 1770 Pro Studio гарнитура

Introduction

The beyerdynamic DT 1770 Pro is a professional studio reference headphone designed for mixing, mastering, monitoring, and recording applications. Featuring Tesla 2.0 technology, these closed-back headphones deliver precise and powerful sound reproduction. This manual provides essential information for the proper setup, operation, and maintenance of your DT 1770 Pro headphones.

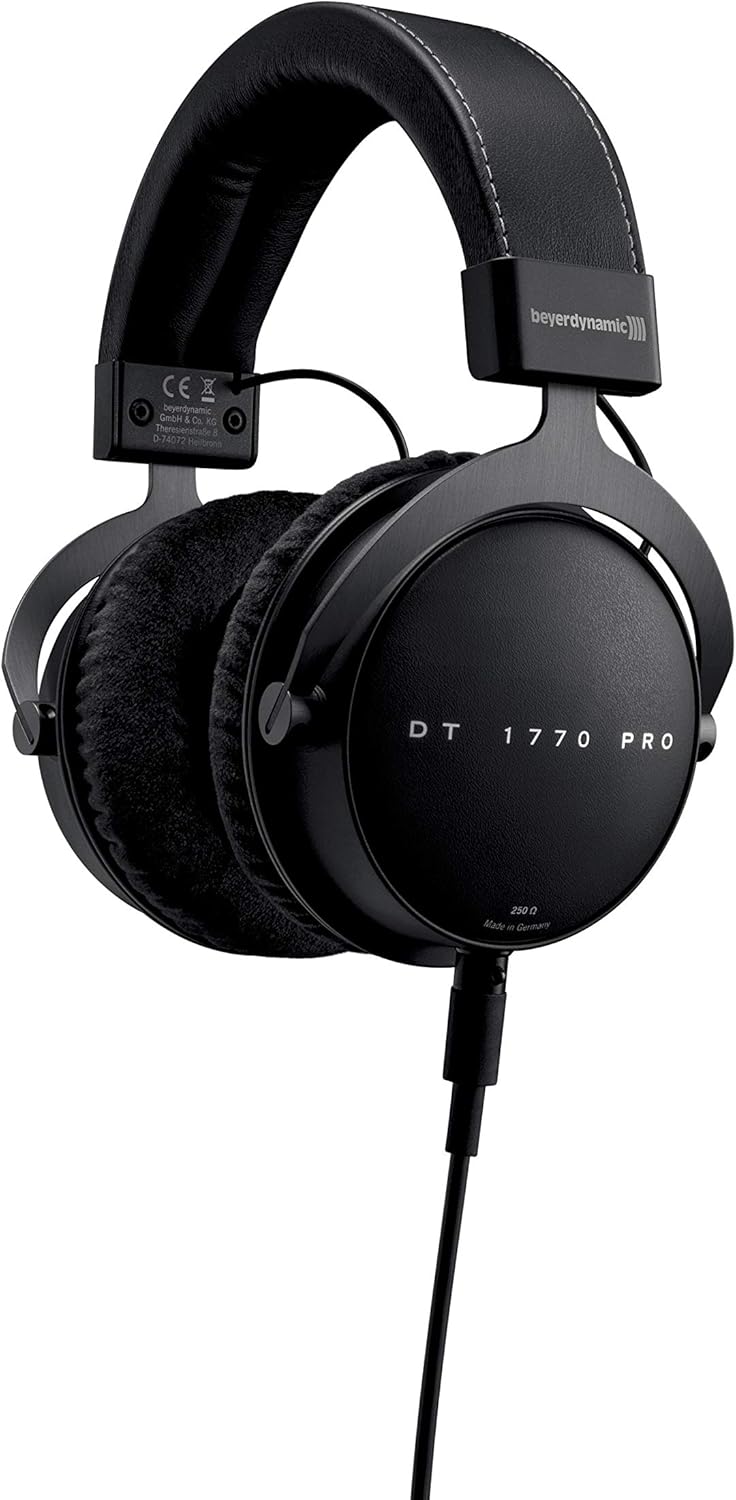

Image: beyerdynamic DT 1770 Pro Studio Headphones, front view.

Жайгашуу

Follow these steps to set up your beyerdynamic DT 1770 Pro headphones:

1. Пакеттен чыгаруу: Carefully remove all components from the premium carrying case. The package includes the headphones, two sets of ear pads (velour and leatherette), two detachable cables (one coiled, one straight 3m), and a 1/4" adapter.
2. Attaching Ear Pads: Select your preferred ear pads. The velour pads offer a breathable feel, while the leatherette pads provide enhanced sound isolation. Align the ear pad with the earcup and gently stretch it around the rim until it is securely seated.
3. Кабелди туташтыруу: The DT 1770 Pro features a single-sided, detachable cable with a mini-XLR connector. Insert the mini-XLR end of your chosen cable (coiled or straight) into the port on the left earcup until it clicks securely into place.
4. Аудио булагына туташуу: Connect the other end of the cable (3.5 mm jack) to your audio device. If your device requires a 1/4" connection, use the included adapter. Ensure the connection is firm.
5. Тууралоо: Adjust the headband to ensure a comfortable and secure fit. The earcups should fully enclose your ears without excessive pressure.

Сүрөт: Жакын план view of the DT 1770 Pro earcup, highlighting the detachable cable connection point.

Иштеп жатат

The DT 1770 Pro headphones are designed for optimal performance with professional audio equipment. Due to their 250 Ohm impedance, a dedicated headphone amplifier or an audio interface with sufficient output power is recommended for optimal sound quality and volume levels.

• Үндү көзөмөлдөө: Adjust the volume directly from your audio source or amplifier. Start with a low volume and gradually increase it to a comfortable listening level.
• Үн изоляциясы: These closed-back headphones provide passive sound isolation, reducing external noise and preventing sound leakage.
• Кеңейтилген колдонуу: The ergonomic design and soft, replaceable ear pads are engineered for comfort during long studio sessions. Take regular breaks to prevent listening fatigue.

Image: A person wearing beyerdynamic DT 1770 Pro headphones, demonstrating typical usage in a studio environment.

Техникалык тейлөө

Proper care ensures the longevity and performance of your headphones:

• Тазалоо: Use a soft, dry cloth to clean the exterior of the headphones. For ear pads, follow specific cleaning instructions provided by beyerdynamic or use a mild, damp кездеме менен ороп, кайра орнотуудан мурун толугу менен кургатыңыз.
• Кулакчыны алмаштыруу: Ear pads are replaceable. If they become worn or damaged, new ones can be purchased from authorized retailers. Refer to the setup section for removal and attachment.
• Кабельге кам көрүү: The detachable cables are designed for durability. Avoid sharp bends or excessive pulling. If a cable becomes damaged, it can be replaced.
• Сактагыч: When not in use, store the headphones in the provided premium carrying case to protect them from dust, moisture, and physical damage.

Проблемаларды чечүү

If you encounter issues with your headphones, consider the following:

• Үн жок:
  • Кабелдин гарнитурага да, аудио булагына да бекем туташканын текшериңиз.
  • Check the volume level on your audio source and any connected ampөмүрлүү.
  • Test the headphones with a different audio source or cable to isolate the problem.
• Бурмаланган үн:
  • Аудио булагыңыздагы үн деңгээлин төмөндөтүңүз.
  • Ensure the audio source is providing a clean signal.
  • Verify that the ear pads are correctly attached and not obstructing the drivers.
• Ыңгайсыз ылайыктуу:
  • Баш боосун кененирээк же катуураак кылып тууралаңыз.
  • Try switching between the velour and leatherette ear pads to find the most comfortable option for extended wear.

Техникалык шарттар

Расмий продукт Video

Кепилдик жана колдоо

For warranty information, technical support, or to purchase replacement parts and accessories, please visit the official beyerdynamic webсайтка же кардарларды тейлөөгө кайрылыңыз. Сиз дагы көбүрөөк маалымат таба аласыз Amazon'догу beyerdynamic дүкөнү.
