Introduction

This manual provides essential instructions for the safe and efficient operation of your PowerWalker AVR 3000 SIV FR Automatic Voltage Regulator. This device is designed to protect your electronic equipment from voltage fluctuations, ensuring a stable power supply. Please read this manual thoroughly before installation and use.

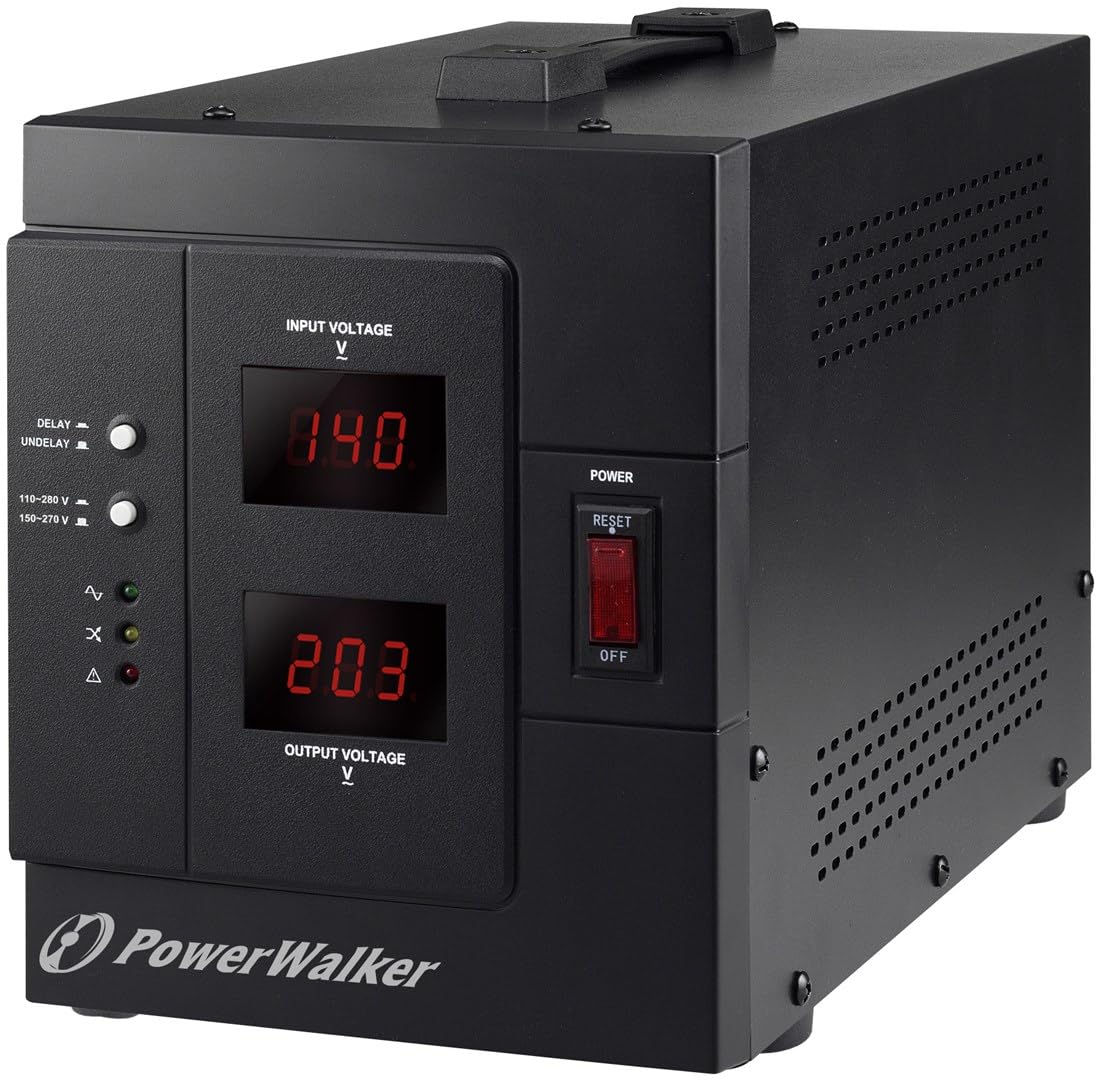

Сүрөт: алдыңкы view of the PowerWalker AVR 3000 SIV FR Automatic Voltage Regulator, showing the display and control panel.

Коопсуздук нускамалары

Observe the following safety precautions to prevent injury or damage to the device and connected equipment:

• Үй ичинде гана колдонуу: This device is intended for indoor use in a controlled environment. Do not expose it to rain, moisture, or direct sunlight.
• Туура Жерге салуу: Ensure the power outlet used is properly grounded. Do not remove the grounding prong from the power cord.
• Вентиляция: Do not block ventilation openings. Allow adequate space around the device for proper airflow to prevent overheating.
• Ашыкча жүктөөдөн качыңыз: Do not connect equipment that exceeds the device's maximum output capacity (2400 Watts / 3000 VA).
• Колдонуучунун тейлөөчү тетиктери жок: Do not attempt to open or repair the device. Refer all servicing to qualified service personnel.
• Суюк жана бөтөн нерселер: Keep liquids and foreign objects away from the device.
• Шашылыш өчүрүү: In an emergency, disconnect the device from the main power supply immediately.

Продукциянын өзгөчөлүктөрү жана компоненттери

Front Panel

Сүрөт: деталдуу view of the front panel, highlighting the display, switches, and indicator LEDs.

• Киргизүү көлөмүtage Дисплей: Shows the current incoming AC voltage.
• Output Voltage Дисплей: Shows the regulated AC voltage supplied to connected devices.
• Delay/Undelay Switch: Controls the output delay function. "DELAY" provides a time delay before output power is supplied, protecting equipment during power fluctuations. "UNDELAY" bypasses this delay.
• Тtage Range Switch: Selects the operating input voltage range (e.g., 110-280 V or 150-270 V). Ensure this matches your local power supply.
• Статус диоддору:
  • Кадимки (жашыл): Indicates stable output voltage.
  • Overload (Yellow): Indicates connected load exceeds capacity.
  • Кемчилик (Кызыл): Indicates an internal error or severe voltagэ маселе.
• Кубат которгучу: Turns the device ON or OFF.
• Калыбына келтирүү баскычы: Used to reset the device after an overload or fault condition.

Арткы панель

Сүрөт: Арткы view of the device, showing the power input and output sockets.

• Киргизүү розеткасы: Connects the device to the main AC power supply using the provided power cord.
• Чыгуу розеткалары: Connect your electronic equipment to these sockets for regulated power.

Жайгашуу

1. Пакеттен чыгаруу жана текшерүү: Carefully remove the AVR from its packaging. Inspect for any shipping damage. If damage is found, do not use the device and contact your supplier.
2. Жайгашкан жери: Place the AVR on a flat, stable surface in a well-ventilated area, away from direct sunlight, heat sources, and moisture. Ensure at least 10 cm (4 inches) of clear space around all ventilation openings.
3. Киргизүү кубаттуулугун туташтыруу: Connect the supplied power cord to the AVR's Input Socket on the rear panel, then plug the other end into a properly grounded wall outlet.
4. Көлөмдү тандооtage диапазону: On the front panel, set the Voltage Range Switch to match your local input voltage (e.g., 110-280 V or 150-270 V). Refer to your local power utility for exact specifications.
5. Жабдууларды туташтыруу: Plug your electronic devices into the Output Sockets on the rear panel of the AVR. Ensure the total power consumption of all connected devices does not exceed 2400 Watts.
6. Баштапкы күйгүзүү: Ensure all connected devices are turned off. Flip the Power Switch on the front panel to the "ON" position. The Input and Output Voltage displays will illuminate.

Иштөө нускамалары

1. Күйгүзүү: After connecting the AVR and your devices, turn on the AVR using the Power Switch. The Input Voltage and Output Voltage displays will show the current readings. The "Normal" LED should illuminate.
2. Understanding Displays:
   • The Киргизүү көлөмүtage Дисплей shows the raw voltage coming from your wall outlet.
   • The Output Voltage Дисплей том көрсөтөтtage being supplied to your connected devices after regulation by the AVR. This value should remain stable around 230V.
3. Delay/Undelay Function:
   • Которуштурууну коюңуз КЕЧИКТИРҮҮ for a time delay (typically 6 seconds) before the output power is supplied. This protects sensitive equipment from rapid power cycling or unstable voltage immediately after a power restoration.
   • Которуштурууну коюңуз UNDELAY if you require immediate power output without a delay.
4. Monitoring Status LEDs:
   • Green (Normal): The AVR is operating correctly and providing stable output.
   • Yellow (Overload): The total power consumption of connected devices exceeds the AVR's capacity. Disconnect some devices and press the Reset button.
   • Кызыл (Кетирүү): An internal error or severe voltage condition has occurred. Turn off the AVR, disconnect it from the wall, and contact support if the issue persists after restarting.
5. Өчүрүү: To turn off the AVR, first turn off all connected devices, then flip the Power Switch to the "OFF" position.

Техникалык тейлөө

• Тазалоо: Regularly clean the exterior of the AVR with a soft, dry cloth. Do not use liquid or aerosol cleaners. Ensure ventilation openings are free from dust and debris.
• Вентиляция: Periodically check that the ventilation openings are not obstructed to ensure proper heat dissipation.
• Сактагыч: If storing the device for an extended period, ensure it is powered off, disconnected from all power sources and devices, and stored in a cool, dry place.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

For warranty information, please refer to the documentation included with your purchase or visit the official PowerWalker website. For technical support or service inquiries, please contact your retailer or the PowerWalker customer service department.
