1. Киришүү
Thank you for choosing the DiaDorn Deposit Safe. This manual provides essential information for the proper installation, operation, and maintenance of your new deposit safe. Please read this manual thoroughly before using the safe to ensure optimal security and longevity of the product. Keep this manual for future reference.
The DiaDorn Deposit Safe is designed to securely store cash, documents, and other valuables, particularly for businesses requiring frequent deposits. Its unique drop-down slot allows for secure deposits without opening the main compartment, ensuring that only authorized personnel with the key can access the contents.
2. Коопсуздук маалыматы
- Коопсуз жайгаштыруу: Always anchor the safe to a solid surface (floor or wall) to prevent unauthorized removal.
- Key Security: Keep the keys in a secure location, separate from the safe, and ensure only authorized individuals have access to them. Do not leave keys inside the safe.
- Балдар жана үй жаныбарлары: Keep children and pets away from the safe, especially when the door is open, to prevent accidents.
- Салмагы: The safe weighs 13 kg. Exercise caution when lifting or moving to prevent injury.
- Тейлөө: Do not attempt to modify or repair the safe yourself. Contact qualified personnel for any issues.
3. Продукт бүтүп калдыview
The DiaDorn Deposit Safe is constructed from durable alloy steel, featuring a 3mm thick steel body and a 6mm thick steel door for enhanced security. It is equipped with a double-bit key lock and two stable steel bolts.
Негизги өзгөчөлүктөрү:
- Security Level A: Built according to VDMA 24992 standards, allowing for potential insurance assessment.
- Depository Function: Features a drop-down slot with retrieval block for secure, quick deposits.
- Мыкты курулуш: Made from alloy steel with a thick steel door.
- Ачкыч кулпусу: Reliable double-bit key lock system.
- Монтаждоо параметрлери: Prepared for both wall and ground anchoring.
Компоненттери:
- Safe Unit
- 2 x Double-bit Keys
- 4 x Heavy Load Anchors (steel dowels)
Өлчөмдөрү жана кубаттуулугу:
- Тышкы өлчөмдөрү (H x W x D): 300 x 280 x 260 мм
- Inside Dimensions (H x W x D): 290 x 270 x 245 мм
- Door Opening (H x W): 155 x 195 мм
- Slot Opening (W x H): 150 x 20 мм
- Салмагы: 13 кг
- Көлөмү: 21.5 liters (approx. 21.84 liters)

Сүрөт 3.1: Алдыңкы view of the DiaDorn Deposit Safe with the door open, showing the interior and included keys.

Сүрөт 3.2: Алдыңкы view of the DiaDorn Deposit Safe in a closed position, highlighting its compact design.

3.3-сүрөт: Детальдуу view of the internal locking mechanism and drop slot design, ensuring secure deposits.
4. Орнотуу жана орнотуу
The DiaDorn Deposit Safe is designed for secure anchoring to a floor or wall. Proper installation is crucial for maximum security.
4.1 Пакеттен чыгаруу:
- Сейфти таңгагынан этияттык менен чыгарыңыз.
- Check for any signs of damage during transit. If damaged, contact your supplier immediately.
- Verify that all components listed in Section 3. Product Overview бар.
4.2 Choosing a Location:
Select a discreet and secure location for the safe. Consider areas that are out of direct view and offer a solid surface for anchoring (e.g., concrete floor, solid wall stud).
4.3 Anchoring the Safe:
The safe comes with pre-drilled holes at the back and bottom for anchoring. Use the provided heavy load anchors (steel dowels) for secure installation.
- Сейфти каалаган жерге жайгаштырыңыз.
- Mark the drilling points through the pre-drilled holes on the floor or wall.
- Move the safe aside and drill holes at the marked points using an appropriate drill bit for the anchors. Ensure the depth is sufficient for the anchors.
- Clean any dust or debris from the drilled holes.
- Сейфти бургуланган тешиктердин үстүнө кайра коюңуз.
- Insert the heavy load anchors through the safe's holes and into the drilled holes.
- Tighten the anchors securely until the safe is firmly fixed to the surface. Do not overtighten.

4.1-сүрөт: Арткы view of the safe, illustrating the pre-drilled holes for wall or floor anchoring.

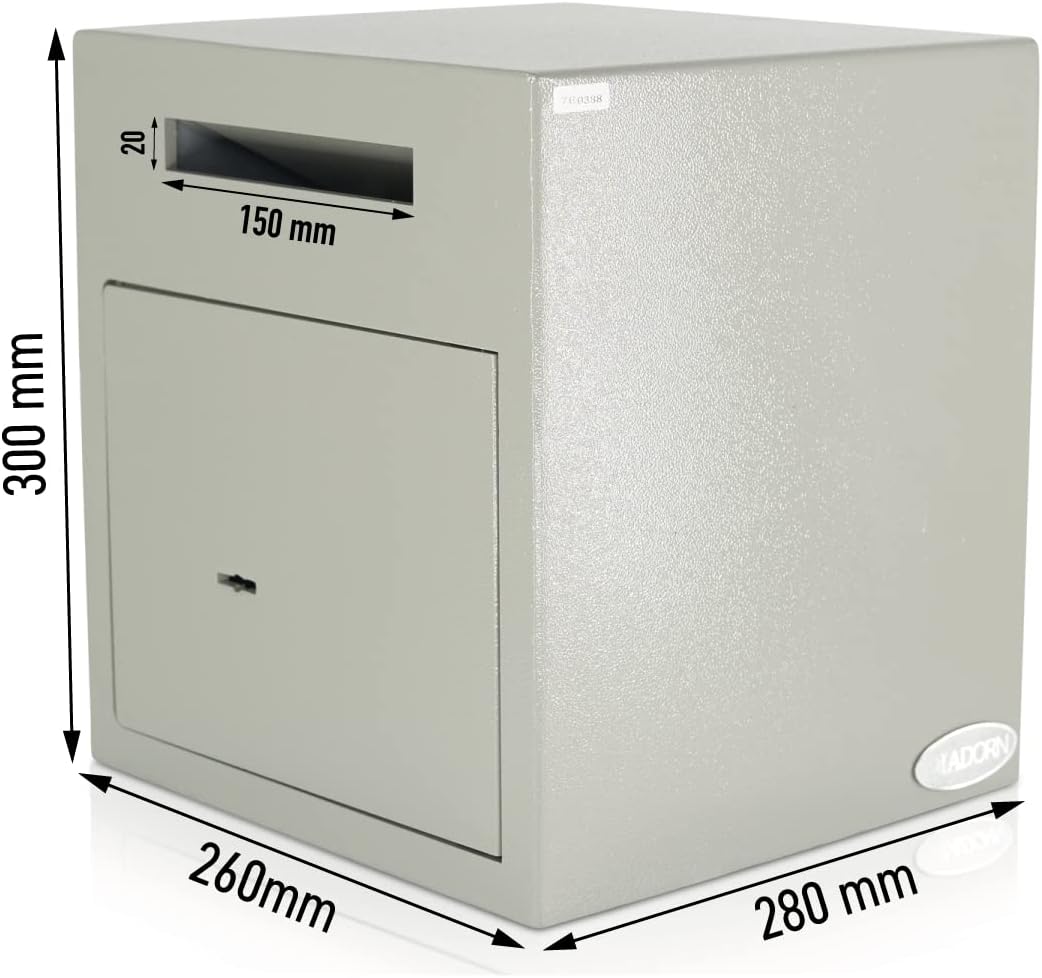

Figure 4.2: Safe dimensions, useful for planning installation space and anchor points.
5. Иштөө нускамалары
5.1 Opening the Safe:
- Insert one of the provided double-bit keys into the keyhole on the safe door.
- Turn the key clockwise (or counter-clockwise, depending on the lock mechanism) until the bolts retract.
- эшикти тарткыла.
5.2 Closing the Safe:
- Push the safe door firmly shut until it is flush with the safe body.
- Turn the key counter-clockwise (or clockwise) to extend the bolts and secure the door.
- Ачкычты алып чыгып, коопсуз жерде сактаңыз.
5.3 Using the Deposit Slot:
The deposit slot allows for items to be dropped into the safe without opening the main door.
- Ensure the main safe door is securely locked.
- Insert cash, envelopes, or small packages into the deposit slot at the top of the safe.
- Push the item completely through the slot. The internal mechanism will prevent retrieval from the outside.
- The deposited items will fall into the main compartment of the safe.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and proper functioning of your DiaDorn Deposit Safe.
- Тазалоо: Сейфтин сыртын жумшак, d менен сүртүңүзamp кездеме. Финишке зыян келтирүүчү абразивдүү тазалагычтардан же эриткичтерден качыңыз.
- Кулпу механизми: Periodically (e.g., every 6-12 months), apply a small amount of graphite powder or a specialized lock lubricant to the keyhole to ensure smooth operation. Do not use oil-based lubricants.
- Илниктер: Check the door hinges for any signs of wear or looseness. If necessary, apply a small amount of light machine oil to the hinge pins.
- Анкерлөө: Periodically check the tightness of the anchoring bolts to ensure the safe remains securely fixed.
- Негизги кам көрүү: Avoid bending or forcing the keys. Store spare keys in a separate, secure location.
7. Кыйынчылыктарды
If you encounter issues with your DiaDorn Deposit Safe, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Ачкыч бурулбайт же катуу. | Dust or debris in lock; lack of lubrication; bent key. | Apply graphite powder to the keyhole. Ensure the key is not bent. Do not force the key. |
| Door does not open after turning key. | Bolts are stuck; door is jammed. | Gently push or pull the door while turning the key. Ensure nothing is obstructing the door. |
| Deposit slot is blocked. | Item too large; foreign object. | Do not force items into the slot. Ensure items fit the dimensions (150 x 20 mm). If a foreign object is stuck, contact support. |
| Орнотуудан кийин коопсуз сезилет. | Anchoring bolts are loose. | Retighten the anchoring bolts. If necessary, re-anchor the safe. |
If the problem persists after attempting these solutions, please contact DiaDorn customer support.
8. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | 700153184199 |
| Бөлүмдүн номери | DD-10101 |
| Өндүрүүчү | DiaDorn |
| Тышкы өлчөмдөрү (H x W x D) | 300 x 280 x 260 мм |
| Inside Dimensions (H x W x D) | 290 x 270 x 245 мм |
| Door Opening (H x W) | 155 x 195 мм |
| Slot Opening (W x H) | 150 x 20 мм |
| Салмагы | 13 кг |
| Volume Capacity | 21.5 liters (approx. 21.84 Liters) |
| Материал | Эритме болот |
| Түс | Боз |
| Кулпу түрү | Key (Double-bit) |
| Коопсуздук деңгээли | A (VDMA 24992) |
| Монтаждоо | Wall Mount / Floor Mount (anchoring material included) |
9. Кепилдик жана колдоо
DiaDorn products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided at the time of purchase or contact your retailer.
For technical support, troubleshooting assistance beyond what is covered in this manual, or to inquire about replacement parts, please contact DiaDorn customer service or your authorized dealer. When contacting support, please have your product model number (700153184199) and purchase details ready.
Note: Unauthorized modifications or repairs to the safe may void the warranty and compromise its security features.
