CamFi CF102 DSLR Camera Remote Control Instruction Manual

1. Киришүү

The CamFi CF102 is a wireless remote control designed to enhance your DSLR photography experience. It allows for instant capture and transmission of photos, multi-device support, time-lapse shooting, and convenient remote viewing, providing greater flexibility and control over your camera.

Image: CamFi DSLR Remote Controller banner highlighting key features.

2. Продукциянын өзгөчөлүктөрү

• Instant Capture & Transmit: Achieve faster transmission speeds than built-in camera Wi-Fi. Connect wirelessly to live view on mobile devices (phones, tablets) or computers (PC, Mac).
• Бир нече камераны колдоо: Compatible with a wide range of DSLR cameras (refer to compatibility list). Supports advanced functions like focus stacking and HDR exposure bracketing, time-lapse on camera, and supports Android, iOS, and PC.
• Time-lapse Shooting: Configure time-lapse settings including shooting time, number of shots, and interval. Ideal for bullet time, 3D modeling, and multi-angle shooting.
• Ыңгайлуу Viewтапкыч: Use your mobile phone or tablet as a remote viewfinder, enabling easy shooting from various angles without awkward physical positioning.

Image: The CamFi CF102 connected to a DSLR camera, wirelessly transmitting live view to a smartphone and tablet, demonstrating instant capture and multi-device support.

3. Пакеттин мазмуну

The CamFi CF102 package typically includes the following items:

• CamFi Remote Camera Controller (CF102 unit)
• Mini USB cable for camera connection
• Micro USB cable for battery charging
• Double screw for hot shoe adapter
• Quick Start Guide
• Таңгактоочу куту

Image: A visual representation of the CamFi CF102 package contents, including the main unit, various cables, and accessories.

4. Орнотуу

1. Charge the CamFi Unit: Connect the Micro USB cable to the CamFi unit and a power source to ensure it is fully charged.
2. Install CamFi Software/App: Download and install the CamFi app on your mobile device (Android/iOS) or the software on your PC/Mac.
3. Connect CamFi to Camera: Use the Mini USB cable to connect the CamFi unit to your DSLR camera's USB port. Ensure your camera is turned on.
4. Power On CamFi: Turn on the CamFi unit. Wait for the network indicator light to stabilize.
5. Connect Device to CamFi Network: On your mobile device or computer, disconnect from your regular Wi-Fi network and connect to the Wi-Fi network broadcast by the CamFi unit (e.g., "CAM NETWORK").
6. Launch CamFi App/Software: Open the CamFi application. It may prompt for a firmware update; follow on-screen instructions if so (do not connect the camera during firmware update).
7. Байланышты текшерүү: Once connected, your camera settings and live view should appear in the CamFi app/software.

5. Иштөө нускамалары

5.1 Негизги операция

• Live View: Access the live feed from your camera on your connected device.
• Алыстан жапкыч: Tap the shutter button in the app to take a photo.
• Adjust Camera Settings: Modify exposure settings (aperture, shutter speed, ISO) directly from the app interface.

5.2 Өркүндөтүлгөн функциялар

• Фокусту топтоо: Utilize the app to set parameters for focus stacking, capturing multiple images at different focus points for enhanced depth of field.
• HDR Bracketing: Configure settings for High Dynamic Range (HDR) photography, capturing multiple exposures to combine into a single image with greater dynamic range.
• Убакыттын өтүшү: Set the interval, number of shots, and duration for automated time-lapse sequences.

Image: The CamFi application interface displayed on a smartphone, illustrating remote control over camera settings and a gallery of captured images.

6. Шайкештик

The CamFi CF102 is designed to be compatible with a wide range of DSLR cameras from various manufacturers. Please refer to the detailed compatibility list below to ensure your camera model is supported.

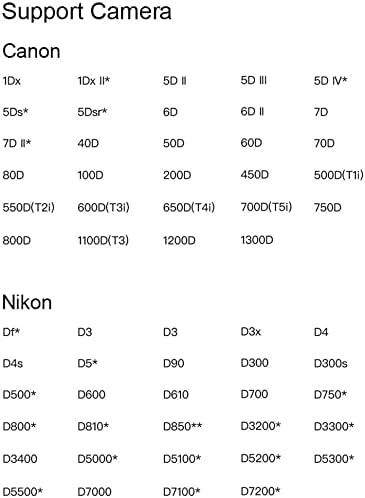

Image: A list detailing compatible Canon and Nikon DSLR camera models for the CamFi CF102. Note: Some cameras may require their original USB cable or may not support live view.

Image: A list detailing compatible Sony DSLR camera models for the CamFi CF102. Note: Some cameras may require their original USB cable or may not support live view.

Маанилүү эскертүүлөр:

• For some cameras, the USB cable included with CamFi may not match. Please use the original USB cable provided with your camera to connect with CamFi.
• Certain camera models may not support live view functionality through the CamFi unit.
• Grayed-out camera models in the compatibility list indicate future support.

7. Техникалык тейлөө

• Тазалоо: Use a soft, dry cloth to clean the CamFi unit. Avoid using liquid cleaners or solvents.
• Сактагыч: Аппаратты күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
• Батареяга кам көрүү: Recharge the internal Lithium Ion battery regularly, even if not in use, to maintain battery health. Avoid fully discharging the battery for extended periods.
• Кабелдик башкаруу: Handle USB cables carefully to prevent damage. Avoid sharp bends or excessive pulling.

8. Кыйынчылыктарды

• Туташуу маселелери:
  • Ensure both the camera and CamFi unit are powered on.
  • Verify your mobile device/computer is connected to the CamFi's Wi-Fi network.
  • Check if the USB cable connecting the CamFi to the camera is securely attached and undamaged. Try using the camera's original USB cable if issues persist.
  • Restart both the CamFi unit and your camera.
• App/Software Crashing:
  • Ensure your device meets the minimum system requirements for the CamFi app/software.
  • Update the CamFi app/software and the CamFi unit's firmware to the latest versions.
  • Close other background applications on your device.
• Slow Transmission:
  • Reduce the distance between the CamFi unit and your receiving device.
  • Башка зымсыз түзмөктөрдүн кийлигишүүсүн азайтыңыз.
  • Ensure the CamFi unit has a clear line of sight to the receiving device.

9. Техникалык шарттар

10. Кепилдик жана колдоо

CamFi offers customer support for their products. For any issues or questions regarding your CF102 Remote Control, please refer to the CamFi customer support center for assistance.

• Кепилдик маалыматы: Specific warranty details may vary. Please consult the product packaging or the official CamFi webэң заманбап кепилдик саясаты үчүн сайт.
• Кардарларды колдоо: Visit the official CamFi website or contact their support team for technical assistance, troubleshooting, and service inquiries.
