1. Киришүү
This manual provides essential instructions for the proper setup, operation, and maintenance of your JMK 007 Mini Pinhole Wireless Colour Camera Surveillance Kit. Please read this manual thoroughly before using the product to ensure optimal performance and safety.
2. Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизде бар экенин текшериңиз:
- 1 x Mini Pinhole Wireless Camera
- 1 x Radio AV Receiver
- 2 x AC/DC Power Adapters
- 1 x Audio/Video (AV) Cable Set
3. Коопсуздук маалыматы
Аппаратка зыян келтирбөө же өзүңүзгө зыян келтирбөө үчүн төмөнкү коопсуздук чараларын сактаңыз:
- Do not expose the camera or receiver to water or excessive moisture.
- Берилген кубат адаптерлерин гана колдонуңуз. Уруксат берилбеген адаптерлерди колдонуу түзмөккө зыян келтирип, кепилдикти жокко чыгарышы мүмкүн.
- Аппаратты экстремалдык температурадан жана тике күн нурунан алыс кармаңыз.
- Аппаратты өзүңүз ачууга же оңдоого аракет кылбаңыз. Бардык тейлөөлөрдү квалификациялуу кызматкерлерге тапшырыңыз.
- Ensure proper ventilation for the receiver during operation.
4. Орнотуу нускамалары
Follow these steps to set up your wireless surveillance system:
- Камераны туташтыруу:
Connect the mini pinhole camera to one of the provided AC/DC power adapters. An optional 9V battery (not included) can be used with the battery clip for portable power. - Камераны жайгаштырыңыз:
Place the camera in the desired surveillance location. Its compact size allows for discreet placement. Ensure the camera lens has a clear view сиз көзөмөлдөгүңүз келген аймак. - Кабылдагычты туташтыруу:
Connect the Radio AV Receiver to its dedicated AC/DC power adapter. - Connect Receiver to Display:
Using the Audio/Video (AV) cable set, connect the 'VIDEO OUT' and 'AUDIO OUT' ports on the receiver to the corresponding 'VIDEO IN' and 'AUDIO IN' ports on your television or monitor. Match the yellow connector for video and the white/red connectors for audio. - Күйгүзүү:
Plug both power adapters into electrical outlets. The power indicator on the receiver should illuminate. - Киргизүүнү тандоо:
On your television or monitor, select the correct AV input channel (e.g., AV1, Video In, Line In) to view камера берүү.

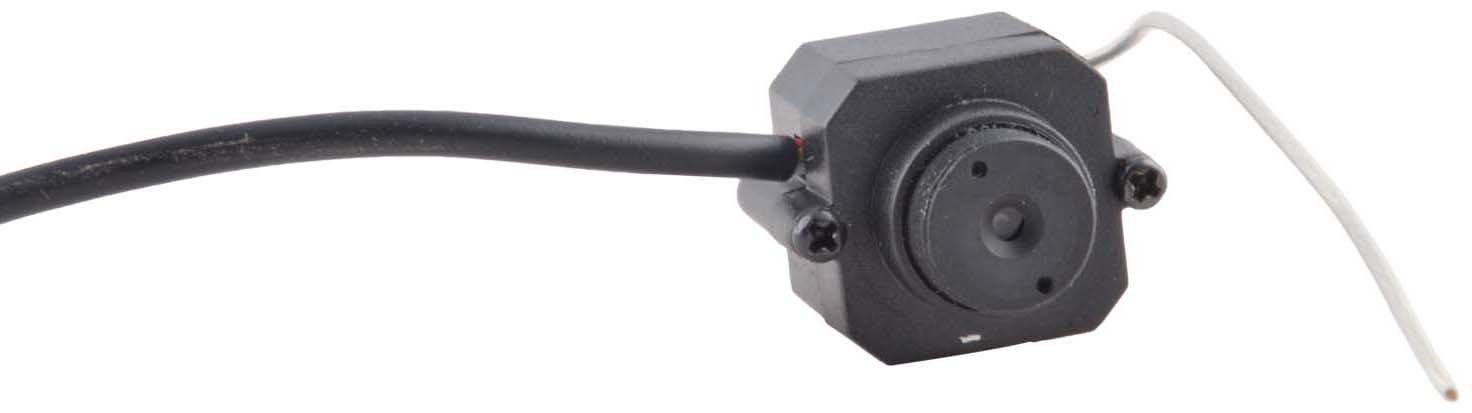

Image 1: The compact JMK mini pinhole camera unit.
Image 2: The mini pinhole camera connected to its AV output cable.
Image 3: The JMK Radio AV Receiver with antenna and AV output ports.
5. Иштөө нускамалары
Once the system is set up and powered on, the camera will automatically transmit video and audio to the receiver. The effective wireless range is approximately 30-60 feet (9-18 meters) indoors, and up to 50 meters (164 feet) in open, unblocked spaces.
- ViewТүрмөктү иштетүү: Ensure your display device is set to the correct AV input channel. The camera's live feed will be displayed.
- Аудио мониторинг: The camera features a built-in microphone for audio monitoring. Ensure your display device's volume is adjusted appropriately.
- Adjusting Receiver: The 'TUNE' knob on the receiver can be used to fine-tune the signal for the clearest picture, especially if experiencing interference.
6. Техникалык тейлөө
To ensure the longevity and optimal performance of your surveillance kit, follow these maintenance guidelines:
- Тазалоо: Use a soft, dry cloth to clean the camera lens and receiver surfaces. Do not use liquid cleaners or abrasive materials.
- Сактагыч: When not in use for extended periods, disconnect the power adapters and store the kit in a cool, dry place, away from direct sunlight.
- Батарея (кошумча): If using a 9V battery, ensure it is replaced when depleted to maintain continuous operation. Remove the battery if the camera will not be used for a long time to prevent leakage.
7. Кыйынчылыктарды
If you encounter issues with your surveillance kit, refer to the following common problems and solutions:
- Сүрөт жок/сигнал:
- Check if both the camera and receiver are properly powered on.
- Ensure the AV cable connections between the receiver and display are secure and correctly matched (video to video, audio to audio).
- Verify that your television/monitor is set to the correct AV input channel.
- Adjust the 'TUNE' knob on the receiver.
- Reduce the distance between the camera and receiver, or remove any obstructions that might be blocking the signal.
- Сүрөттүн сапаты начар/тоскоолдук:
- Adjust the 'TUNE' knob on the receiver for better signal reception.
- Ensure the camera and receiver are not too close to other wireless devices (e.g., Wi-Fi routers, cordless phones) that might cause interference.
- Check for strong electromagnetic fields nearby.
- Аудио жок:
- Check the audio cable connection between the receiver and display.
- Ensure your display device's volume is turned up and not muted.
8. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | KRN121 |
| Продукциянын өлчөмдөрү (LxWxH) | 18.4 x 15 x 6.3 см |
| CMOS Total Pixels | 510 x 492 (NTSC) |
| Horizontal Resolution | 380 телевидение линиясы |
| Натыйжалуу зымсыз диапазон | 15m (Blocked) / 50m (Unblocked) |
| Power Input | DC +9~12V |
| Иштөө температурасы | -10°C ~ +40°C |
| Байланыш технологиясы | Зымсыз |
| Өзгөчөлүктөр | Built-in Microphone for Audio Monitoring |
| Сунушталган Колдонуулар | Baby Monitoring, Surveillance |
9. Кепилдик маалыматы
Specific warranty details for the JMK 007 Mini Pinhole Wireless Colour Camera Surveillance Kit are typically provided at the point of purchase or by the manufacturer. Please retain your proof of purchase for any warranty claims. For detailed warranty terms and conditions, contact your retailer or the manufacturer directly.
10. Колдоо
If you require further assistance or have questions not covered in this manual, please contact the retailer from whom you purchased the product or refer to the manufacturer's official support channels. Ensure you have your product model number (KRN121) and proof of purchase available when seeking support.
