Introduction
Welcome to the user manual for your new Body-Solid Endurance Indoor Exercise Bike ESB150. This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your exercise bike. The ESB150 is designed to offer the benefits and feel of riding a road bike within the comfort of your home. It features a premium design with adjustable handlebars and seat, a quiet and smooth belt drive, and a dual felt pad braking system for consistent resistance, making it ideal for both light commercial and residential settings.

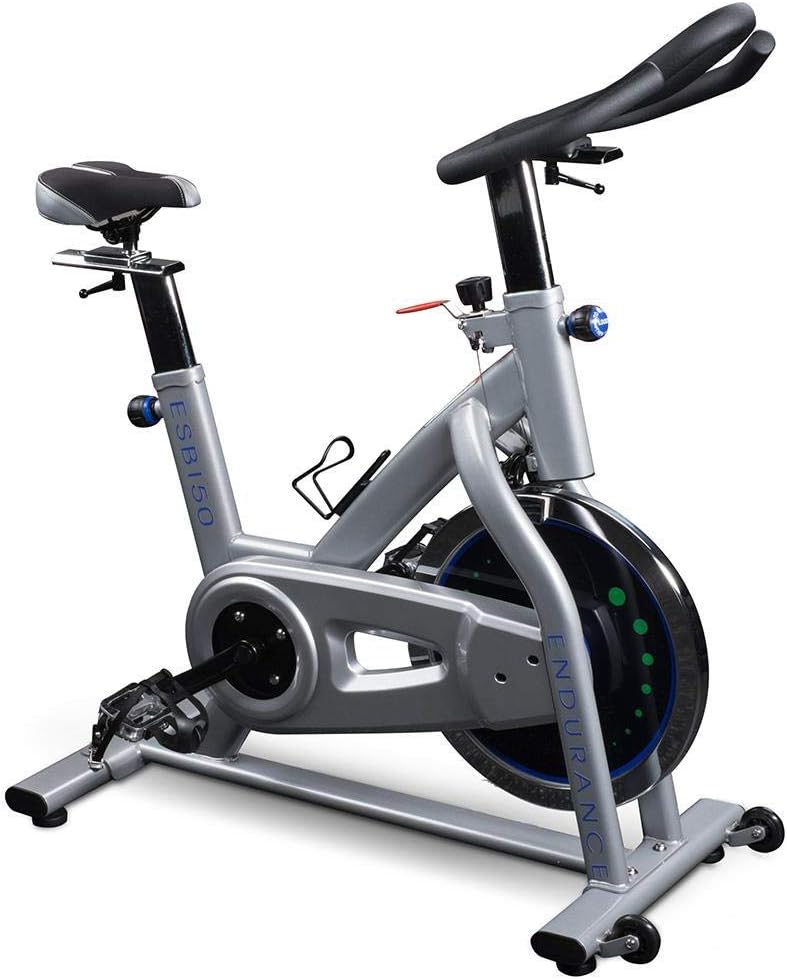

Figure 1: The Body-Solid Endurance Indoor Exercise Bike ESB150, showcasing анын жылмакай дизайны жана бекем алкагы.
Маанилүү коопсуздук маалыматы
Please read all warnings and instructions before using this equipment. Keep this manual for future reference. Failure to follow these instructions can result in serious injury or property damage.
- Кандайдыр бир көнүгүү программасын баштоодон мурун дарыгер менен кеңешиңиз.
- Ensure all parts are properly assembled and tightened before each use.
- Иш учурунда балдарды жана үй жаныбарларын жабдуулардан алыс кармаңыз.
- Велосипедди тегиз, туруктуу бетке, анын айланасында жетиштүү боштук бар жерге коюңуз.
- Тийиштүү көнүгүү кийимин жана бут кийимди кийиңиз.
- 116.6 фунт максималдуу салмагы сунуш ашпагыла.
- Use the emergency stop feature immediately if you feel unwell or experience discomfort.
Ассамблея
The Endurance Indoor Exercise Bike ESB150 requires assembly. Please refer to the separate assembly guide included with your product for detailed, step-by-step instructions. Ensure all components are present and undamaged before beginning assembly. It is recommended to have two people for assembly to ensure safety and ease of installation.
Баштапкы орнотуулар жана тууралоолор
Proper adjustment of the seat and handlebars is crucial for comfort, safety, and effective workouts.
Орунду жөндөө
The seat can be adjusted both vertically and horizontally to accommodate various user heights and preferences. To adjust the seat:
- Locate the adjustment knob beneath the seat post.
- Loosen the knob by turning it counter-clockwise.
- Adjust the seat to the desired vertical height. Ensure your leg has a slight bend at the knee when the pedal is at its lowest point.
- For horizontal adjustment, loosen the knob on the horizontal slider beneath the seat. Slide the seat forward or backward until your knee is directly over the pedal spindle when the pedals are at the 3 and 9 o'clock positions.
- Tighten both adjustment knobs securely before use.
2-сүрөт: Детальдуу view of the ESB150's adjustable seat, highlighting its ergonomic design and robust adjustment mechanism.
Рулду тууралоо
The handlebars can also be adjusted vertically and horizontally for optimal riding posture.
- Locate the blue adjustment knob on the handlebar post.
- To adjust, loosen the knob, then pull it out to release the locking pin.
- Raise or lower the handlebars to a comfortable height. Your back should be straight and your arms slightly bent.
- For horizontal adjustment, loosen the knob on the horizontal slider beneath the handlebars. Slide them forward or backward as needed.
- Release the locking pin into a hole and tighten the knob securely.
Figure 3: The ESB150's multi-grip handlebars, designed for various riding positions and featuring easy height adjustment.
Figure 4: A close-up of the blue adjustment knob for the handlebars, indicating the "TO ADJUST LOOSEN THEN PULL" instruction.
Педал кайыштары
Adjust the pedal straps to secure your feet firmly to the pedals. This prevents your feet from slipping during intense workouts and ensures efficient power transfer.

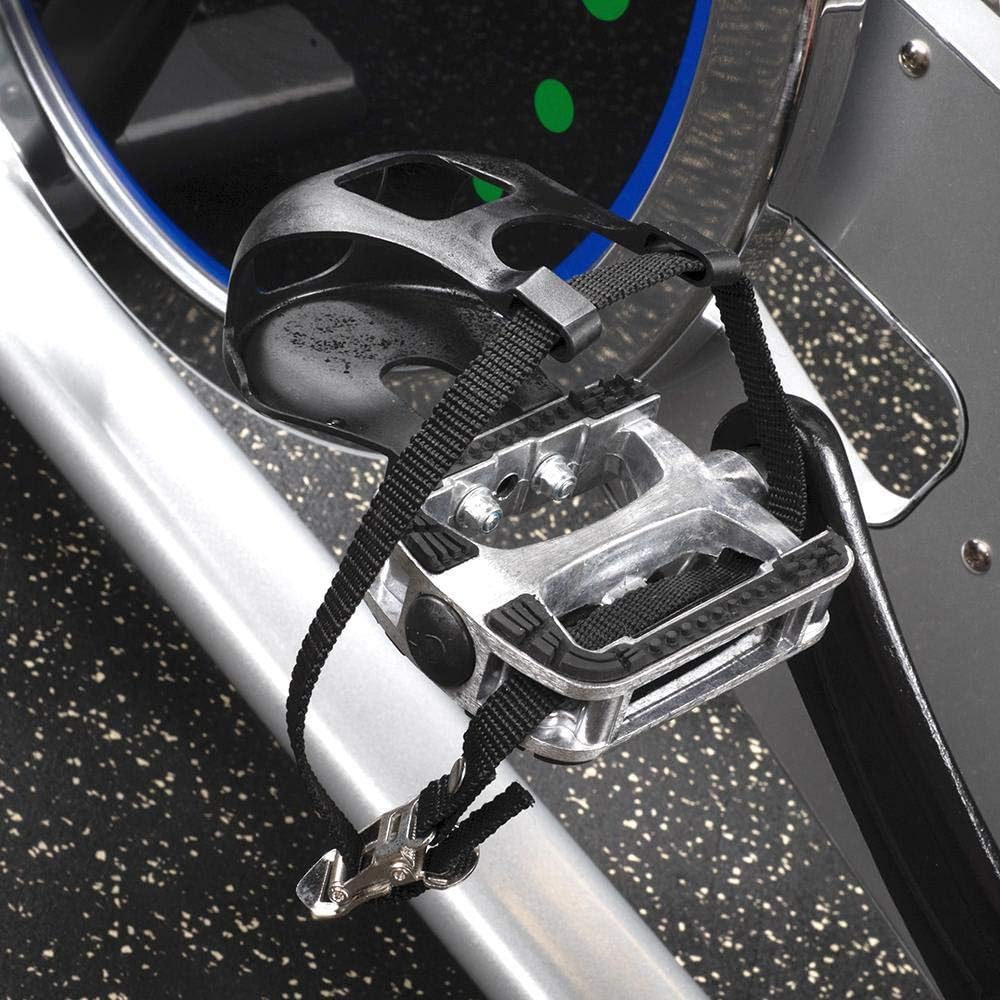

Figure 5: The ESB150's pedals with adjustable straps, designed to keep feet securely in place during exercise.
Иштөө нускамалары
Машыгууну баштоо
Once the bike is properly adjusted, you can begin your workout. The ESB150 features a 40lb flywheel and a quiet, smooth belt drive system for a realistic and consistent cycling experience.

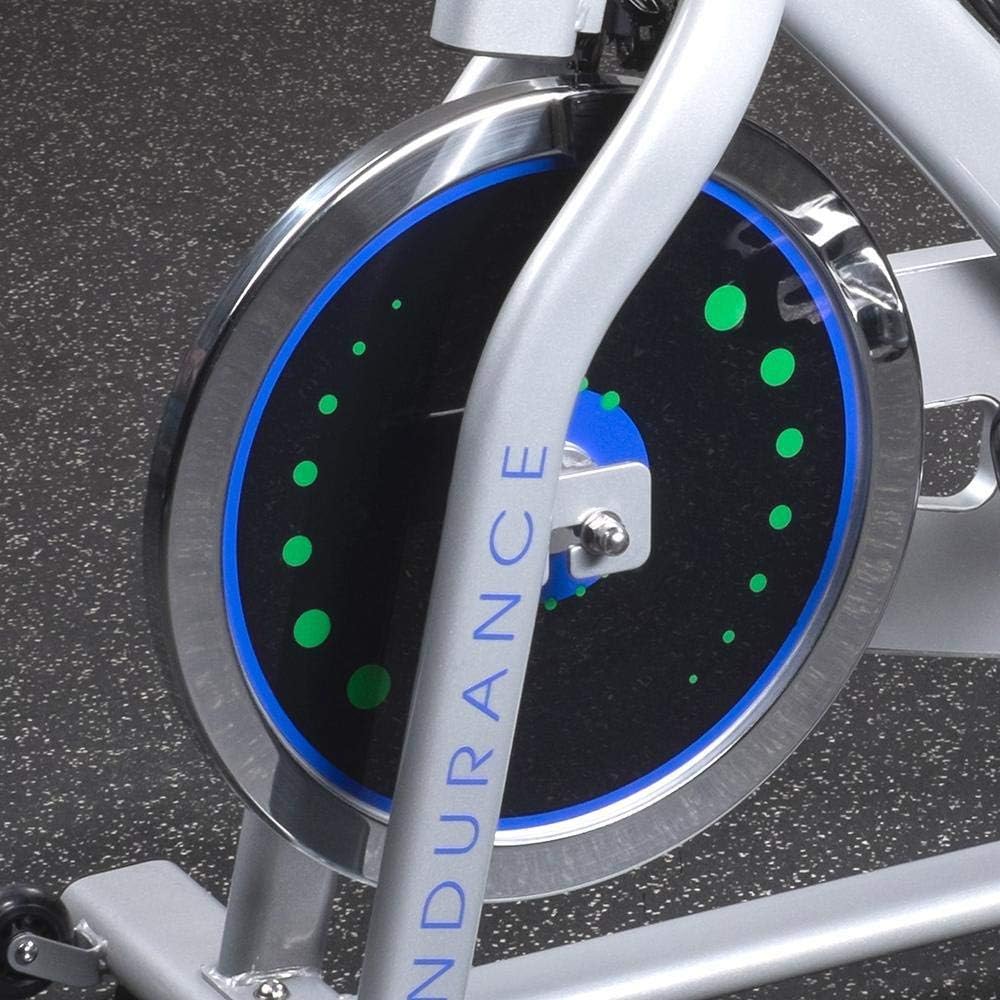

Сүрөт 6: Жакын пландан view of the ESB150's 40lb flywheel, which provides smooth and consistent resistance for effective workouts.
Figure 7: The robust crank and quiet belt drive system of the ESB150, ensuring a smooth and low-maintenance operation.
Каршылыкты тууралоо
The ESB150 uses a dual felt pad braking system to apply smooth, consistent resistance. To increase or decrease resistance:
- Turn the resistance knob clockwise to increase the resistance, making pedaling harder.
- Turn the resistance knob counter-clockwise to decrease the resistance, making pedaling easier.
Figure 8: The resistance adjustment knob and the red "PUSH STOP" emergency brake lever, providing immediate control over your workout intensity and safety.
Шашылыш токтотуу
In case of an emergency or if you need to stop the flywheel quickly, press down firmly on the red "PUSH STOP" lever located near the resistance knob. This will immediately engage the brake and stop the flywheel.
Суу бөтөлкө кармоочу
Stay hydrated during your workout. The ESB150 includes a convenient water bottle holder located on the frame.
Figure 9: The integrated water bottle holder on the ESB150 frame, allowing easy access to hydration during workouts.
Техникалык тейлөө
Regular maintenance will ensure the longevity and optimal performance of your ESB150 exercise bike.
- Тазалоо: Велосипедди жарнама менен сүртүңүзamp терди жана чаңды кетирүү үчүн ар бир колдонуудан кийин чүпүрөк менен сүртүңүз. Абразивдүү тазалагычтардан же эриткичтерден качыңыз.
- Текшерүү: Бардык гайкалардын, болттордун жана кыймылдуу бөлүктөрүнүн бекемдигин жана эскиргендигин мезгил-мезгили менен текшерип туруңуз. Бош бекиткичтерди бекемдеңиз.
- Майлоо: The belt drive system is designed to be low maintenance. Do not lubricate the belt or flywheel.
- Сактагыч: Store the bike in a dry, cool place away from direct sunlight and extreme temperatures. The bike features transport wheels for easy relocation.
Проблемаларды чечүү
This section addresses common issues you might encounter with your ESB150 exercise bike.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Чыйпылдаган үн же ызы-чуу | Loose parts, friction from brake pads. | Check and tighten all bolts. Ensure brake pads are clean and properly aligned. |
| Каршылык өзгөрбөйт | Resistance knob not fully engaged, worn brake pads. | Ensure the resistance knob is turned firmly. If issue persists, contact customer support for brake pad inspection. |
| Колдонуу учурунда туруксуз | Bike not on a level surface, stabilizer caps not adjusted. | Ensure the bike is on a flat surface. Adjust the leveling caps on the base stabilizers until stable. |
Эгер бул жерде көрсөтүлбөгөн маселелерге туш болсоңуз же сунушталган чечимдер көйгөйдү чечпесе, кардарларды колдоо кызматына кайрылыңыз.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Денеси бекем |
| Модель аты | ESB150 |
| Flywheel Салмагы | 40 фунт |
| Drive System | Belt Drive |
| Каршылык көрсөтүү механизми | Friction (Dual Felt Pad) |
| Түзөтүүлөр | Adjustable Seat (Vertical & Horizontal), Adjustable Handlebars (Vertical & Horizontal) |
| Элемент Салмагы | 117 фунт |
| Максималдуу салмак боюнча сунуш | 116.6 фунт |
| Элементтин өлчөмдөрү (LxWxH) | 42.5 x 20 x 43 дюйм |
| Түс | Кара |
| Handle Material | Эритме болот |
| Power Source | Электр зымдары |
| Сунушталган Колдонуулар | Indoor |
| UPC | 638448010147 |
Кепилдик маалымат
The Body-Solid Endurance Indoor Exercise Bike ESB150 comes with the following warranty:
- In-Home Warranty: 5 years on parts, 1 year on labor.
- Light Commercial Warranty: 3 years on parts, 1 year on labor.
Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Body-Solid warranty documentation or contact customer support.
Кардарларды колдоо
For any questions, assistance with assembly, troubleshooting, or warranty inquiries, please contact Body-Solid customer support.
- Webсайт: www.bodysolid.com
- Телефон: Refer to the Body-Solid webаймактык байланыш номерлери үчүн сайт.
- Электрондук почта: Refer to the Body-Solid webкардарларды тейлөө электрондук почтасы үчүн сайт.
When contacting support, please have your model number (ESB150) and proof of purchase readily available.
