Zephyr ZRC-9100A Ductless Recirculating Kit for Monsoon Mini Series Range Hood Inserts Instruction Manual

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of the Zephyr ZRC-9100A Ductless Recirculating Kit. This kit is designed to convert compatible Zephyr Monsoon Mini Series Range Hood Inserts into a ductless configuration, allowing filtered air to be returned to the kitchen space rather than vented externally. Please read all instructions carefully before installation and use to ensure proper function and safety.

2. Коопсуздук боюнча маанилүү маалымат

ЭСКЕРТҮҮ:

• Always disconnect power to the range hood before installing, servicing, or cleaning any part of the unit.
• Орнотуу бардык жергиликтүү коддорго жана стандарттарга ылайык квалификациялуу техник тарабынан аткарылышы керек.
• Wear appropriate personal protective equipment, including gloves and eye protection, during installation.
• Ensure all connections are secure and properly sealed to prevent air leakage.
• This kit is designed exclusively for Zephyr Monsoon Mini Series Range Hood Inserts. Do not attempt to use it with other models or brands.

3. Пакеттин мазмуну

Carefully unpack the kit and verify that all components are present and undamaged. If any parts are missing or damaged, contact Zephyr customer service immediately.

• Ductless Recirculating Kit components (e.g., adapter, housing)
• Charcoal Filter (included)
• Монтаждоочу жабдыктар (буроо, кашаа ж.б.)
• Орнотуу боюнча нускамалар (бул колдонмо)

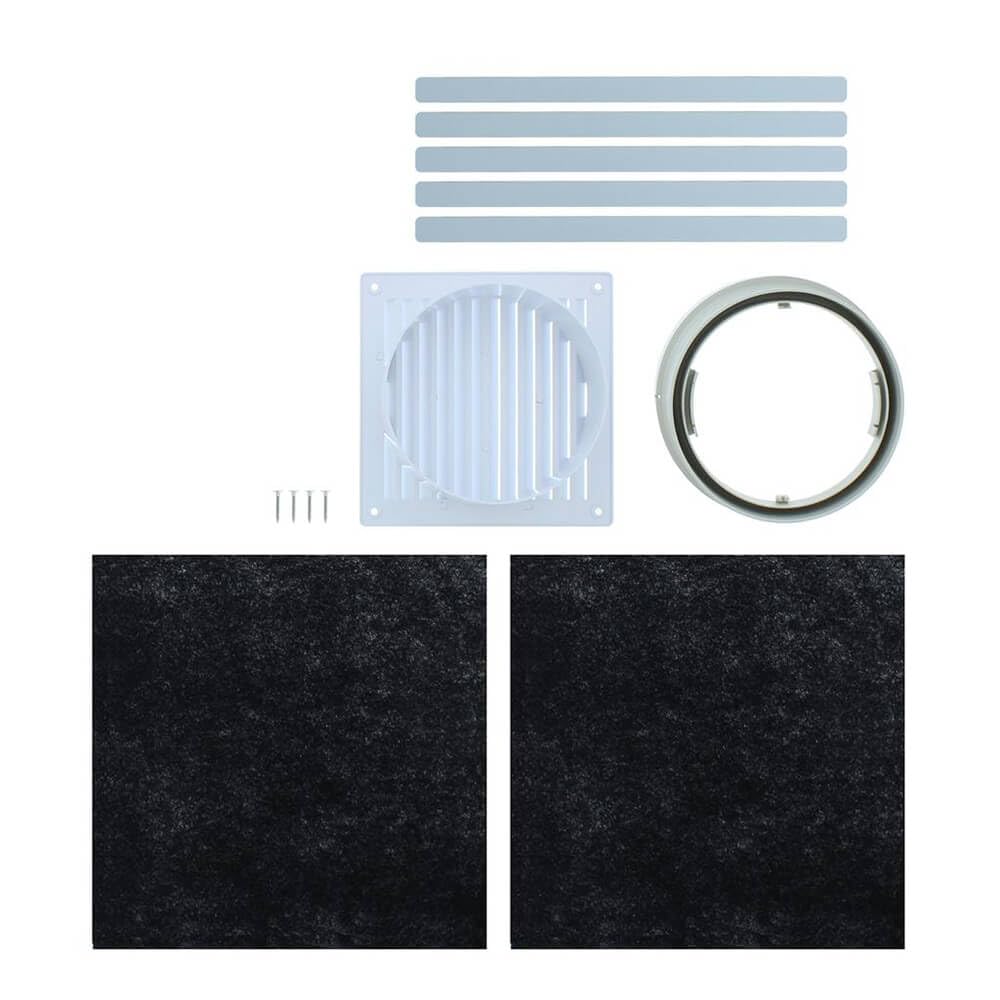

Image 1: Components of the Zephyr ZRC-9100A Ductless Recirculating Kit. This image displays the primary parts of the kit, including the charcoal filter and the metal housing designed for ductless conversion.

4. Орнотуу жана орнотуу

The ZRC-9100A kit converts your Monsoon Mini Series Range Hood Insert for ductless operation. This process involves installing the recirculating components and charcoal filter to allow air filtration and return into the kitchen.

1. Капюшонду даярдоо: Ensure the Monsoon Mini range hood insert is properly installed in its cabinet or enclosure according to its own installation manual. Disconnect power to the range hood at the circuit breaker.
2. Attach Recirculating Adapter: Locate the exhaust outlet on the top of your Monsoon Mini range hood. Attach the recirculating adapter (if separate) or the main recirculating housing to this outlet. Secure it using the provided screws or fasteners, ensuring a tight seal.
3. Көмүр чыпкасын орнотуу: Open the filter access area on the recirculating kit or the range hood itself (refer to your range hood manual for specific filter access). Insert the charcoal filter into its designated slot. Ensure it is seated correctly and securely. The charcoal filter is crucial for removing odors and smoke particles in a ductless setup.
4. Route Air Discharge: The recirculating kit is designed to discharge filtered air back into the kitchen. Ensure that the discharge vents of the kit are not obstructed. Some kits may require a grille or vent cover to be installed on the cabinet above the range hood.
5. Акыркы текшерүүлөр: Double-check all connections and ensure the kit is securely mounted. Restore power to the range hood.

For detailed visual guidance, refer to the specific installation diagrams provided with your Monsoon Mini range hood insert and this recirculating kit.

5. Иштөө нускамалары

Once the ZRC-9100A Ductless Recirculating Kit is installed, its operation is integrated with your Zephyr Monsoon Mini Series Range Hood Insert. The kit functions passively by filtering the air drawn in by the range hood's fan and then returning the cleaned air to the kitchen.

• Күйөрман операциясы: Operate your range hood's fan as you normally would to remove cooking odors, smoke, and grease.
• Аба чыпкалоо: As air passes through the range hood and then the recirculating kit, the charcoal filter will absorb odors and trap airborne particles.
• Air Return: The filtered air is then discharged back into your kitchen environment.

There are no separate controls for the recirculating kit; its function is entirely dependent on the range hood's fan operation.

6. Техникалык тейлөө

Regular maintenance of the charcoal filter is essential for optimal performance of your ductless recirculating system.

• Көмүр чыпкасын алмаштыруу: The charcoal filter cannot be washed and must be replaced periodically. The frequency of replacement depends on cooking habits and usage. For average use, replace the charcoal filter every 3 to 6 months. Heavy cooking may require more frequent replacement.
• Чыпканы алмаштыруу:
  1. Disconnect power to the range hood.
  2. Access the filter compartment (refer to your range hood manual for specific instructions).
  3. Remove the old, saturated charcoal filter.
  4. Insert a new Zephyr-approved charcoal filter (part number may be found on the filter itself or in your range hood manual).
  5. Secure the filter compartment and restore power.
• Тазалоочу беттер: Wipe down the exterior surfaces of the recirculating kit with a mild, non-abrasive cleaner and a soft cloth as needed.

7. Кыйынчылыктарды

If you experience issues with your Zephyr ZRC-9100A Ductless Recirculating Kit, consult the following common problems and solutions:

If the problem persists after attempting these solutions, contact Zephyr customer support.

8. Техникалык шарттар

• Модел: ZRC-9100A
• Түрү: Ductless Recirculating Kit
• Шайкештик: Zephyr Monsoon Mini Series Range Hood Inserts
• Чыпка түрү: Көмүр
• Материал: Дат баспаган болот
• Элемент Салмагы: 1.56 фунт
• Продукциянын өлчөмдөрү: 1 x 1 x 1 inches (Note: These dimensions may refer to packaging or a component, actual installed size will vary with range hood)
• Камтылган компоненттер: Көмүр чыпкасы
• Өзгөчөлүктөр: Ductless conversion capability with charcoal filtration system

9. Кепилдик жана колдоо

For information regarding the warranty of your Zephyr ZRC-9100A Ductless Recirculating Kit, please refer to the warranty documentation included with your original Zephyr Monsoon Mini Series Range Hood Insert or visit the official Zephyr website. For technical support, replacement parts, or service inquiries, please contact Zephyr customer service directly.

Zephyr Customer Service:

• Webсайт: www.zephyronline.com
• Байланыш маалыматы: караңыз website for current phone numbers and contact forms.
