1. Киришүү
This manual provides essential information for the safe and effective use of the VULCAN-HART Fryer FILTR Hose with Handle (6') Y22281-7. Please read this manual thoroughly before operation to ensure proper handling, maintenance, and to prevent potential hazards.
2. Продукт бүтүп калдыview жана компоненттер

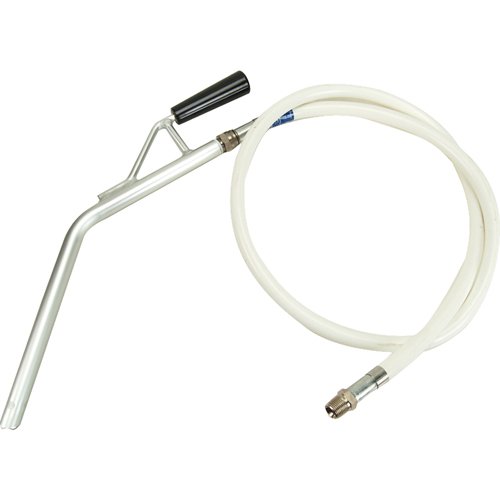

Figure 2.1: VULCAN-HART Fryer FILTR Hose with Handle. This image shows the complete assembly, including the 6-foot white hose, the metal nozzle with a black handle, and the threaded connectors at each end of the hose.
The VULCAN-HART Fryer FILTR Hose with Handle is designed for use with commercial fryer filter systems. It consists of a durable hose and a nozzle with an integrated handle for ease of use during the filtering process.
Негизги компоненттер:
- 6 футтук шланг: A flexible, durable hose designed to withstand the temperatures and substances associated with fryer oil filtration.
- Nozzle with Handle: An ergonomic handle attached to a metal nozzle, providing control and direction during the filtration process.
- Туташтыргычтар: Threaded fittings at both ends of the hose for secure attachment to compatible fryer filter systems.
3. Техникалык шарттар
| Атрибут | Нарк |
|---|---|
| Модель номери | Y22281-7, 228-1262 |
| Узундук | 6 фут (1.83 метр) |
| Салмагы | 2.535 фунт (1.15 кг) |
| Материал | Silicone (Hose) |
| камтыйт | Nozzle with Handle |
| Өндүрүүчү | ВУЛКАН-Харт |
4. Орнотуу жана орнотуу
Before setting up the hose, ensure the fryer and filter system are cool and disconnected from power. Always wear appropriate personal protective equipment (PPE), such as heat-resistant gloves and eye protection, when handling hot oil or equipment.
- Компоненттерди текшерүү: Before each use, visually inspect the hose, nozzle, and connectors for any signs of wear, cracks, or damage. Do not use if any damage is observed.
- Connect to Filter System: Securely attach one end of the hose to the designated outlet on your VULCAN-HART fryer filter system. Ensure the connection is tight to prevent leaks.
- Prepare Fryer: Position the fryer over the filter system's collection tank or drain.
- Позиция сопло: Place the nozzle end of the hose into the fryer's drain or filter pan opening, ensuring it is stable and will not dislodge during operation.
5. Иштөө нускамалары
This hose is designed for transferring hot fryer oil during the filtration process. Follow your fryer and filter system's specific operating instructions in conjunction with these guidelines.
- Initiate Filtration: Once the hose is securely connected and positioned, activate your fryer filter system according to its manufacturer's instructions to begin the oil transfer.
- Агымды көзөмөлдөө: Observe the flow of oil through the hose. The handle provides control for directing the nozzle as needed.
- Толук которуу: Allow all oil to drain from the fryer into the filter system.
- Ажыратуу: Once filtration is complete and the system has cooled, carefully disconnect the hose from both the fryer and the filter system.
Маанилүү коопсуздук эскертүүсү: Always handle hot oil with extreme caution. Ensure the hose is not kinked or obstructed during operation, as this can lead to pressure buildup or spills.
6. Техникалык тейлөө жана кам көрүү
Proper maintenance extends the life of your fryer filter hose and ensures safe operation.
- Тазалоо: After each use, thoroughly clean the hose and nozzle to remove any oil residue. Use appropriate cleaning agents recommended for food service equipment. Rinse thoroughly with hot water.
- Кургатуу: Ensure the hose is completely dry before storage to prevent bacterial growth or degradation of materials.
- Сактагыч: Store the hose in a clean, dry place, away from direct sunlight and extreme temperatures. Avoid kinking or bending the hose sharply during storage.
- Үзгүлтүксүз текшерүү: Periodically inspect the hose for any signs of wear, such as cracks, hardening, or discoloration. Check the integrity of the handle and connectors. Replace the hose if any damage is detected.
7. Кыйынчылыктарды
This section addresses common issues you might encounter with your fryer filter hose.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Oil Leakage at Connection | Loose connection; Damaged O-ring/gasket; Damaged threads. | Tighten connection; Inspect and replace O-ring/gasket; Inspect threads for damage and replace hose if necessary. |
| Reduced Oil Flow | Hose kinked or obstructed; Filter system issue. | Straighten hose; Check for internal blockages and clean; Refer to your filter system's manual for troubleshooting. |
| Hose Appears Stiff or Brittle | Material degradation due to age, heat exposure, or improper cleaning/storage. | This indicates the hose needs to be replaced immediately to prevent rupture during use. |
8. Шайкеш моделдер
This fryer filter hose is compatible with various VULCAN-HART fryer and filter models, including but not limited to:
- VULCAN-HART Fryer Models: 1ER SERIES, 1GR SERIES, 1TR SERIES, 1VK SERIES, 2ER SERIES, 2GR SERIES, 2TR SERIES, 2VK SERIES, 3ER SERIES, 3GR SERIES, 3TR SERIES, 3VK SERIES, 4ER SERIES, 4GR SERIES, 4TR SERIES, 4VK SERIES, 85MF
- VULCAN-HART Fryer Filter Models: MF СЕРИЯСЫ
- VULCAN-HART Fryer Filter Shortening Tank & Pump Models: MF-50, MF-85
For a complete list of compatible models or if your model is not listed, please contact Vulcan customer support.
9. Кепилдик жана колдоо
Specific warranty information for the VULCAN-HART Fryer FILTR Hose with Handle (Y22281-7) is typically provided at the point of purchase or can be found on the official Vulcan webсайт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
For technical support, replacement parts, or further inquiries, please contact Vulcan customer service through their official webсайт же ыйгарым укуктуу дистрибьюторлор.
