Volkswagen OEM сактандыргычы 5C0937629B колдонуу боюнча колдонмо

1. Киришүү

This manual provides essential information regarding the Volkswagen OEM Fuse, part number 5C0937629B. It covers product overview, compatibility, installation guidelines, operational principles, maintenance, troubleshooting, and specifications. This fuse is an original equipment manufacturer (OEM) component designed to meet Volkswagen's stringent quality and performance standards.

2. Продукт бүтүп калдыview

The Volkswagen OEM Fuse 5C0937629B is a critical electrical component designed to protect your vehicle's electrical circuits from overcurrent. In the event of an electrical overload or short circuit, the fuse's metallic element melts, breaking the circuit and preventing damage to more sensitive and costly components.

Негизги өзгөчөлүктөрү:

• OEM сапаты: Manufactured to Volkswagen's original specifications for reliable performance and fit.
• Материал: Constructed from durable metal for effective current interruption.
• Монтаж түрү: Designed for through-hole mounting in designated fuse boxes.

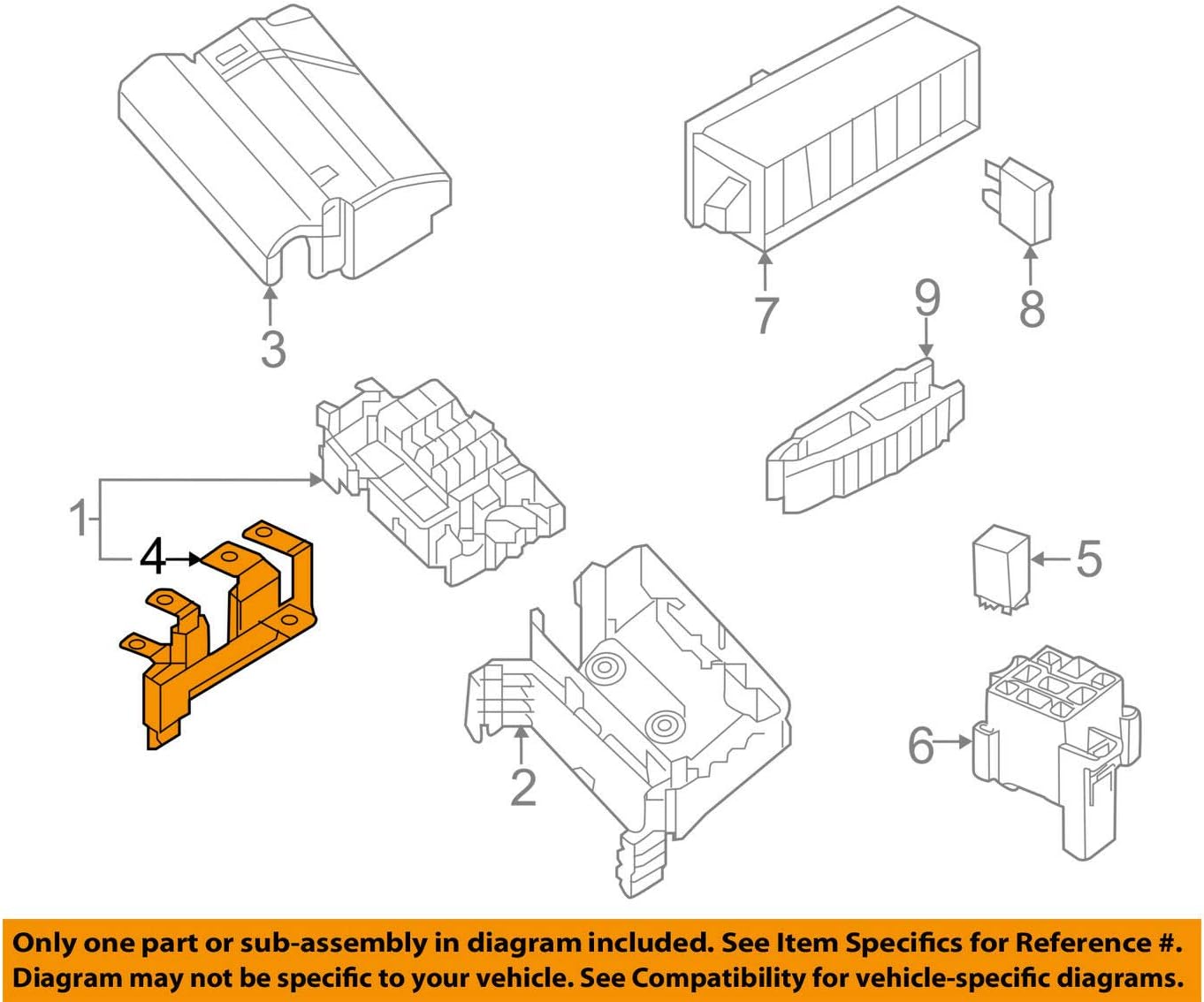

Сүрөт 1: Diagram illustrating the fuse box assembly. The OEM Fuse 5C0937629B is depicted as item #4, highlighted in orange, indicating its position within the larger electrical system.

Сүрөт 2: A detailed close-up of the Volkswagen OEM Fuse 5C0937629B. This image clearly shows the metallic body and the through-hole mounting tabs, which are essential for its secure installation in the vehicle's fuse box.

3. Шайкештик

This fuse is specifically designed for various Volkswagen models. It is crucial to verify compatibility with your specific vehicle's make, model, and year before installation. Always consult your vehicle's owner's manual or a qualified technician to confirm the correct fuse part number for your application.

Сүрөт 3: Part one of the compatibility list for the Volkswagen OEM Fuse 5C0937629B. This image displays a comprehensive list of compatible Volkswagen models, including specific years, trims, and engine configurations. Users should carefully review this list to ensure their vehicle is supported.

Сүрөт 4: Part two of the compatibility list for the Volkswagen OEM Fuse 5C0937629B. This image continues the detailed list of compatible Volkswagen models, providing additional years, trims, and engine specifications. It is essential to cross-reference this information with your vehicle's details.

4. Орнотуу

Safety Warning: Always disconnect the vehicle's battery before working on any electrical components to prevent electrical shock or damage to the vehicle's systems. Consult your vehicle's service manual for specific fuse box locations and procedures.

Жалпы орнотуу кадамдары:

1. Сактандыргыч кутучасын табыңыз: Refer to your vehicle's owner's manual to find the correct fuse box (typically located under the hood, in the dashboard, or in the trunk).
2. Күйүп кеткен сактагычты аныктаңыз: Use the fuse diagram in your owner's manual or on the fuse box cover to identify the specific fuse that needs replacement. A blown fuse typically has a broken wire or discolored element visible through its casing.
3. Эски сактагычты алып салыңыз: Carefully use a fuse puller tool (often found in the fuse box or vehicle toolkit) to extract the blown fuse. Avoid using metal tools that could short circuit other components.
4. Insert the New Fuse: Ensure the replacement fuse (5C0937629B) has the correct amperage rating as specified by your vehicle manufacturer. Insert the new fuse firmly into the empty slot. It should fit snugly.
5. Батареяны кайра туташтыруу: Once the new fuse is securely in place, reconnect the vehicle's battery.
6. Test the Circuit: Turn on the ignition and test the electrical component or system that was previously not working to confirm proper function.

5. Операция

Fuses are passive safety devices. They do not require active operation by the user. Their function is to automatically interrupt an electrical circuit when the current flowing through it exceeds a safe level. This prevents overheating, fire, and damage to electrical components and wiring.

When the fuse operates (blows), it indicates an underlying electrical issue, such as an overloaded circuit or a short circuit. Replacing a blown fuse without addressing the root cause may result in the new fuse blowing again.

6. Техникалык тейлөө

The Volkswagen OEM Fuse 5C0937629B is a maintenance-free component. It is designed for a single-use protective function. Regular maintenance involves periodic visual inspection of the fuse box and its fuses during routine vehicle checks.

Текшерүү боюнча көрсөтмөлөр:

• Visually check fuses for signs of melting, discoloration, or a broken internal wire.
• Ensure fuses are seated correctly and securely in their respective slots.
• If a fuse appears damaged or blown, replace it with an identical OEM fuse of the same ampрейтингди өчүрүү.

7. Кыйынчылыктарды

If an electrical component in your vehicle stops working, a blown fuse is a common cause. Follow these steps to troubleshoot:

1. Identify the Affected Component: Determine which light, radio, power window, or other electrical device is not functioning.
2. Locate the Corresponding Fuse: Consult your vehicle's owner's manual or the fuse box diagram to find the fuse responsible for that component.
3. Сактагычты текшериңиз: Remove the suspected fuse using a fuse puller and visually inspect it. A good fuse will have an intact wire or element. A blown fuse will show a break in the wire or a dark, melted appearance.
4. Replace if Blown: If the fuse is blown, replace it with a new Volkswagen OEM Fuse 5C0937629B of the так ошол эле ampэраж рейтинги. Using a fuse with a higher rating can lead to severe electrical damage or fire.
5. Сыноо: Reconnect the battery if disconnected and test the component.
6. Persistent Issue: If the new fuse blows immediately or the problem persists, there may be a more serious electrical issue (e.g., a short circuit in the wiring or a faulty component) that requires professional diagnosis by a qualified automotive technician.

8. Техникалык шарттар

9. Колдоо жана кепилдик

As an Original Equipment Manufacturer (OEM) part, the Volkswagen Fuse 5C0937629B is backed by Volkswagen's standard warranty for genuine parts. Specific warranty terms and conditions may vary by region and purchase location. Please retain your proof of purchase.

For technical support, warranty claims, or further assistance, please contact your authorized Volkswagen dealership or visit the official Volkswagen service website. Always provide the part number (5C0937629B) and your vehicle's VIN when seeking support.
