This manual provides essential information for the safe installation, operation, and maintenance of your EATON GFCI Self-Test 20A-125V Blank Face Receptacle, Model SGFD20W. This device is designed to protect against dangerous electrical shocks caused by ground faults by automatically interrupting the circuit.

2. Коопсуздук маалыматы

WARNING: Risk of electric shock or electrocution. Installation must be performed by a qualified electrician in accordance with all national and local electrical codes.

• Always turn off power at the circuit breaker or fuse box before installing or servicing the GFCI device.
• Use only copper or copper-clad wire. Do not use aluminum wire.
• Туура жерге туташтырууну камсыз кылуу.
• Do not install in circuits exceeding 125V AC.
• Туура иштешин камсыз кылуу үчүн GFCIди ай сайын сынап көрүңүз.
• This device is intended for indoor use or in suitable weatherproof enclosures for outdoor applications.

3. Продукт бүтүп калдыview

3.1. Компоненттер

• GFCI Blank Face Receptacle
• Color-matched standard size wallplate
• Монтаждоо бурамалар

3.2. Өзгөчөлүктөрү

• Provides protection from dangerous electrical shocks caused by ground faults.
• Automatically self-tests periodically to ensure GFCI protection and continuous safety.
• Features an "End of Life" lockout and denial of power function, preventing reset if protection is compromised.
• Prevents power delivery if miswired during installation.
• Includes built-in indicator lights for quick notification of tripped or end-of-life conditions.

3.3. Product Diagram (Front View)

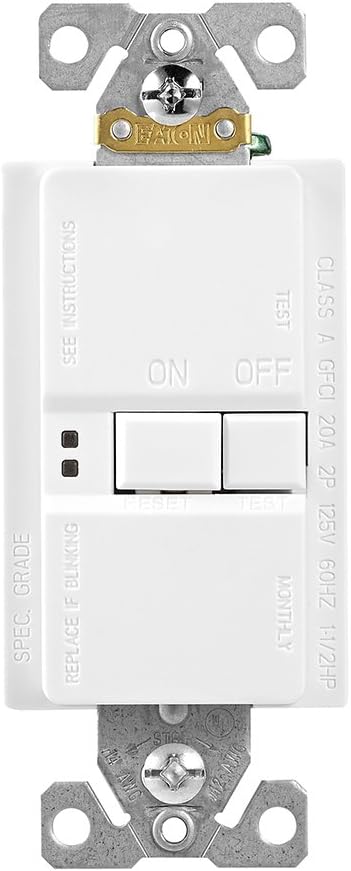

Сүрөт 1: Алдыңкы view of the EATON GFCI Blank Face Receptacle, showing the ON/OFF buttons, TEST/RESET buttons, and indicator lights.

4. Орнотуу жана орнотуу

4.1. Керектүү куралдар

• Бурагыч (Phillips жана/же Flathead)
• Зымдарды сыйрып алуучулар
• Тtage сыноочу
• Электр лента (милдеттүү эмес)

4.2. Электр зымдары боюнча нускамалар

Before beginning, ensure power is OFF at the circuit breaker.

1. Зымдарды аныктоо: Carefully identify the LINE (incoming power) and LOAD (outgoing power to protected devices) wires. Also identify the neutral and ground wires.
2. Тилкелүү зымдар: Strip approximately 1/2 inch (12.7 mm) of insulation from each wire end.
3. Connect LINE Wires: Connect the incoming hot (black) LINE wire to the brass LINE terminal screw and the incoming neutral (white) LINE wire to the silver LINE terminal screw. Tighten securely.
4. Connect LOAD Wires (Optional): If protecting downstream receptacles or devices, connect the outgoing hot (black) LOAD wire to the brass LOAD terminal screw and the outgoing neutral (white) LOAD wire to the silver LOAD terminal screw. Remove the yellow tape covering the LOAD terminals before connecting.
5. Жер зымдарын туташтыруу: Connect the bare copper or green insulated ground wire to the green ground screw.
6. Түзмөктү орнотуу: Carefully fold wires into the electrical box and secure the GFCI device with the provided mounting screws.
7. Wallplate орнотуу: Attach the color-matched wallplate.
8. Күчтү калыбына келтирүү: Автоматтык өчүргүчтөн кубатту кайра күйгүзүңүз.

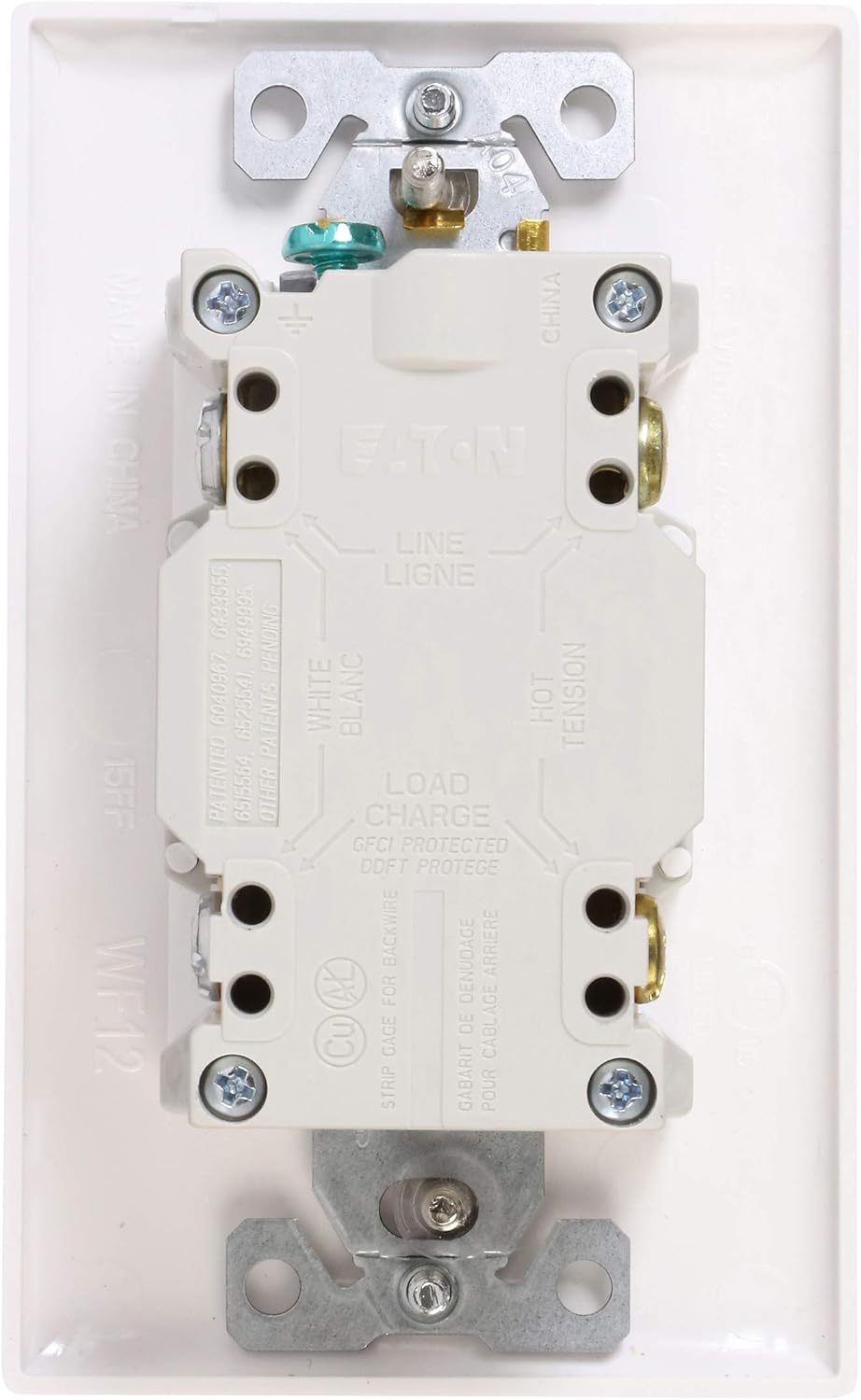

Сүрөт 2: Артка view of the EATON GFCI Blank Face Receptacle, illustrating the LINE and LOAD terminal connections for proper wiring.

5. Иштөө нускамалары

5.1. Баштапкы кубаттуулук

After installation and restoring power, the GFCI device may be in a tripped state. Press the RESET button to restore power. The indicator light should turn green (or off, depending on model and status).

5.2. Self-Test Function

The EATON GFCI device automatically performs periodic self-tests to ensure its protective function is operational. During a self-test, the indicator light may briefly change color or flash. This is normal operation.

5.3. Manual Test and Reset

It is recommended to manually test the GFCI monthly.

1. басыңыз СЫНОО button. The GFCI should trip, and power to the protected circuit will be interrupted. The indicator light will typically turn red or off.
2. басыңыз RESET button. Power should be restored, and the indicator light should return to its normal operating state (green or off).
3. If the GFCI does not trip when the СЫНОО button is pressed, or if it does not reset after tripping, it may be faulty or improperly wired. Discontinue use and consult a qualified electrician.

Сүрөт 3: Алдыңкы view of the EATON GFCI Blank Face Receptacle, showing the location of the TEST and RESET buttons for manual operation.

6. Техникалык тейлөө

6.1. Үзгүлтүксүз текшерүүлөр

• Perform the manual test (Section 5.3) monthly.
• Visually inspect the device and wallplate for any signs of damage or wear.
• Аппаратты чаңдан жана таштандылардан таза жана таза кармаңыз.

6.2. End-of-Life Indication

The GFCI device is equipped with an "End of Life" (EOL) feature. If the device can no longer provide ground fault protection, it will deny power and prevent resetting. The indicator light will typically flash or remain red to signal this condition. If an EOL condition is indicated, the device must be replaced immediately.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

Eaton products are designed for reliability and performance. For specific warranty information, please refer to the documentation included with your purchase or visit the official Eaton website. For technical support or assistance, please contact Eaton customer service.

Итон Webсайт: www.eaton.com
