Intel NUC Kit NUC6i5SYK User Manual

1. Киришүү

This manual provides essential information for setting up, operating, and maintaining your Intel NUC Kit NUC6i5SYK. The Intel NUC is a compact, powerful computing solution designed for a wide range of applications, from home theater to office productivity. It features a 6th generation Intel Core i5-6260U processor and Intel Iris Graphics 540, offering robust performance in a small form factor.

Please read this manual thoroughly before using your device to ensure proper installation and operation.

Figure 1.1: Intel NUC Kit NUC6i5SYK Overview

This image shows the compact design of the Intel NUC Kit NUC6i5SYK, highlighting its small footprint and the various ports available on the front and side, including USB 3.0 and an SDXC card slot.

2. Орнотуу

The Intel NUC Kit NUC6i5SYK is a barebones system, requiring the installation of memory (RAM) and storage (M.2 SSD) before use. Follow these steps for initial setup:

2.1 Unpacking and Component Installation

1. Unpack the NUC: Carefully remove the Intel NUC unit and its accessories from the packaging. The box typically includes the NUC unit, a VESA mounting bracket, and a power adapter with multi-country plugs.
2. Open the Chassis: The top lid of the NUC can be removed to access the internal components. Refer to Figure 2.1 for visual guidance.


Figure 2.1: Opening the NUC Chassis

This image illustrates how the top lid of the Intel NUC Kit NUC6i5SYK can be opened to allow access for component installation.

3. Орнотуу эстутум (RAM): The NUC supports DDR4 SDRAM at 1866 or 2133 MHz, up to 32GB. Locate the SO-DIMM slots on the motherboard and insert the memory modules firmly until they click into place.
4. M.2 SSD орнотуу: The NUC supports M.2 SSD cards of sizes 22x42 or 22x80. Insert the M.2 SSD into the designated slot and secure it with the provided screw.
5. Шассиди жабуу: Carefully replace the top lid and ensure it is securely fastened.

2.2 Перифериялык түзүлүштөрдү туташтыруу

• Дисплей: Connect your monitor or TV using either the HDMI port or the Mini DisplayPort on the rear of the NUC. The NUC supports 4K resolution.


Figure 2.2: Rear Ports of the NUC

This image displays the rear panel of the Intel NUC Kit NUC6i5SYK, highlighting the power input, HDMI port, Ethernet port, two USB 3.0 ports, and the Mini DisplayPort.

• USB түзмөктөрү: Connect your keyboard, mouse, and other USB devices to the available USB 3.0 ports (two on the front, two on the rear). One front USB port supports fast charging.

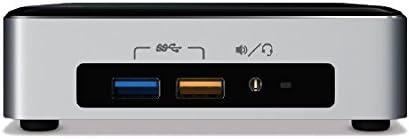

Figure 2.3: Front Ports of the NUC
This image shows the front panel of the Intel NUC Kit NUC6i5SYK, featuring two USB 3.0 ports (one blue, one orange for fast charging) and a combined audio jack.
• Тармак: For wired connectivity, connect an Ethernet cable to the Gigabit Ethernet port. For wireless connectivity, the NUC features integrated Intel Wireless-AC 8260 (802.11ac) and Bluetooth 4.1.
• Күч: Connect the 19V, 65W wall-mount AC-DC power adapter to the NUC and then to a power outlet.

2.3 Операциялық системаны орнотуу

Once hardware is installed and peripherals are connected, you will need to install an operating system (e.g., Windows, Linux). Refer to your chosen operating system's installation guide for detailed instructions. Ensure you download and install the latest drivers from the Intel support webоптималдуу аткаруу үчүн сайт.

3. Operating the NUC

After successful setup and operating system installation, your Intel NUC is ready for use.

3.1 Күйгүзүү/өчүрүү

• Күйгүзүү: Press the power button located on the top of the NUC.
• Өчүрүү: Use the shutdown option within your operating system. Avoid simply unplugging the device to prevent data corruption.

3.2 Байланыш

• Зымсыз: Connect to Wi-Fi networks using the integrated 802.11ac wireless adapter.
• Bluetooth: Pair Bluetooth devices such as keyboards, mice, or audio peripherals using the integrated Bluetooth 4.1.
• SD карта уячасы: Insert SDXC cards into the side slot for easy data transfer.

3.3 BIOS/UEFI Орнотуулары

To access the BIOS/UEFI settings, press the appropriate key (usually F2 or Delete) during startup. The Visual BIOS provides options for configuring boot order, system settings, and fan control. It is recommended to update the BIOS to the latest version from Intel's website for improved stability and performance.

4. Техникалык тейлөө

Regular maintenance helps ensure the longevity and optimal performance of your Intel NUC.

• Желдетүүчү тешиктерди таза кармаңыз: Ensure that the ventilation openings on the NUC are not obstructed to allow for proper airflow and prevent overheating.
• Чаңды тазалоо: Periodically clean the exterior of the NUC with a soft, dry cloth. If dust accumulates inside, use compressed air to gently clear it from components, ensuring the NUC is powered off and unplugged.
• Программалык камсыздоо жаңыртуулары: Regularly update your operating system, drivers, and BIOS/UEFI firmware to benefit from performance improvements, security patches, and bug fixes.

5. Кыйынчылыктарды

This section addresses common issues you might encounter with your Intel NUC.

5.1 Display Output жок

• Кабелдерди текшерүү: Ensure the HDMI or Mini DisplayPort cable is securely connected to both the NUC and the monitor.
• Монитор киргизүү: Verify that your monitor is set to the correct input source (HDMI, DisplayPort).
• Күч: Confirm the NUC is receiving power and the power adapter is functioning correctly.

5.2 System Instability or Freezing

• BIOS жаңыртуу: Ensure your NUC's BIOS is updated to the latest version. Older BIOS versions for this model were known to have stability issues that have since been resolved by Intel.
• Memory/SSD Seating: Power off and unplug the NUC, then re-seat the RAM modules and M.2 SSD to ensure they are properly installed.
• Ашыкча ысып кетүү: Check if the NUC feels excessively hot. Ensure vents are clear and the fan is operating.

5.3 Wi-Fi or Bluetooth Issues

• Драйверди орнотуу: Verify that the correct Intel Wireless-AC 8260 and Bluetooth drivers are installed for your operating system.
• Антенна туташуу: If you opened the NUC, ensure the wireless antenna cables are securely connected to the Wi-Fi module.

For further troubleshooting or issues not covered here, please refer to the official Intel support webсайт.

6. Техникалык шарттар

Key technical specifications for the Intel NUC Kit NUC6i5SYK:

7. Кепилдик жана колдоо

For information regarding product warranty, technical support, and driver downloads, please visit the official Intel support webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.

Онлайн ресурстар:

• Intel NUC Kit NUC6i5SYK Product Support Page
• Intel NUC Driver & Software Downloads
