1. Киришүү
The Max MAX003 is an IP67 certified accessory tool box designed for superior protection of your valuable items. Constructed to be tough, durable, and reliable, this case is suitable for a wide range of applications including marine, photography, scuba diving, hunting, fishing, and industrial use.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Internal Dimensions: 316x195x53mm
- Watertight seal around lid
- Автоматтык басым бошотуучу клапан
- Shock Proof construction
- IP67 Rated for dust and water ingress protection
2. Орнотуу
Before first use, inspect the case for any signs of damage during transit. Ensure all latches operate smoothly and the lid gasket is clean and free of debris.

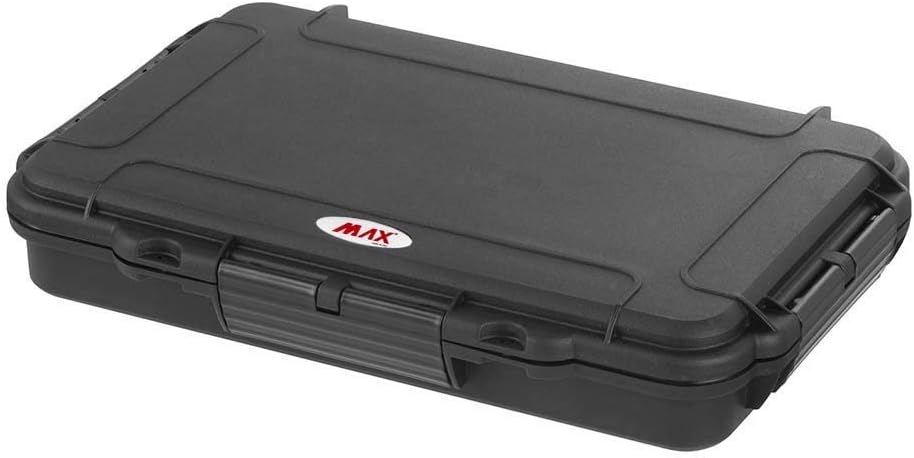

Figure 2.1: Max MAX003 Tool Box in closed position. This image shows the compact and sealed design of the case, highlighting its robust exterior and the prominent Max logo.
2.1 Алгачкы текшерүү
Carefully open the case by disengaging the latches. Check the interior for any foreign objects or manufacturing residues. Wipe down the interior with a clean, damp зарыл болсо, кездеме.
2.2 Басым чыгаруучу клапан
The case is equipped with an automatic pressure release valve. This valve equalizes pressure between the interior and exterior of the case, especially after changes in altitude or temperature, without compromising the watertight seal. No manual operation is required for this feature.
3. Ишти иштетүү
To ensure the IP67 rating and protection, proper closing of the case is essential.
Figure 3.1: Max MAX003 Tool Box in open position. This view reveals the spacious interior compartment, designed to securely hold various accessories and tools.
3.1 Ишти жабуу
- Ensure the lid gasket is clean and properly seated in its groove.
- Align the lid with the base of the case.
- Press down firmly on the lid to engage the gasket.
- Secure all latches by pushing them down until they click into place. Verify that all latches are fully engaged.
3.2 Тиркемелер
The MAX003 is ideal for protecting sensitive equipment from water, dust, and impact. Common uses include:
- Storing and transporting electronic devices (e.g., cameras, tablets, small drones).
- Protecting delicate tools and instruments.
- Securing personal valuables during outdoor activities.
- Use in harsh environments where dust and water protection are critical.
4. Техникалык тейлөө
Regular maintenance will prolong the life and effectiveness of your Max MAX003 case.
4.1 Тазалоо
- Clean the exterior of the case with mild soap and water. Avoid abrasive cleaners or solvents.
- Periodically clean the lid gasket with a damp cloth to remove any dirt or debris that could compromise the seal.
- Ensure the gasket is completely dry before closing the case for long-term storage.
4.2 Прокладканы текшерүү
Inspect the rubber gasket around the lid regularly for cracks, tears, or deformation. A damaged gasket can compromise the watertight seal. If the gasket is damaged, contact the manufacturer for replacement options.
4.3 Сактоо
Store the case in a cool, dry place away from direct sunlight when not in use. For prolonged storage, it is recommended to keep the latches unfastened to prevent compression set on the gasket.
5. Кыйынчылыктарды
If you encounter issues with your Max MAX003 case, refer to the following common problems and solutions.
5.1 Case Does Not Seal Properly
- Маселе: Суунун же чаңдын кириши.
- Чечим: Open the case and thoroughly inspect the lid gasket. Remove any dirt, hair, or debris that may be preventing a complete seal. Ensure the gasket is seated correctly in its groove. Check for any visible damage to the gasket.
- Чечим: Verify that all latches are fully engaged and securely closed. Apply even pressure when closing the lid.
5.2 Latches Are Difficult to Close/Open
- Маселе: Latches are stiff or hard to operate.
- Чечим: Ensure the case is not overpacked, which can put excessive pressure on the latches.
- Чечим: Clean the latch mechanisms. A small amount of silicone-based lubricant (avoid petroleum-based products) can be applied to the pivot points if necessary.
6. Техникалык шарттар
Detailed technical specifications for the Max MAX003 IP67 Rated Accessory Tool Box.

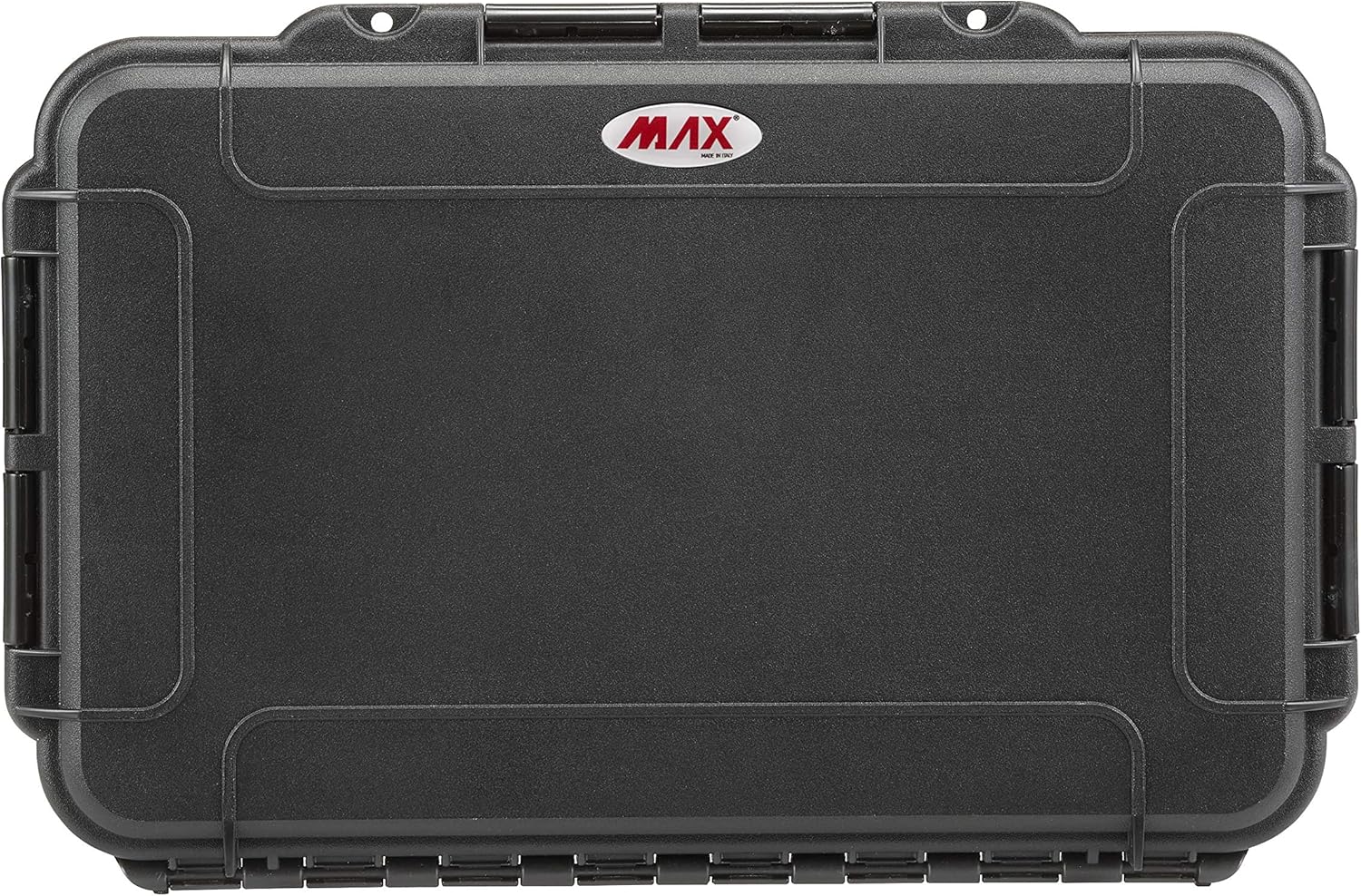

Figure 6.1: Max MAX003 Tool Box, top view. This image provides an overhead perspective, showcasing the textured surface and the robust design of the case lid.
| Атрибут | Нарк |
|---|---|
| Бренд | Макс |
| Модель номери | MAX003 |
| Материал | Пластик |
| Түс | Кара |
| Продукциянын өлчөмдөрү (тышкы) | 12.44"L x 2.09"W x 7.68"H (31.6cm L x 5.3cm W x 19.5cm H) |
| Ички өлчөмдөр | 316мм x 195мм x 53мм |
| Сууга туруктуулук деңгээли | IP67 (Суу өткөрбөйт) |
| Shock Proof | Ооба |
| Автоматтык басым чыгаруучу клапан | Ооба |
| Элемент Салмагы | 1.06 фунт (0.48 кг) |
| Максималдуу салмак боюнча сунуш | 20 килограмм |
| Бөлүмдөрдүн саны | 1 |
| Өндүрүүчү | Plastica Panaro |
| Келип чыккан өлкө | Италия |
7. Кепилдик жана колдоо
For specific warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer. As a product manufactured in Italy, the Max MAX003 adheres to high quality and production standards.
If you require technical assistance or have questions regarding your Max MAX003 case, please reach out to the authorized Max distributor or the point of purchase.
