MAICO WS 320 KET Central Ventilation System

Introduction

This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of your MAICO WS 320 KET Central Ventilation System. The MAICO WS 320 KET is a durable and robust central ventilation unit designed for optimal air quality and energy efficiency in residential and commercial settings. Please read this manual thoroughly before using the device to ensure proper function and longevity.

Коопсуздук нускамалары

Травматизмди же түзүлүшкө зыян келтирбөө үчүн ар дайым төмөнкү коопсуздук эрежелерин сактаңыз:

• Электр коопсуздугу: Ensure the unit is properly grounded. Disconnect power before any installation, maintenance, or repair work. All electrical connections must be performed by a qualified electrician in accordance with local regulations.
• Орнотуу: Install the unit in a dry, well-ventilated area, away from flammable materials. Ensure adequate space for air circulation and maintenance access.
• Колдонуу: The unit weighs 16 kg. Use appropriate lifting techniques or assistance during installation to prevent injury.
• Операция: Do not block air inlets or outlets. Do not operate the unit if it is damaged or malfunctioning.
• Тейлөө: Only use genuine MAICO replacement parts. Refer to the maintenance section for routine cleaning and inspection procedures.
• Балдар жана үй жаныбарлары: Иштөө жана тейлөө учурунда балдарды жана үй жаныбарларын блоктон алыс кармаңыз.

Продукт бүттүview

The MAICO WS 320 KET is a high-performance central ventilation system. Key components include:

• Ventilation Unit Housing
• Жылуулук алмаштыргыч
• Supply and Exhaust Fans
• Аба чыпкалары
• Control Panel (if applicable, not explicitly stated but implied for a central system)

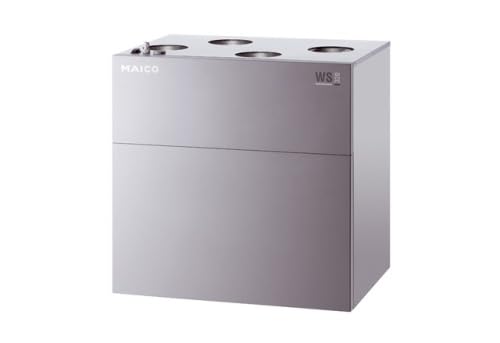

1-сүрөт: Бүттүview of the MAICO WS 320 KET Central Ventilation System. This image shows the compact design of the main unit, highlighting its robust construction suitable for central air management.

Орнотуу жана орнотуу

The MAICO WS 320 KET requires professional installation. The installation material is included with the product.

1. Пакеттен чыгаруу: Түзмөктү таңгагынан этияттык менен чыгарыңыз. Жеткирүүдөгү кандайдыр бир бузулууларды текшериңиз.
2. Монтаждоо жери: Select a suitable, stable, and level surface for mounting. Ensure the location allows for proper ducting connections and future maintenance access.
3. Агрегатты орнотуу: Secure the unit using the provided installation hardware. Refer to the detailed mounting template (if included in physical manual) for precise positioning.
4. Түтүк байланыштары: Connect the supply and exhaust air ducts to the designated ports on the unit. Ensure all connections are airtight to prevent air leakage.
5. Конденсатты төгүүчү: Connect the condensate drain line to a suitable drainage system. Ensure a continuous downward slope for effective water removal.
6. Электр байланышы: A qualified electrician must perform the electrical wiring. Connect the unit to the main power supply according to the wiring diagram provided in the full product documentation and local electrical codes.
7. Алгачкы текшерүү: Before powering on, double-check all connections, ensuring they are secure and correct.

Иштөө нускамалары

Once installed and electrically connected, the MAICO WS 320 KET is ready for operation.

1. Күйгүзүү: Switch on the main power supply to the unit.
2. Башкаруу панели: Use the control panel (if present) to select the desired operating mode and fan speed. Common modes include:
   • Автоматтык режим: The system adjusts ventilation based on pre-set schedules or sensor readings.
   • Кол режими: Allows direct control over fan speed (e.g., low, medium, high).
   • Көбөйтүү режими: Provides maximum ventilation for a temporary period, useful for rapid air exchange.
3. Аба агымын жөндөө: Adjust airflow settings as needed to maintain optimal indoor air quality and comfort.
4. Мониторинг: Periodically check the unit's status indicators for any warnings or error messages.

Техникалык тейлөө

Regular maintenance ensures the longevity and efficient operation of your MAICO WS 320 KET system.

• Фильтрди алмаштыруу:

  Air filters should be inspected every 3 months and replaced every 6-12 months, depending on air quality and usage. Clogged filters reduce efficiency and air quality.

  1. Агрегаттын электр кубатын өчүрүңүз.
  2. Чыпкага кирүү панелин ачыңыз.
  3. Remove the old filters and dispose of them responsibly.
  4. Insert new, genuine MAICO filters, ensuring correct orientation.
  5. Close the access panel and restore power.
• Жылуулук алмаштыргычты тазалоо:

  The heat exchanger should be cleaned annually by a qualified technician to remove dust and debris that can accumulate and reduce efficiency.
• Конденсат дренажын текшерүү:

  Periodically check the condensate drain line for blockages. Clean if necessary to prevent water buildup.

• Жалпы тазалоо:

  Жарнама менен блоктун сыртын сүртүңүзamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.

Проблемаларды чечүү

This section addresses common issues you might encounter with your MAICO WS 320 KET system. For problems not listed here, contact qualified service personnel.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information, please refer to the documentation provided with your purchase or contact MAICO customer support directly. Information regarding spare part availability is currently unavailable. For technical support or service inquiries, please contact your authorized MAICO dealer or visit the official MAICO webсайт.

Өндүрүүчү: MAICO

Модел: WS 320 KET

Маалымдама номери: 950226
