Logitech Wireless Mouse M171 колдонуучунун колдонмосу

Introduction

This manual provides instructions for the setup, operation, maintenance, and troubleshooting of your Logitech Wireless Mouse M171. The M171 is designed for reliable wireless connectivity and ease of use across various operating systems.

Сүрөт 1: Жогорку view of the Logitech Wireless Mouse M171, showcasing its red top surface and black base.

Пакеттин мазмуну

Продукцияңыздын таңгагында бардык элементтер бар экенин текшериңиз:

• Logitech зымсыз чычкан M171
• USB кабыл алгыч
• 1 AA Батарея (алдын ала орнотулган же өзүнчө камтылган)
• Колдонуучунун документтери

Жайгашуу

Follow these steps to set up your Logitech Wireless Mouse M171:

1. Батарея салыңыз: If the AA battery is not pre-installed, open the battery compartment cover on the underside of the mouse. Insert the provided AA battery, ensuring correct polarity (+/-). Close the cover securely.

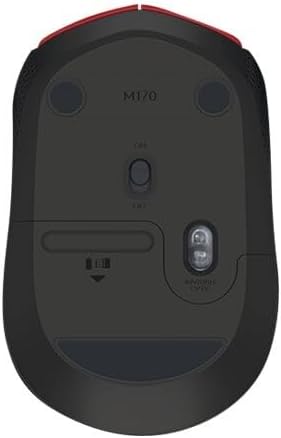

Image 2: Underside of the Logitech M171 mouse, illustrating the battery compartment and the power switch.

2. USB кабылдагычты туташтыруу: Locate the USB receiver, typically stored inside the battery compartment or included separately. Plug the USB receiver into an available USB port on your computer (laptop or PC).
3. Күйгүзүү: Slide the power switch on the underside of the mouse to the "ON" position. The mouse is now ready for use. No software installation or pairing is required for basic functionality.

Иштөө нускамалары

The Logitech M171 mouse offers straightforward operation:

• Негизги функциялар: Use the left button for primary clicks, the right button for secondary clicks (context menus), and the scroll wheel for vertical scrolling.
• Эки тараптуу дизайн: The symmetrical shape of the M171 is suitable for both right-handed and left-handed users. Button functions can be reassigned through your operating system's mouse settings if desired.
• Зымсыз диапазон: The mouse operates using a 2.4 GHz wireless connection, providing a range of up to 10 meters (33 feet) from the USB receiver. Actual range may vary based on environmental factors.
• Шайкештик: The M171 is compatible with Windows, Mac, and Chrome OS.

Техникалык тейлөө

• Батареяны алмаштыруу: The mouse operates on a single AA battery, with an approximate battery life of 12 months. When the mouse performance degrades or stops responding, replace the AA battery. Open the battery compartment on the underside, remove the old battery, and insert a new AA battery with correct polarity.
• Тазалоо: To clean the mouse, use a soft, dry cloth. Avoid using harsh chemicals or abrasive materials. For the optical sensor, use a cotton swab lightly dampened with isopropyl alcohol if necessary, ensuring no liquid enters the mouse interior.
• Энергияны үнөмдөө: To conserve battery life, slide the power switch on the underside of the mouse to the "OFF" position when not in use for extended periods.

Проблемаларды чечүү

If you encounter issues with your Logitech Wireless Mouse M171, try the following solutions:

• Чычкан жооп бербейт:
  • Чычкан күйгүзүлгөнүн текшериңиз.
  • Батареяны текшериңиз. Керек болсо алмаштырыңыз.
  • USB кабыл алгыч компьютериңиздеги иштеп жаткан USB портуна бекем сайылып турганын текшериңиз. Башка USB портун колдонуп көрүңүз.
  • Move the mouse closer to the USB receiver to rule out range issues or interference.
  • Компьютериңизди өчүрүп күйгүзүңүз.
• Курсордун туруксуз кыймылы:
  • Чычкандын астындагы оптикалык сенсорду тазалаңыз.
  • Чычканды ылайыктуу бетте колдонуп жатканыңызды текшериңиз. Өтө жарык чагылдыруучу же тунук беттерден алыс болуңуз.
  • Check for potential wireless interference from other devices (e.g., Wi-Fi routers, cordless phones).
• Buttons or Scroll Wheel Not Working:
  • Батареянын деңгээлин текшерип, аз болсо алмаштырыңыз.
  • Ensure no debris is obstructing the buttons or scroll wheel.
  • Test the mouse on another computer to determine if the issue is with the mouse or the computer's settings.

Техникалык шарттар

Кепилдик жана колдоо

The Logitech Wireless Mouse M171 comes with a 2 жылдык өндүрүүчүнүн кепилдиги. For product support, warranty claims, or additional assistance, please visit the official Logitech support website or contact their customer service. Refer to the user documentation included in your package for specific contact details and warranty terms.

Көбүрөөк маалымат жана колдоо булактарын таба аласыз Logitech колдоо Webсайт.
