Introduction
This manual provides detailed instructions for the safe and efficient operation of your PBD Pioneer CT-W530R Stereo Double Cassette Deck. This unit features dual cassette decks, Synchro Recording, and Dolby NR for enhanced audio quality. Please read this manual thoroughly before using the unit and retain it for future reference.

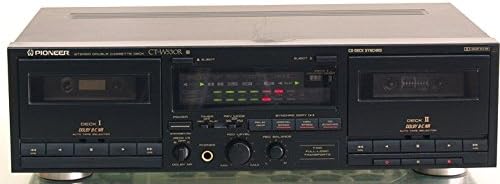

1-сүрөт: Фронт view of the Pioneer CT-W530R Stereo Double Cassette Deck, showing both tape decks, control panel, and display.
Коопсуздук маалыматы
Коопсуз иштөөнү камсыз кылуу жана зыян келтирбөө үчүн төмөнкү сактык чараларын аткарыңыз:
- Агрегатты жамгырга же нымдуулукка дуушар кылбаңыз.
- Желдетүүчү тешиктерди жаппаңыз.
- Түзмөктү радиаторлор же плиталар сыяктуу жылуулук булактарынын жанына койбоңуз.
- Белгиленген электр менен жабдууну гана колдонуңузtage.
- в ачпагылаasing; бардык тейлөөлөрдү квалификациялуу кызматкерлерге тапшырыңыз.
- Агрегаттын үстүнө оор нерселерди коюудан алыс болуңуз.
Жайгашуу
1. таңгактан чыгаруу
Carefully remove the cassette deck from its packaging. Retain all packing materials for future transport or storage. Verify that all included accessories, such as AV cables, are present.
2. Жайгаштыруу
Түзмөктү түз күн нурунан, жылуулук булактарынан жана ашыкча чаңдан же титирөөдөн алыс, туруктуу, тегиз жерге коюңуз. Түзмөктүн айланасында жетиштүү желдетүүнү камсыз кылыңыз.
3. Байланыштар
Connect the CT-W530R to your audio system using the supplied AV cables.
- Аудио чыгаруу: Connect the AUDIO OUT (RCA L/R) jacks on the rear of the CT-W530R to the TAPE IN or LINE IN jacks on your ampкөтөргүч же кабыл алгыч.
- Аудио киргизүү: Connect the AUDIO IN (RCA L/R) jacks on the rear of the CT-W530R to the TAPE OUT or LINE OUT jacks on your amplifier or receiver for recording purposes.
- Күч: Plug the power cord into a suitable AC outlet.
Иштөө нускамалары
1. Негизги ойнотуу
- басыңыз КҮЧ баскычты басуу менен
- Open the cassette door for either Deck I or Deck II by pressing the ЧЫГАРУУ баскычы.
- Ачык четин өйдө каратып кассетаны салыңыз. Кассетанын эшигин жабыңыз.
- Select the appropriate tape type (Normal, CrO2, Metal) using the TAPE TYPE SELECTOR if not automatically detected.
- басыңыз ОЙНОО button for the selected deck.
- Үндү тууралаңыз ampкөтөргүч/алуучу.
- Ойнотууну токтотуу үчүн, басыңыз ТОКТОТ баскычы.

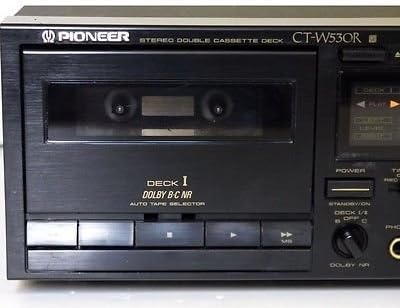

2-сүрөт: Деталдаштырылган view of Deck I, showing the cassette compartment and playback controls.

3-сүрөт: Деталдаштырылган view of Deck II, showing the cassette compartment and playback controls.
2. Жаздыруу
The CT-W530R supports recording on Deck II.
- Insert a blank, recordable cassette into Deck II. Ensure the tape's erase-prevention tabs are intact.
- Select the appropriate tape type for Deck II.
- коюңуз DOLBY NR switch to B, C, or OFF as desired. Dolby Noise Reduction helps reduce tape hiss during playback.
- тууралаңыз REC LEVEL жана REC BALANCE controls to set the recording level. Monitor the level meters to avoid distortion (peaking into the red zone).
- Жазууну баштоо үчүн басыңыз REC button (red button) and then the ОЙНОО button simultaneously for Deck II.
- Жазууну тындыруу үчүн басыңыз ТЫНЫГУУ баскычы. Улантуу үчүн кайра басыңыз.
- Жазууну токтотуу үчүн, басыңыз ТОКТОТ баскычы.
Synchro Recording (Tape to Tape Copy)
This feature allows for easy duplication of tapes from Deck I to Deck II.
- Insert the source tape into Deck I and a blank recordable tape into Deck II.
- Ensure both decks are stopped.
- басыңыз SYNCHRO COPY button. The unit will automatically start playback on Deck I and recording on Deck II.
- Сиз тандай аласыз НОРМАЛДУУ ЫЛДАМДЫК or ЖОГОРКУ ЫЛДАМДЫК for copying. High speed copying will duplicate the tape faster but may result in slightly lower quality.
- The recording will stop automatically when the source tape ends or when you press ТОКТОТ.

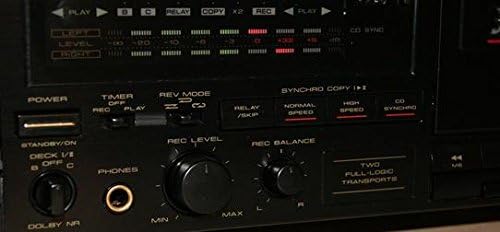

4-сүрөт: Деталдаштырылган view of the central control panel, including recording level, balance, Dolby NR, and Synchro Copy buttons.
3. Гарнитураны чыгаруу
Connect standard stereo headphones to the ТЕЛЕФОНДОР jack on the front panel for private listening. The headphone volume is typically controlled by the main volume of your connected amplifier, or by a dedicated headphone level control if present on the unit (refer to Figure 4 for control layout).
Техникалык тейлөө
Үзгүлтүксүз тейлөө оптималдуу иштешин камсыз кылат жана кассеталык палубаңыздын иштөө мөөнөтүн узартат.
- Башты тазалоо: Clean the tape heads, capstans, and pinch rollers after every 10-20 hours of use, or if sound quality deteriorates. Use a cotton swab dampизопропил спирти менен жасалган.
- Демагнетизация: Demagnetize the tape heads periodically (e.g., every 50 hours of use) using a tape head demagnetizer to prevent magnetization buildup, which can degrade sound quality.
- Тышкы тазалоо: Аппараттын сыртын жумшак, кургак чүпүрөк менен сүртүңүз. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
Проблемаларды чечүү
If you experience problems with your CT-W530R, consult the following table before seeking professional service.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Бирдиктен үн жок. | Туура эмес туташуулар; ampкөтөргүч киргизүү тандалган эмес; үн деңгээли өтө төмөн. | Check audio cables; select correct input on amplifier; increase volume. |
| Tape does not play or record. | Tape inserted incorrectly; tape leader reached; erase-prevention tab broken. | Reinsert tape correctly; fast forward past leader; cover tab with tape. |
| Үндүн сапаты начар (буурулган, бурмаланган). | Dirty tape heads; magnetized heads; worn tape; incorrect Dolby NR setting. | Clean heads; demagnetize heads; try a different tape; adjust Dolby NR. |
| Tape speed fluctuates. | Dirty pinch rollers/capstans; worn drive belt. | Clean pinch rollers and capstans. If problem persists, professional service may be required for belt replacement. |
Техникалык шарттар
The following specifications are typical for the PBD Pioneer CT-W530R Stereo Double Cassette Deck:
- Модел: CT-W530R
- Түрү: Stereo Double Cassette Deck
- Ызы-чууну азайтуу: Dolby B, Dolby C
- Тасма шайкештиги: Type I (Normal), Type II (CrO2), Type IV (Metal)
- Өзгөчөлүктөрү: Synchro Recording, Auto Tape Selector, Dual Full-Logic Transports
- Өлчөмдөрү (болжол менен): 42.67 cm (W) x 12.45 cm (H) x 28.96 cm (D) (16.8 x 4.9 x 11.4 inches)
- Салмагы (болжол менен): 4.68 кг (10.32 фунт)
- Энергияга талаптар: AC 120V, 60Hz (or as specified for region)
Эскертүү: Техникалык мүнөздөмөлөр жакшыртуу максатында эскертүүсүз өзгөртүлүшү мүмкүн.
Кепилдик жана колдоо
For warranty information and technical support, please refer to the warranty card included with your product or contact PBD customer service. Keep your purchase receipt as proof of purchase.
This product was first available on Amazon.com.mx on August 30, 2016. Please note that this product has been discontinued by the manufacturer. Support for discontinued products may be limited.
