Introduction
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of the Caroma Quiet Flow 2 Inlet Valve Repair Kit, Model 687040. Please read these instructions carefully before beginning any work to ensure proper function and safety.
Продукт бүттүview
The Caroma Quiet Flow 2 Inlet Valve Repair Kit is designed to replace the internal components of a compatible Caroma toilet fill valve, restoring its functionality and addressing common issues such as continuous running or slow filling. This kit helps maintain the efficient operation of your toilet's flushing system.
Пакеттин мазмуну
The Caroma Quiet Flow 2 Inlet Valve Repair Kit (Model 687040) typically includes the following components:
- Inlet Valve Mechanism (main body with float arm)
- Top Cap with Adjustment Screw
- Seals and Gaskets (pre-installed or separate, as required)
Сүрөт 1: The main body of the Caroma Quiet Flow 2 Inlet Valve Repair Kit, featuring the float arm and connection points. This component is central to regulating water flow into the toilet tank.

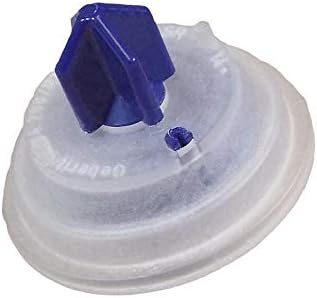

Сүрөт 2: The top cap of the inlet valve repair kit, showing the blue adjustment screw. This screw is used to fine-tune the water level within the toilet tank.
Коопсуздук маалыматы
Always observe the following safety precautions when working with plumbing:
- Turn off the main water supply to the toilet before beginning any work.
- Кол кап жана көздү коргоо сыяктуу тиешелүү жеке коргоочу шаймандарды кийиңиз.
- Жумуш аймагы жакшы жарыктандырылсын жана тоскоолдуктардан таза болсун.
- Эгер кандайдыр бир кадамга ишенбесеңиз, квалификациялуу сантехникке кайрылыңыз.
Орнотуу нускамалары
This repair kit is designed to replace the upper mechanism of an existing Caroma Quiet Flow 2 fill valve. Refer to the image below to identify the part to be replaced.
Сүрөт 3: A complete toilet fill valve assembly, with the specific section that the Caroma Quiet Flow 2 Inlet Valve Repair Kit replaces highlighted by a red circle. This illustrates the target area for the repair.
- Суу менен камсыздоону өчүрүү: Locate the shut-off valve at the base of the toilet and turn it clockwise until the water flow stops completely. Flush the toilet to empty the tank.
- Remove Old Valve Mechanism:
- Carefully unclip or unscrew the existing top mechanism of the fill valve from the main valve body. This usually involves a quarter-turn or a simple clip release.
- Remove the old float arm and any associated components that are part of the repair kit replacement.
- Install New Valve Mechanism:
- Align the new Caroma Quiet Flow 2 Inlet Valve Repair Kit mechanism with the main valve body.
- Gently push down and twist or clip into place until it is securely seated. Ensure all seals are properly aligned.
- Attach the float arm to the new mechanism if it is a separate component.
- Суу менен камсыздоону калыбына келтирүү: Slowly turn the toilet's shut-off valve counter-clockwise to restore water flow to the tank.
- Агышууларды текшерүү: Observe the connections for any signs of water leakage. Tighten connections if necessary.
- Суунун деңгээлин тууралоо:
- Allow the tank to fill. The water level should be approximately 1 inch below the top of the overflow tube.
- If adjustment is needed, turn the blue adjustment screw on the top cap (refer to Image 2). Turning clockwise typically lowers the water level, and counter-clockwise raises it.
- Flush the toilet several times to verify proper operation and water level.
Операция
Once installed, the Caroma Quiet Flow 2 Inlet Valve Repair Kit operates automatically. When the toilet is flushed, the water level in the tank drops, causing the float arm to lower. This opens the inlet valve, allowing water to refill the tank. As the water level rises, the float arm lifts, and the valve closes, stopping the water flow at the pre-set level.
Техникалык тейлөө
Regular maintenance can extend the life of your inlet valve:
- Мезгилдүү текшерүү: Annually inspect the valve for wear, cracks, or mineral buildup.
- Тазалоо: If water flow is restricted, turn off the water supply and carefully remove the top cap to check for debris or sediment. Rinse components with clean water. Avoid harsh chemicals.
- Мөөрдү текшерүү: Бардык пломбалардын жана прокладкалардын бүтүндүгүн жана агып кетпеши үчүн туура орнотулганын текшериңиз.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Toilet runs constantly | Water level too high; float arm obstructed; worn seal. | Adjust water level using the blue screw; clear any obstructions around the float arm; inspect and replace seals if necessary. |
| Бакты жай толтуруу | Low water pressure; debris in valve; partially closed shut-off valve. | Check household water pressure; clean valve components; ensure toilet shut-off valve is fully open. |
| No tank fill | Water supply off; valve completely obstructed. | Ensure water supply to toilet is on; inspect valve for severe blockages. |
Техникалык шарттар
- Продукт аты: Caroma Quiet Flow 2 Inlet Valve Repair Kit
- Модель номери: 687040
- Өндүрүүчү: Карома
- Клапандын түрү: Кирүүчү клапан
- Порттардын саны: 2
- Кирүүчү туташуу түрү: жиптүү
- Кирүү туташуу өлчөмү: 2 дюйм
- Outlet Connection Size: 2 дюйм
- Материал: Металл жана пластик
- Буюм пакетинин саны: 1
- Биринчи жеткиликтүү болгон күнү: 27-январь, 2016-жыл
Кепилдик жана колдоо
For specific warranty information regarding your Caroma Quiet Flow 2 Inlet Valve Repair Kit, Model 687040, please refer to the documentation included with your original purchase or visit the official Caroma website. For technical support or further assistance, please contact Caroma customer service directly.
Сиз көбүнчө өндүрүүчүнүн байланыш маалыматын таба аласыз webсайт: www.caroma.com.au (Note: This link is provided as a general reference and may not be specific to your region or product support.)
