Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Karcher G2700 Gas Power Pressure Washer. Please read all instructions carefully before assembly and use to ensure proper function and to prevent injury or damage.
Image: The Karcher G2700 Gas Power Pressure Washer, a robust unit designed for household cleaning tasks.
Орнотуу жана чогултуу
The Karcher G2700 pressure washer is designed for straightforward assembly. Follow these steps to prepare your unit for first use:
- Кутудан чыгаруу жана алгачкы текшерүү: Carefully remove all components from the packaging. Inspect for any damage that may have occurred during shipping.
- Дөңгөлөктү орнотуу: Attach the 8-inch pneumatic tires to the frame. Ensure the tires are adequately inflated for easy transport.
- Туткасы Ассамблеясы: Secure the folding handle to the main unit. The folding design allows for compact storage.
- Engine Oil Addition: Before starting, add the recommended 10W-30 engine oil. The initial shipment includes the correct amount of oil (approximately 20 fl oz). Do not overfill; check the oil level using the dipstick, ensuring it is within the marked area. This is a 4-cycle engine; do not mix oil with gasoline.
- Fuel Addition: Fill the fuel tank with 87 octane or higher unleaded gasoline.
- Шланг байланыштары: Connect your garden hose to the water inlet, located under the frame. Use the provided gasket to ensure a watertight seal. Connect the high-pressure hose (25 ft PVC) to the pump outlet and the spray wand. Three extra O-rings are included for future use.
- Сопло тиркемеси: Select the desired quick-connect nozzle and attach it to the spray wand.
Image: Close-up of the Karcher KPS 196cc engine, highlighting its design and components.
Image: Detail of the axial cam pump with an aluminum head, a key component for pressure generation.
Image: The 8-inch pneumatic tires, designed for easy maneuverability across various terrains.
Иштөө нускамалары
Once assembled and fueled, your Karcher G2700 is ready for operation. Always ensure you have a stable footing and clear surroundings before starting.
Басымдагы жуугучту ишке киргизүү
- Суу менен камсыздоо туташып жана күйгүзүлгөнүн текшериңиз.
- Turn the engine's on/off switch to the 'ON' position.
- Pull the starter cord firmly and smoothly. The engine typically starts within 1 to 3 pulls.
- Ишти баштоодон мурун, кыймылдаткычты бир нече мүнөт жылытыңыз.
Using the Spray Nozzles
The G2700 comes with five pro-style quick-connect nozzles, each designed for specific cleaning tasks:
- 0-Degree (Red): Concentrated, high-impact stream for tough spots. Use with caution as it can damage surfaces.
- 15-Degree (Yellow): Narrow spray for intensive cleaning of small areas.
- 25-Degree (Green): Medium-width spray for general cleaning of most surfaces.
- 40-Degree (White): Wide spray for gentle cleaning and rinsing.
- 65-Degree (Black/Soap): Кир жуучу каражатты колдонуу үчүн төмөнкү басымдагы спрей.

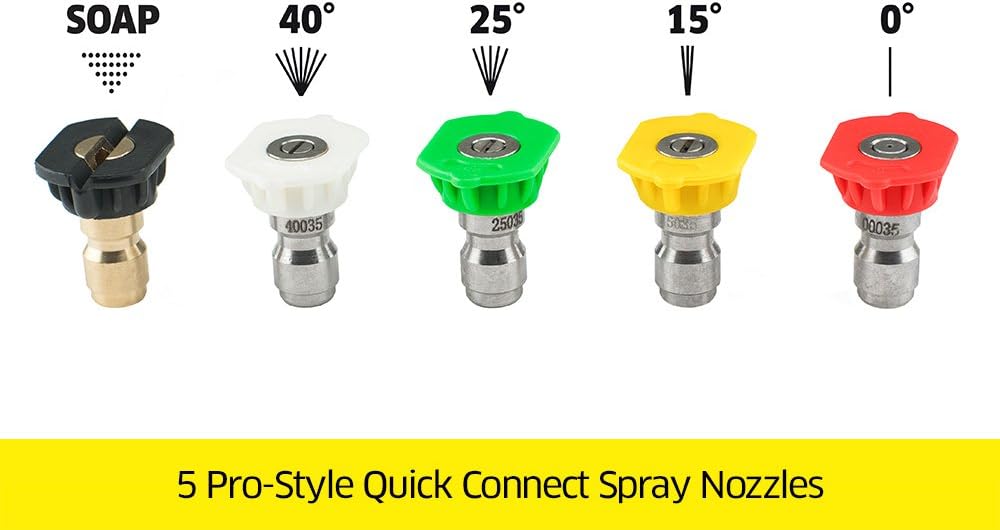

Image: The set of five quick-connect nozzles, color-coded for different spray patterns and applications.
Жуучу каражатты колдонуу
The unit features an onboard detergent tank. Fill the tank with pressure washer-safe detergent. Attach the black (65-degree) soap nozzle to the spray wand to activate detergent application. The pressure washer will automatically draw detergent at low pressure.
Image: The integrated onboard detergent tank, designed for convenient soap application.
Коопсуздук өзгөчөлүктөрү
The spray wand is equipped with a child safety lock to prevent accidental operation. Always engage the safety lock when the pressure washer is not in use or when changing nozzles.
Image: The spray wand, showing the child safety lock mechanism for secure handling.
Image: The Karcher G2700 pressure washer in operation, demonstrating its use for outdoor cleaning.
Техникалык тейлөө
Үзгүлтүксүз тейлөө сиздин басымдуу жуугучуңуздун узак иштөөсүн жана оптималдуу иштешин камсыз кылат.
- Мотор майын алмаштыруу: It is crucial to change the engine oil after the initial break-in period (typically after the first 5 hours of use). The oil may appear contaminated during the first drain. Subsequent oil changes should follow the schedule outlined in the engine manual.
- Свеча: Inspect and clean or replace the spark plug as needed. A spark plug socket is provided for convenience.
- Соплолорду тазалоо: Clean nozzles regularly to prevent blockages and maintain consistent spray patterns.
- Hose and O-ring Inspection: Periodically check hoses for wear and tear, and inspect O-rings for damage. Replace as necessary using the provided spare O-rings.
- Сактагыч: When storing the unit, especially for extended periods, ensure the fuel tank is empty or treated with a fuel stabilizer, and the engine oil is at the correct level. Store in a dry, protected area.
Проблемаларды чечүү
Жалпы маселелер жана алардын чечимдери үчүн бул бөлүмдү караңыз.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Engine does not start or has no resistance when pulling cord. | No fuel, incorrect oil level, engine switch off, spark plug issue. | Check fuel level. Verify oil level. Ensure engine switch is ON. Inspect spark plug. |
| Low pressure or inconsistent spray. | Clogged nozzle, insufficient water supply, air in pump. | Clean or replace nozzle. Ensure garden hose is fully open and kink-free. Bleed air from pump by running water through it before starting engine. |
| Water leaking from handle or connections. | Бошоң туташуулар, эскирген О-шакекчелер, бузулган түтүк. | Tighten all connections. Replace worn O-rings. Inspect hoses for damage and replace if necessary. |
| Difficulty connecting garden hose to inlet. | Inlet location under frame can be awkward. | Ensure proper alignment and use firm, steady pressure when screwing in the hose. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | G 2700 |
| Бөлүмдүн номери | 1.107-266.0 |
| Performance Rating | 2700 PSI, 2.5 GPM |
| Мотор | Карчер КПС 196cc |
| Насос | Aluminum Axial Direct Drive |
| Суу кириши | Цинк эритмеси |
| Жогорку басымдагы шланг | 25 ft PVC |
| Насадкалар камтылган | 0°, 15°, 25°, 40°, 65° (Detergent) |
| Detergent Handling | Onboard Detergent Tank |
| Wheels | 8-inch Metal, Pneumatic Tires |
| Frame | Welded - Collapsible |
| Frame Color | Титан |
| Included Engine Oil | 10W30 (20 fl oz) |
| Продукт Салмагы | 66.4 фунт |
| Чогултулган өлчөмдөр (L x W x Y) | 22.6 x 21.6 x 39.4 дюйм |
| Power Source | Газ менен иштейт |
| UPC | 886622014614 |
Кепилдик маалымат
The Karcher G2700 Gas Power Pressure Washer comes with the following limited warranty:
- Мотор кепилдик: 3 жыл
- Насос Кепилдиги: 2 жыл
For detailed warranty terms and conditions, please refer to the official warranty document included with your product or visit the Karcher webсайт.
Кардарларды колдоо
For technical assistance, service, or parts inquiries, please contact Karcher customer support. You can typically find contact information on the official Karcher website or within the product packaging. Online resources, including FAQs and troubleshooting guides, are also available.
