BTF-LIGHTING WS2811 даректүү LED тилкеси колдонуучусунун колдонмосу

1. Киришүү

This manual provides instructions for the BTF-LIGHTING WS2811 Addressable Dream Color LED Strip. This product is designed for indoor decorative lighting applications, offering dynamic color effects and flexible installation. Please read these instructions carefully before installation and use.

Негизги өзгөчөлүктөрү:

• WS2811 IC Control: Each WS2811 integrated circuit controls a group of three LEDs, allowing for addressable dream color effects.
• 5050 SMD RGB LEDs: Utilizes 5050 surface-mount device RGB LEDs for vibrant and customizable lighting.
• Ийкемдүү жана кесилүүчү: The strip is flexible and can be cut every 3 LEDs without damaging the remaining sections, enabling custom lengths and shapes.
• Non-Waterproof (IP30): Ички колдонуу үчүн иштелип чыккан.
• DC12V Operation: Requires a DC12V power supply (not included).
• Оңой туташуу: Features 3-pin JST-SM connectors on both ends for simple installation and series connection. Separate power/ground wires are provided for power injection to prevent voltagд тамчы.

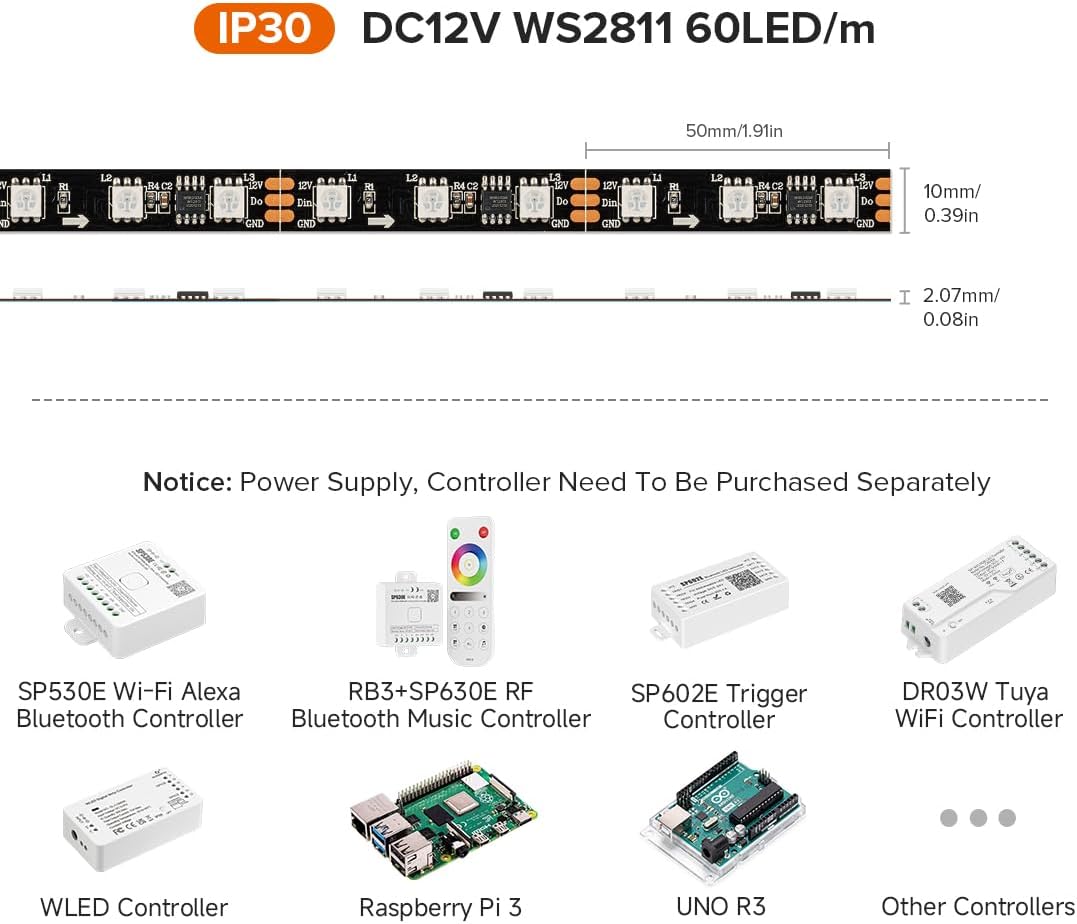

2. Техникалык шарттар

3. Орнотуу жана орнотуу

3.1 Components Required (Not Included):

• DC12V Power Supply: A stable DC12V power supply is essential. Ensure the power supply's amperage is sufficient for the total length of the LED strip used (e.g., 4A for a 5-meter strip).
• Контроллер: An addressable LED controller (e.g., K-1000C, SP611E, SP602E, SP608E, SP530E, WT-SPI, Raspberry Pi, Arduino) is required to program and control the lighting effects.

3.2 Байланыштар:

The LED strip has 3-pin JST-SM connectors. The pins are typically labeled 12V (power), Din (data input), and GND (ground). Ensure correct polarity when connecting to the power supply and controller.

• Connect the 12V wire from the LED strip to the positive (+) terminal of the DC12V power supply.
• Connect the GND wire from the LED strip to the negative (-) terminal of the DC12V power supply.
• Connect the Din wire from the LED strip to the data output pin of your chosen addressable LED controller.
• Ensure the controller is also powered by the same DC12V power supply, connecting its 12V and GND terminals appropriately.

3.3 Cutting and Soldering:

The LED strip can be cut every 3 LEDs at designated cut marks. This allows for customization of length. If cutting, ensure to solder new connections carefully to maintain electrical continuity and data signal integrity. Pay attention to the data direction indicated by arrows on the PCB.

3.4 Монтаждоо:

The IP30 non-waterproof strip features double-sided adhesive tape on its back for easy indoor installation. Clean the surface thoroughly before applying the strip to ensure strong adhesion.

4. Иштөө нускамалары

The BTF-LIGHTING WS2811 LED strip requires an external controller for operation. The controller dictates the lighting effects, colors, and brightness. Refer to your specific controller's manual for detailed programming and control instructions.

4.1 Addressable Control:

The WS2811 IC allows for individual control of groups of 3 LEDs. This enables dynamic chasing effects, color transitions, and custom patterns. The color order for this strip is BRG (Blue, Red, Green).

4.2 Color and Brightness Adjustment:

Depending on your controller, you can adjust the brightness from 1% to 100% and select from millions of colors. Many controllers also offer pre-programmed effects such as curtain-up, flow water, raindrop, and jump flash.

4.3 Official Product Videos:

5. Техникалык тейлөө

The BTF-LIGHTING WS2811 LED strip is designed for low maintenance. As it is IP30 rated (non-waterproof), it should only be used indoors and kept away from moisture and direct water exposure.

• Тазалоо: Gently wipe the strip with a dry, soft cloth to remove dust. Do not use liquid cleaners or abrasive materials.
• Текшерүү: Periodically check connections for any signs of wear or loose contacts.
• Курчап турган чөйрө: Ensure the operating environment is within recommended temperature and humidity ranges to prolong the lifespan of the LEDs.

6. Кыйынчылыктарды

Жалпы маселелер жана чечимдер:

• No Light or Partial Lighting:
  • Check power supply connection and ensure it is providing DC12V.
  • Verify controller connections (12V, GND, Data).
  • Inspect for any physical damage or broken solder joints on the strip.
  • Ensure the data direction arrow on the PCB is followed for connections.
• Туура эмес түстөр же бүлбүлдөп:
  • Confirm the color order setting in your controller matches the strip's BRG order.
  • Томду текшерүүtage drop, especially on longer runs. Inject power at intermediate points if necessary.
  • Ensure the controller is compatible with WS2811 ICs.
• Клей жабышпайт:
  • Ensure the mounting surface is clean, dry, and smooth before application.
  • For rough or uneven surfaces, additional mounting clips or stronger adhesive may be required.
• Strip Not Fully Addressable (Only groups of 3 LEDs change color):
  • This is expected behavior for the WS2811 IC, where one IC controls three LEDs as a single pixel. This product is not designed for individual LED control.

7. Кепилдик маалыматы

This BTF-LIGHTING WS2811 LED Strip comes with a 1-year warranty from the date of purchase. The warranty covers manufacturing defects under normal use conditions. It does not cover damage resulting from improper installation, misuse, unauthorized modifications, or exposure to conditions beyond the product's specifications (e.g., water damage for IP30 strips).

8. Кардарларды колдоо кызматы

For any questions or technical assistance regarding your BTF-LIGHTING WS2811 LED Strip, please contact our customer support team. A 24-hour online hotline is available for clients in the US.

Please refer to the BTF-LIGHTING official website or your purchase platform for the most current contact information.
