Introduction
This manual provides detailed instructions for the installation, setup, operation, and maintenance of the Perry LUX TIME 1-Channel 2DIN Twilight Switch, Model 1IC7054. This device is designed to manage electrical loads based on ambient light levels, time, or a combination of both. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Коопсуздук маалыматы
- Орнотуу бардык жергиликтүү жана улуттук электр эрежелерине ылайык квалификациялуу электрик тарабынан аткарылышы керек.
- Disconnect power at the main circuit breaker before installing or servicing the device.
- Аппаратты нымдуулукка же экстремалдык температурага дуушар кылбаңыз.
- Бардык байланыштар коопсуз жана туура изоляцияланганын текшериңиз.
- The device is designed for indoor use only, unless the external sensor is rated for outdoor use and installed appropriately.
Пакеттин мазмуну
Пакет, адатта, төмөнкүлөрдү камтыйт:
- Perry LUX TIME 1-Channel 2DIN Twilight Switch (Main Unit)
- External Light Sensor
- Көрсөтмө (бул документ)
Продукт бүттүview
The Perry LUX TIME twilight switch combines a digital timer with a light sensor to provide flexible control over lighting or other electrical loads. It features a clear LCD display and intuitive buttons for programming.
1-сүрөт: The Perry LUX TIME 1-Channel 2DIN Twilight Switch main unit and its accompanying external light sensor.
Өлчөмдөр
Understanding the dimensions is crucial for proper installation within a DIN rail enclosure.

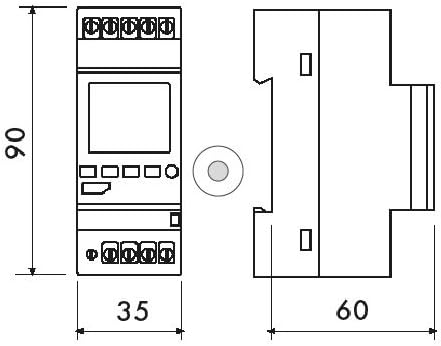

2-сүрөт: Dimensional drawing of the twilight switch, showing front and side views with measurements in millimeters. The unit is 90mm high, 35mm wide, and 60mm deep.
Орнотуу
Монтаждоо
The Perry LUX TIME switch is designed for DIN rail mounting. Securely attach the unit to a standard 35mm DIN rail within an appropriate electrical enclosure.
Зымдар диаграммасы
Follow the wiring diagram carefully. Ensure all power is disconnected before making any connections. The device requires a 230V AC power supply.
3-сүрөт: Wiring diagram illustrating connections for the twilight switch. 'L' represents Live, 'N' represents Neutral. Terminals 1 and 2 are for the external light sensor. Terminals 6 and 7 are for the load (e.g., a light bulb). Terminals 9 and 10 are for the 230V AC power input. The internal relay contact is shown between C1 and terminal 6.
- Түз (L) зымын 9-терминалга туташтырыңыз.
- Нейтралдуу (N) зымын 10-терминалга туташтырыңыз.
- Connect the external light sensor to terminals 1 and 2.
- Connect the load (e.g., light fixture) between terminal 6 and the Neutral (N) line.
- Terminal 7 is the common contact for the relay.
Орнотуу жана программалоо
The device allows for programming based on time, light level (twilight), or a combination. The LCD display and buttons facilitate navigation and setting adjustments.
Баштапкы конфигурация
- Upon first power-up, the device may prompt for initial time and date settings. Use the navigation buttons (MENU, arrows, OK) to set these parameters.
- Set the correct geographical zone for automatic legal time changes (daylight saving).
Программалоо Examples
The switch supports various programming modes, including twilight-based operation, timed operation, or astronomical clock functions.
4-сүрөт: Example of a programming schedule combining twilight and timed events. The load turns ON at sunset, OFF at 22:00, ON at 6:00, and OFF at sunrise.
Программалоо интерфейси
The LCD screen displays programming options and current status. Use the buttons to navigate menus and adjust settings.
5-сүрөт: Screenshots showing the programming interface. From left to right: Selecting LUX/TIME mode (P01 On), setting an offset (advance/delay) for ON/OFF events, and the current operational status display (C1 OFF, C2 OFF, date, and time).
- LUX/TIME Selection: Choose between light-dependent (LUX) or time-dependent (TIME) control, or a combination.
- Offset (Advance/Delay): Adjust the ON/OFF times with an offset from the programmed event or twilight detection.
- Кол менен күйгүзүү/өчүрүү: Use the dedicated function key for temporary manual override.
Иштеп жатат
Once programmed, the device will automatically control the connected load according to the set schedule. The LCD display shows the current time, date, and status of the relay (ON/OFF).
- Автоматтык режим: The switch operates based on the programmed schedule and light sensor readings.
- Кол менен жокко чыгаруу: A manual ON/OFF function key allows for temporary override of the automatic program. The device will revert to the programmed schedule at the next scheduled event.
- Реле абалы: The LCD indicates the ON/OFF status of the relay.
Техникалык тейлөө
The Perry LUX TIME twilight switch is designed for maintenance-free operation. However, periodic checks are recommended:
- Ensure the external light sensor is clean and free from obstructions (dirt, leaves, snow) that could affect its light detection.
- Periodically check electrical connections for tightness, especially in environments with vibration.
- Clean the device with a dry, soft cloth. Do not use abrasive cleaners or solvents.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | Электр энергиясы жок; туура эмес зымдар. | Check circuit breaker. Verify wiring according to Figure 3. |
| Программалангандай жүктөө күйбөйт/өчпөйт. | Incorrect programming; faulty light sensor; manual override active. | Review programming settings. Check light sensor for obstructions or damage. Deactivate manual override. |
| Убакыт/дата туура эмес. | Initial setting error; internal clock battery low (if applicable). | Re-enter correct time and date. If the issue persists, consult the manufacturer for potential internal clock battery replacement. |
| Дисплей бош же бүлбүлдөп турат. | Power supply issue; internal fault. | Check power supply stability. If problem persists, contact support. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 1IC7054 |
| Электр камсыздоо | 230Vac.a +/- 10%, 50Hz |
| Nominal Contact Data | 16 (2) A / 250V c.a. |
| Maximum Programs (ON + OFF) | 45 |
| Minimum ON-OFF Switching Time | 1 мүнөт |
| Max Switched Power | 3500 VA (for a single contact) |
| Жаркыраган Л.amps (LP) | 2300 Вт |
| Uncompensated Fluorescent Tubes (LP) | 1000 Вт |
| Parallel Compensated Fluorescent Tubes (LP) | 500W (total capacity 70 microF) |
| Compact Fluorescent L.amps (LP) | 600 Вт |
| Max Cable Section at Terminals | 6 мм² |
| Protection Degree (IP) | IP 20 - IP 40 (rear panel) |
| Терминал түрү | Screw terminals without captivity |
| Изоляция классы | II |
| ON/OFF кечиктирүү | 1 sec / 59 min |
| Time Tolerance | +/- 0.5 sec / day |
| Иштөө температурасынын чектери | -20 °C / +60 °C |
| Сактоо температурасы | -30 °C / +80 °C |
| Орнотуу түрү | DIN rail / rear mounting |
| Өлчөмдөрү (LxWxH) | 35 x 60 x 30 мм (негизги блок) |
| Материал | Пластик |
Кепилдик жана колдоо
For warranty information and technical support, please refer to the documentation provided with your purchase or contact Perry customer service directly. Keep your proof of purchase for warranty claims.
Manufacturer: Perry
