Introduction
The Motorola Solutions T260TP Talkabout Radio is designed for reliable communication, keeping you connected with family and friends whether outdoors or in various environments. This lightweight and durable radio features essential functions such as NOAA weather channels and alerts, and iVOX/VOX hands-free communication, enhancing safety and convenience.
Пакеттин мазмуну
Пакетиңизде бардык буюмдар бар экенин текшериңиз:
- 3 x Motorola Solutions T260TP Radios
- 3 x Белдик клиптер
- 3 x NiMH батарея топтомдору
- Кош микро-USB туташтыргычтары менен 1 x "Y" кабелдик заряддоо адаптери
- 1 x заряддоо кабели
- 1 х Колдонуучунун колдонмосу (бул документ)
Радио бүттүview

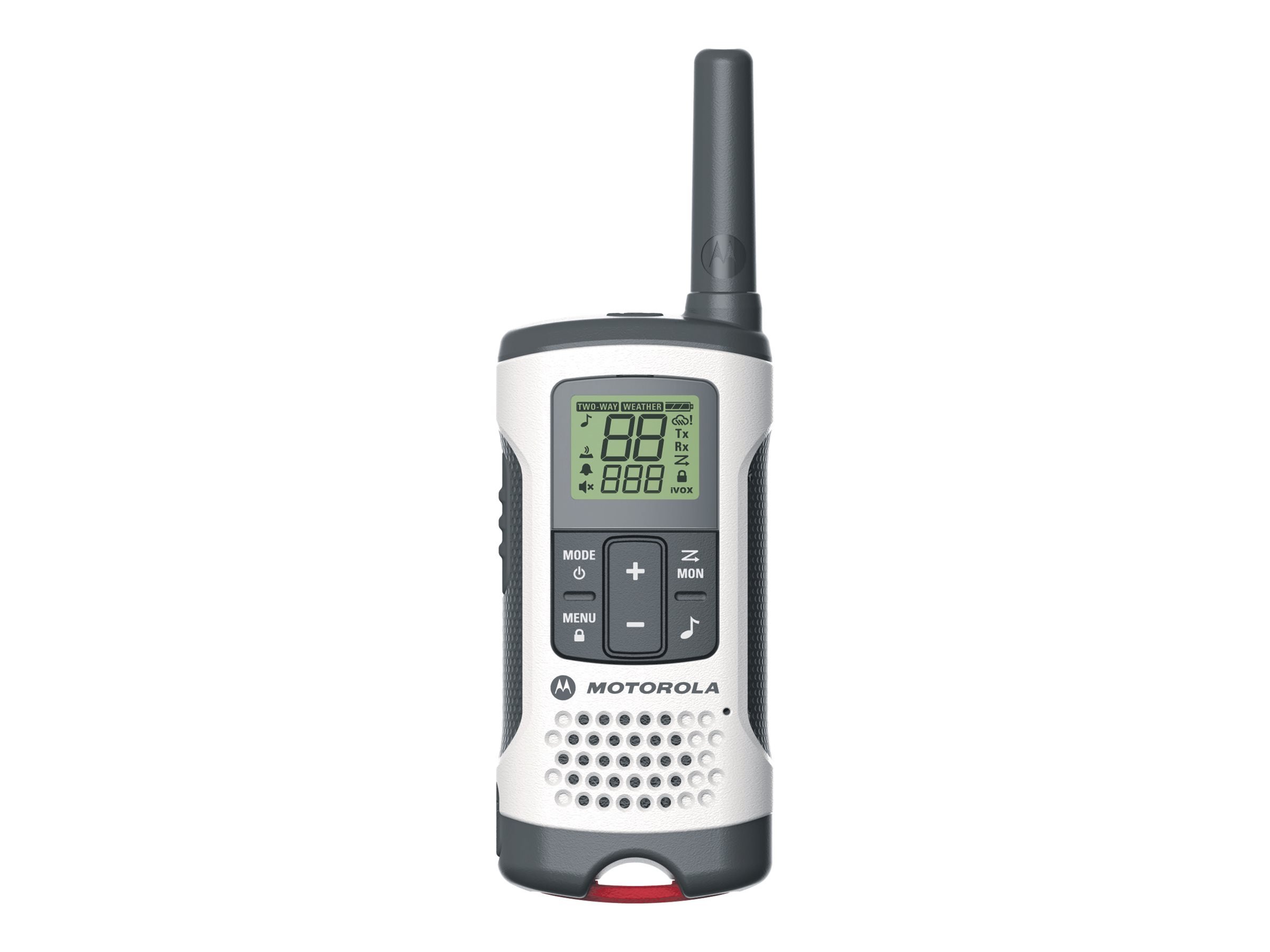

Figure 1: Motorola T260TP Radio Front View
This image displays the front of the Motorola T260TP radio. Key features visible include the antenna at the top, a clear LCD display showing channel numbers, battery level, and various icons such as "TWO-WAY WEATHER", "Tx" (transmit), "Rx" (receive), "iVOX", and a keypad lock indicator. Below the display are control buttons: "MODE" (with power icon), "+" and "-" for navigation/volume, and "MON" (monitor) with a musical note icon. The "MENU" button (with a lock icon) is also visible. The lower part of the radio features a speaker grille and the Motorola logo.
Жайгашуу
1. Батареяны орнотуу
The T260TP radio can operate using either the supplied rechargeable NiMH battery pack or three AA alkaline batteries. To install batteries:
- Радио өчүрүлгөнүн текшериңиз.
- Радионун артындагы батарея бөлүкчөсүнүн капкагын табыңыз.
- Кулпуну басып, капкакты жылдырып ачыңыз.
- Insert the NiMH battery pack, aligning the contacts. Alternatively, insert three AA batteries, observing the polarity markings (+/-).
- Батарея уясынын капкагын ордуна коюңуз, анын ордуна бекем чыкылдатыңыз.
2. Батарея топтомун заряддоо
The NiMH battery packs can be recharged using the provided "Y" cable charging adapter and micro-USB charging cable. Alkaline batteries are not rechargeable.
- Connect the micro-USB end of the charging cable to the micro-USB port on the radio.
- Connect the other end of the charging cable to the "Y" cable adapter.
- Plug the "Y" cable adapter into a standard wall outlet.
- The battery indicator on the radio display will show charging status. A full charge typically takes approximately 8-10 hours for depleted NiMH packs.
- For optimal battery life, fully charge new battery packs before first use.
Радиоңузду иштетүү
Күйгүзүү/өчүрүү
- Күйгүзүү үчүн: басып, кармап туруңуз РЕЖИМ button (with power icon) until the radio powers on.
- Өчүрүү үчүн: басып, кармап туруңуз РЕЖИМ button until the radio powers off.
Үндү тууралоо
- басыңыз + үнүн жогорулатуу үчүн баскыч.
- басыңыз - үнүн азайтуу үчүн баскыч.
Канал тандоо
Your radio has 22 channels. To select a channel:
- Радио күйүп турганда, басыңыз МЕНЮ баскычын бир жолу. Канал номери жарк этет.
- колдонуу + or - каалаган каналды тандоо үчүн баскычтар.
- басыңыз МЕНЮ button again to confirm, or wait for 5 seconds for the selection to be automatically saved.
Privacy Codes (Sub-codes)
Privacy codes help reduce interference from other users. Your radio has 121 privacy codes (38 CTCSS codes and 83 DCS codes). To set a privacy code:
- Каналды тандаңыз.
- басыңыз МЕНЮ баскычын эки жолу басыңыз. Купуялык кодунун номери күйүп-өчүп турат.
- колдонуу + or - buttons to select a code (0-121). Code 0 means no privacy code.
- басыңыз МЕНЮ button again to confirm, or wait for 5 seconds.
Note: Both radios must be on the same channel and privacy code to communicate.
Берүү жана кабыл алуу
- To transmit: Press and hold the Push-to-Talk (PTT) button (located on the side of the radio). Speak clearly into the microphone. Release the PTT button to receive.
- To receive: Ensure the PTT button is not pressed. The radio will automatically receive signals on the selected channel and privacy code.
iVOX/VOX (Hands-Free Operation)
VOX (Voice Operated Transmission) allows you to transmit by speaking into the microphone without pressing the PTT button. iVOX is similar but for use with a headset.
- басыңыз МЕНЮ VOX/iVOX сөлөкөтү жарк этмейинче басыңыз.
- колдонуу + or - buttons to select the sensitivity level (1-3, with 3 being most sensitive) or turn it off (0).
- басыңыз МЕНЮ ырастоо үчүн баскыч.
NOAA Weather Channels and Alerts
Your radio can tune into NOAA weather channels to receive continuous weather broadcasts and alerts.
- басыңыз МЕНЮ button until the weather channel icon flashes.
- колдонуу + or - buttons to select a weather channel.
- To activate weather alerts, press the МЕНЮ button again when the weather channel is selected, and choose "ON" for alerts.
- басыңыз МЕНЮ ырастоо үчүн баскыч.
Баскыч кулпу
To prevent accidental changes to your radio settings:
- To lock: Press and hold the МЕНЮ button (with lock icon) until the lock icon appears on the display.
- To unlock: Press and hold the МЕНЮ кулпу сөлөкөтү жок болмоюнча баскычты басыңыз.
Монитор функциясы
The monitor function allows you to listen for weak signals on the current channel by temporarily disabling the privacy code. This is useful for checking for activity on a channel before transmitting.
- Иштетүү үчүн: баскычын басып, кармап туруңуз МОН баскычы.
- To deactivate: Release the МОН баскычы.
Техникалык тейлөө
- Тазалоо: Радиону жумшак, d менен тазалаңызamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Батареяга кам көрүү:
- Store NiMH battery packs fully charged in a cool, dry place when not in use for extended periods.
- Remove alkaline batteries if the radio will not be used for a long time to prevent leakage.
- Суу каршылык: Бул радио ЖОК water resistant. Avoid exposing it to rain, splashes, or submersion.
Проблемаларды чечүү
| Көйгөй | Мүмкүн чечим |
|---|---|
| Күч жок | Check battery installation and charge level. Replace or recharge batteries. |
| Poor range or static | Ensure radios are within range. Check for obstructions (buildings, dense foliage). Change channels or privacy codes. Ensure batteries are fully charged. |
| Өткөрүп же кабыл албайт | Verify both radios are on the same channel and privacy code. Check if keypad lock is active. Ensure PTT button is fully pressed when transmitting. |
| Radio beeps continuously | Low battery warning. Recharge or replace batteries. |
Техникалык шарттар
- Модел: T260TP
- Өлчөмдөрү: 1.24"D x 2.13"W x 6.42"H
- Салмагы: 6.4 ounces (per radio, without batteries)
- Каналдар: 22 FRS/GMRS Channels
- Жыштык диапазону: FRS/GMRS 462 - 467 МГц
- Купуялык коддору: 121 (38 CTCSS, 83 DCS)
- Кубат булагы: NiMH rechargeable battery pack (included) or 3 x AA alkaline batteries (not included)
- Talking Range (Maximum): Up to 25 Miles (under optimal conditions)
- Сууга туруктуулук деңгээли: Сууга чыдамдуу эмес
Коопсуздук маалыматы
Please read and understand the following safety precautions before using your radio:
- Do not operate the radio in an explosive atmosphere (e.g., near flammable gas, dust particles, metallic powders).
- Do not replace or charge batteries in an explosive atmosphere.
- Turn off your radio before entering any area with potential explosive atmospheres.
- Бузулган батарейкаларды колдонбоңуз.
- Батареяларды жергиликтүү эрежелерге ылайык туура жок кылыңыз.
- Keep the radio away from medical devices (e.g., pacemakers) to avoid interference.
- Радиону ажыратпаңыз же өзгөртпөңүз.
- Use only Motorola Solutions approved accessories.
Кепилдик жана колдоо
For warranty information and technical support, please refer to the official Motorola Solutions website or contact their customer service. A detailed user guide in PDF format is also available for download from the manufacturer's support page.
Расмий колдонуучу колдонмосу (PDF): Колдонуучунун колдонмосун жүктөп алыңыз
