papalook PA150S Full HD 1080P Webcam User Manual

Introduction

This manual provides detailed instructions for the papalook PA150S Full HD 1080P Webcam. Please read this manual carefully before using the product to ensure proper operation and retain it for future reference.

Кутуда эмне бар

• papalook PA150S Webcam
• Колдонуучунун Колдонмосу (бул документ)

Image: The papalook PA150S webcam and its packaging, including the user manual.

Негизги өзгөчөлүктөрү

• Full HD 1080P видео: Delivers high-definition video at 1920 x 1080 pixels and 30 frames per second, suitable for video calls and streaming.
• Omnidirectional Stereo Microphone: Integrated microphone with noise reduction technology captures clear audio from all directions.
• 60 градус Viewбурч: Provides a focused field of view, ideal for individual use or small group interactions.
• Auto Low Light Correction: Automatically adjusts to varying lighting conditions to produce bright and well-contrasted images.
• Plug and Play: Simple USB connectivity ensures universal compatibility with various operating systems without requiring additional drivers.
• Manual Swivel Lens: Allows for precise focus adjustment to achieve a sharp image.
• Узак металл дизайн: Constructed with robust metal materials for enhanced durability.

Image: A split image demonstrating the visual difference between 720P and 1080P video quality from the webкамера

Image: The papalook PA150S webcam highlighting its manual swivel lens feature.

Сүрөт: жарылган view -ныкы webcam's lens, illustrating its multi-layer precision-cut glass lens.

Жайгашуу

туташтыруу Webcam

1. кой webcam securely on top of your monitor or on a flat surface. The adjustable clip is designed to fit various screen thicknesses.
2. USB кабелин түзмөктөн туташтырыңыз webcam to an available USB port on your computer (PC or Mac).
3. The webcam is designed for plug-and-play functionality and should be automatically recognized by your operating system. No additional driver installation is typically required.

Image: A diagram showing the webcam connected via USB to a computer, highlighting the USB interface and anti-magnet ring.

Image: The papalook PA150S webcam mounted on top of a computer monitor.

Иштөө нускамалары

жөндөө View

The webcam features a flexible design for optimal positioning and viewбурчтар:

• Айлануу: The camera head can rotate 360 degrees horizontally and 180 degrees vertically, allowing you to capture various perspectives.
•  style="font-weight: bold;">Base Adjustment: The multi-functional base can be adjusted to securely fit on different monitor thicknesses or to stand stably on a flat surface.

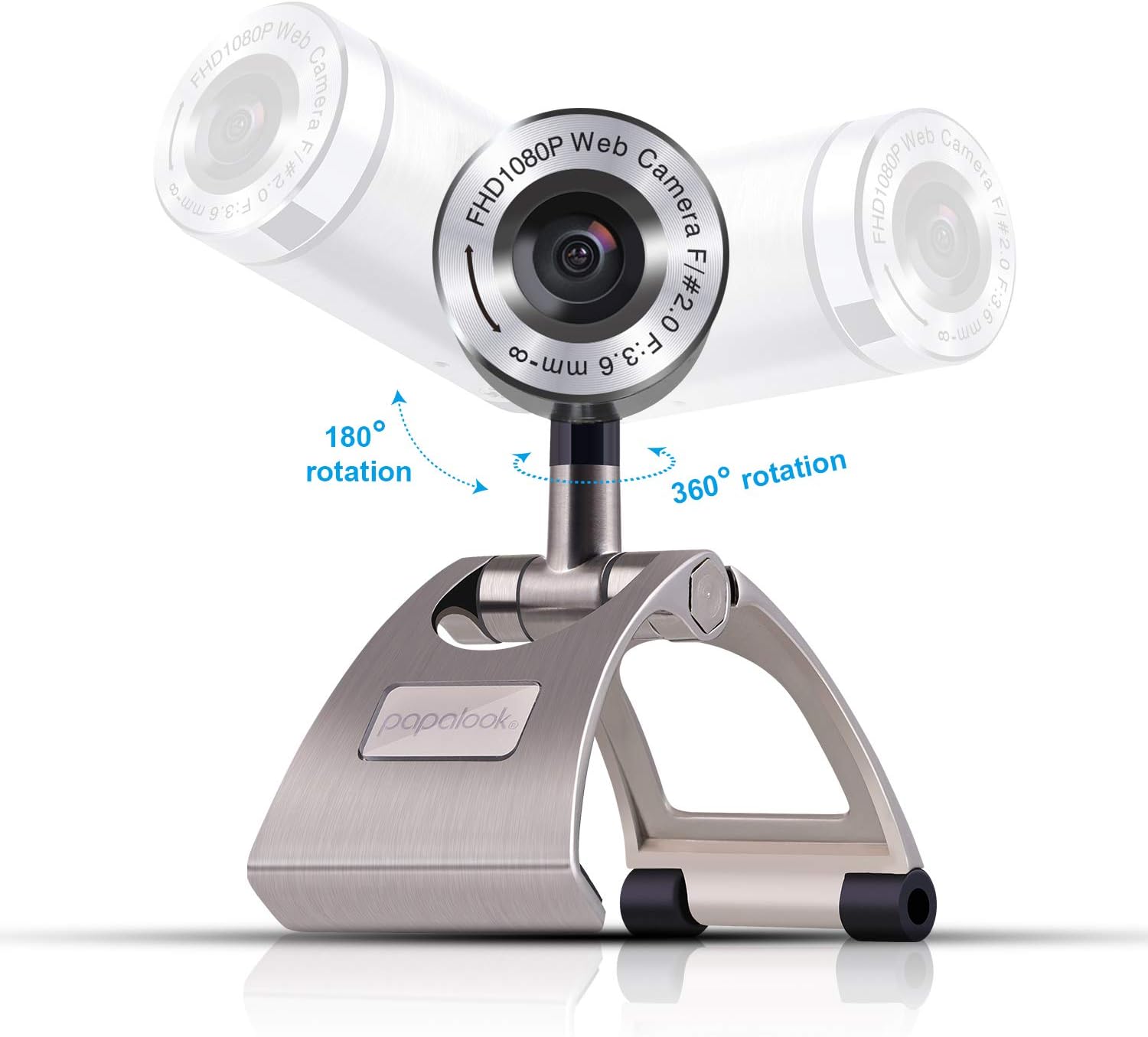

Сүрөт: The webcam demonstrating its 180-degree vertical and 360-degree horizontal rotation capabilities.

Сүрөт: The webcam showing its adjustable base for various mounting options.

Manual Focus

To achieve a clear and sharp image, rotate the manual focus ring located around the webcam's lens until the desired clarity is achieved.

Сүрөт тартуу

Press the dedicated photograph button, located on the top of the webcam, to capture still images.

Сүрөт: The webcam with an arrow pointing to the photograph button on its top.

Шайкештик

The papalook PA150S webcam offers broad compatibility with various operating systems and popular video conferencing applications.

Колдоого алынган операциялык системалар

• Windows XP, Windows 7, Windows 8, Windows 10
• Mac OS 10.6 же андан жогору
• Chrome OS 29.0.1547 же андан жогору
• Linux 10.04 же андан жогору
• Ubuntu 2.6.24 or above
• Android 5.0 же андан жогору

Колдоого алынган колдонмолор

• Чоңойтуу
• Skype
• FaceTime
• YouTube
• Twitter
• OBS
• Twitch
• TikTok

Image: Icons representing various compatible operating systems (Linux, Windows, Mac OS, Ubuntu) and web software/applications (Zoom, OBS, Skype, YouTube, Twitch, TikTok).

Техникалык тейлөө

• Keep the lens clean using a soft, dry, lint-free cloth. Avoid using abrasive materials or harsh chemicals.
• ачыкка чыгарбагыла webcam to extreme temperatures, direct sunlight, or high humidity.
• Түшүрүп салуудан алыс болуңуз webcam or subjecting it to strong impacts.
• Ensure the lens protective film is removed before the first use for optimal image clarity.

Image: The papalook PA150S webcam with its lens cap on, indicating protection.

Проблемаларды чечүү

Сүрөт/видео жок

• USB кабели экөөнө тең бекем туташтырылганын текшериңиз webкамера жана компьютериңиз.
• туташтырып көрүңүз webкамераны компьютериңиздеги башка USB портуна туташтырыңыз.
• Компьютериңизди өчүрүп күйгүзүңүз.
• Check your operating system's privacy settings to ensure camera access is enabled for your applications.
• Туура экенин текшериңиз webcam (papalook PA150S) is selected as the video input device in your video conferencing software settings.

Сүрөттүн сапаты начар

• Adjust the manual focus ring on the lens until the image appears clear and sharp.
• Ensure there is adequate lighting in your environment. While the webcam has auto low light correction, sufficient ambient light significantly improves image quality.
• тазалаңыз webcam lens with a soft, lint-free cloth to remove any dust or smudges.

Аудио жок/Аудио сапаты начар

• камсыз кылуу webcam's microphone is selected as the default audio input device in your computer's sound settings and your application's audio settings.
• Check that the microphone is not muted in your system settings or within the application you are using.
• Speak clearly and within a reasonable distance from the webcam for optimal audio capture.

Техникалык шарттар

Расмий продукт Video

Video: An official product video demonstrating the features and setup of the papalook PA150S Webкамера

Кепилдик жана колдоо

For any technical problems, questions, or inquiries regarding refunds or replacements, please contact papalook customer support. Refer to the product packaging or the official papalook webакыркы байланыш маалыматы үчүн сайт.

Юридикалык баш тартуу: This item is shipped from the Amazon Warehouse in the United States. The product is a genuine original from manufacturer authorized distributors.
