1. Киришүү
This manual provides detailed instructions for the safe and effective operation of your Godox TT685S Thinklite TTL Flash. The TT685S is designed for Sony cameras and supports i-TTL auto flash, offering advanced features for various photographic needs. Please read this manual thoroughly before use to ensure proper functionality and to prevent damage to the product.
The Godox TT685S flash unit is equipped with a 2.4G wireless transmission system, enabling versatile off-camera lighting setups. Its robust design and comprehensive features make it a valuable tool for both amateur and professional photographers.
2. Продукт бүтүп калдыview
2.1. Негизги өзгөчөлүктөрү
- i-TTL Auto Flash: Fully compatible with Sony's i-TTL system for automatic flash exposure.
- 2.4G зымсыз берүү: Built-in Godox 2.4G wireless X system for master and slave functionality, offering up to 100 meters transmission range.
- Жогорку ылдамдыктагы синхрондоштуруу (HSS): 1/8000с чейин жабуунун ылдамдыгын колдойт.
- Жарк этүүнүн ордун толтуруу (FEC): Adjust flash output for precise control.
- Кол менен жарк: Full control over flash power from 1/1 to 1/128.
- Көп жарк: Stroboscopic flash for capturing multiple movements in a single image.
- Auto and Manual Zoom: Flash head can zoom automatically or manually from 20mm to 200mm.
- Fast Recycle Time: Approximately 0.1-2.6 seconds with fresh AA batteries.
- Гид номери: GN60 (m ISO 100, @200mm).
2.2. Пакеттин мазмуну
Таңгактан чыгаргандан кийин, төмөндө көрсөтүлгөн нерселердин бардыгы бар экенин жана жакшы абалда экендигин текшериңиз:
- Godox TT685S Flash Unit
- Мини стенд
- Коргоочу кап
- Көрсөтмө (бул документ)
- Sync Cord (if included in specific regional packages)
2.3. Flash Unit Diagram
Refer to the image below for a visual representation of the Godox TT685S flash unit and its main components.

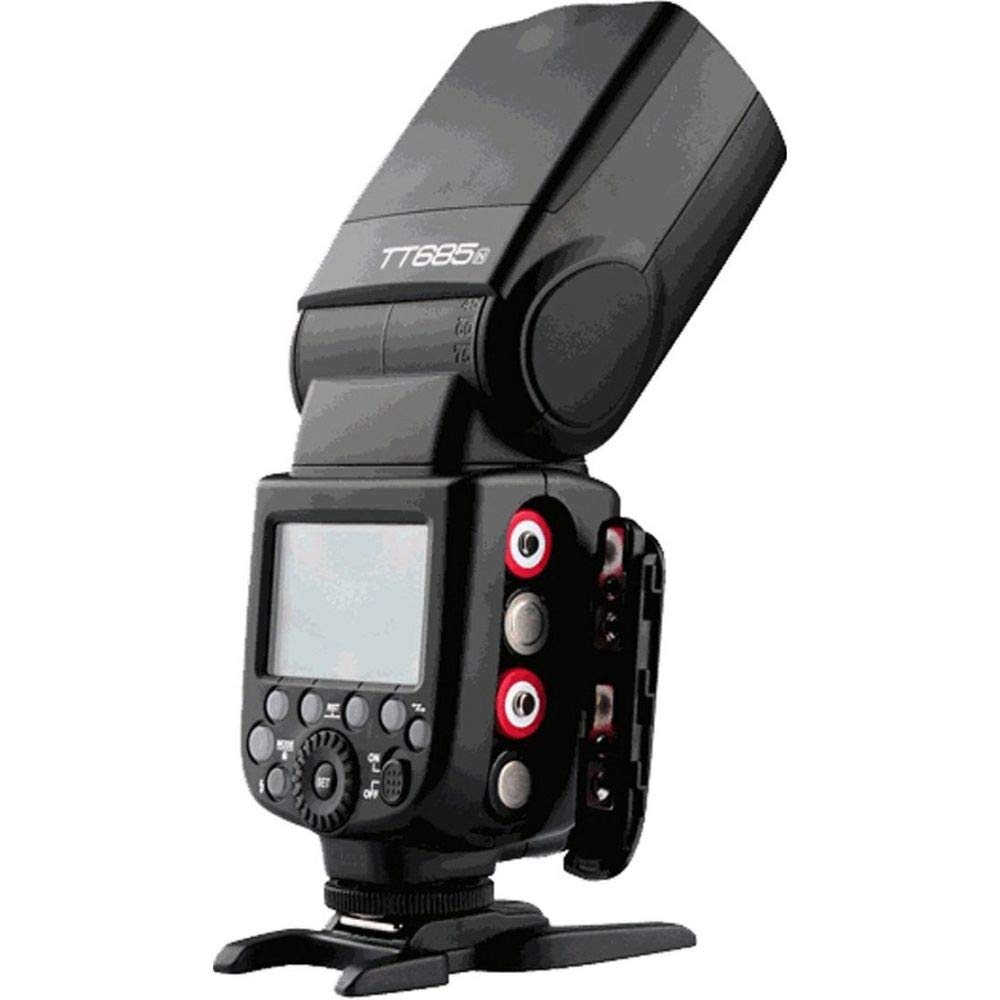

Сүрөт 1: Алдыңкы view of the Godox TT685S Thinklite TTL Flash unit. This image displays the flash head, LCD panel, control buttons, and hot shoe mount.
- Flash Head
- Камтылган Wide Panel
- Built-in Bounce Card
- Focus Assist Beam
- Зымсыз башкаруу порту
- Sync Cord Jack (3.5mm)
- USB Port (for firmware upgrades)
- Батарея отсеги
- Hot Shoe тоосу
- LCD панели
- Control Buttons and Dial
3. Орнотуу
3.1. Батареяны орнотуу
The Godox TT685S uses four AA batteries (alkaline or Ni-MH are recommended). Ensure correct polarity when inserting.
- Slide the battery compartment cover downwards and open it.
- Бөлүмдүн ичиндеги полярдуулук көрсөткүчтөрүнө ылайык төрт AA батарейкасын салыңыз.
- Батарея уясынын капкагын бекем жабыңыз.
Эскертүү: Always use a fresh set of batteries for optimal performance. Remove batteries if the flash will not be used for an extended period.
3.2. Камерага орнотуу
To attach the flash unit to your Sony camera's hot shoe:
- Жаркылдак блогунун ысык бут кийимин камеранын ысык бут кийимине толугу менен жылдырыңыз.
- Жаркылдак блогундагы бекитүүчү шакекчени бекем бекитилгенге чейин саат жебеси боюнча айландырыңыз.
Абайлаңыз: Ensure the flash is properly seated and locked to prevent accidental detachment and potential damage.
3.3. Күйгүзүү/өчүрүү
To power on the flash, slide the Power Switch to the 'ON' position. To power off, slide it to 'OFF'.
4. Иштөө нускамалары
4.1. Flash режимдери
The TT685S offers several flash modes to suit different shooting scenarios. Press the РЕЖИМ button to cycle through the available modes: TTL, Manual (M), and Multi (Stroboscopic).
- TTL режими: The flash output is automatically adjusted by the camera to achieve correct exposure.
- Кол менен (M) режими: Allows you to manually set the flash power output from 1/1 (full power) to 1/128 in 1/3 stop increments.
- Көп (Стробоскопиялык) режим: Fires a series of rapid flashes during a single exposure to capture multiple movements in a single image. You can set the number of flashes, frequency (Hz), and flash power.
4.2. Wireless Flash Shooting (2.4G Transmission)
The TT685S can function as a master or slave unit in the Godox 2.4G wireless X system. This allows for flexible off-camera flash setups.
- Негизги блок: Mount the TT685S on your camera's hot shoe. Press the SYNC button (or wireless button) to enter wireless mode. Select 'Master' and configure groups (A, B, C) and channels (1-32).
- Кул бирдиги: Place the TT685S off-camera. Press the SYNC button (or wireless button) to enter wireless mode. Select 'Slave' and ensure the group and channel settings match the master unit.
Кеңеш: For optimal wireless performance, ensure a clear line of sight between the master and slave units. Avoid obstacles that may block the signal.
4.3. Жогорку ылдамдыктагы синхрондоштуруу (HSS)
HSS allows you to use flash with shutter speeds faster than your camera's native flash sync speed (e.g., 1/250s). This is useful for freezing fast action or using wide apertures in bright conditions.
- To activate HSS, ensure the flash is in TTL or Manual mode. Press the HSS button (often indicated by a lightning bolt icon with 'H'). The HSS icon will appear on the LCD panel.
- Your camera will automatically adjust to HSS mode when a compatible flash is detected and HSS is enabled.
4.4. Жарк этүүнүн ордун толтуруу (FEC)
FEC allows you to fine-tune the flash output in TTL mode. You can adjust the exposure from -3 to +3 stops in 1/3 stop increments.
- TTL режиминде, басыңыз FEC баскычы.
- Rotate the Select Dial to adjust the compensation value.
- басыңыз SET ырастоо үчүн баскыч.
4.5. Чоңойтуу функциясы
The flash head's zoom position can be adjusted to match the lens focal length, optimizing light coverage.
- Auto Zoom: In TTL mode, the flash automatically adjusts its zoom position (20-200mm) to match the camera's lens focal length.
- Кол менен чоңойтуу: басыңыз ZOOM button. Rotate the Select Dial to manually set the zoom position (e.g., 20mm, 24mm, 28mm, etc.).
4.6. Using the Sync Port
The 3.5mm sync port allows for wired connection to cameras or triggers that do not support hot shoe communication. Connect a standard 3.5mm sync cable from the flash to your camera's PC sync terminal or a compatible trigger.
5. Техникалык тейлөө
- Тазалоо: Жарк этүүчү аппаратты тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. өжөр кир үчүн, бир аз гamp cloth can be used, followed by a dry cloth. Avoid using solvents or abrasive cleaners.
- Батареяга кам көрүү: Remove batteries when the flash is not in use for extended periods to prevent leakage. Store batteries in a cool, dry place.
- Сактагыч: Store the flash unit in its protective case in a cool, dry, and dust-free environment. Avoid extreme temperatures and high humidity.
- Программалык камсыздоонун жаңыртуулары: Мезгил-мезгили менен Godox расмий текшерүү website for firmware updates. Updates can improve performance and add new features. Use the USB port for firmware upgrades.
6. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Flash күйбөйт. | Low battery, flash not powered on, incorrect camera settings, flash not securely mounted. | Check batteries, power on flash, verify camera flash settings, ensure flash is securely mounted on hot shoe. |
| Flash exposure is too dark/bright. | Incorrect FEC setting, flash power too low/high in M mode, subject too far/close. | Adjust FEC, change manual flash power, reposition flash or subject. |
| Зымсыз жаркылдаткыч иштебей жатат. | Incorrect group/channel settings, master/slave mode not set, interference, distance too great. | Ensure master and slave units have matching group/channel. Verify master/slave mode. Reduce distance or clear line of sight. |
| HSS not activating. | HSS not enabled on flash, camera not set to HSS compatible mode. | Enable HSS on the flash unit. Ensure camera shutter speed is set above sync speed. |
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | TT685S |
| Шайкеш камералар | Sony Alpha series cameras |
| Гид номери (GN) | 60 (ISO 100 м, @200 мм) |
| Flash камтуу | 20 - 200 мм (Авто/Кол менен масштаб) |
| Жаркыроонун узактыгы | 1/300 ден 1/20000 секундага чейин |
| Кайра иштетүү убактысы | Болжол менен 0.1-2.6 секунд (Ni-MH батарейкалары) |
| Power Source | 4x AA batteries (Ni-MH or Alkaline) |
| Flash синхрондоштуруу ылдамдыгы | 1/8000сек чейин (HSS) |
| Зымсыз Функция | Master, Slave, Off (2.4G wireless transmission) |
| Каналдар | 32 (1-32) |
| Башкарылуучу кул топтору | 3 (A, B, C) |
| Өлчөмдөрү (W x Y x D) | 7.48 x 2.99 x 2.52 дюйм (190 x 76 x 64 мм) |
| Салмагы (батареясыз) | 1.17 фунт (болжол менен 530 г) |
8. Кепилдик жана колдоо
The Godox TT685S Thinklite TTL Flash comes with a Чектелген 1 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик өндүрүш кемчиликтерин камтыйт жана нормалдуу колдонууда буюмдун материалдык жана жасалгалоо кемчиликтери жок экенин камсыз кылат.
For warranty claims, technical support, or service inquiries, please contact your authorized Godox dealer or visit the official Godox website for contact information. Keep your purchase receipt as proof of purchase for warranty validation.
Please note that the warranty may not cover damage caused by misuse, unauthorized modifications, accidents, or improper maintenance. Refer to the full warranty terms provided with your product or on the manufacturer's webсайт.
