1. Киришүү
Thank you for choosing the Volteck PLA-209L 24W LED Round Ceiling Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
2. Продукт бүтүп калдыview
The Volteck PLA-209L is a modern and energy-efficient LED ceiling light designed for various indoor applications. Its sleek, round design integrates seamlessly into any space, providing bright and instant illumination.
Негизги өзгөчөлүктөрү:
- Durable construction with an aluminum body, steel back cover, жана glass screen.
- Instantaneous illumination (provides 100% brightness upon switching on).
- Integrated LED technology, eliminating the need for bulb replacement.
- Ideal for homes, commercial spaces, lobbies, and more.
- Saves up to 84% in energy consumption compared to traditional lighting.
Figure 2.1: Volteck PLA-209L 24W LED Round Ceiling Light.

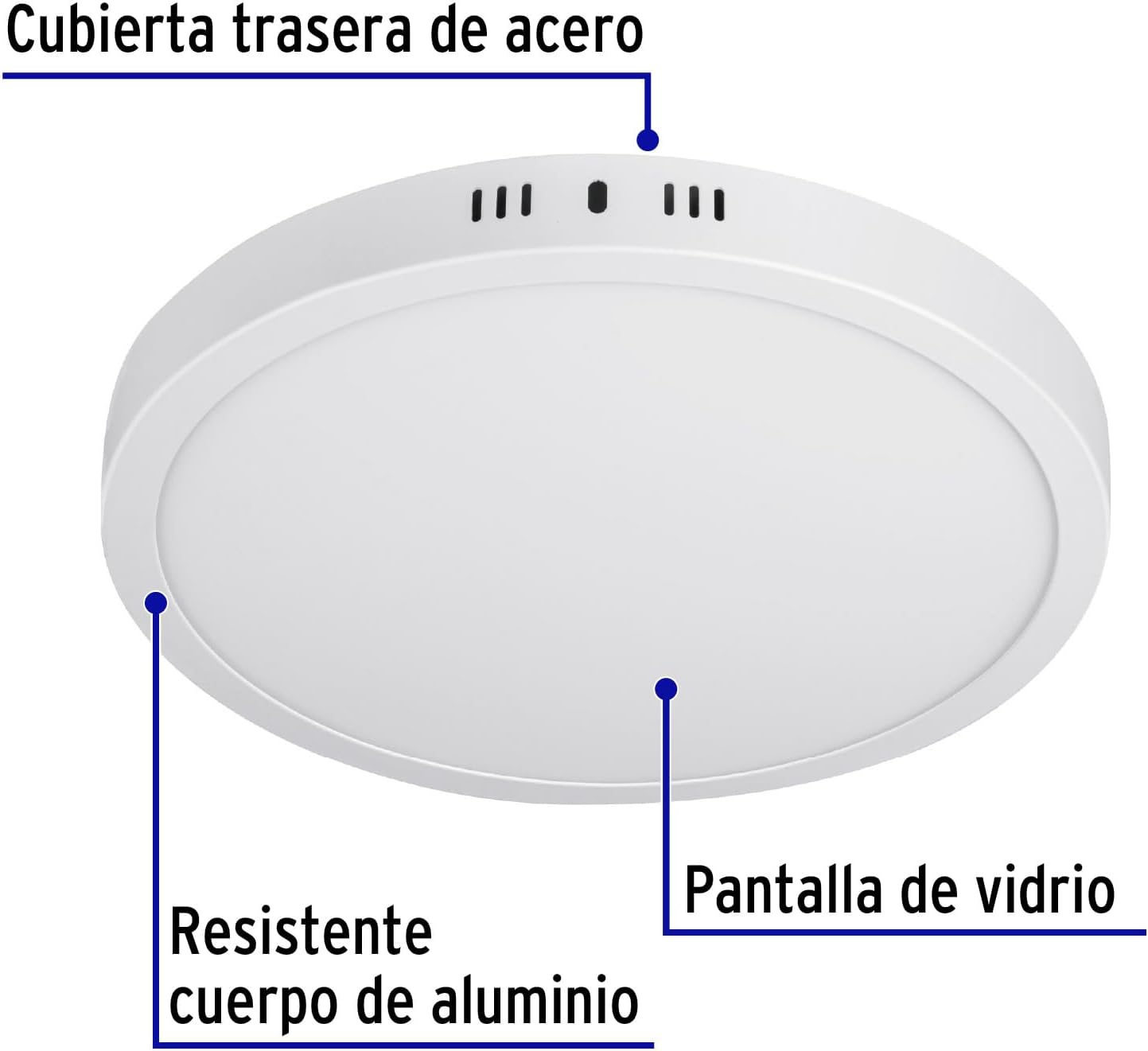

Figure 2.2: Product components highlighting the resistant aluminum body, steel back cover, and glass screen.
3. Техникалык шарттар
Refer to the table below for detailed technical specifications of the Volteck PLA-209L LED Round Ceiling Light.
| Спецификация | Нарк |
|---|---|
| Өндүрүүчү | Truper SA de CV |
| Бөлүмдүн номери | 46717 |
| Өлчөмү | 24 Вт |
| Түс | Ак |
| Стиль | Ceiling Light (Plafón) |
| Бүтүрүү | боёлгон |
| Материал | Aluminum, Polystyrene |
| Үлгү | Тегерек шыптын жарыгы |
| Power Source | Электр зымдары |
| Тtage | 120 вольт (AC) |
| Ватtage | 24 ватт |
| Орнотуу ыкмасы | Surface Mount |
| Number of Item Packages | 1 |
| Лампанын түрү | LED |
| Жарык агымы | 2000 люмен |
| Mounting Profile | Flush тоосу |
| Стилди которуу | тийүү |
| Колдонуу | Үй |
| Камтылган компоненттер | Remote control, Mounting material, Diffuser |
| Батареялар керекпи? | Жок |
| Узундук | 27.94 сантиметр |
| Туурасы | 3 сантиметр |
| Бийиктик | 3 сантиметр |
| Продукциянын өлчөмдөрү | 27.94 x 3 x 3 см; 560 г |
| Продукт моделинин номери | PLA-209L |

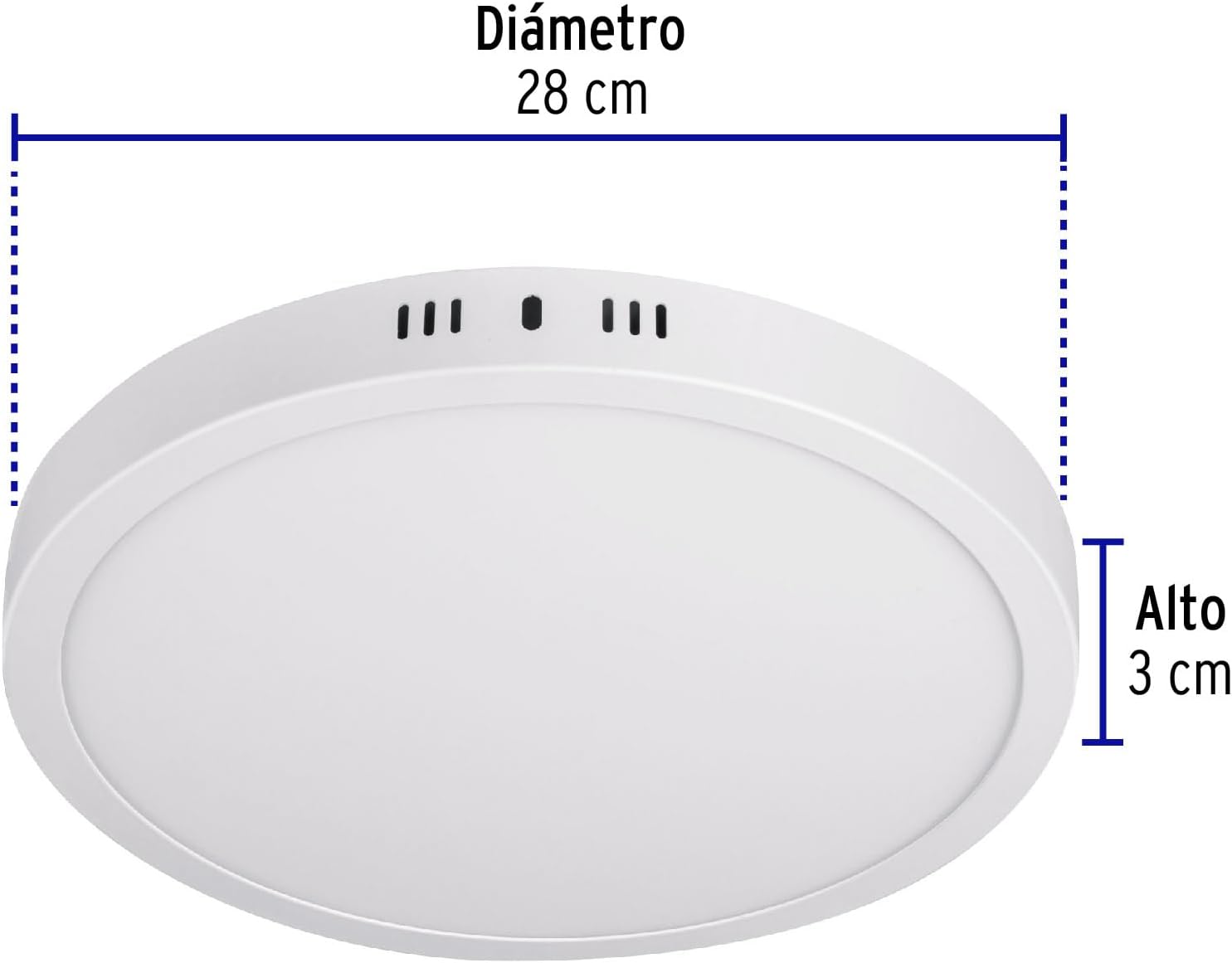

Figure 3.1: Product dimensions showing a diameter of 28 cm and a height of 3 cm.
4. Коопсуздук маалыматы
Always follow basic safety precautions when installing or working with electrical devices to reduce the risk of fire, electric shock, and personal injury.
- ЭСКЕРТҮҮ: Электр тогуна урунбоо үчүн, орнотуудан же тейлөөдөн мурун автоматтык өчүргүчтү же сактагыч кутучаны электр кубатынан ажыратыңыз.
- электр менен жабдууну камсыз кылуу voltage matches the product's specifications (120V AC).
- This product is designed for indoor use only. Do not expose to water or moisture.
- Орнотуу процессине ишенбесеңиз, квалификациялуу электрикке кайрылыңыз.
- Do not modify the product in any way. Any modifications may void the warranty and pose safety risks.
- Таңгактоочу материалдарды балдар жетпеген жерде сактаңыз.
5. Орнотуу (Орнотуу)
The Volteck PLA-209L is designed for surface mounting. Follow these general steps for installation. It is recommended to have basic electrical knowledge or consult a professional.
Tools and Materials Needed (Not Included):
- Бурагыч (Phillips жана Flathead)
- Тийиштүү бургулоо биттери менен бургула
- Зымдарды сыйрып алуучулар
- Карандаш
- Өлчөө лентасы
- Коопсуздук көз айнек
Орнотуу кадамдары:
- Кубатты өчүрүү: Locate the circuit breaker controlling the light fixture's power supply and turn it off. Verify that the power is off using a voltage сыноочу.
- Монтаждоо бетин даярдоо: Mark the desired mounting location on the ceiling or wall. Use the light fixture's mounting bracket as a template to mark the screw holes.
- Бургулоо тешиктери: Drill pilot holes at the marked locations. Insert wall anchors (if necessary, included in mounting material) into the drilled holes.
- Монтаждык кронштейнди тиркөө: Берилген бурамалар менен бекитүүчү кронштейнди шыпка/дубалга бекитиңиз.
- Зымдарды туташтыруу: Carefully connect the electrical wires from the ceiling to the light fixture's wires. Typically, connect the live (black/brown) wire from the ceiling to the live wire of the fixture, and the neutral (white/blue) wire from the ceiling to the neutral wire of the fixture. Ensure all connections are secure using wire nuts.
- Монтаждык арматура: Align the light fixture with the mounting bracket and secure it in place. Ensure it is firmly attached and flush with the surface.
- Күчтү калыбына келтирүү: Once the installation is complete and all connections are secure, turn the power back on at the circuit breaker.
- Тест жарыгы: Жарык берүүчү лампа туура иштеп жатканын текшерүү үчүн жарык өчүргүчтү күйгүзүңүз.
6. Иштөө нускамалары
The Volteck PLA-209L LED Round Ceiling Light is designed for simple operation.
- Күйгүзүү/өчүрүү: Use a standard wall switch to turn the light fixture on or off. The integrated LED provides instantaneous illumination.
- Алыстан башкаруу (эгер камтылган болсо): If your model includes a remote control, refer to its specific instructions for functions such as dimming or color temperature adjustment (if applicable). The provided JSON indicates a remote control is included.
7. Техникалык тейлөө
The Volteck PLA-209L LED Round Ceiling Light requires minimal maintenance.
- Тазалоо: To clean the fixture, ensure the power is off. Use a soft, dry cloth to wipe down the surface. For stubborn dirt, a slightly damp жумшак самын кошулган чүпүрөктү, андан кийин кургак чүпүрөктү колдонсо болот. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз.
- LED Узак мөөнөттүү: The integrated LED has a long lifespan and does not require bulb replacement.
8. Кыйынчылыктарды
If you encounter any issues with your Volteck PLA-209L LED Round Ceiling Light, refer to the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | Электр энергиясы жок. | Check the circuit breaker or fuse. Ensure the wall switch is in the ON position. |
| Бошогон зымдар байланышы. | Turn off power at the circuit breaker. Check all wire connections for tightness. Re-secure if loose. | |
| Жарык жылтылдайт. | Loose wiring or unstable power. | Turn off power. Check wiring connections. Ensure the power supply is stable. |
| Жарык күңүрт. | Туура эмес томtage or faulty unit. | Томду ырастаңызtage supply matches the product specification. If the issue persists, contact customer support. |
If the problem persists after attempting these troubleshooting steps, please contact Volteck customer support.
9. Кепилдик жана колдоо
Volteck products are backed by Grupo Truper's comprehensive warranty program.
Кепилдик маалыматы:
Grupo Truper's warranty covers over 25,000 accessories and spare parts, with minimal or no labor cost. They have 177 service centers in Mexico and 15 Latin American countries. It is not necessary to present the purchase receipt to validate the warranty.
Кардарларды колдоо:
For technical assistance, warranty claims, or any other inquiries, please visit the official Volteck or Grupo Truper website for contact information or locate your nearest service center.
