Cobra RAD 350 лазердик радар детекторунун колдонуу боюнча колдонмосу

1. Киришүү

The Cobra RAD 350 is designed to keep drivers aware of their surroundings and protect against various radar and laser guns. It incorporates advanced circuitry to reduce false alerts, ensuring that only relevant warnings are provided. The device features a 7-Segment Color Display for clear band identification and signal strength indication.

Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:

• Fewer False Alerts: The IVT Filter™ system minimizes false alerts from collision avoidance systems and traffic flow monitoring devices.
• Front & Rear Detection: Advanced laser eye sensor detects radar signals (X, K, and Ka bands) and laser signals from both front and rear.
• Audible Signal Strength: Unique tones indicate signal strength and band type, allowing drivers to keep their focus on the road.
• 7-Segment Color Display: High-quality display with band identification icons and a numeric signal strength meter.
• Instant-On Ready: Quickly detects radar guns for immediate speed monitoring.
• Detection Only: Exclusively designed for radar and laser signal detection to inform drivers.

2. Кутуда эмне бар

Upon opening your Cobra RAD 350 package, you should find the following items:

• Cobra RAD 350 Радар/Лазердик детектор
• Windshield Mount (with suction cups)
• Куралдар тактасынын чаптама монтажы
• 12V Унаа кубат адаптери
• Көрсөтмө (бул документ)

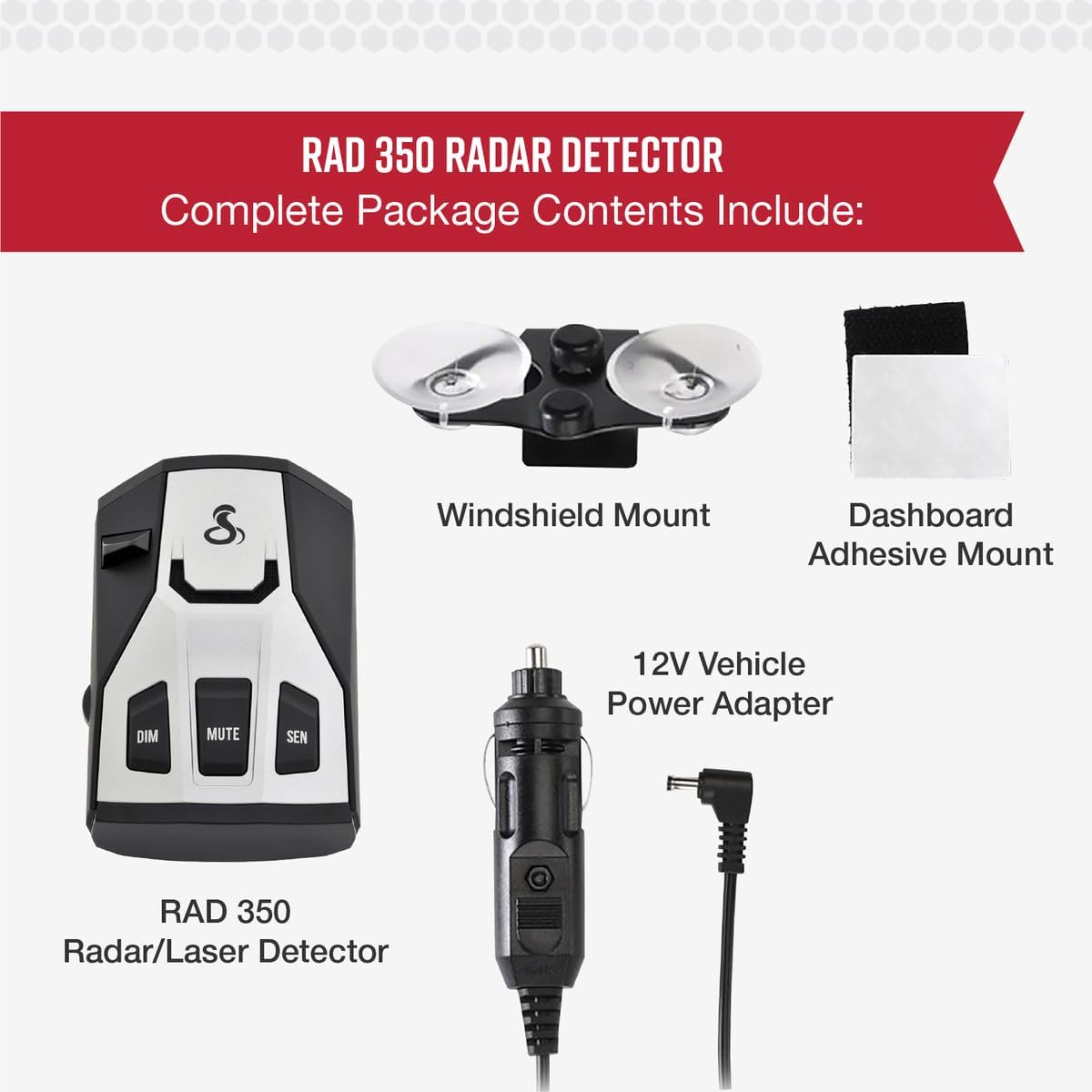

Figure 1: Package contents of the Cobra RAD 350, showing the detector unit, windshield mount, dashboard adhesive, and 12V power adapter.

3. Орнотуу жана орнотуу

Proper installation ensures optimal performance and detection range for your RAD 350. Choose a location that provides a clear view алдыдагы жана арткы жолдун.

3.1 Монтаждоо параметрлери

• Айнек орнотуу: Attach the suction cup mount to the windshield, ensuring it is level and does not obstruct your view. The detector should be positioned to have an unobstructed view жолдун.
• Башкаруу панелине орнотуу: Use the provided adhesive mount to secure the detector to your dashboard. Ensure the surface is clean and dry before applying.

3.2 Кубат туташтыруу

Connect the 12V Vehicle Power Adapter to the detector and then into your vehicle's cigarette lighter socket. The device will power on automatically.

Figure 2: The Cobra RAD 350 Radar Detector shown mounted on a vehicle's dashboard, illustrating typical placement.

3.3 Продукт бүттүview Video

4. Иштөө нускамалары

The Cobra RAD 350 is designed for intuitive operation. Familiarize yourself with the controls and display indicators for effective use.

4.1 Башкаруу жана дисплей

The device features a 7-Segment Color Display that shows detected bands (X, K, Ka, V) and signal strength. Control buttons are located on the top of the unit.

• DIM баскычы: Adjusts the display brightness for optimal visibility in various lighting conditions.
• MUTE баскычы: Silences audio alerts. Can be used for manual mute or auto mute functions.
• SEN (Sensitivity) Button: Toggles between City and Highway sensitivity modes.

Figure 3: Close-up of the Cobra RAD 350's control buttons, highlighting Instant-On, Dim, and Mute functions.

4.2 Sensitivity Modes (SEN Button)

• Шаар режими: Reduces sensitivity to minimize false alerts in urban areas, often caused by automatic door openers and traffic sensors.
• Highway Mode: Maximizes detection range for extended protection on open roads.

4.3 False Alert Filtering (IVT Filter™)

The integrated IVT Filter™ system intelligently reduces false alerts from vehicle-based technology such as collision avoidance systems, ensuring that only genuine threats are signaled.

Figure 4: Visual representation of the Cobra RAD 350's core features: Long-Range Detection, False Alert Filtering, and LaserEye technology.

4.4 Radar Detector Product Overview

5. Техникалык тейлөө

To ensure the longevity and optimal performance of your Cobra RAD 350, follow these simple maintenance guidelines:

• Тазалоо: Regularly wipe the exterior of the detector with a soft, damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонуудан алыс болуңуз.
• Линзага кам көрүү: Keep the front and rear lenses clean and free of obstructions for accurate detection.
• Сактагыч: When not in use, store the detector in a cool, dry place away from direct sunlight and extreme temperatures.

6. Кыйынчылыктарды

If you encounter issues with your Cobra RAD 350, refer to the following common troubleshooting steps:

• Кубат жок: Ensure the 12V power adapter is securely plugged into both the detector and the vehicle's cigarette lighter socket. Check the vehicle's fuse for the cigarette lighter.
• Excessive False Alerts: Switch to City mode to reduce sensitivity. Ensure the IVT Filter™ is active. Check for any in-vehicle systems (e.g., adaptive cruise control) that might emit radar signals.
• Poor Detection Range: Verify that the detector has a clear, unobstructed view of the road. Clean the front and rear lenses. Ensure the device is properly mounted and angled.
• No Audio Alerts: Check the volume setting using the side control. Ensure the MUTE function is not active.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please refer to the documentation included with your product or visit the official Cobra Electronics webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
