Callaway Golf 300 Pro лазердик аралык өлчөгүч колдонуучунун колдонмосу

Introduction

The Callaway Golf 300 Pro Laser Rangefinder is designed to provide accurate distance measurements for golfers. This device incorporates advanced features such as precise slope measurement, pin-locking technology, and pulse confirmation to enhance your game. It is built to be durable and resistant to water and fog, ensuring reliable performance in various conditions.

Кутуда эмне бар

Image: All items included in the Callaway 300 Pro Laser Rangefinder package.

• Callaway 300 Pro лазердик диапазон
• Premium Molded Hard Case
• CR2 Battery (Note: While product specifications may state 'batteries not included', a CR2 battery is typically supplied with the unit.)
• Quick Start Guide
• Линзаны тазалоочу кездеме

Жайгашуу

1. Батареяны орнотуу

1. Аппараттагы батарея бөлүкчөсүн табыңыз.
2. Бөлүмдүн капкагын ачыңыз.
3. Insert the provided CR2 battery, ensuring correct polarity (+/-).
4. Батарея уясынын капкагын бекем жабыңыз.

2. Фокусту тууралоо

Түшүнүктүү болуш үчүн view, rotate the eyepiece until the display and target appear sharp.

3. Changing Measurement Units (Yards/Meters)

The device can display distances in either yards or meters. Refer to the Quick Start Guide for specific instructions on how to toggle between these units, typically involving a short press of the 'Mode' button.

Иштөө нускамалары

Image: Proper technique for holding and aiming the rangefinder.

1. Күйгүзүү/өчүрүү

Press the Power button (usually marked with a power symbol) once to turn the device on. The device will automatically power off after a period of inactivity to conserve battery life.

2. Basic Distance Measurement

1. Look through the eyepiece and aim the reticle (crosshairs) at your desired target.
2. Press the Power button again to activate the laser and display the distance.
3. The device offers 6x magnification for clear targeting up to 1000 yards with +/- 1 yard accuracy.

3. Pin-Locking Technology (P.A.T.) & Pulse Confirmation

Image: Display showing Pin-Locking Technology with Pulse Confirmation.

• When targeting a flagstick, the P.A.T. feature allows the device to lock onto the pin up to 300 yards away, even with background objects.
• Upon successful pin lock, the device will emit a short vibrating "burst" (Pulse Confirmation) to confirm the accurate distance to the flag.

4. Precise Slope Measurement

Image: Rangefinder display illustrating slope-adjusted distance calculation.

• The 300 Pro accounts for changes in elevation (incline/decline) and calculates a slope-adjusted distance.
• This adjusted distance is displayed alongside the actual distance, providing a more accurate representation of the playing yardage.
• The slope function can be easily turned off with the click of a button, making the device legal for tournament play.

5. MagnaHold Technology

Image: The rangefinder utilizing MagnaHold to attach to a golf cart.

The integrated MagnaHold feature allows the rangefinder to securely attach to metal surfaces, such as a golf cart frame or club, for quick access and convenient storage during your round.

Техникалык тейлөө

• Тазалоо: Use the provided lens cleaning cloth to gently wipe the lenses. Do not use abrasive materials or harsh chemicals.
• Батареяны алмаштыруу: Replace the CR2 battery when the low battery indicator appears in the display.
• Water & Fog Resistance: The device is IPX4 rated for water resistance, meaning it can withstand splashes and light rain. It is also fog resistant. Avoid submerging the device in water.

Проблемаларды чечүү

• Дисплей/кубат жок: CR2 батареясы туура орнотулганын жана жетиштүү заряддалганын текшериңиз. Зарыл болсо, алмаштырыңыз.
• Туура эмес окуулар: Ensure the lens is clean and free from smudges. Confirm you are targeting the correct object. If using P.A.T., ensure the device vibrates to confirm pin lock.
• Тумандуу View: The device is fog resistant, but extreme conditions may still affect visibility. Allow the device to acclimate to ambient temperature.

Техникалык шарттар

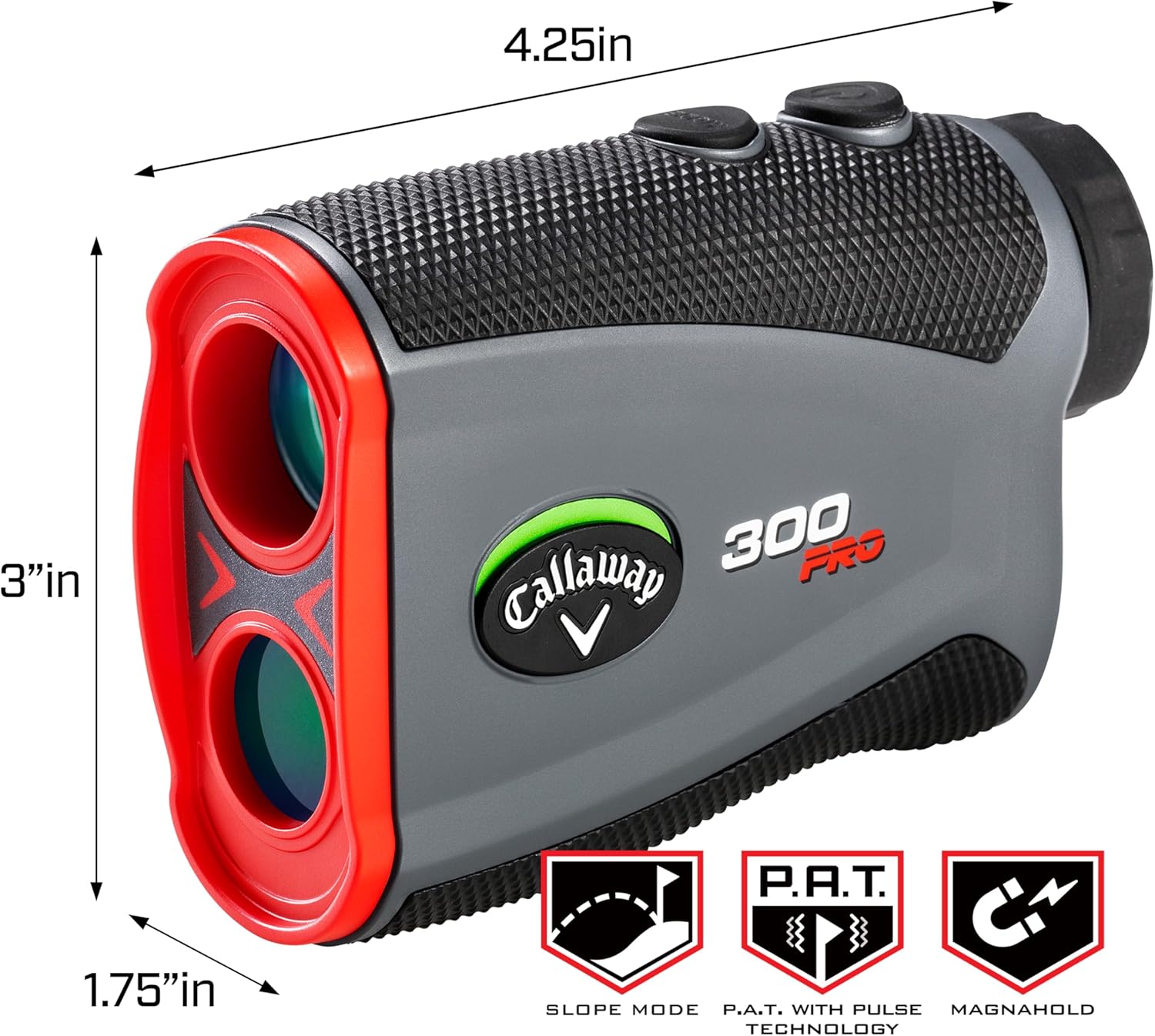

Image: Callaway 300 Pro Rangefinder with key dimensions.

Кепилдик жана колдоо

For detailed warranty information and customer support, please visit the manufacturer's official website. The Quick Start Guide included with your device also contains contact information for support.
