ADE WS1911 Weather Station User Manual

1. Киришүү

Thank you for choosing the ADE WS1911 Weather Station. This manual provides essential information for setting up, operating, and maintaining your device. Please read these instructions carefully before use to ensure optimal performance and longevity of your weather station.

The ADE WS1911 Weather Station features a clear digital display showing time, indoor/outdoor temperature, humidity, and weather forecast. A red LED projection displays time and temperature.

2. Пакеттин мазмуну

• 1x ADE WS1911 Base Station
• 1x зымсыз тышкы сенсор
• 1x Power адаптер
• Batteries for Outdoor Sensor (type not specified, typically AAA/AA)
• 1x CR2032 Battery (pre-installed or included for main unit backup)
• User Manual

3. Коопсуздук маалыматы

• Базалык станцияны өтө жогорку температурага, түз күн нуруна же жогорку нымдуулукка дуушар кылбаңыз.
• The outdoor sensor is splash-proof but should not be submerged in water.
• Берилген кубат адаптерин гана колдонуңуз.
• Батареяларды балдар жетпеген жерде сактаңыз. Колдонулган батареяларды жоопкерчилик менен жок кылыңыз.
• Аппаратты өз алдынча бөлүүгө же оңдоого аракет кылбаңыз. Тейлөө үчүн квалификациялуу кызматкерлерге кайрылыңыз.

4. Орнотуу

4.1 Аппаратты кубаттоо

1. Insert batteries into the outdoor sensor, observing polarity.
2. For the base station, insert the CR2032 backup battery (if not pre-installed).
3. Connect the power adapter to the base station and plug it into a power outlet. The display will light up.

4.2 Сырткы сенсорду жайгаштыруу

• Place the outdoor sensor in a shaded area, protected from direct rain and sunlight, to ensure accurate temperature and humidity readings.
• Ensure the sensor is within 60 meters (197 feet) of the base station, avoiding large metal objects or thick walls that may interfere with the radio signal.

4.3 Initial Setup and DCF Signal Reception

Upon powering on, the base station will automatically search for the DCF radio signal to set the time and date. This process may take several minutes or up to an hour, depending on your location and signal strength. Ensure the station is placed away from electronic interference.

The main unit features a clear LCD display. The wireless outdoor sensor can be placed up to 60 meters away and is splash-proof.

5. Иштөө нускамалары

5.1 Дисплейview

This diagram highlights key features: Date/Time, Outdoor Temperature, 180° Rotatable Projection Display, Indoor/Outdoor Humidity, Indoor Temperature, Comfort Indicator, and Trend Displays.

ЖК дисплей төмөнкүнү көрсөтөт:

• Учурдагы убакыт жана дата
• Үйдүн ичиндеги температура жана нымдуулук
• Тышкы температура жана нымдуулук
• Weather Forecast (animated icons)
• Комфорт индикатору
• Температура/Нымдуулук тенденциясы

5.2 Setting Time and Date Manually

If the DCF signal is not received, you can manually set the time and date. Refer to the specific buttons on your device (usually 'MODE' or 'SET') and follow the on-screen prompts to adjust hours, minutes, year, month, and day.

5.3 Ойготкуч функциясы

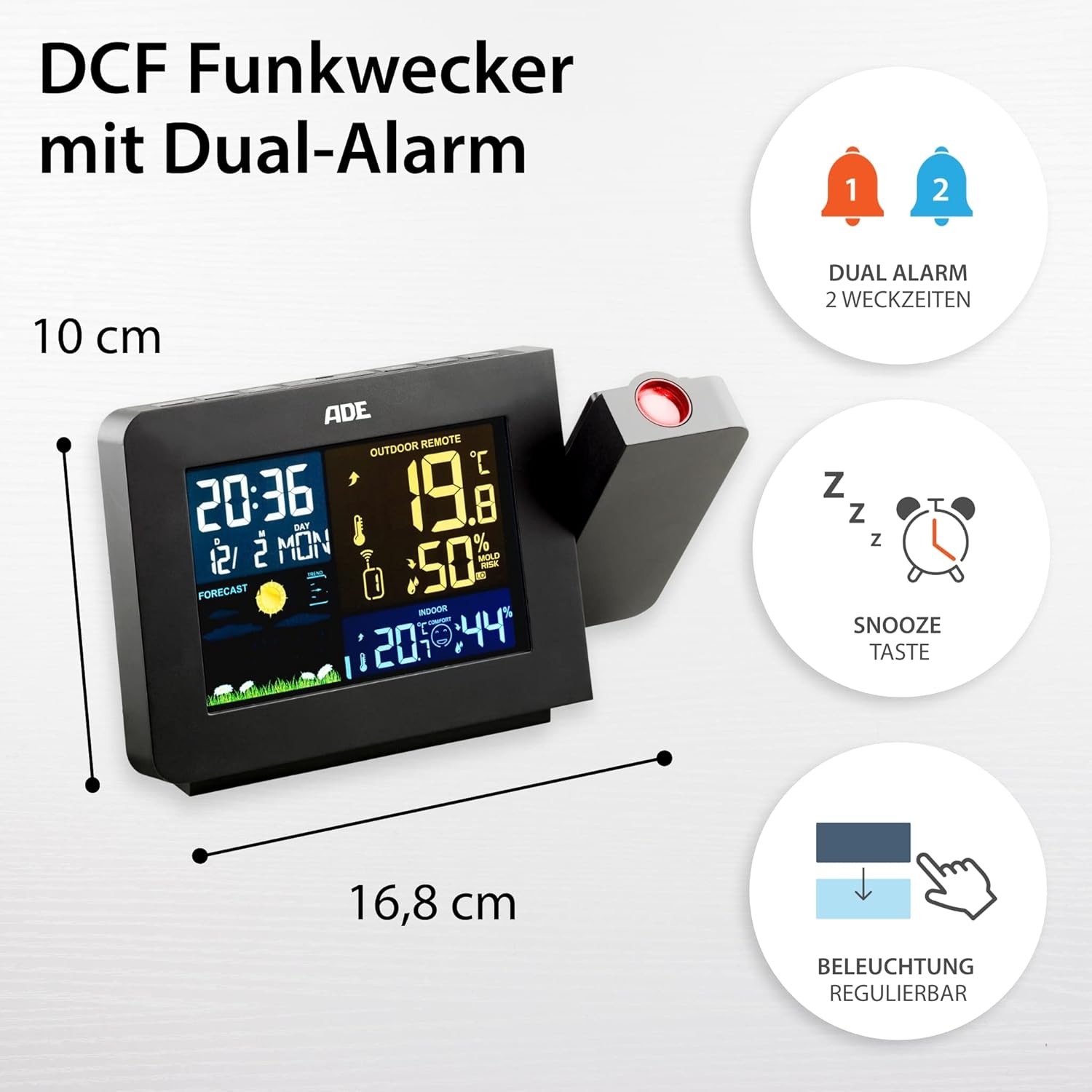

The station includes a DCF radio-controlled clock with two independent alarms and a snooze function. The display backlight is adjustable.

The WS1911 features a dual alarm function. Press the 'ALARM' button to enter alarm setting mode. Use the '+' and '-' buttons to adjust the alarm time. Press 'ALARM' again to confirm. Activate or deactivate alarms using the designated alarm switch or button. The 'SNOOZE' button provides a temporary pause for the alarm.

5.4 Проекциялоо функциясы

The 180° rotatable projection feature allows for easy viewing of time and temperature on a wall or ceiling, especially useful at night.

The weather station can project the time and outdoor temperature onto a wall or ceiling. The projection arm is 180° rotatable for optimal positioning. Locate the projection button (often labeled 'PROJECTION' or a projector icon) to activate or deactivate this feature.

5.5 Аба ырайы

The weather station provides animated weather forecasts, along with indoor and outdoor temperature and humidity readings, contributing to a comfortable indoor climate.

The weather station analyzes atmospheric pressure changes to predict weather conditions for the next 12-24 hours. Animated icons (e.g., sun, clouds, rain) on the display represent the forecast. This is a prediction and may not always be 100% accurate.

5.6 Температура жана нымдуулук дисплейи

The station displays both indoor and outdoor temperature (in °C or °F) and humidity. Use the '°C/°F' button to switch between Celsius and Fahrenheit. The comfort indicator provides a visual representation of the indoor climate based on temperature and humidity levels.

5.7 Дисплейдин жарыктыгы

The LCD display features 4 adjustable brightness levels. Use the designated button (often a light bulb icon or 'DIMMER') to cycle through the brightness settings to suit your preference, especially in varying light conditions or at night.

6. Техникалык тейлөө

6.1 Тазалоо

Wipe the base station and outdoor sensor with a soft, damp кездеме. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз, анткени алар беттерге зыян келтириши мүмкүн.

6.2 Батареяны алмаштыруу

The ADE WS1911 Weather Station offers flexible power options, operating either via batteries or the included power adapter.

When the battery indicator appears on the display, replace the batteries in the outdoor sensor. For the base station, the CR2032 battery primarily serves as a backup for settings during power outages. Replace it periodically or if settings are lost frequently.

7. Кыйынчылыктарды

• Сырттагы температура/нымдуулук көрсөткүчү жок: Ensure the outdoor sensor batteries are fresh and correctly inserted. Check that the sensor is within range and not obstructed by large metal objects. Try resetting both the base station and the sensor (remove batteries, wait a few seconds, reinsert).
• Туура эмес убакыт: If the DCF signal is weak, try relocating the base station to an area with better reception, away from electronic devices. You can also set the time manually.
• Дисплей иштебейт: Check the power adapter connection and ensure it's plugged into a working outlet. If using batteries, ensure they are fresh and correctly inserted.
• Проекция түшүнүксүз: Adjust the focus of the projection lens (if available) or the distance to the projection surface. Ensure the room is sufficiently dark for optimal visibility.

8. Техникалык шарттар

• Модел: ADE WS1911
• Бренд: ADE
• Түсү: Кара
• Материал: Акрилонитрил бутадиен стирол (ABS)
• Кубат булагы: AC Adapter (included) or Batteries (1x CR2032 for main unit, batteries for outdoor sensor)
• Байланыш: Тышкы сенсор үчүн радио жыштык (RF).
• Сырткы сенсордун диапазону: 60 метрге чейин (197 фут)
• Өзгөчөлүктөр: DCF Radio-controlled clock, Dual Alarm with Snooze, 180° Rotatable LED Projection (Time & Temperature), Indoor/Outdoor Thermometer, Indoor/Outdoor Hygrometer, Animated Weather Forecast, Backlit LCD with 4 brightness levels.

9. Колдоо

For further assistance or if you encounter issues not covered in this manual, please refer to the official ADE website or contact their customer support. Additional language versions of this manual may be available for download online.
