Introduction
This manual provides essential information for the proper setup, operation, and maintenance of your Genuine OKIN Standard Lift Chair Hand Control. This hand control is designed to provide simple and reliable control for compatible lift chairs, featuring a green test light and a convenient quick disconnect for enhanced safety and ease of use. Please read this manual thoroughly before installation and operation.
Коопсуздук маалыматы
- Always disconnect power to the lift chair before installing, removing, or servicing the hand control.
- Keep the hand control away from liquids and excessive moisture.
- Do not attempt to open or repair the hand control. Refer all servicing to qualified personnel.
- Ensure the cord is not pinched or tangled in moving parts of the lift chair.
- Utilize the quick disconnect feature to remove the hand control when not in use, especially to prevent unauthorized operation by children.
Пакеттин мазмуну
- 1 x Genuine OKIN Standard Lift Chair Hand Control with Quick Disconnect
Жайгашуу
Follow these steps to properly connect your new hand control to your lift chair:
- Туташтыргычты аныктаңыз: Locate the existing hand control cable or the connection port on your lift chair's motor. The OKIN hand control features a round 5-pin connector.
- Кол менен башкарууну туташтырыңыз: Align the 5-pin connector of the new hand control with the corresponding port on the lift chair motor. Gently push until it clicks securely into place. Do not force the connection.
- Utilize the Quick Disconnect: The hand control features a straight quick disconnect in the middle of the cord. This allows you to separate the control unit from the main cable for storage or safety. Ensure this connection is firmly seated for operation.
- Кабель маршруту: Carefully route the cable to prevent it from being pinched or entangled by the chair's moving mechanisms. The quick disconnect can be positioned in the chair's pocket for easy access and removal.
- Күчтү калыбына келтирүү: Once the hand control is securely connected and the cable is safely routed, restore power to your lift chair.

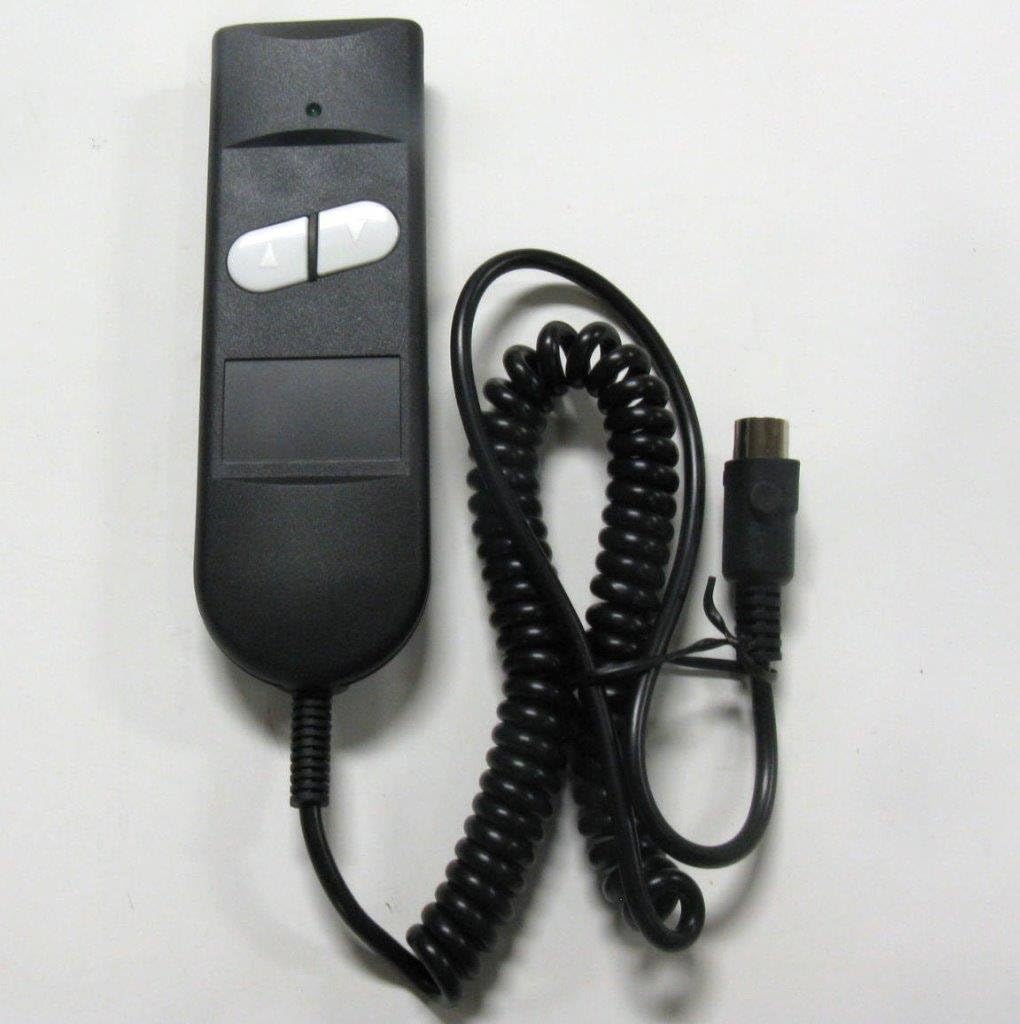

Жалпысынан view of the OKIN Standard Lift Chair Hand Control, showing the ergonomic black remote unit, coiled cord, and the quick disconnect plug.

Деталдаштырылган view of the round 5-pin connector of the OKIN Lift Chair Hand Control, essential for connecting to the lift chair motor.

Close-up of the straight quick disconnect feature on the cord of the OKIN Lift Chair Hand Control, allowing for easy detachment.
Иштөө нускамалары
The OKIN Standard Lift Chair Hand Control features a simple two-button operation:
- Өйдө баскычы: Press and hold the top button (typically marked with an upward arrow) to raise the lift chair or extend the footrest.
- Төмөн баскычы: Press and hold the bottom button (typically marked with a downward arrow) to lower the lift chair or retract the footrest.
- Green Test Light: A green light located on the hand control illuminates when the buttons are pressed, indicating that the control is sending a signal to the chair's motor. If the light does not illuminate, check connections or power supply.
Балдардын коопсуздук өзгөчөлүгү: The quick disconnect allows you to easily detach the hand control from the main cable. This can be done to prevent children from playing with the control and inadvertently operating the lift chair.

Фронт view of the OKIN Lift Chair Hand Control, highlighting the two white up and down buttons and the green test light indicator at the top.
Техникалык тейлөө
Proper care will extend the life of your hand control:
- Тазалоо: Wipe the hand control with a soft, dry cloth. For stubborn dirt, a slightly damp кездемени колдонсо болот, бирок нымдуулуктун аппараттын ичине кирбегенин текшериңиз. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз.
- Сактагыч: When not in use for extended periods, or for safety, disconnect the hand control using the quick disconnect and store it in a safe, dry place.
- Шнур кам көрүү: Regularly inspect the cord for any signs of wear, fraying, or damage. If damage is observed, discontinue use and replace the unit.
Проблемаларды чечүү
If your hand control is not functioning as expected, try the following:
- No Response from Chair:
- Ensure the hand control's 5-pin connector is fully and securely plugged into the lift chair motor.
- Check that the quick disconnect in the middle of the cord is firmly connected.
- Verify that the lift chair is plugged into a working power outlet and that the power supply to the chair is active.
- If the green test light on the hand control does not illuminate when buttons are pressed, the control unit itself may be faulty or there's a power issue.
- Үзгүлтүксүз иштөө:
- Бардык кабелдик байланыштардын боштугун текшериңиз.
- Ensure the cable is not being pinched or stressed by the chair's movement.
- Chair Moves in Wrong Direction:
- This is highly unlikely with a standard up/down control. If this occurs, immediately disconnect power to the chair and contact a qualified technician.
If troubleshooting steps do not resolve the issue, it may indicate a fault with the hand control, motor, or power supply. Contact the manufacturer or a qualified service technician for further assistance.
Техникалык шарттар
| Бренд | Окин |
| Модель аты | OKIN |
| Элемент моделинин номери | 4335393657 |
| Продукциянын өлчөмдөрү | 1"D x 2"W x 7"H |
| Элемент Салмагы | 8.5 унция |
| Туташтыргыч түрү | Round 5-pin |
| Өзгөчөлүктөр | Green Test Light, Quick Disconnect |
| Форма фактору | Пластик |
| Келип чыккан өлкө | Кытай |
Кепилдик маалымат
Specific warranty details for the OKIN Standard Lift Chair Hand Control are typically provided at the point of purchase or included with the product packaging. Please refer to your purchase documentation for precise warranty terms and conditions. In general, warranty coverage addresses manufacturing defects under normal use.
To inquire about warranty service, retain your proof of purchase and contact the retailer or the manufacturer directly.
Колдоо
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact the manufacturer or your product supplier. When contacting support, please have your product model number (4335393657) and a detailed description of the issue ready.
