Introduction
Ч.ampion Power Equipment 100302 4000-Watt Digital Hybrid Open Frame Inverter Generator is designed to provide reliable and clean power. This unit features advanced Quiet Technology, making it 50% quieter and 20% lighter than traditional 3500-watt portable generators. It is ideal for RV use, home backup, and various outdoor projects, delivering 4000 starting watts and 3500 running watts.

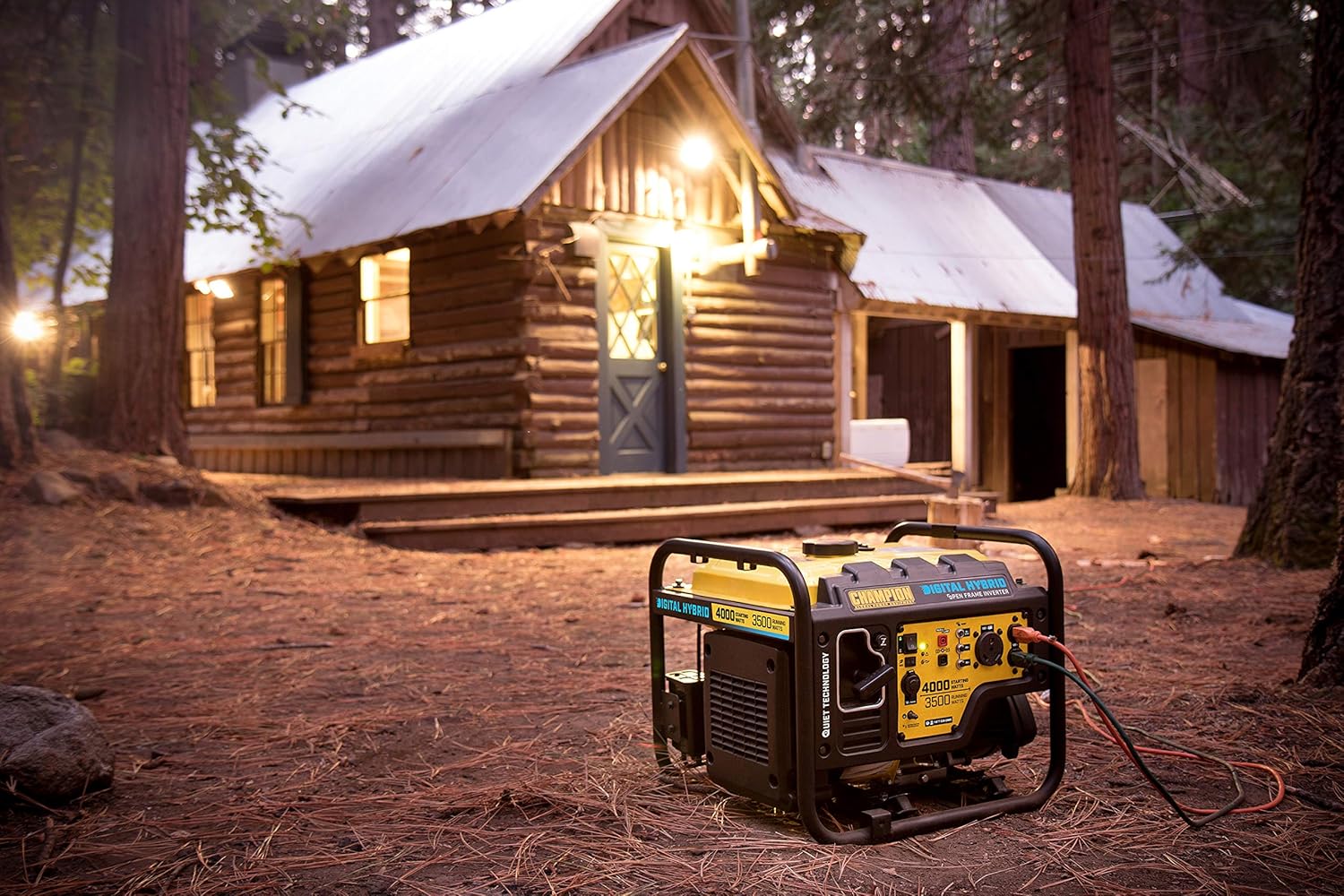

Сүрөт: Чampion 4000-Watt Inverter Generator providing power to a cabin.
Image: Key features of the generator, including Quiet Technology, Clean Electricity, RV Ready, and Parallel Ready capabilities.
Коопсуздук маалыматы
Always operate the generator in a well-ventilated area to prevent carbon monoxide poisoning. Keep children and pets away from the generator during operation. Ensure the generator is on a level surface and away from flammable materials. Read the entire manual before operation for complete safety guidelines.
Image: The CO Shield system, which provides carbon monoxide auto-shutoff for enhanced safety.
ЭСКЕРТҮҮ: Бул продукт сизди химиялык заттардын, анын ичинде көмүртек кычкылысынын таасирине дуушар кылышы мүмкүн, бул Калифорния штатында тубаса кемтиктерге же башка репродуктивдүү зыянга алып келиши белгилүү. Көбүрөөк маалымат алуу үчүн өтүңүз www.P65Warnings.ca.gov.
Жайгашуу
- Пакеттен чыгаруу жана чогултуу: Carefully remove the generator from its packaging. Attach any necessary components, such as the lifting handles.
- Мотор майын кошуу: The generator requires 0.6 quarts of 10W-30 oil. Use the included oil funnel to add oil to the engine crankcase. Do not overfill.
- Күйүүчү май кошуу: Fill the 2.9-gallon fuel tank with unleaded gasoline. Ensure the fuel cap is securely tightened.
- Optional Wheel Kit: For easier portability, an optional wheel kit can be installed. Follow the instructions provided with the wheel kit for proper installation.
- Optional Parallel Kit: To increase power output, you can connect two compatible Champion inverters or digital hybrids using an optional Parallel Kit.
Image: Accessories included with the generator, such as battery charging cables and a dual USB adapter.
Image: A person carefully refilling the generator's fuel tank.
Image: An optional wheel kit, sold separately, for enhanced mobility of the generator.

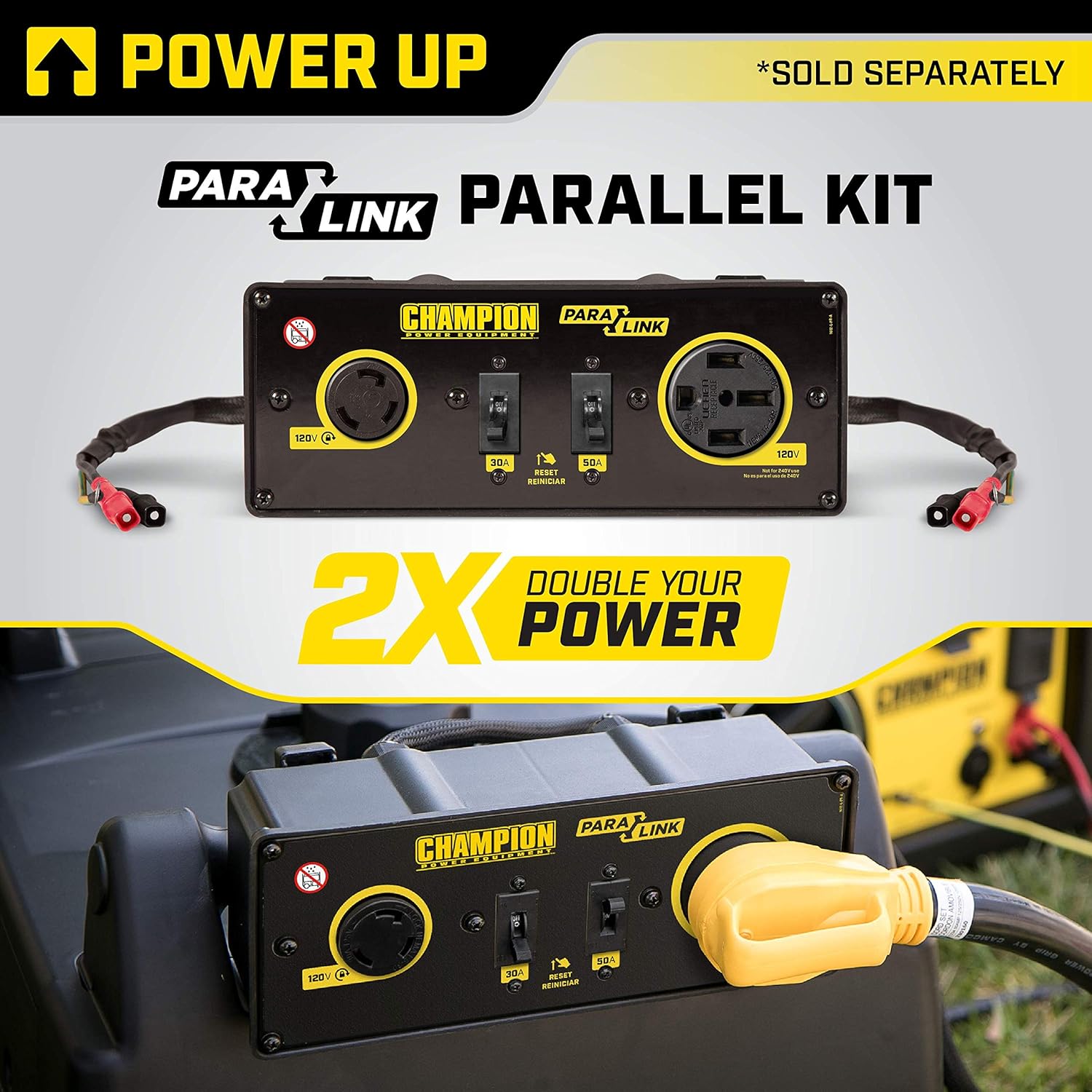

Image: The optional Parallel Kit, allowing two generators to be linked for double the power output.
Иштөө нускамалары
- Генераторду ишке киргизүү:
- Күйүүчү май клапаны ачык экенин текшериңиз.
- Set the choke to the 'START' position (if applicable, for cold starts).
- Кыймылдаткыч күйгөнгө чейин артка чегинүүнү баштоо туткасын бекем тартыңыз.
- Баштагандан кийин, дроссельди акырындык менен "RUN" абалына жылдырыңыз.
- Quick Touch Panel: The generator features a Quick Touch Panel for easy access to controls and outlets.
- Экономикалык режим: Activate Economy Mode to monitor power consumption in real-time. This feature reduces engine speed when electrical load is low, resulting in quieter operation, extended engine life, and improved fuel economy. In Eco Mode, the generator can run for up to 17 hours on a full tank at 25% load.
- Түзмөктөрдү туташтыруу:
- RV даяр: Connect your RV directly using the 120V 30A RV (TT-30R) outlet. This unit can start and run a 15,000 BTU RV air conditioner.
- Household Outlets: Utilize the two 120V 20A household outlets (5-20R) for standard appliances.
- DC Outlet: A 12V DC automotive-style outlet with a dual USB adapter and battery-charging cables is included for charging smaller devices.

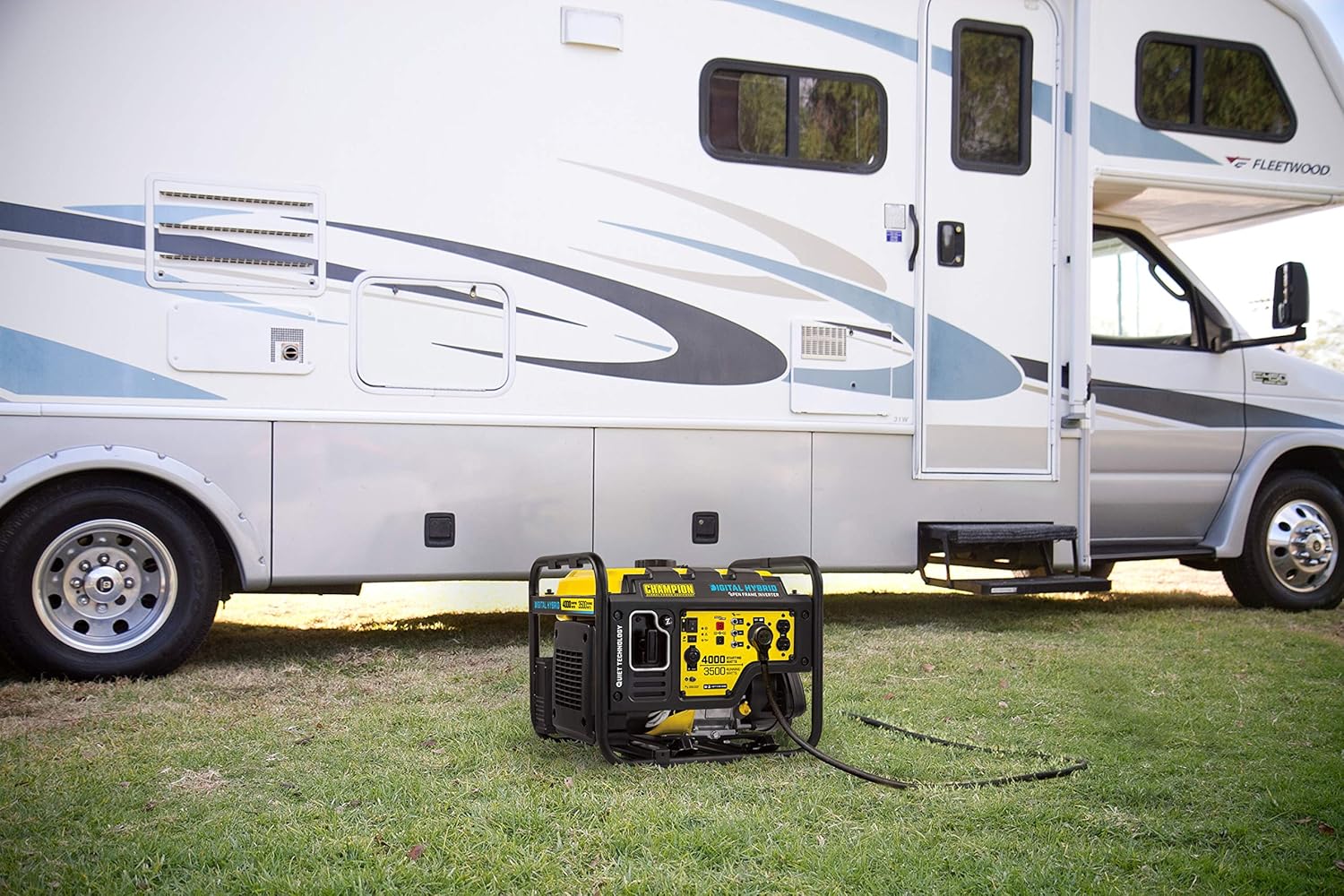

Image: The generator providing power to an RV, demonstrating its RV-ready capability.
- Бийик тоолуу операция: Engine power is reduced at high altitudes. For operation above 3500 feet, a high-altitude carburetor main jet may be required. Contact Champion Customer Support for details.
Сүрөт: деталдуу view of the generator's control panel, showing the outlets and operational switches.
Image: Information regarding high-altitude operation and necessary carburetor adjustments.
Расмий продукт Video:
Видео: Аткаминерview Чтинampion 4000-Watt RV Ready Digital Hybrid Open Frame Inverter with Quiet Technology, highlighting its features and benefits.
Техникалык тейлөө
- Үзгүлтүксүз текшерүүлөр: Before each use, check the oil level, fuel level, and inspect for any visible damage or leaks.
- Мунай алмаштыруу: Refer to the maintenance schedule in the full manual for recommended oil change intervals. The generator has a low oil shut-off sensor to protect the engine.
- Аба чыпкасын тейлөө: Regularly inspect and clean the air filter to ensure optimal engine performance.
- Свеча: Зарылчылыкка жараша от алдыргычты текшерип, тазалаңыз же алмаштырыңыз.
- Сактагыч: For long-term storage, drain the fuel system and add a fuel stabilizer. Store the generator in a dry, protected area. Consider using an inverter cover for protection.
Сүрөт: жакын план view of the air cleaner compartment, indicating an area for maintenance.
Image: Various inverter covers, including severe weather and storage options, available separately.
Проблемаларды чечүү
- Мотор иштебей жатат:
- Күйүүчү майдын деңгээлин текшериңиз.
- Ensure the fuel valve is open and the choke is set correctly.
- От алдыргычтын таза жана туура туташтырылганын текшериңиз.
- Check engine oil level; low oil will prevent starting.
- Эч кандай кубаттуулугу жок:
- Башкаруу панелиндеги автоматтык өчүргүчтөрдү текшериңиз.
- Ensure the generator is running at the correct RPM (Economy Mode may reduce RPM).
- Confirm that connected devices are not exceeding the generator's running wattage (3500W).
- Ашыкча жүктөн коргоо: If the generator shuts down due to overload, reduce the electrical load by unplugging some devices, then reset the circuit breaker and restart the generator. For RV use, ensure high-draw appliances like air conditioners and microwaves are not run simultaneously, or consider running the refrigerator on propane.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Champион күч жабдуулары |
| Модель номери | 100302 |
| Wat баштапtage | 4000 Ватт |
| Running Wattage | 3500 Ватт |
| Күйүүчү май түрү | Бензин |
| Мотордун жылышы | 224 куб сантиметр |
| Күйүүчү май багынын көлөмү | 2.9 галлон |
| Мунай сыйымдуулугу | 0.6 Quarts (10W-30 Recommended) |
| Иштөө убактысы (25% жүктөө) | 17 саатка чейин |
| Ызы-чуу деңгээли | 64 дБА (23 футтан) |
| Таза күч | Less than 3% THD (Total Harmonic Distortion) |
| Соода түйүндөрү | 1x 120V 30A RV (TT-30R), 2x 120V 20A Household (5-20R), 1x 12V DC with Dual USB Adapter |
| Элемент Салмагы | 81.6 фунт |
| Продукциянын өлчөмдөрү | 20.5"L x 17.9"W x 17.7"H |

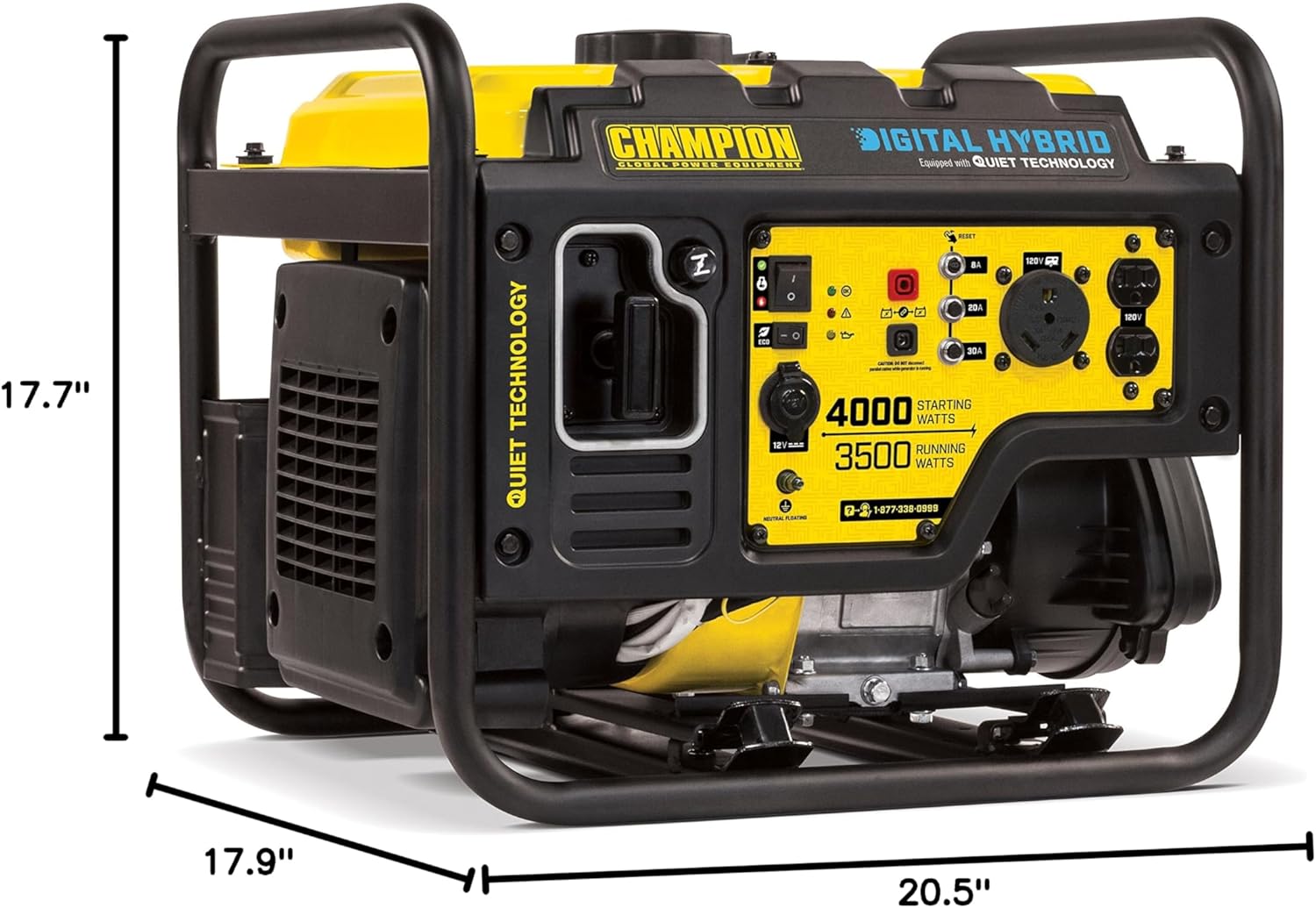

Image: Dimensions of the generator (Length, Width, Height).
Кепилдик жана колдоо
Ч.ampion Power Equipment 4000-Watt RV Ready Open Frame Inverter Generator comes with a 3 жылдык чектелген кепилдик. Additionally, Champion provides Өмүр бою акысыз техникалык колдоо атайын адистерден. Жардам алуу үчүн, Ch менен байланышыңызampion Customer Support.
