MAHLE оригиналдуу JV8 силикон пломбасынын колдонуу боюнча колдонмосу

1. Киришүү

The MAHLE Original JV8 Silicone Seal is designed as a direct replacement engine oil pan gasket, ensuring a reliable seal to prevent oil leaks. This genuine MAHLE part is engineered for optimal performance and durability. This manual provides essential information for proper installation and maintenance to ensure the longevity and effectiveness of your silicone seal.

2. Продукт бүтүп калдыview

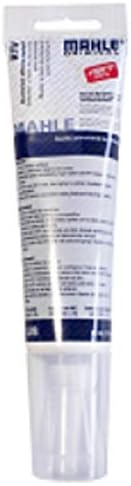

Figure 1: MAHLE Original JV8 Silicone Seal in its retail packaging.

The MAHLE Original JV8 Silicone Seal is supplied in its original packaging and includes necessary hardware for installation. It is specifically formulated to create a robust and long-lasting seal for engine oil pans, suitable for both front and rear applications as specified by vehicle requirements.

3. Орнотуу (Орнотуу)

Proper installation is crucial for the effective performance of the MAHLE Original JV8 Silicone Seal. Confirm vehicle fitment prior to installation. If you are unsure about the installation process, it is recommended to seek assistance from a qualified automotive technician.

Жалпы орнотуу кадамдары:

1. Даярдоо: Ensure the engine is cool and the vehicle is safely supported on jack stands or a lift. Drain the engine oil completely.
2. Removal of Old Gasket: Carefully remove the oil pan and thoroughly clean all mating surfaces on both the engine block and the oil pan. Remove any old gasket material, oil residue, and debris. The surfaces must be clean and dry for proper adhesion.
3. Application of Sealant: Apply a continuous, even bead of the MAHLE Original JV8 Silicone Seal to the designated sealing surface of the oil pan. Follow the manufacturer's specific bead size and pattern recommendations, typically around 2-3mm in diameter. Ensure the bead encircles all bolt holes.
4. Ассамблея: Carefully position the oil pan onto the engine block, aligning all bolt holes. Install the oil pan bolts and hand-tighten them.
5. Айлантуу: Refer to your vehicle's service manual for the correct torque specifications and tightening sequence for the oil pan bolts. Tighten the bolts in stages to the specified torque.
6. Айыруу убактысы: Allow the silicone seal to cure for the recommended time before refilling the engine with oil and starting the vehicle. This typically ranges from 1 to 24 hours, depending on temperature and humidity. Consult the product packaging for specific curing instructions.
7. Акыркы текшерүү: After curing, refill the engine with the appropriate amount and type of engine oil. Start the engine and check for any leaks around the oil pan.

4. Операция

Once correctly installed and cured, the MAHLE Original JV8 Silicone Seal functions as a static seal, preventing engine oil from leaking from the oil pan. It is designed to withstand the operating temperatures and pressures within the engine environment, providing a durable and leak-free connection between the oil pan and the engine block.

5. Техникалык тейлөө

The MAHLE Original JV8 Silicone Seal requires minimal maintenance after proper installation. Regular visual inspections during routine oil changes or vehicle servicing are recommended to check for any signs of oil leaks around the oil pan. Address any observed leaks promptly to prevent potential engine damage.

6. Кыйынчылыктарды

If oil leaks occur after installation, consider the following potential causes:

• Бетти туура эмес даярдоо: Residual oil, old gasket material, or dirt on the mating surfaces can prevent the silicone from adhering properly. Ensure surfaces are thoroughly cleaned and dry.
• Insufficient Curing Time: Starting the engine or refilling oil before the silicone has fully cured can compromise the seal. Adhere strictly to the recommended curing time.
• Туура эмес колдонмо: An uneven or insufficient bead of silicone, or a break in the bead around bolt holes, can lead to leaks.
• Туура эмес момент: Overtightening or undertightening oil pan bolts can deform the oil pan or gasket, causing leaks. Follow vehicle-specific torque specifications.
• Damaged Oil Pan: A warped or damaged oil pan may not seal correctly, even with a new gasket. Inspect the oil pan for flatness and integrity.

If leaks persist, professional diagnosis and repair are advised.

7. Техникалык шарттар

8. Кошумча ресурстар

9. Кепилдик жана колдоо

For specific warranty information regarding your MAHLE Original JV8 Silicone Seal, please refer to the product packaging or contact MAHLE customer service directly. For technical support or assistance with product inquiries, please reach out to the seller or MAHLE's official support channels.
