1. Introduction and Overview
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Yaskawa CIMR-7.5G2 Variable Frequency Drive (VFD). The CIMR-7.5G2 is a robust industrial drive designed for precise speed control of three-phase AC induction motors, operating on a 200-220V, 50-60 Hz, 3-phase power supply. It is crucial to read and understand this manual completely before attempting any installation, operation, or maintenance procedures.

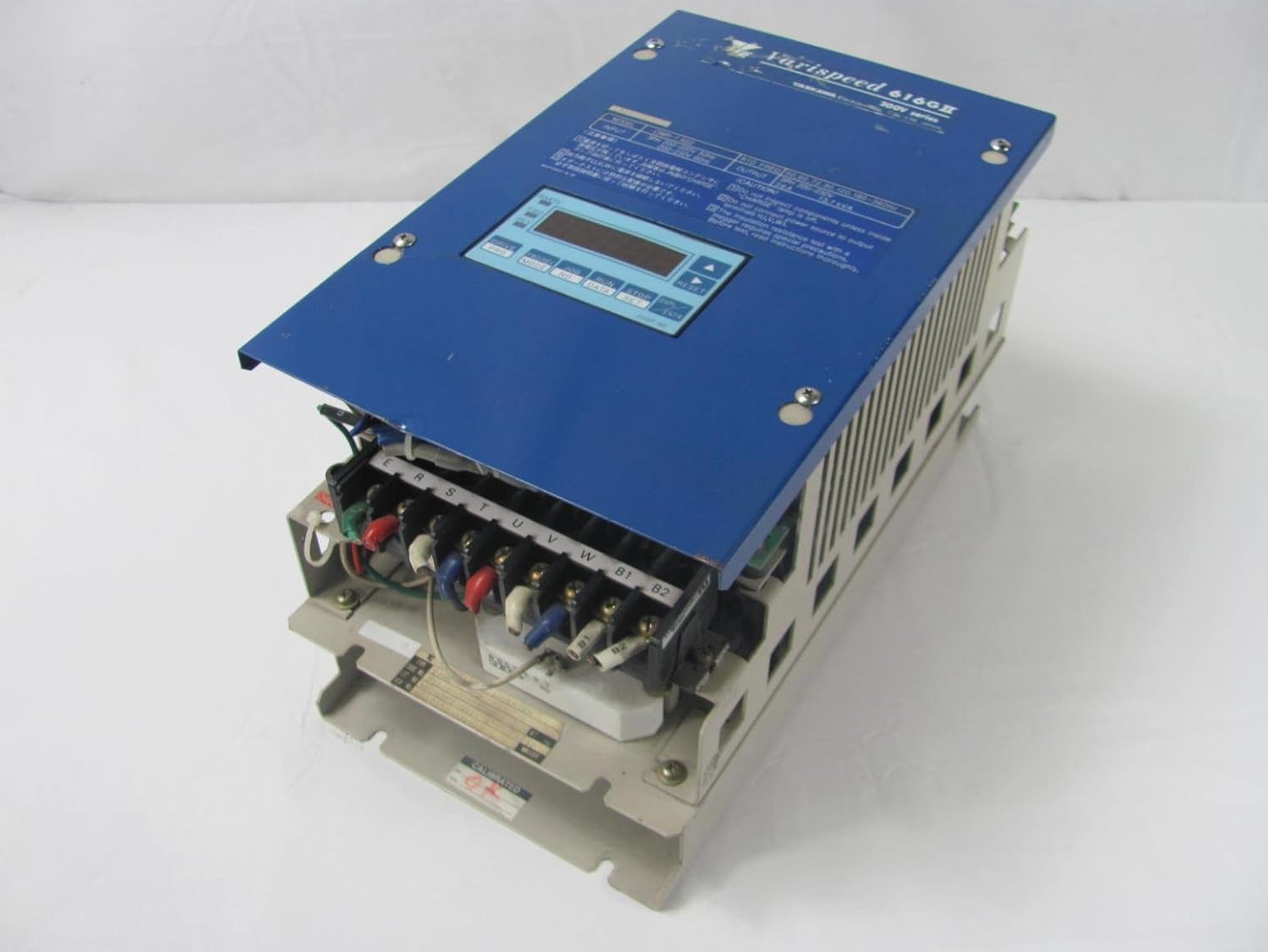

Figure 1: Yaskawa CIMR-7.5G2 Variable Frequency Drive with top cover open, revealing internal components and wiring terminals.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: ЭЛЕКТР ШОКУНУН КОРКУНУЧУ
- Only qualified and trained personnel should install, operate, or maintain this equipment.
- Always disconnect all power sources to the drive and wait for the charge indicator to extinguish before performing any work on the drive or connected equipment. Residual voltage may be present even after power is disconnected.
- Ensure proper grounding of the drive and motor to prevent electrical shock.
- Капкактары алынып салынган дискти иштетпеңиз.
- Protect the drive from moisture, dust, and corrosive gases.
ЭСКЕРТҮҮ: ЖАБДЫКТАРДЫН ЗЫЯНЫ
- Do not connect the AC power supply to the output terminals (U, V, W).
- Ensure correct wiring and proper terminal connections.
- Киргизилген томtage matches the drive's specifications (200-220V, 3-phase).
3. Орнотуу
3.1 Таңгактан чыгаруу жана текшерүү
Carefully unpack the CIMR-7.5G2 drive. Inspect the unit for any signs of physical damage that may have occurred during shipping. If any damage is found, contact your supplier immediately.
3.2 Монтаждоо
Mount the drive vertically on a flat, stable, and non-flammable surface. Ensure adequate clearance around the drive for proper ventilation and heat dissipation. Refer to the drive's dimensions for specific spacing requirements. Avoid mounting in direct sunlight or areas with excessive vibration.
3.3 Электр зымдары
All wiring must comply with local and national electrical codes. Use appropriate wire gauges for the power and motor connections.
- Grounding (E): Connect the ground terminal of the drive to a reliable earth ground. This is critical for safety.
- Input Power (R, S, T): Connect the 200-220V, 3-phase AC power supply to the R, S, and T input terminals. Ensure the phase sequence is correct.
- Мотордун чыгышы (U, V, W): Connect the three-phase motor leads to the U, V, and W output terminals of the drive.
- Башкаруу зымдары: Connect any necessary control signals (e.g., start/stop commands, speed reference, fault outputs) to the designated control terminals. Refer to the terminal diagram on the drive for specific connections.
Figure 2: Yaskawa CIMR-7.5G2 wiring terminals for power and motor connections.
4. Иштөө нускамалары
4.1 Башкаруу панелинин үстүнөview
The CIMR-7.5G2 features a user-friendly control panel with a digital display and several function buttons for operation and parameter setting.
Сүрөт 3: Жакын пландан view of the Yaskawa CIMR-7.5G2 control panel.
- Санариптик дисплей: Shows operational status, frequency, current, voltage, and parameter values.
- MODE/DATA Button: Used to switch between display modes and enter/confirm parameter settings.
- RUN баскычы: Мотордун иштешин баштайт.
- ТОКТОТУУ/КАЙРА ОРНОТУУ баскычы: Stops motor operation and resets fault conditions.
- Өйдө/төмөн жебелер: Параметрлер боюнча чабыттоо жана маанилерди тууралоо үчүн колдонулат.
4.2 Негизги операция
- Күйгүзүү: Apply 3-phase power to the drive. The display will illuminate.
- Моторду ишке киргизүү: басыңыз RUN button. The motor will accelerate to the set speed.
- Моторду токтотуу: басыңыз ТОКТОТ/КАЛЫПТАҢЫР баскычын басыңыз. Мотор жайлап, токтоп калат.
- Ылдамдыкты жөндөө: колдонуу Өйдө/төмөн жебелер to adjust the output frequency (motor speed) while the drive is running or in standby, depending on the parameter settings.
4.3 Параметр Орнотуулары
The CIMR-7.5G2 has various parameters that can be configured to customize its operation for specific applications. These include acceleration/deceleration times, maximum/minimum frequencies, motor data, and control modes. Refer to the detailed parameter list in the complete Yaskawa CIMR-7.5G2 technical manual for comprehensive information on each parameter and its function.
5. Техникалык тейлөө
Regular maintenance is essential to ensure the long-term reliability and performance of your Yaskawa CIMR-7.5G2 drive.
- Чаңды тазалоо: Periodically clean dust and debris from the drive's heatsink and ventilation openings using compressed air. Ensure power is disconnected before cleaning.
- Терминалдык текшерүү: Check all wiring terminals for tightness and signs of corrosion. Loose connections can lead to overheating and drive malfunction.
- Муздатуу желдеткич: Inspect the cooling fan for proper operation and signs of wear. Replace if necessary.
- Экологиялык шарттар: Иштөө чөйрөсү белгиленген температуранын жана нымдуулуктун чегинде сакталышын камсыз кылыңыз.
6. Кыйынчылыктарды
This section provides general guidance for common issues. For detailed troubleshooting and error code explanations, refer to the comprehensive Yaskawa CIMR-7.5G2 technical manual.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Диск күйбөйт | No input power; Blown fuse; Internal fault | Check power supply; Inspect fuses; Contact Yaskawa support. |
| Мотор иштебейт | Incorrect wiring; Drive in fault state; No run command | Verify wiring; Check display for fault codes and reset; Ensure run command is active. |
| Ашыкча токтун катасы | Motor overload; Short circuit in motor/wiring; Rapid acceleration | Check motor load; Inspect motor/wiring; Increase acceleration time. |
| Overvoltage күнөө | Жогорку кирүү көлөмүtage; Тез басаңдоо; Регенеративдик жүктөм | Киргизүүнү текшерүү томtage; Басаңдатуу убактысын көбөйтүү; Тормоздук резисторду карап көрүү. |
If you encounter persistent issues or error codes not listed here, please contact Yaskawa technical support.
7. Техникалык шарттар
Key technical specifications for the Yaskawa CIMR-7.5G2 Variable Frequency Drive:
- Модель номери: CIMR-7.5G2
- Киргизүү көлөмүtage: 200-220V AC, 3-Phase
- Киргизүү жыштыгы: 50-60 Гц
- Өндүрүүчү: Yaskawa
- Элемент Салмагы: 15 фунт
- ASIN: B01MQ237XQ
- Биринчи жеткиликтүү датасы: 27-октябрь, 2016-жыл
8. Кепилдик жана колдоо
For information regarding the warranty terms and conditions for your Yaskawa CIMR-7.5G2 drive, please refer to the documentation provided at the time of purchase or visit the official Yaskawa website. For technical assistance, troubleshooting beyond this manual, or spare parts inquiries, please contact Yaskawa customer support directly. Ensure you have your model number (CIMR-7.5G2) and serial number ready when contacting support.
You can find more information and support resources on the official Yaskawa webсайт: www.yaskawa.com
