Nilfisk C 110.7 Pressure Washer User Manual

1. Продукт бүтүп калдыview

The Nilfisk C 110.7 Pressure Washer is a compact and mobile cleaning machine designed for efficient performance on small surfaces. It is ideal for various outdoor cleaning tasks around the home and garden.

Figure 1.1: The Nilfisk C 110.7 Pressure Washer shown with its included accessories, including the spray gun, lances, and foam emitter.

Key features include 110 bar pressure, 1400 W motor, and a large water flow suitable for cleaning up to 25 m²/h. It features an aluminum pump and a 5-meter hose, allowing connection to a garden tap or water tank.

1.2-сүрөт: жанаша view illustrating the compact and lightweight design of the Nilfisk C 110.7, highlighting its 110 bar pressure and 25 m²/hour cleaning speed.

2. Коопсуздук боюнча маанилүү маалымат

ЭСКЕРТҮҮ: Бул продуктуну колдонуудан мурун бардык коопсуздук эскертүүлөрүн жана нускамаларын окуп чыгыңыз. Эскертүүлөр жана нускамаларды аткарбоо электр тогуна урунууга, өрткө жана/же олуттуу жаракат алууга алып келиши мүмкүн.

• This device is designed for use with Nilfisk cleaning products. Using other detergents may compromise safety.
• High-pressure water jets are dangerous. Never point the water jet at people, live electrical devices, installations, or the device itself.
• Do not use the device around individuals not wearing protective clothing.
• Never direct the water jet at yourself or others to clean clothing or shoes.
• жарылуу коркунучу: Тутануучу суюктуктарды чачпаңыз.
• Pressure washers must not be used by children or untrained individuals.
• Only use Nilfisk recommended high-pressure hoses, connectors, and couplings.
• Water that has passed through check valves is considered non-potable.
• Do not use the device if the power cable or other critical parts (e.g., safety devices, high-pressure hoses, spray gun) are damaged.
• Unsuitable extension cables can be dangerous. If an extension cable is used, ensure it is suitable for outdoor use. The connection must remain dry and off the ground (e.g., using a cable reel at least 60 mm above ground).
• Always turn off the device and unplug it when unattended, after use, when changing functions, or during maintenance/repair.
• Aerosols may form during use. Inhaling aerosols can be harmful. Wear an FFP2 respirator or equivalent if necessary.

3. Орнотуу жана чогултуу

1. Пакеттен чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Таңгактоо тизмесинде көрсөтүлгөн бардык бөлүктөрдүн бар экенин текшериңиз.
2. Туткасы Ассамблеясы: Attach the handle to the main unit if it is not pre-assembled. Refer to the quick start guide for specific instructions.
3. Шланг туташтыруу: Connect the high-pressure hose to the outlet on the pressure washer and to the spray gun. Ensure connections are secure to prevent leaks.
4. Суу менен камсыздоо байланышы: Connect a garden hose to the water inlet of the pressure washer. Ensure the water supply is clean and free of debris. The unit can be connected to a garden tap or a water tank.
5. Сопло тиркемеси: Select the appropriate nozzle (gentle or rough) for your cleaning task and attach it to the spray gun lance. For foam application, attach the foam emitter.
6. Кубат туташуу: Plug the power cord into a suitable electrical outlet. Ensure the outlet meets the power requirements of the unit (1400 W).

Figure 3.1: The Nilfisk C 110.7 Pressure Washer with its hose and spray gun attached, ready for operation.

4. Иштөө нускамалары

4.1. Баштоодон мурун

• Бардык туташуулардын (суу, түтүк, электр) бекем орнотулганын текшериңиз.
• Суу менен камсыздоону толугу менен күйгүзүңүз.
• Туруктуу суу агымы чыкканга чейин системадан абаны тазалоо үчүн брызги пистолетиндеги триггерди басыңыз.

4.2. Агрегатты ишке киргизүү

1. КҮЙГҮЗҮҮ/ӨЧҮРҮҮ которгучун "КҮЙГҮЗҮҮ" абалына буруңуз. Мотор иштей баштайт.
2. Point the spray gun at the surface to be cleaned, maintaining a safe distance.
3. Squeeze the trigger to begin spraying. The motor will run continuously while the trigger is pressed.
4. Release the trigger to stop the water flow. The motor will stop or go into standby mode.

4.3. Тазалоо колдонмолору

The Nilfisk C 110.7 is versatile for various outdoor cleaning tasks:

• Small Gardens & Patios: Use the rough nozzle for stubborn dirt on hard surfaces.
• Cars, Bicycles & Motorcycles: Use the gentle nozzle and foam emitter for effective, scratch-free cleaning.
• Сырткы эмеректер: Adjust pressure and nozzle type based on material.
• Shutters & Windows: Use the gentle nozzle for delicate surfaces.

Figure 4.1: Diagram illustrating the versatility of the Nilfisk C 110.7 for cleaning cars, bikes, small patios, external windows, and outdoor furniture.

Figure 4.2: A user demonstrating the Nilfisk C 110.7 pressure washer cleaning a patio surface.

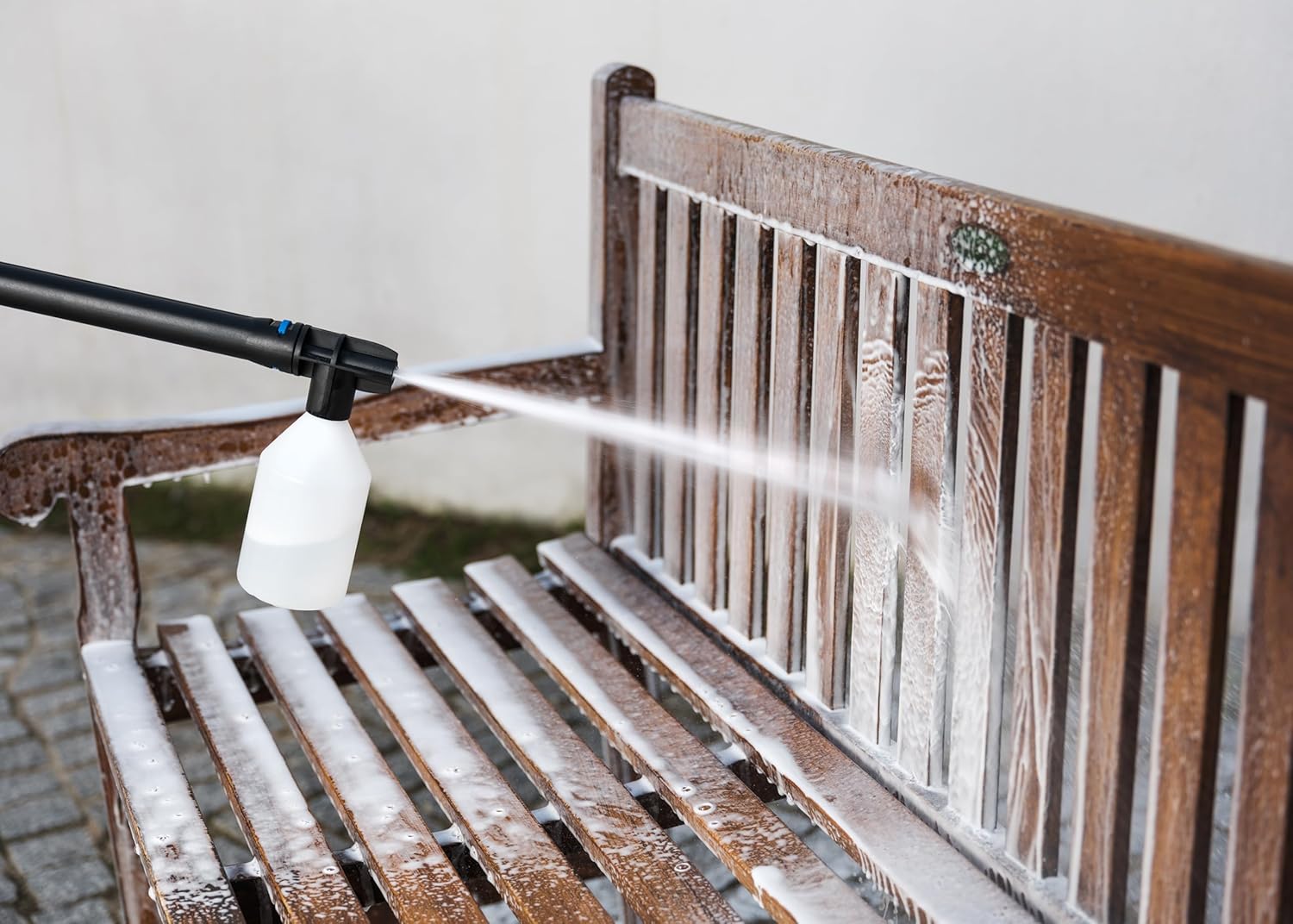

Figure 4.3: Close-up of the foam emitter accessory being used to apply cleaning solution to a wooden bench.

Figure 4.4: A user cleaning an outdoor wooden table, demonstrating the effective use of the pressure washer on furniture.

5. Техникалык тейлөө жана сактоо

5.1. Ар бир колдонуудан кийин

• Turn off the pressure washer and unplug it from the power outlet.
• Суу менен камсыздоону өчүрүңүз.
• Системада калган басымды бошотуу үчүн брызги тапанчасын кысып коюңуз.
• Суу түтүгүн жана жогорку басымдагы түтүктү ажыратыңыз.
• Drain any remaining water from the pump by tilting the unit.
• Clean the nozzles and accessories to prevent blockages. Use the included nozzle cleaning needle if necessary.

5.2. Сактоо

• Басым менен жуугучту кургак, үшүксүз жерде сактаңыз.
• Ensure all hoses and accessories are neatly coiled and stored to prevent damage.
• For long-term storage, especially in cold climates, consider using a pump protector to prevent freezing damage.

6. Кыйынчылыктарды

This section provides solutions to common issues. For problems not listed here, contact Nilfisk customer support.

7. Техникалык шарттар

• Бренд: Nilfisk
• Модель номери: 128470921 (C 110.7)
• Кубат булагы: Электр зымдары
• Түсү: Көк
• Элемент Салмагы: 6 килограмм (13.2 фунт)
• Шлангдын узундугу: 5 метр
• Продукциянын өлчөмдөрү (L x W x Y): 10.24" x 11.61" x 25.98"
• Максималдуу агым ылдамдыгы: Саатына 440 литр
• басым: 110 бар
• Мотор күчү: 1400 Вт
• Cleaning Speed: 25 м²/саат
• Насос материалы: Алюминий

8. Кепилдик маалыматы

Nilfisk pressure washers are manufactured to high quality standards. To ensure customer satisfaction, Nilfisk offers a lifetime warranty (equivalent to 30 years) on the motor and pump unit for customers residing in Germany.

Кепилдик каттоо: To validate the lifetime warranty, you must register your item at nilfisk-lebenslange-garantie.de no later than 30 days after the original purchase date. Upon registration, you will receive a certificate as proof of your warranty. It is recommended to keep this certificate along with your purchase receipt.

This lifetime warranty is in addition to the legal warranty provided by the respective reseller and does not affect legitimate rights arising from national laws.

For a complete description of the lifetime warranty conditions, please refer to the official Nilfisk warranty conditions.

9. Кардарларды колдоо кызматы

For further assistance, technical support, or to inquire about spare parts and accessories, please visit the official Nilfisk webсайтка же кардарларды тейлөөгө кайрылыңыз.

• Официалдуу Webсайт: www.nilfisk.com
• Product Registration (for warranty): nilfisk-lebenslange-garantie.de
• Spare Parts & Accessories: Visit the Nilfisk store or authorized dealers.

If you encounter issues not covered in the troubleshooting section, or if your device requires repair, contact an authorized Nilfisk service center.
