1. Киришүү
The JURA ENA Micro 90 is a compact one-touch automatic coffee machine designed to prepare a full range of coffee specialties. This includes Latte macchiato, cappuccino, milk foam, coffee, espresso, and hot water, all at the touch of a button. The machine incorporates an energy-saving mode for efficient operation.
2. Коопсуздук нускамалары
Please read these safety instructions carefully before using the appliance for the first time and keep them for future reference. Incorrect use can lead to personal injury or property damage.
- Электр коопсуздугу: Voltage specified on the rating plate matches your mains voltage. Do not operate the machine with a damaged power cord or plug.
- Ысык беттер: The machine produces hot water and steam. Avoid direct contact with hot surfaces and steam outlets to prevent burns.
- Суу багы: Only fill the water tank with fresh, cold water. Do not use carbonated water or other liquids.
- Тазалоо: Тазалоодон мурун машинаны ар дайым розеткадан сууруп алыңыз. Машинаны сууга салбаңыз.
- Балдар: Шайманды балдар жетпеген жерде сактаңыз.
3. Продукт бүтүп калдыview
The JURA ENA Micro 90 features a sleek design with intuitive controls for easy operation. Key components include the bean container, water tank, control panel with display, coffee spout, and milk frother.
Сүрөт: Жогорку view of the JURA ENA Micro 90, showing the control panel with rotary switch and buttons, along with the transparent bean hopper.
Негизги өзгөчөлүктөрү:
- Бир тийүү операциясы: Prepare 6 barista-quality specialties with a single touch.
- Импульс чыгаруу процесси (P.E.P.): Ensures optimal extraction time for short specialty coffees, enhancing aroma and flavor.
- AromaG3 майдалагыч: Fast and precise conical burr grinder for freshly ground beans.
- Энергияны үнөмдүү: Features an energy-saving mode.
- Сыйымдуулугу: Equipped with a 37-ounce water tank and a 4.4-ounce bean container.
4. Орнотуу
Follow these steps for initial setup of your JURA ENA Micro 90 coffee machine.
- Пакеттен чыгаруу: Carefully remove the machine from its packaging and place it on a stable, level surface.
- Суу багы: Fill the water tank with fresh, cold water and insert it back into the machine.
- буурчак контейнери: Fill the bean container with fresh coffee beans. It is recommended to use medium roast beans to prevent gumming up the machine.
- Кубат туташуу: Машинаны жерге туташтырылган электр розеткасына сайыңыз.
- Initial Start-up & Language Selection: Upon first power-on, the machine will guide you through initial settings, including language selection. Use the rotary switch to navigate and select your preferred language (e.g., English).
Video: This video demonstrates the initial setup process, including selecting the language on the JURA ENA Micro 90's display using the rotary control.
5. Иштөө нускамалары
The JURA ENA Micro 90 offers a variety of coffee specialties with simple one-touch operation.
5.1 Эспрессо жасоо
Эспрессо даярдоо үчүн:
- Кофе түтүгүнүн астына чөйчөктү коюңуз.
- Adjust the aroma strength using the rotary switch if desired.
- Press the Espresso button. The machine will grind the beans and dispense the espresso using the Pulse Extraction Process (P.E.P.) for optimal flavor.
Image: The JURA ENA Micro 90 dispensing a rich espresso into a small glass, showcasing the crema.
5.2 Making Latte Macchiato or Cappuccino
To prepare a milk-based specialty:
- Ensure the milk frother is connected and a container with milk is ready.
- Place a suitable glass or cup under the coffee and milk spout.
- Press the Latte Macchiato or Cappuccino button. The machine will automatically froth the milk and then add the coffee.
Image: A perfectly layered latte macchiato being dispensed by the JURA ENA Micro 90 into a tall glass.
5.3 Ысык сууну берүү
ысык суу үчүн:
- Ысык суу түтүгүнүн астына чөйчөктү кой.
- Press the hot water button. The machine will dispense hot water.
Video: This video demonstrates the JURA ENA Micro 90 dispensing hot water, along with other beverage preparations like espresso and latte macchiato.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your JURA ENA Micro 90.
6.1 Күнүмдүк тазалоо
- Тамчылатма табак жана кофе талкан контейнери: Тамчылатуучу лотокту жана кофе чөлмөгү идиштерин күн сайын бошотуп, чайкаңыз.
- Сүт системасы: Clean the milk frother system daily after preparing milk-based drinks to prevent blockages and ensure hygiene.
6.2 Тазалоо
The machine will prompt you when descaling is required. Use only JURA descaling products as specified in the full instruction manual to avoid damage to the machine.
6.3 Жалпы кам көрүү
- Машинанын сыртын жумшак менен сүртүңүз, гamp кездеме.
- Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз.
- The item is not dishwasher safe.
7. Кыйынчылыктарды
This section addresses common issues you might encounter with your JURA ENA Micro 90.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Machine not turning on / heating element issue | Power supply issue, internal fault. | Электр байланышын текшериңиз. Эгер көйгөй чечилбесе, кардарларды колдоо бөлүмүнө кайрылыңыз. |
| Drip tray fills quickly | Normal operation (rinse cycles), or potential internal leak. | Empty drip tray regularly. If excessive, ensure all components are correctly seated. If problem persists, contact customer support. |
| Coffee not brewing / weak coffee | Empty bean container, incorrect grind setting, clogged brewing unit. | Refill beans. Adjust grind fineness. Perform cleaning cycles. |
| Сүт туура көбүрбөйт | Clogged milk frother, incorrect milk type/temperature. | Clean the milk frother thoroughly. Use fresh, cold milk. |
For more detailed troubleshooting, refer to the comprehensive manual included with your machine or visit the JURA support webсайт.
8. Техникалык шарттар
Detailed technical specifications for the JURA ENA Micro 90 Automatic Coffee Machine:
- Бренд: Юра
- Модель аты: ENA Micro 90
- Модель номери: 15116
- Түсү: Micro Silver
- Кофе кайнаткыч түрү: Эспрессо машинасы
- Иштөө режими: Толугу менен автоматтык
- Сыйымдуулугу: 2.3 Pounds (beans), 37 Ounce (water tank)
- Ватtage: 1450 ватт
- Тtage: 120 вольт
- Адам интерфейсинин киргизүүсү: Buttons
- Кофе киргизүү түрү: Whole Bean
- Кубат булагы: AC адаптер
- Чыпка түрү: Paper (for water filter, if used)
- Элемент Салмагы: 20.7 фунт
- Материал: Дат баспаган болот
- Тышкы жасалгалоо: Silver
- Өзгөчөлүктөр: Программалануучу сүт көбүктөндүргүч
- Продукт үчүн атайын колдонуу: Cappuccino, Espresso-based drinks, Latte macchiato
- Продукт үчүн сунушталган колдонуулар: Home Use, Office Use

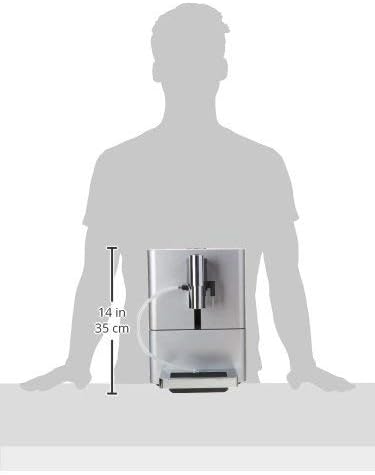

Image: A diagram illustrating the dimensions of the JURA ENA Micro 90, indicating a height of 14 inches (35 cm).
9. Кепилдик жана колдоо
Your JURA ENA Micro 90 Automatic Coffee Machine comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.
For technical support, service, or to order accessories and cleaning products, please visit the official Jura website or contact their customer service department. The included instruction manual provides additional details and contact information.
