Olight X7 Marauder Handheld Flashlight User Manual

1. Киришүү

Thank you for choosing the Olight X7 Marauder Handheld Flashlight. This powerful and versatile flashlight is engineered for exceptional performance and durability, featuring advanced LED technology and robust construction. This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your X7 Marauder.

The X7 Marauder is designed with precision and quality, offering a maximum output of 9000 lumens. It is water-resistant and shock-resistant, making it suitable for various demanding environments. Please read this manual thoroughly before using the product to ensure proper handling and to maximize its lifespan.

2. Продукт бүтүп калдыview

The Olight X7 Marauder is a high-performance flashlight equipped with three Cree XHP70 white LEDs, providing immense brightness and a wide beam. Its compact yet powerful design makes it an ideal tool for outdoor activities, search and rescue, or general illumination needs.

Figure 1: Olight X7 Marauder Flashlight, showcasing its overall design with the blue bezel and textured body.

Негизги өзгөчөлүктөрү:

• Three Cree XHP70 CW LEDs for powerful illumination.
• 9000 люмен максималдуу чыгаруу.
• IPX8 суу өткөрбөйт рейтинги.
• Shock-resistant aluminum body.
• Active thermal management system.
• Multiple lighting modes: Turbo S, Turbo, High, Medium, Low, Moonlight.
• Convenient side switch for operation.

Сүрөт 2: Алдыңкы view of the Olight X7 Marauder, highlighting the side switch and Olight branding.

3. Орнотуу

3.1 Батареяны орнотуу

The Olight X7 Marauder requires four 18650 batteries (not included) for operation. Ensure you use high-drain, unprotected 18650 batteries for optimal performance and safety.

1. Кол чырактын куйрук капкагын сааттын жебесине каршы буруп чечиңиз.
2. Insert four 18650 batteries with the positive (+) terminals facing towards the head of the flashlight.
3. Carefully screw the tail cap back on, turning it clockwise until it is fully tightened. Ensure a secure connection to prevent power interruptions and maintain water resistance.

Маанилүү: Always insert batteries with the correct polarity. Incorrect installation can damage the flashlight and void the warranty.

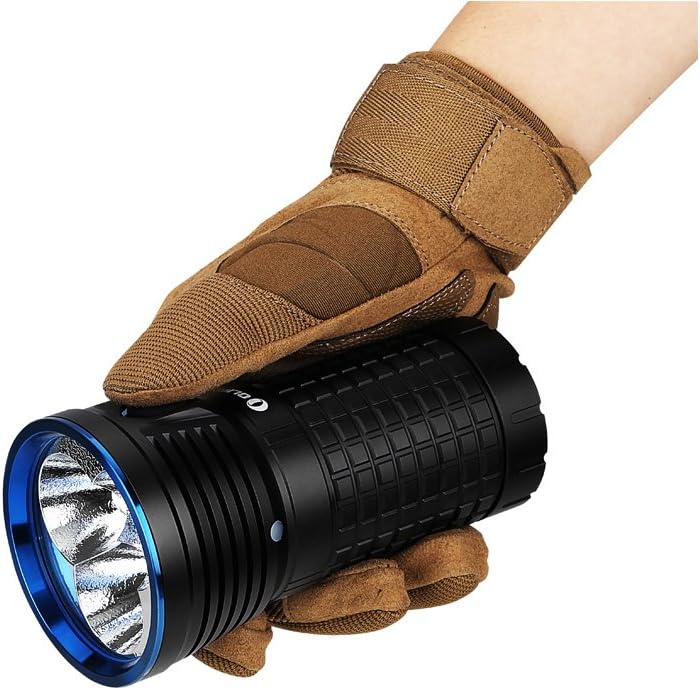

Figure 3: The Olight X7 Marauder held comfortably in a gloved hand, demonstrating its ergonomic design.

4. Иштөө нускамалары

4.1 Негизги операция

• Күйгүзүү/өчүрүү: Кол чыракты күйгүзүү же өчүрүү үчүн капталдагы которгучту бир чыкылдатыңыз.
• Жарыктык деңгээлдерин өзгөртүү: Фонарь күйүп турганда, Төмөн, Орто жана Жогорку режимдерин алмаштыруу үчүн капталдагы которгучту басып, кармап туруңуз. Каалаган режимди тандоо үчүн которгучту коё бериңиз.
• Ай жарыгы режими: Фонарь өчүк турганда, Ай жарыгы режимин иштетүү үчүн капталдагы которгучту болжол менен бир секунд басып туруңуз.
• Турбо режими: Double-click the side switch quickly to activate Turbo mode. Double-click again to activate Turbo S mode.
• Strobe режими: Triple-click the side switch quickly to activate Strobe mode. Single click to exit Strobe mode.
• Эстутум функциясы: The flashlight will remember the last used brightness level (except Turbo S, Turbo, and Strobe) when turned off and back on.

4.2 Active Thermal Management System

The X7 Marauder is equipped with an active thermal management system. When the flashlight operates at high brightness levels (Turbo S, Turbo, High) for an extended period, it may automatically reduce its output to prevent overheating and protect the internal components. This is normal operation and ensures the longevity of the device.

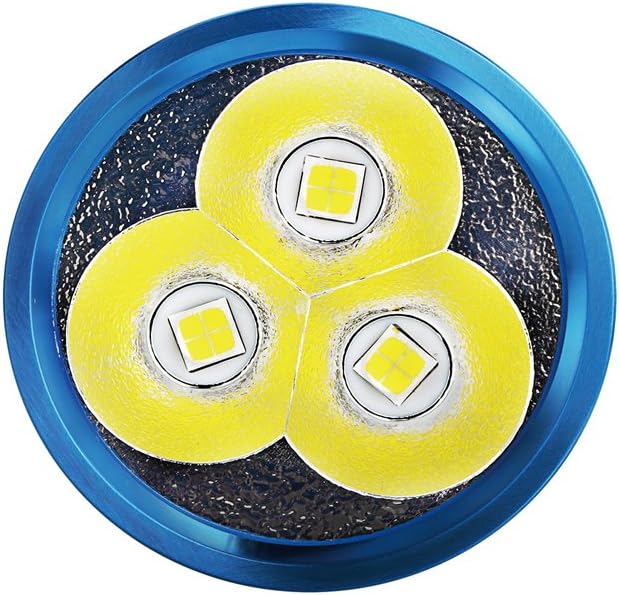

Сүрөт 4: Жакын пландан view of the three Cree XHP70 LED emitters within the Olight X7 Marauder's head.

5. Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your Olight X7 Marauder.

• Тазалоо: Use a clean, soft cloth to wipe the flashlight body. For stubborn dirt, a slightly damp cloth can be used. Do not use harsh chemicals or abrasive materials.
• Жиптер жана O-шакекчелер: Мезгил-мезгили менен жиптерди жана O-шакекчелерди силикон майы менен майлап, сууга туруктуулугун жана жылмакай иштешин камсыз кылуу. О-шакекчелер бузулуп же эскирип калса, алмаштырыңыз.
• Батареяга кам көрүү: Remove batteries if the flashlight will not be used for an extended period to prevent battery leakage. Store batteries in a cool, dry place.
• Сактагыч: Store the flashlight in a dry environment, away from direct sunlight and extreme temperatures.

Figure 5: The Olight X7 Marauder securely placed in its protective holster, demonstrating portability and storage.

6. Кыйынчылыктарды

If you encounter issues with your Olight X7 Marauder, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Olight customer support for further assistance.

7. Техникалык шарттар

Detailed technical specifications for the Olight X7 Marauder Flashlight:

8. Кепилдик жана колдоо

For warranty information and customer support, please refer to the official Olight website or contact your authorized Olight dealer. Keep your purchase receipt as proof of purchase for warranty claims.
