Sunlite CFL Plug-in PLT 4-Pin Triple Tube Light User Manual

Продукт бүттүview

The Sunlite CFL Plug-in PLT 4-Pin Triple Tube Light is designed for various lighting fixtures, commonly found in commercial and industrial settings such as office spaces and medical centers. This compact fluorescent lamp (CFL) provides efficient and reliable illumination.

Image: A pack of ten Sunlite CFL Plug-in PLT 4-Pin Triple Tube Lights, showcasinалардын дизайны жана саны.

Негизги өзгөчөлүктөрү:

• Заманбап дизайн: Provides 32 Watts of power, delivering 2400 Lumens for exceptional illumination.
• Узак өмүр: Rated for up to 10,000 hours of reliable use, reducing the need for frequent replacements.
• Жылуу ак жарык: Emits a comfortable 3000K warm white light, ideal for creating an inviting atmosphere.
• Ар тараптуу: Features a 4-Pin GX24q3 base, suitable for various lighting fixtures.
• Энергияны үнөмдүү: Designed to provide powerful lighting while conserving energy.

Продукт боюнча толук маалымат

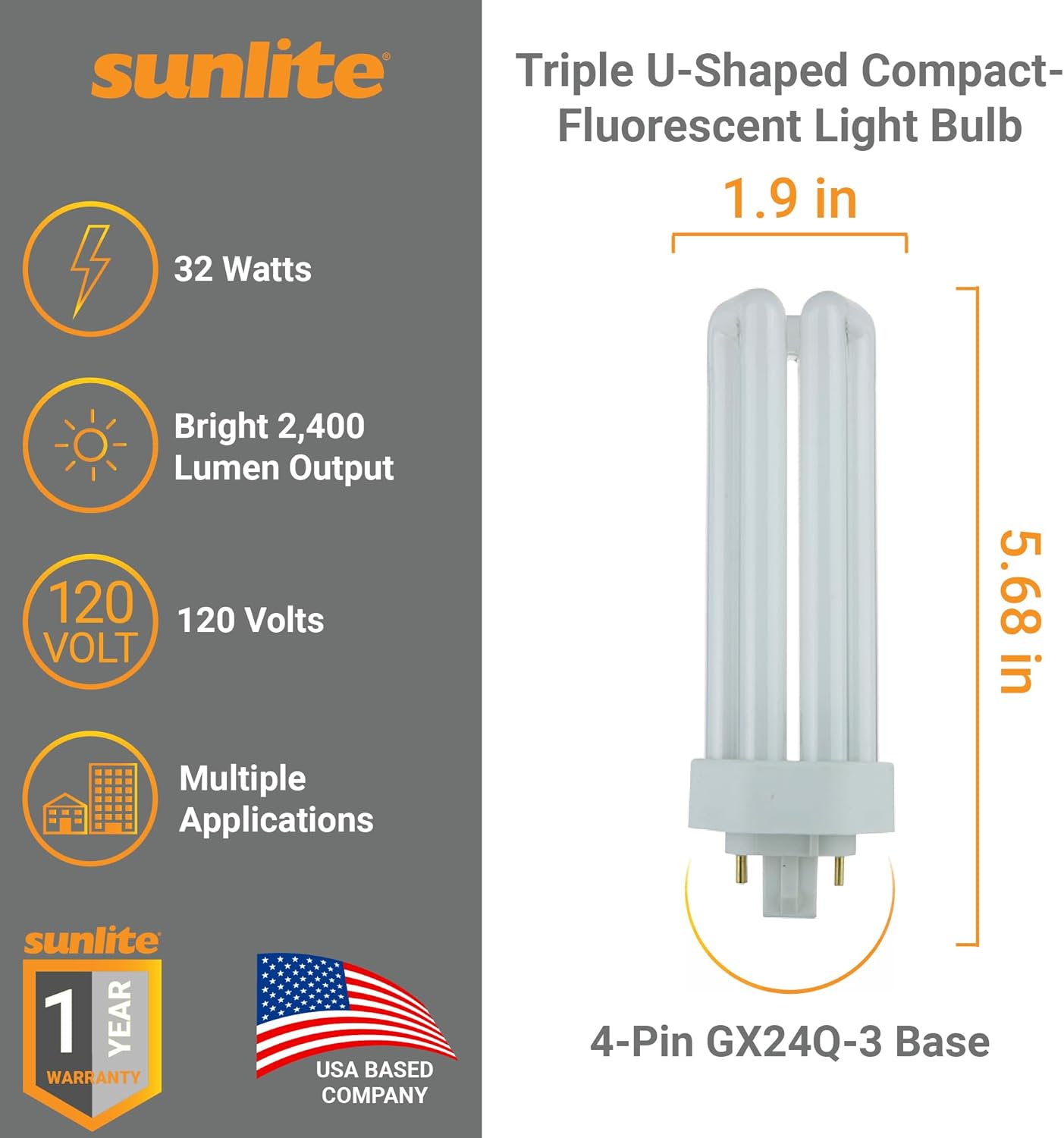

Сүрөт: деталдуу view of the Sunlite CFL bulb, highlighting its dimensions (1.9 inches width, 5.68 inches length) and key specifications like 32 Watts, 2400 Lumen output, 120 Volts, and 4-Pin GX24Q-3 Base.

Image: Visual representation of the bulb's features, including an 80 Standard Color Rendering Index (CRI), 10,000-hour lifespan, 3000K Warm White color temperature, and its energy-efficient design.

Сүрөт: мурункуample of the 3000K warm white light in a modern kitchen, illustrating its ability to create a comfortable and inviting atmosphere.

Image: The tube light installed in a commercial hallway, demonstrating its modern design and how it provides exceptional illumination in a professional setting.

Image: The light installed in an outdoor covered area, emphasizing its long lifespan and reliable performance for extended use.

Image: A comprehensive color temperature chart, illustrating different light temperatures from amber to daylight, with 3000K warm white highlighted as suitable for relaxing and bedroom settings.

Орнотуу боюнча колдонмо

This section provides general guidelines for installing the Sunlite CFL Plug-in PLT 4-Pin Triple Tube Light. Always consult the fixture's specific instructions and ensure power is off before installation.

Коопсуздук чаралары:

• Always turn off power to the fixture at the circuit breaker before attempting installation or removal.
• Эски лампаны колдонуудан мурун толугу менен муздаганга мүмкүнчүлүк бериңиз.
• Do not use excessive force when inserting or removing the bulb.
• Handle the bulb by its plastic base, not the glass tubes.

Орнотуу кадамдары:

1. Шайкештикти текшерүү: Ensure your fixture is designed for a 4-Pin GX24q3 base CFL bulb.
2. Кубатты өчүрүү: Жарык бергичти башкарган автоматтык өчүргүчтү таап, аны "ӨЧҮРҮҮ" абалына коюңуз.
3. Эски лампочканы алып салуу (эгер бар болсо): Carefully grasp the base of the old bulb and gently pull it straight out from the socket.
4. Жаңы лампочканы салыңыз: Align the 4 pins on the base of the Sunlite CFL bulb with the corresponding slots in the fixture's socket. Gently push the bulb straight into the socket until it is firmly seated. Do not twist.
5. Күчтү калыбына келтирүү: Once the bulb is securely installed, return the circuit breaker to the "ON" position.
6. Сыноо: Лампанын туура иштеп жатканын ырастоо үчүн жарык өчүргүчтү күйгүзүңүз.

Иштөө нускамалары

Operating the Sunlite CFL Plug-in PLT 4-Pin Triple Tube Light is straightforward.

1. Күйгүзүү: Ensure the bulb is correctly installed in a compatible fixture and the fixture is connected to a 120 Volt power supply.
2. Иштетүү: Use the standard wall switch or fixture control to turn the light on. The bulb will illuminate immediately.
3. Өчүрүү: Use the same wall switch or fixture control to turn the light off.

Note: CFL bulbs may take a few moments to reach full brightness, especially in colder environments. This is normal operation.

Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your Sunlite CFL Plug-in PLT 4-Pin Triple Tube Light.

• Тазалоо: Periodically, when the power is off and the bulb is cool, gently wipe the glass tubes with a soft, dry, lint-free cloth to remove dust and debris. Do not use liquid cleaners directly on the bulb.
• Алмаштыруу: With an average life of 10,000 hours, frequent replacement is not typically required. Replace the bulb when it no longer illuminates or begins to flicker persistently.
• Жоюу: CFL bulbs contain a small amount of mercury and should be disposed of according to local regulations. Do not dispose of them in regular household trash. Many retailers and recycling centers offer CFL recycling programs.

Проблемаларды чечүү

If you encounter issues with your Sunlite CFL Plug-in PLT 4-Pin Triple Tube Light, refer to the following common troubleshooting steps:

Техникалык мүнөздөмөлөр

Кепилдик жана колдоо

Кепилдик маалыматы: For detailed warranty information, please refer to the product packaging. Sunlite products are designed for reliability and performance.

Кардарларды колдоо: For further assistance or inquiries, please visit the official Sunlite store or contact their customer service. You can find more information and products at the Sunlite Store on Amazon.
