Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Power Acoustik PHD-101 10.3-inch Universal Headrest Monitor. Please read this manual thoroughly before using the product to ensure optimal performance and safety.
Коопсуздук маалыматы
- Ensure all connections are secure before operating the device.
- Аппаратты ашыкча нымдуулукка же экстремалдык температурага дуушар кылбаңыз.
- Ашыкча ысып кетүүнүн алдын алуу үчүн вентиляция тешиктерин жабуудан качыңыз.
- Бардык тейлөөлөрдү квалификациялуу кызматкерлерге тапшырыңыз.
- Бул продукт Калифорния штатында рак жана тубаса кемтик же башка репродуктивдүү зыян алып келген химиялык заттарды камтыйт.
Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- Power Acoustik PHD-101 Headrest Monitor
- Instruction Manual
- Mounting hardware (various adapters for headrest poles)
- Алыстан башкаруу
- Wiring harness (power, audio/video cables)
- IR өткөргүч
- FM өткөргүч

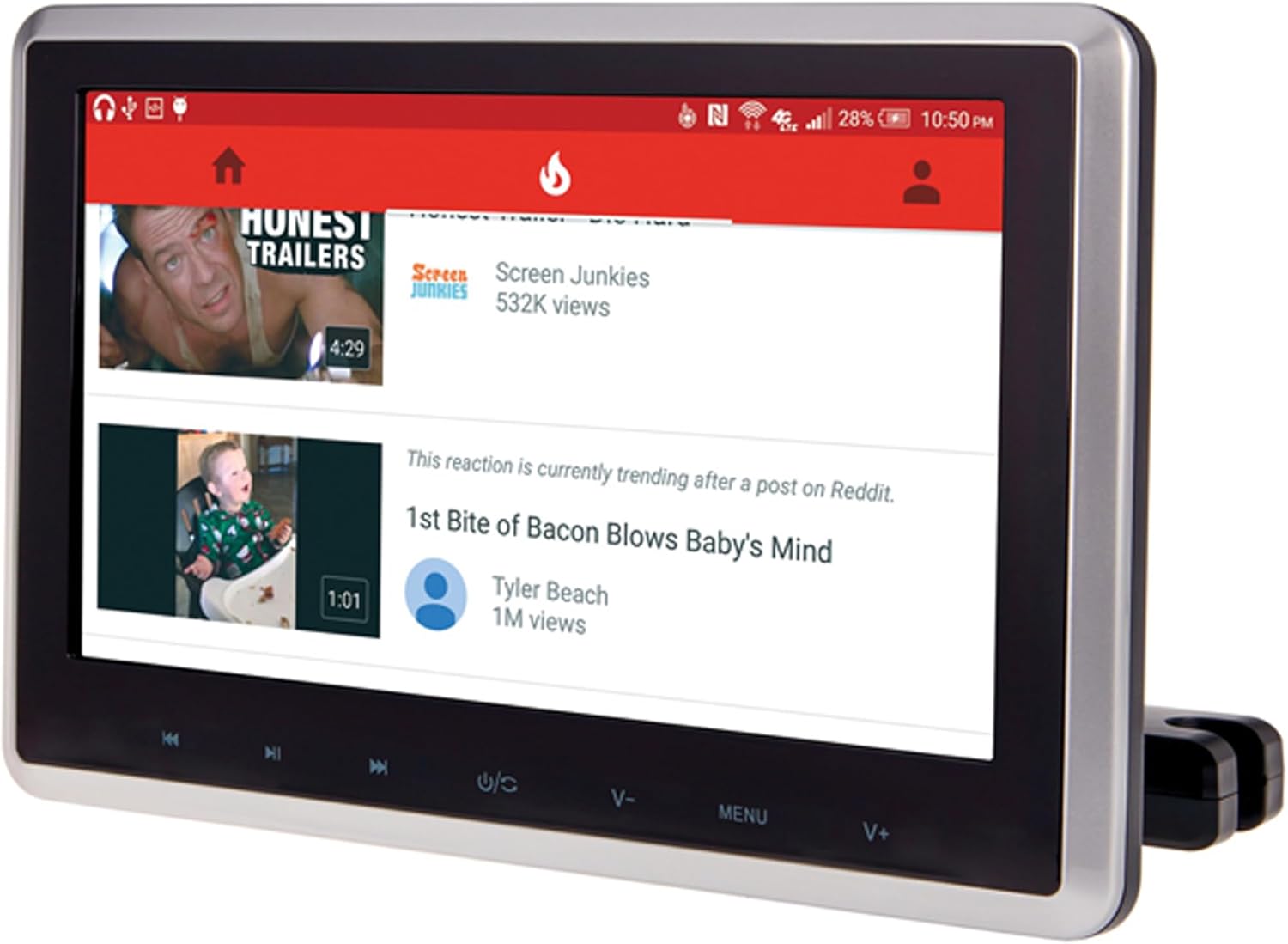

Сүрөт: бүттүview of the Power Acoustik PHD-101 headrest monitor and its included accessories, such as the remote control, wiring, and mounting brackets.
Продукт өзгөчөлүктөрү
- 10.3-inch display with 800 x 480 resolution
- 400 nits brightness for clear viewing
- NTSC/PAL auto selection for video compatibility
- Rear-loading DVD player supporting DVD/RW 720p playback
- Adjustable pole width from 4.75 inches to 8.25 inches for universal fit
- Integrated IR (Infrared) and FM (Frequency Modulation) transmitters
- Android PhoneLink compatibility for smartphone integration
Орнотуу жана орнотуу
1. Headrest Installation
- Remove your vehicle's existing headrest.
- Insert the metal posts of the PHD-101 monitor into the headrest pole receptacles in your vehicle's seat.
- Adjust the pole width as needed to fit securely (4.75"–8.25" range).
- Secure the headrest monitor in place using the provided locking mechanisms.
Video: This video demonstrates the general process of installing a headrest DVD player, showing how to replace the original headrest with the new unit and secure it. While this video is from an influencer and may not feature the exact PHD-101 model, the installation principles are similar.
2. Зымдарды туташтыруу
- Connect the power cable to your vehicle's 12V power source.
- Utilize the AV IN/OUT ports for connecting external audio/video sources or outputting video to another screen.
- Insert an SD card into the SD slot for media playback.
- Connect USB devices to the USB port for media playback or charging.
- Use the earphone jack for private listening with wired headphones.
Сүрөт: Арткы view of the Power Acoustik PHD-101 monitor, highlighting the various input/output ports including DC 12V, earphone, AV IN/OUT, SD card slot, and USB port.
Иштөө нускамалары
1. Күйгүзүү/өчүрүү
Press the power button located on the front panel or remote control to turn the unit on or off.
2. DVD ойнотуу
- Insert a DVD or DVD/RW disc into the rear-loading slot with the label side facing up.
- The player will automatically load and begin playback.
- Use the remote control or front panel buttons (Play/Pause, Stop, Skip) to control playback.
Video: This video demonstrates DVD playback and the ability to watch different movies on dual screens. While it features a related product (DESOBRY 10.5 inch Dual Car DVD Player), it illustrates the core functionality of DVD playback in a headrest monitor setup.
3. Медиа ойнотуу (USB/SD)
Insert a USB drive into the USB port or an SD card into the SD slot. The unit will detect the media and allow you to browse and play compatible audio/video files.
4. Android PhoneLink
Connect your Android smartphone to the monitor via a compatible cable (not specified if included, typically USB). This feature allows for mirroring your phone's screen or accessing certain applications directly on the headrest monitor. Refer to your phone's manual for specific PhoneLink compatibility and setup.
Video: This video showcases an Android-based headrest monitor's interface and connectivity options, including USB and HDMI. While it features a related product (Android12 Headrest Monitor by NOAUKA), it provides a visual representation of Android PhoneLink capabilities and general operation for similar devices.
5. IR & FM Transmitters
- IR Transmitter: For wireless audio transmission to compatible IR headphones. Ensure your headphones are set to the correct IR channel.
- FM тараткыч: Transmits audio to your vehicle's FM radio. Tune your car radio to an unused FM frequency, then set the monitor's FM transmitter to the same frequency.
6. Меню жана Орнотуулар
басыңыз МЕНЮ button on the unit or remote to access settings. Navigate through options like brightness, contrast, color, aspect ratio, and audio settings using the arrow buttons and confirm with ENTER or OK.
Техникалык тейлөө
- Тазалоо: Экранды жана сыртын тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Эгерде өжөр тактар болсо, аны бир аз сүртүңүз.ampчүпүрөктү суу менен. Катуу химиялык заттардан же абразивдүү тазалагычтардан алыс болуңуз.
- Дискке кам көрүү: Handle DVDs by the edges. Clean discs with a soft, lint-free cloth, wiping from the center outwards.
- Сактагыч: When not in use for extended periods, store the unit in a cool, dry place away from direct sunlight.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок | Электр байланышы бош, сактагыч күйүп кетти. | Check power cable connection. Inspect vehicle fuse. |
| DVDден сүрөт/үн жок | Disc inserted incorrectly, dirty/scratched disc, incorrect source selected. | Re-insert disc correctly. Clean or replace disc. Select DVD source. |
| No sound from FM transmitter | Incorrect FM frequency selected on monitor or car radio. | Ensure monitor and car radio are tuned to the same, clear FM frequency. |
| PhoneLink not working | Incompatible cable, phone settings, app issues. | Use a compatible USB cable. Check phone's USB connection settings (e.g., file transfer, Android Auto). Restart phone and monitor. |
Техникалык шарттар
| Модель номери | PHD-101 |
| Screen Size | 10.3 дюйм |
| Display Resolution | 800 x 480 |
| Жарыктык | 400 нит |
| Дисплей технологиясы | TFT LCD |
| Медиа түрү колдоого алынат | DVD/RW (720p), SD, USB |
| Байланыш | IR, FM, Android PhoneLink |
| Pole Width Adjustment | 4.75"–8.25" |
| Продукциянын өлчөмдөрү | 5.25 x 10.25 x 7.5 дюйм |
| Элемент Салмагы | 2 фунт |
Кепилдик жана колдоо
For warranty information and technical support, please refer to the official Power Acoustik webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
Webсайт: www.poweracoustik.com
Кардарларды тейлөө: Чиновниктин байланыш бөлүмүнө кайрылыңыз webтелефон номерлери же электрондук почта колдоо сайты.
