HECHT HEC-6285XL Electric Garden Shredder User Manual

1. Киришүү

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your HECHT HEC-6285XL Electric Garden Shredder. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage.

The HECHT HEC-6285XL is designed for shredding garden waste such as shrubs and branches up to a maximum diameter of 44 mm. It features a powerful 2800 W motor and a 60-liter collection box for shredded material.

2. Коопсуздук нускамалары

Өрт, электр шок жана жеке жаракат алуу коркунучун азайтуу үчүн электр шаймандарын колдонууда ар дайым негизги коопсуздук чараларын сактаңыз.

• Read and understand all instructions before operating the shredder.
• Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and sturdy gloves.
• Жумушчу аймактын бөтөн адамдардан, балдардан жана үй жаныбарларынан таза экенине ынаныңыз.
• Do not operate the shredder in wet conditions or near flammable liquids or gases.
• Always unplug the shredder from the power source before performing any maintenance, cleaning, or clearing blockages.
• Never insert hands or feet into the feeding chute or discharge opening. Use the provided pusher tool.
• Иштетүүдөн мурун, бардык коргоочулар жана коопсуздук түзүлүштөрү ордунда экенин жана туура иштеп жатканын текшериңиз.
• Only shred materials specified for this machine. Do not attempt to shred metal, stones, glass, or plastic.
• Keep the power cord away from the shredding mechanism and sharp edges.
• Store the shredder in a dry, secure place, out of reach of children.

3. Продукт бүтүп калдыview жана компоненттер

Familiarize yourself with the main parts of your HECHT HEC-6285XL garden shredder.

3.1-сүрөт: Жалпысынан view of the HECHT HEC-6285XL Electric Garden Shredder, showing its red and black housing, white collection box, and wheels.

• Азыктандыруучу чөйчөк: Top opening for inserting garden waste.
• Pusher Tool: Used to safely push material into the feeding chute.
• Мотор корпусу: Contains the 2800 W electric motor and shredding mechanism.
• Башкаруу панели: Includes ON/OFF switch and reverse function switch.
• Collection Box (60L): Removable container for collecting shredded material.
• Дөңгөлөктөр: For easy transport of the shredder.
• Frame/Stand: Иш учурунда туруктуулукту камсыз кылат.

Figure 3.2: Detail of the control panel, showing the red ON/OFF switch and green reverse switch.

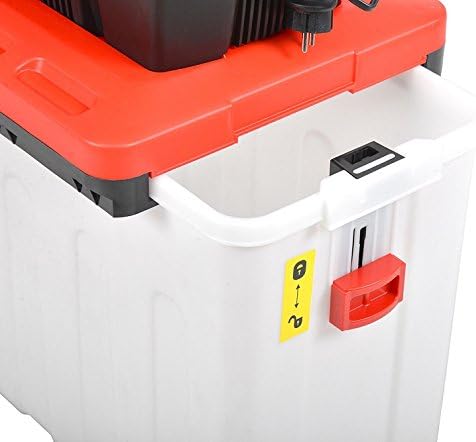

Figure 3.3: The 60-liter collection box, showing its insertion point and locking mechanism under the shredder.

4. Орнотуу жана чогултуу

Before first use, some assembly is required.

1. Пакеттен чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Транзит учурунда кандайдыр бир бузулууларды текшериңиз.
2. Дөңгөлөк чогултуу: Attach the wheels to the frame using the provided hardware. Ensure they are securely fastened for stability and transport.
3. Рамка монтажы: Assemble the support frame if it is not pre-assembled. Ensure all bolts are tightened.
4. Collection Box Insertion: Slide the 60-liter collection box into its designated slot beneath the shredder until it locks securely in place. The shredder will not operate unless the collection box is correctly inserted and locked.
5. Pusher Tool: Keep the pusher tool readily accessible near the feeding chute.

5. Иштөө нускамалары

Follow these steps for safe and effective operation of your garden shredder.

1. Даярдоо:
   • Ensure the shredder is placed on a firm, level surface.
   • Verify the collection box is correctly inserted and locked.
   • Connect the shredder to a suitable power outlet (230V, 50Hz).
   • Ensure the work area is clear and you are wearing all necessary PPE.
2. Шредерди ишке киргизүү:
   • Press the green ON switch on the control panel. The motor will start.
   • Allow the motor to reach full speed before feeding material.
3. Азыктандыруучу материал:
   • Feed branches and garden waste into the feeding chute one at a time.
   • The shredder is designed to automatically pull branches in. Do not force material.
   • For thicker branches (up to 44 mm), feed them slowly and steadily.
   • Use the pusher tool only if necessary to guide material into the chute, never your hands.
4. Clearing Jams (Reverse Function):
   • If the shredder jams, immediately switch off the machine using the red OFF switch.
   • Press the reverse switch (often green or clearly marked) to reverse the rotation of the blades, which can help clear the blockage.
   • If the jam persists, unplug the machine and carefully clear the blockage using a stick or appropriate tool, ensuring your hands are never near the blades.
   • Once cleared, restart the machine and resume operation.
5. Шредерди токтотуу:
   • When finished or if you need to pause, press the red OFF switch.
   • Allow the shredding mechanism to come to a complete stop before leaving the machine unattended or performing any tasks.
   • Always unplug the shredder from the power supply after use.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your shredder. Always unplug the machine before any maintenance.

• Тазалоо: After each use, clean the feeding chute, discharge opening, and exterior of the machine. Remove any accumulated debris. Do not use water directly on electrical components.
• Бычак текшерүү: Periodically inspect the shredding blades for wear or damage. Worn blades can reduce efficiency. Refer to a qualified service technician for blade replacement if necessary.
• Collection Box: Empty and clean the collection box regularly.
• Сактагыч: Store the shredder in a dry, well-ventilated area, protected from frost and direct sunlight.

7. Кыйынчылыктарды

Бул бөлүм сиз кабылышы мүмкүн болгон жалпы көйгөйлөрдү карайт.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information, technical support, or spare parts, please contact your retailer or the official Hecht service center. Keep your proof of purchase for warranty claims.

For further assistance, you may refer to the manufacturer's webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.
