Apple iMac 21.5-inch (Late 2015) 4K Retina Display User Manual

1. Бүттүview

The Apple iMac 21.5-inch (Late 2015) is an all-in-one desktop computer designed for various computing tasks. This model features a 4K Retina Display, an Intel Core i5 processor, 8GB of RAM, and a 1TB hard drive. It includes essential connectivity options for peripherals and external devices.

Негизги өзгөчөлүктөрү:

• 21.5-inch 4K Retina Display for sharp visuals.
• 3.1GHz quad-core Intel Core i5 processor with Turbo Boost up to 3.6GHz.
• 8GB Onboard Memory (DDR3 SDRAM at 1867 MHz).
• 1TB (5400-rpm) Hard Drive for storage.
• Intel Iris Pro Graphics 6200.
• Интегралдык микрофон.
• Multiple high-speed I/O ports including two Thunderbolt ports and four USB 3.0 ports.
• Wireless connectivity: Wi-Fi (802.11a, 802.11abg) and Bluetooth.

2. Продукт Views

Алдыңкы жана каптал view of the Apple iMac 21.5-inch (Late 2015) showing its slim profile жана көрсөтүү.

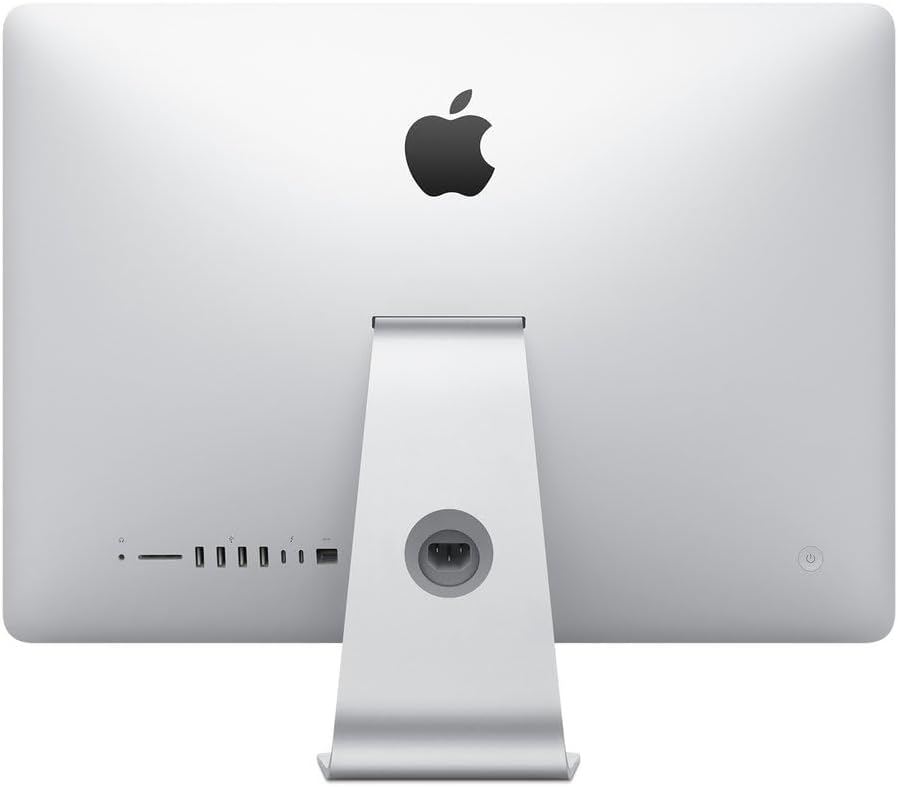

Арткы view of the Apple iMac 21.5-inch (Late 2015) highlighting the various input/output ports and power connection.

3. Орнотуу

3.1 Пакеттен чыгаруу

Carefully remove the iMac from its packaging. Ensure all components, including the power cord, keyboard, and mouse, are present. Place the iMac on a stable, flat surface.

3.2 Перифериялык түзүлүштөрдү туташтыруу

• Баскычтоп жана чычкан: Connect the provided generic wired keyboard and mouse to any of the four USB 3.0 ports located on the back of the iMac.
• Күч: Connect the power cord to the power port on the back of the iMac, then plug it into a grounded electrical outlet.
• Тармак (милдеттүү эмес): For a wired internet connection, connect an Ethernet cable from your router or modem to the Ethernet port on the back of the iMac. For Wi-Fi, setup will be completed during initial software configuration.
• External Devices (Optional): Use the Thunderbolt ports or additional USB 3.0 ports for external hard drives, printers, or other accessories.

3.3 Күйгүзүү

Press the power button located on the lower-left rear side of the iMac. The screen will illuminate, and the macOS setup assistant will guide you through the initial configuration process, including language selection, network connection, and user account creation.

4. Operating System Basics

The iMac comes pre-installed with macOS (OS X El Capitan or later). This section provides a general overview of basic macOS operation.

4.1 macOS Interface

• иш-такта: The main workspace where you can see your files, folders, and application icons.
• Док: Located at the bottom of the screen, the Dock provides quick access to frequently used applications, documents, and folders.
• Меню тилкеси: At the top of the screen, the Menu Bar contains menus for the active application, system status icons, and the Apple menu.
• Издөөчү: The file management system for macOS, allowing you to browse, organize, and access your files.

4.2 Essential Applications

Your iMac includes a suite of pre-installed applications for productivity, creativity, and communication, such as Safari (web browser), Mail, Pages, Numbers, Keynote, Photos, Music, and Messages.

5. Техникалык тейлөө

5.1 Cleaning the iMac

• Экран: Бир аз жумшак, түксүз кездемени колдонуңуз dampened with water to clean the display. Avoid harsh chemicals.
• Корпусу: Wipe the aluminum enclosure with a soft, dry cloth.
• Перифериялык түзүлүштөр: Clean the keyboard and mouse regularly to prevent dust and debris buildup.

5.2 Программалык камсыздоо жаңыртуулары

Regularly check for and install macOS updates to ensure optimal performance, security, and access to the latest features. Go to System Settings (or System Preferences) > Software Update.

5.3 Internal Dust Management

Over time, dust can accumulate inside the iMac, potentially affecting performance and cooling. While internal cleaning should ideally be performed by a qualified technician, users can use compressed air to gently clear dust from external vents. Ensure the iMac is powered off and unplugged before attempting any cleaning.

6. Кыйынчылыктарды

6.1 Жай аткаруу

• Кайра баштоо: A simple restart can often resolve temporary performance issues.
• Диск мейкиндиги: Ensure you have sufficient free space on your 1TB hard drive. Delete unnecessary fileже аларды тышкы сактагычка жылдырыңыз.
• Актив монитор: Use Activity Monitor (found in Applications/Utilities) to identify applications or processes consuming excessive CPU, memory, or disk resources.
• Программалык камсыздоо жаңыртуулары: Ensure macOS and all applications are up to date.
• Чаңдын пайда болушу: Excessive internal dust can lead to overheating and slow performance. Refer to the Maintenance section for cleaning advice.

6.2 Перифериялык байланыш

• USB түзмөктөрү: If a USB device is not recognized, try connecting it to a different USB port or restarting the iMac.
• Wireless Keyboard/Mouse: If using wireless peripherals (not included with this renewed model but commonly used), ensure they are charged and properly paired via Bluetooth. Check battery levels.
• Wi-Fi: If experiencing Wi-Fi issues, restart your router and modem. Check Wi-Fi settings in macOS to ensure you are connected to the correct network.

6.3 Дисплей маселелери

• Дисплей жок: Ensure the iMac is powered on and the power cable is securely connected.
• Flickering/Distorted Display: Try restarting the iMac. If the issue persists, it may indicate a hardware problem requiring professional service.

7. Техникалык шарттар

8. Кепилдик жана колдоо

This renewed Apple iMac comes with a 90 күндүк чектелген кепилдик. For technical assistance or warranty claims, please refer to the documentation provided by the seller or contact their customer support. Additional support resources for macOS and Apple products can be found on the official Apple Support webсайт.
