Pfister 9743210 Pressure-Balanced Cartridge Instruction Manual

1. Продукт бүтүп калдыview

The Pfister 974-3210 is a Pressure Balance Cartridge featuring Pforever Seal ceramic disc valve technology with a never-leak guarantee. This cartridge is designed for use with 0X8, VB8, JV8, and JX8 valve assemblies.

Негизги өзгөчөлүктөрү

• OEM (original equipment manufacturer) pressure balance cartridge 974-321.
• Compatible with 0X8, VB8, JV8, and JX8 valve assemblies.
• Features ceramic disc technology for durability.
• Includes an adapter for legacy deep cast valve bodies. The adapter is not required for valve bodies manufactured after 2015.
• Perma Balance technology provides reliable temperature control and helps prevent hot or cold surges.
• High temperature limit stopper allows setting a maximum heat limit to help prevent scalding; this must be set during installation.
• Can replace older two-piece models.
• ASME certified.

2. Продукциянын компоненттери жана шайкештиги

Familiarize yourself with the cartridge and its compatibility with various valve types.

Image: Pfister 9743210 Pressure-Balanced Cartridge with adapter for legacy deep cast valves. Note the white adapter at the bottom for older valve bodies.

Image: Compatibility chart for Pfister 9743210 cartridge, illustrating it can replace single-piece 974-042 and two-piece 971-250, 974-291 (S74-291), 971-150, and 974-491 models. If replacing a two-piece model, both pieces must be replaced.

Image: Dimensional drawing of the Pfister 9743210 Pressure-Balanced Cartridge, showing key measurements for installation planning.

3. Орнотуу боюнча нускамалар

Баштоодон мурун

• Ensure you have the necessary tools: screwdriver, adjustable wrench, silicone grease (optional, but recommended for O-rings).
• Shut off the main water supply to your home or to the specific bathroom/area where you are working.
• Cover the drain to prevent small parts from falling.

Картриджди алмаштыруу кадамдары

1. Remove the faucet handle and trim plate to expose the existing valve assembly.
2. Carefully remove the old cartridge. Note its orientation and any adapters.
3. Inspect the valve body for debris or damage. Clean if necessary.
4. Адаптерди колдонуу: The 9743210 cartridge comes with a white adapter for legacy deep cast valve bodies. If your valve body was manufactured after 2015, this adapter may not be required. If your existing valve has round seals where the cartridge inserts, you may need to remove the white adapter from the new cartridge.
5. Apply a thin layer of silicone grease to the O-rings on the new cartridge to facilitate insertion and ensure a good seal.
6. Insert the new Pfister 9743210 cartridge into the valve body, ensuring it is properly seated and aligned with the hot and cold water inlets.
7. Secure the cartridge according to your specific valve assembly's requirements (e.g., retaining nut, clips).
8. Set High Temperature Limit Stopper: The high temperature limit stopper must be set during installation to prevent scalding. Consult your faucet's specific trim kit instructions for precise adjustment.
9. Reinstall the trim plate and faucet handle. Ensure the handle operates smoothly. If the handle does not fit fully onto the shaft, minor adjustments to the shaft keys (e.g., shaving a small amount of plastic) may be necessary for some older handle designs.
10. Turn the water supply back on slowly and check for leaks.

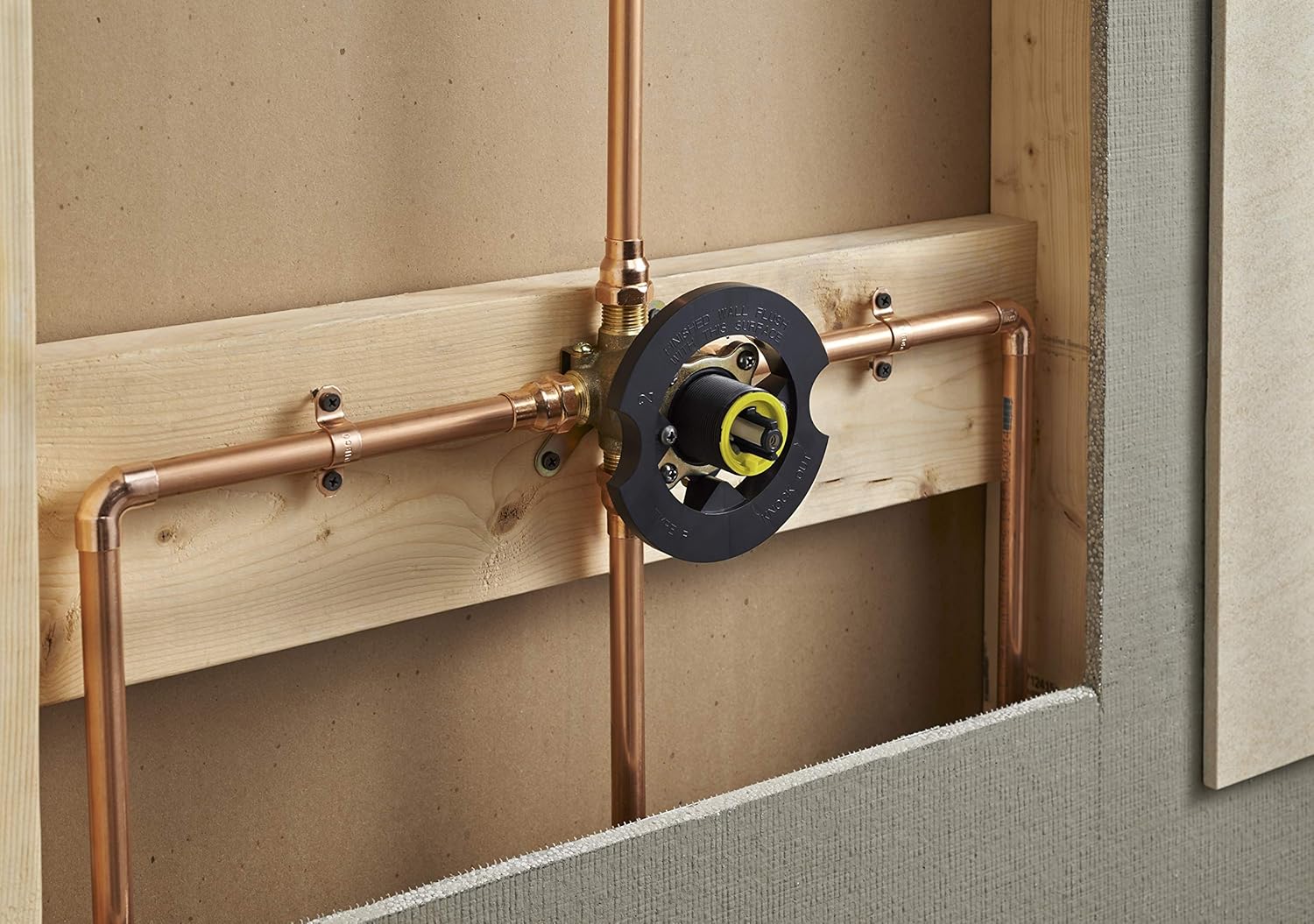

Сүрөт: Мисample of a Pfister valve assembly installed within a wall, illustrating the plumbing connections.

4. Операция

The Pfister 9743210 Pressure-Balanced Cartridge is designed to provide consistent water temperature and pressure. Once installed, operate your tub or shower faucet as usual. The Perma Balance technology within the cartridge automatically adjusts water flow to maintain your desired temperature, even if there are sudden pressure changes in your hot or cold water lines (e.g., someone flushes a toilet).

The faucet handle controls both water flow and temperature. Typically, rotating the handle adjusts temperature, while pulling it out or pushing it in controls flow. Refer to your specific faucet trim kit instructions for exact operation details.

5. Техникалык тейлөө

The Pfister 9743210 cartridge features durable ceramic disc technology, which is known for its long-lasting, leak-free performance and typically requires minimal maintenance.

• Тазалоо: Periodically clean the exterior of your faucet and trim with a soft cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
• Агышууларды текшерүү: Regularly inspect around the faucet base and under the sink/behind the wall for any signs of water leaks. Address any leaks promptly to prevent water damage.
• Колдун иштөөсү: If the faucet handle becomes stiff or difficult to turn over time, it may indicate that the O-rings or internal components could benefit from re-lubrication with silicone grease. This typically requires disassembling the handle and trim to access the cartridge.

6. Кыйынчылыктарды

Бул жерде кээ бир жалпы маселелер жана алардын мүмкүн болуучу чечимдери:

7. Продукттун спецификациялары

8. Кепилдик жана колдоо

Кепилдик маалымат

This Pfister product is covered by a Чектелген Өмүр бою Кепилдик. For specific details regarding coverage, terms, and conditions, please refer to the official Pfister warranty documentation or contact Pfister customer service.

Кардарларды колдоо

For additional assistance, technical support, or to inquire about replacement parts, please visit the official Pfister website or contact their customer service department. You can find contact information and further resources on their webсайт: www.pfisterfaucets.com
