Progress Lighting P5015-09 өткөөл төрт чырактуу кулон колдонуучу колдонмосу

Introduction

Thank you for choosing the Progress Lighting P5015-09 Transitional Four Light Pendant. This fixture features a sleek metal frame supporting a white linen drum shade, designed to complement various interior styles. This manual provides essential information for safe installation, operation, and maintenance of your new pendant light.

This image displays the Progress Lighting P5015-09 pendant light, featuring a brushed nickel finish frame and a white linen drum shade. The fixture is suspended by a central rod and supported by thin cables.

Маанилүү коопсуздук маалыматы

Please read all instructions carefully before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be fatal or cause property damage.

• ЭСКЕРТҮҮ: To avoid electric shock, disconnect power at the circuit breaker or fuse box before installation.
• Бардык зымдар улуттук жана жергиликтүү электр эрежелерине ылайык келиши керек. Эгерде сиз зымдарды туташтыруу боюнча күмөн санасаңыз, квалификациялуу электрикке кайрылыңыз.
• Түзмөктүн туура жерге туташтырылганын текшериңиз.
• Максималдуу ваттан ашпаңызtagлампалар үчүн белгиленген.
• Айнек тетиктерин сындырып албаш үчүн кылдаттык менен кармаңыз.
• Күйүүчү материалдарды жарыктан алыс кармаңыз.

Пакеттин мазмуну

Verify that all components are present before beginning installation. If any parts are missing or damaged, do not attempt to assemble or install the fixture.

• Pendant Light Fixture Assembly (Metal Frame, Shade, Diffuser)
• Mounting Hardware Kit (Canopy, Mounting Plate, Screws, Wire Nuts)
• Hanging Stems: One (1) 6-inch stem, Four (4) 12-inch stems
• Chain: Six (6) links for sloped ceiling applications
• Instruction Manual

This diagram illustrates the various stem lengths (one 6-inch, four 12-inch) and six chain links provided for adjustable hanging heights and sloped ceiling installations.

Орнотуу жана орнотуу

Professional installation is recommended for optimal safety and performance. Ensure power is disconnected at the circuit breaker before proceeding.

1. Орнотууга даярданыңыз

1. Негизги өчүргүчтөн кубатты өчүрүңүз.
2. Carefully unpack all components and inspect for damage.
3. Determine the desired hanging height and assemble the appropriate combination of stems. For sloped ceilings, use the provided chain links.

2. Арматураны орнотуңуз

4. Attach the mounting plate to the junction box in the ceiling using the provided screws.
5. Thread the fixture wires through the center hole of the mounting plate and canopy.

3. Зымдарды туташтыруу

6. Connect the fixture's bare copper ground wire to the house's ground wire (usually bare copper or green) using a wire nut.
7. Connect the fixture's white wire to the house's white (neutral) wire using a wire nut.
8. Connect the fixture's black wire to the house's black (hot) wire using a wire nut.
9. Бардык зымдарды бириктирүүчү кутуга кылдаттык менен салыңыз.

4. Жыйынтыктоочу жыйын

9. Secure the canopy to the mounting plate.
10. Install the light bulbs (not included) into the sockets. Refer to the 'Operating Instructions' section for bulb type.
11. Attach the glass diffuser and linen shade to the fixture according to the assembly diagram (if applicable).

The pendant light is shown installed above a dining table in a modern room, illustrating its scale and aesthetic integration within a living space.

Иштөө нускамалары

Лампочка маалыматы

• This fixture uses an E26 (Орто база) лампа.
• We recommend a frosted A19 light bulb with this fixture for optimal light diffusion.
• For cost and energy saving benefits, choose LED bulbs.
• Максималдуу ваттан ашпаңызtage rating for the fixture.

Караңгылатуу маалыматы

This fixture is dimmable when used with compatible wall dimmers and dimmable light bulbs. Ensure both the dimmer switch and the bulbs are rated for dimming functionality.

This graphic specifies that the fixture uses an E26 (Medium Base) bulb, recommends frosted A19 bulbs, and confirms dimmable functionality with compatible wall dimmers and bulbs.

Күйгүзүлүүдө

Once installation is complete and all connections are secure, restore power at the circuit breaker. Operate the light using a standard wall switch or compatible dimmer switch.

Техникалык тейлөө

Regular maintenance ensures the longevity and appearance of your pendant light.

• Тазалоо: Turn off power and allow the fixture to cool before cleaning. Wipe the metal surfaces with a soft, dry cloth. For the linen shade, use a soft brush or vacuum with a brush attachment to remove dust. The glass diffuser can be cleaned with a mild glass cleaner. Avoid abrasive cleaners or solvents.
• Лампаны алмаштыруу: Ensure power is off and bulbs are cool before replacing. Screw in new bulbs firmly but do not overtighten.
• Текшерүү: Periodically check for loose connections or signs of wear. If any issues are found, consult a qualified electrician.

А деталдуу view highlighting the quality and finish of the metal components that form the structure of the pendant light.

Проблемаларды чечүү

Эгерде сиз асма лампаңыз менен көйгөйлөргө туш болсоңуз, төмөнкү кеңири таралган көйгөйлөрдү жана чечимдерди караңыз:

If the problem persists after attempting these solutions, contact a qualified electrician or Progress Lighting customer support.

Техникалык шарттар

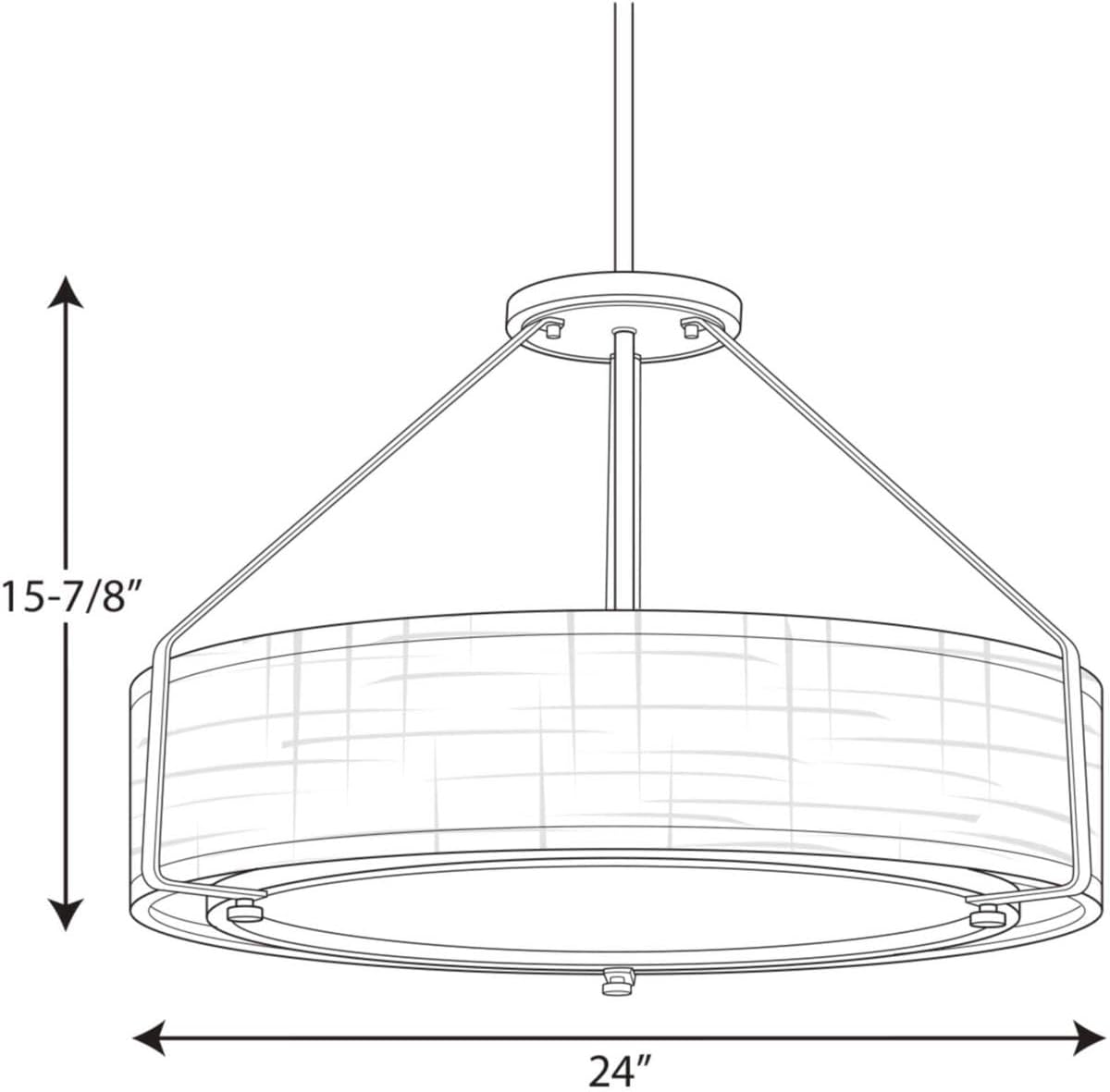

A technical drawing indicating the overall height of 15-7/8 inches and a diameter of 24 inches for the pendant light fixture.

Кепилдик жана колдоо

Кепилдик маалымат

Бул "Прогресс" жарык берүүчү лампасы төмөнкүлөр менен келет 1 жылдык кепилдик from the date of purchase, covering defects in materials and workmanship. Please retain your proof of purchase for warranty claims.

Кардарларды колдоо

For technical assistance, missing parts, or warranty inquiries, please contact Progress Lighting customer service. Refer to the official Progress Lighting webучурдагы байланыш маалыматы үчүн сайт.
