1. Киришүү
The IKRA IECS 2240 TF electric chainsaw is a powerful and reliable tool designed for various wood-cutting tasks. Its primary applications include pruning branches, felling small trees, cutting logs to length, and preparing firewood. This manual provides essential information for the safe assembly, operation, and maintenance of your chainsaw.
Figure 1: The IKRA Electric Chainsaw IECS 2240 TF, ready for use.
2. Коопсуздук нускамалары
Operating a chainsaw requires strict adherence to safety guidelines to prevent injury. Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, and protective clothing.
2.1 Негизги коопсуздук функциялары
- Mechanical Run-Out Brake: Automatically stops the chain when the power switch is released, enhancing safety.
- Механикалык чынжыр тормозу: Activates immediately upon accidental contact with a solid object or during kickback, stopping the chain to prevent injury.
- Chain Catcher: Designed to catch the chain if it breaks or derails, protecting the user's hand from potential harm.
- Кол сакчы: Provides protection for your hands and fingers from contact with the chain and triggers the chain brake in the event of kickback.
- Ergonomic Soft-Grip Handles: Front and rear handles feature a non-slip soft-grip coating for secure handling, reducing hand fatigue and preventing blisters during prolonged use.
- Safety Switches: Located on the rear handle, these switches ensure the device is only started intentionally.
- Felling Claw: Helps stabilize the chainsaw against the wood during cutting, providing leverage for controlled and efficient cuts.
- Кабелдик чыңалууну жеңилдетүү: Secures the power cord connection, preventing accidental disconnection and ensuring uninterrupted operation.
2-сүрөт: Жогорку view of the chainsaw, highlighting the hand guard and oil reservoir cap.
3. Компоненттер
Familiarize yourself with the main components of your IKRA IECS 2240 TF electric chainsaw:
- Guide Bar (OREGON)
- Saw Chain (OREGON anti-vibration)
- Sprocket Cover with Tool-Free Tensioning Ring
- Oil Reservoir with Oil Level Indicator
- Май толтуруучу капкак
- Front Handle (with Soft-Grip)
- Rear Handle (with Soft-Grip and Safety Switches)
- Hand Guard
- Felling Claw
- Power Cord with Cable Strain Relief
3-сүрөт: Бурчтуу view of the chainsaw, illustrating the ergonomic handles and chain tensioning mechanism.
4. Орнотуу
4.1 Guide Bar and Chain Assembly
The guide bar and chain are designed for tool-free assembly. Open the sprocket cover by loosening the side-mounted wing screw. Carefully place the chain around the sprocket and guide bar, ensuring the cutting edges are oriented correctly. Then, position the guide bar onto the mounting studs and replace the sprocket cover, securing it with the wing screw.
4.2 Чынжырды чыңоо
Adjust the chain tension using the integrated tensioning ring located on the outside of the sprocket cover. Turn the ring until the chain is snug against the guide bar but can still be pulled freely by hand. Proper tension is crucial for safe and efficient cutting. The chain should not sag on the underside of the guide bar.
Сүрөт 4: Жакын пландан view of the OREGON guide bar and chain, illustrating proper assembly.
4.3 Май куюу
The chainsaw features an automatic chain lubrication system. Before first use and regularly during operation, ensure the oil reservoir is filled with appropriate chain oil. It is recommended to use organic chain oil. The oil level indicator (sight glass) allows you to monitor the oil level conveniently. Refill the oil through the screw cap on top of the unit. Never operate the chainsaw without sufficient chain oil.
4.4 Кубатка туташуу
Connect the chainsaw to a suitable power outlet using an appropriate extension cord. Utilize the cable strain relief feature on the rear handle to secure the connection, preventing accidental disconnection during operation. To do this, form a tight loop in the extension cord and push it through the designated opening on the rear handle.
5. Иштөө нускамалары
5.1 Араны ишке киргизүү
To start the chainsaw, simultaneously press the safety switches on the rear handle and then engage the main power switch. Release the safety switches once the chainsaw is running. The mechanical run-out brake will stop the chain automatically when the main power switch is released.
5.2 Кесүү техникасы
Always maintain a firm grip on both handles. The front handle assists in making horizontal and vertical cuts safely and precisely. Use the felling claw to stabilize the chainsaw against the wood, providing leverage and allowing for controlled, effortless cuts. Avoid cutting with the tip of the guide bar to prevent kickback.

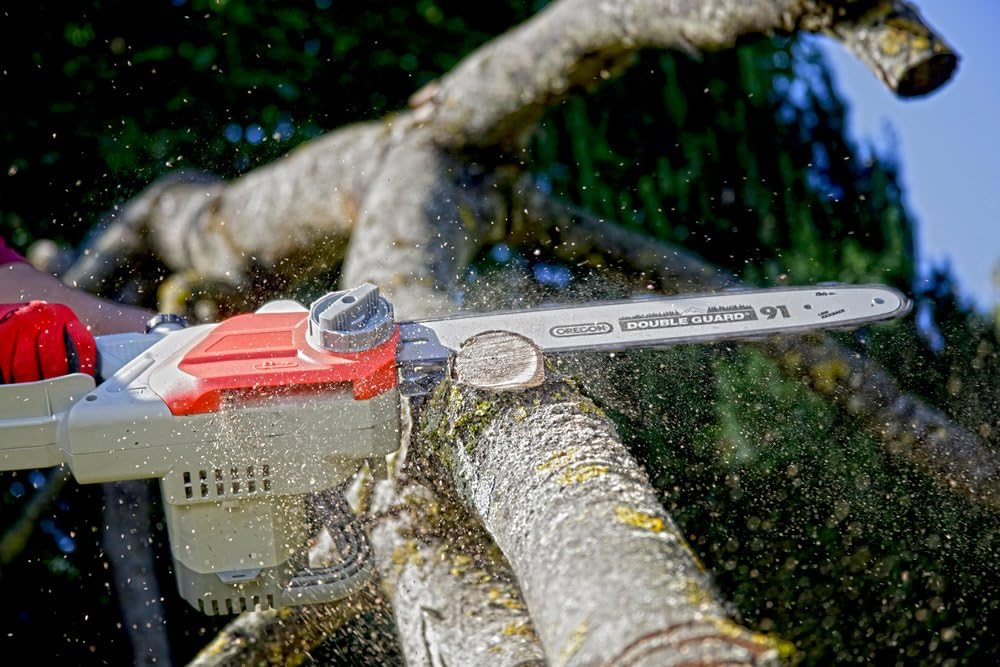

Figure 5: Chainsaw in operation, cutting a tree branch.
Figure 6: Close-up of the felling claw engaging a tree branch for stable cutting.
6. Техникалык тейлөө
6.1 Чынжырды автоматтык түрдө майлоо
The automatic chain lubrication system ensures continuous oil supply to the chain and guide bar. Regularly check the oil level using the sight glass and refill as needed. Adequate lubrication is vital for the longevity and performance of the chain and guide bar.
6.2 Тазалоо
After each use, disconnect the chainsaw from the power supply and clean it thoroughly. Remove sawdust, wood chips, and debris from the guide bar, chain, and motor housing. Ensure ventilation openings are clear. Do not use water to clean electrical components.
6.3 Сактоо
When not in use, store the chainsaw in a dry, secure location, out of reach of children. Always apply the provided guide bar protection cover to prevent accidental contact with the sharp chain and protect the guide bar from damage.
Figure 7: The chainsaw stored safely with the guide bar cover, next to cut logs.
7. Кыйынчылыктарды
If you encounter issues with your chainsaw, refer to the following basic troubleshooting steps:
- Чынжырлуу араа иштебей жатат: Check the power connection, ensure the extension cord is functional, and verify that both safety switches and the main power switch are correctly engaged.
- Chain does not move: Ensure the chain brake is disengaged. Check for proper chain tension and ensure the chain is not jammed by debris.
- Кесүү көрсөткүчүнүн начардыгы: Check the chain tension. Ensure the chain is sharp and correctly installed. Verify that the oil reservoir has sufficient chain oil.
- Ашыкча термелүү: Inspect the chain for damage or incorrect tension. Ensure the guide bar is securely fastened.
For persistent issues, contact qualified service personnel or refer to the manufacturer's support resources.
8. Техникалык шарттар
| Модел | IECS 2240 TF |
| Күч | 2200 Ватт |
| Тtage | 230 вольт |
| Chain Speed | 12.1 м/с |
| Гид тилкесинин узундугу | 39.7 см |
| Салмагы | 5 килограмм |
| Ызы-чуу деңгээли | 112 дБ |
| Өлчөмдөрү (L x W x Y) | 83 x 27 x 20.5 см |
| Камтылган компоненттер | 1x instruction manual, 1x anti-vibration chain (30019571) |
9. Кепилдик жана колдоо
For information regarding warranty coverage, terms, and conditions, please refer to the documentation provided with your purchase or visit the official IKRA website. For technical support or spare parts, please contact your retailer or the manufacturer's customer service department.
