Introduction
This manual provides instructions for the setup, operation, and maintenance of your myTouchSmart Digital Bar Outlet Timer, Model 26745. Please read these instructions carefully before use and retain them for future reference.
The myTouchSmart Digital Bar Outlet Timer is designed to automate the ON/OFF cycles of indoor lights, lamps, small appliances, and electronics. It features a space-saving design, a digital display, and two programmable custom ON/OFF times.
Маанилүү коопсуздук нускамалары
- Үй ичинде гана колдонуу үчүн.
- Do not exceed electrical ratings: 125V AC, 60Hz, 15A (1875W) General Purpose/Resistive, 5A (625W) Tungsten, 1/2 HP.
- Do not use with appliances that have heating elements, such as coffee makers, toasters, or heaters, as this may create a fire hazard.
- Таймердин розеткага толугу менен сайылганын текшериңиз.
- Do not immerse in water or use in wet locations.
- Keep children away from the timer.
- Агрегатты ажыратпаңыз. Ичинде колдонуучу тейлей турган бөлүктөр жок.
Продукт өзгөчөлүктөрү
- Space-saving slim bar design.
- One (1) polarized outlet.
- Digital display for easy programming.
- Two custom daily ON/OFF times.
- Backup battery to save settings during power outages.
- CFL, LED, ысытуу жана галоген жарык булактары менен шайкеш келет.

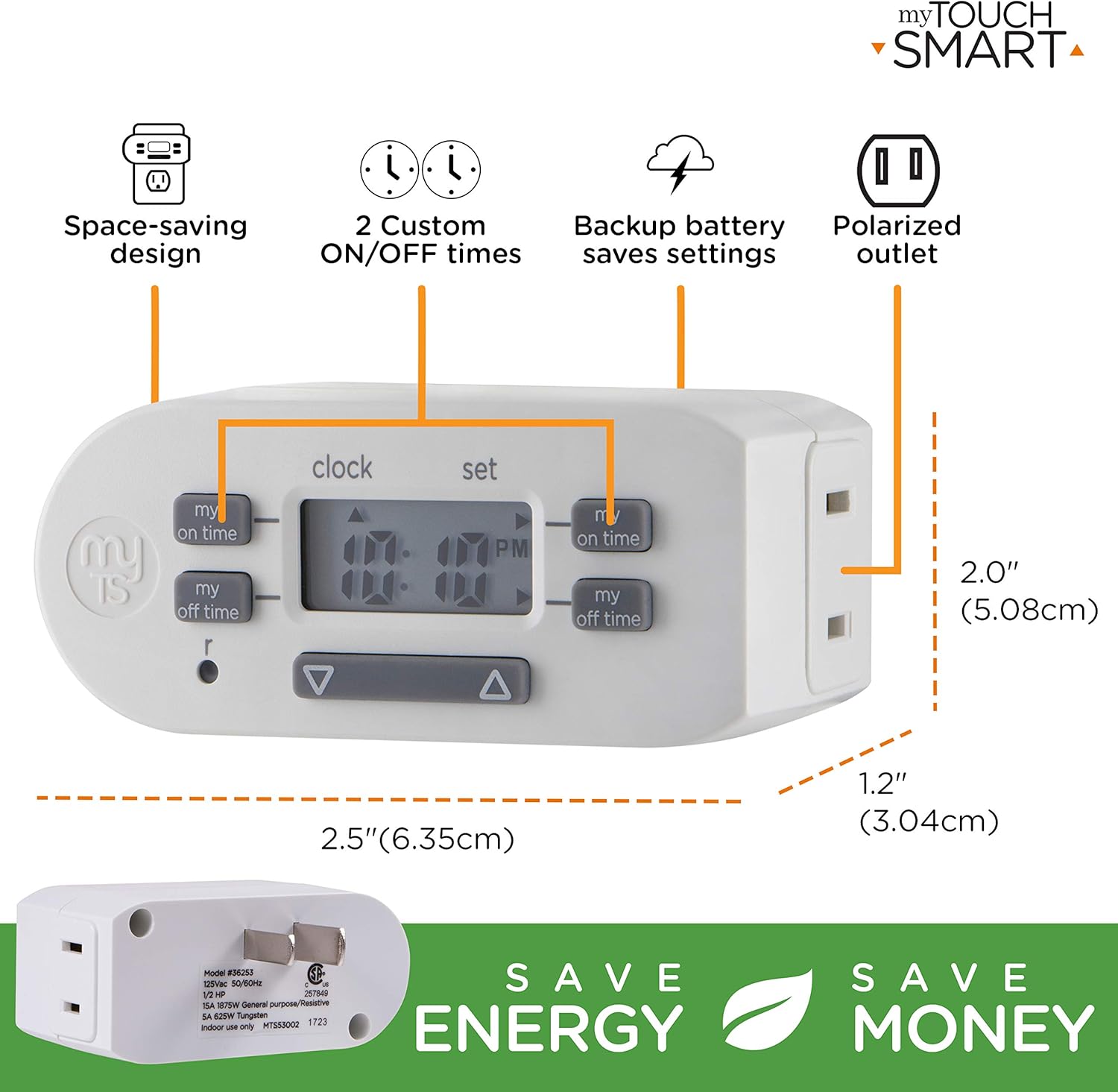

Сүрөттүн сүрөттөлүшү: A detailed diagram of the myTouchSmart Digital Bar Outlet Timer, highlighting its components such as the custom ON/OFF time buttons, clock/set mode indicator, active program indicator, AM/PM indicator, and scroll buttons. This image helps users identify the different parts of the timer for programming.
Орнотуу жана баштапкы конфигурация
1. Charging the Backup Battery
Before initial use, plug the timer into a live electrical outlet for at least 30 minutes to charge the internal backup battery. This battery retains your settings during power outages же таймер суурулганда.
2. Учурдагы убакытты орнотуу
- басып, кармап туруңуз СААТ баскычы.
- Кармап жатканда СААТ, басыңыз ▲ (өйдө) же ▼ (down) button to adjust the hour. The AM/PM indicator will change accordingly.
- бошотуңуз СААТ button when the correct hour is set.
- басып, кармап туруңуз СААТ кайра баскычын.
- Кармап жатканда СААТ, басыңыз ▲ (өйдө) же ▼ (down) button to adjust the minutes.
- бошотуңуз СААТ button when the correct minute is set.
Сүрөттүн сүрөттөлүшү: This image illustrates the "Simple Setup" process for the timer. It shows the digital display and buttons, with arrows pointing to the scroll buttons for setting the current time and the "my on time" and "my off time" buttons for custom programming. The image emphasizes the ease of setting up the device.
Иштөө нускамалары
Programming Custom ON/OFF Times
The timer allows for two custom daily ON/OFF programs. Follow these steps to set your desired schedules:
1-программа:
- басыңыз MY ON TIME button (left side) once. The display will show "1 ON".
- басыңыз ▲ (өйдө) же ▼ (down) button to adjust the desired ON hour for Program 1.
- басыңыз MY ON TIME саатты ырастоо жана мүнөткө өтүү үчүн кайра баскычын басыңыз.
- басыңыз ▲ (өйдө) же ▼ (down) button to adjust the desired ON minutes for Program 1.
- басыңыз MY ON TIME button again to save the ON time.
- басыңыз MY OFF TIME button (left side) once. The display will show "1 OFF".
- басыңыз ▲ (өйдө) же ▼ (down) button to adjust the desired OFF hour for Program 1.
- басыңыз MY OFF TIME саатты ырастоо жана мүнөткө өтүү үчүн кайра баскычын басыңыз.
- басыңыз ▲ (өйдө) же ▼ (down) button to adjust the desired OFF minutes for Program 1.
- басыңыз MY OFF TIME button again to save the OFF time.
2-программа:
Repeat the steps above using the MY ON TIME жана MY OFF TIME баскычтары оң жагы of the timer. The display will show "2 ON" and "2 OFF" respectively.
Сүрөттүн сүрөттөлүшү: This image displays two examples of how to program the timer. Program 1 is set to turn ON at 6:00 A.M. and OFF at 9:00 A.M. Program 2 is set to turn ON at 4:00 P.M. and OFF at 10:00 P.M. This visual guide helps users understand how to set their own custom schedules.
Connecting an Appliance
Once programmed, plug the appliance or light you wish to control into the polarized outlet on the side of the timer. Ensure the appliance's power switch is in the ON position for the timer to control its power cycle.

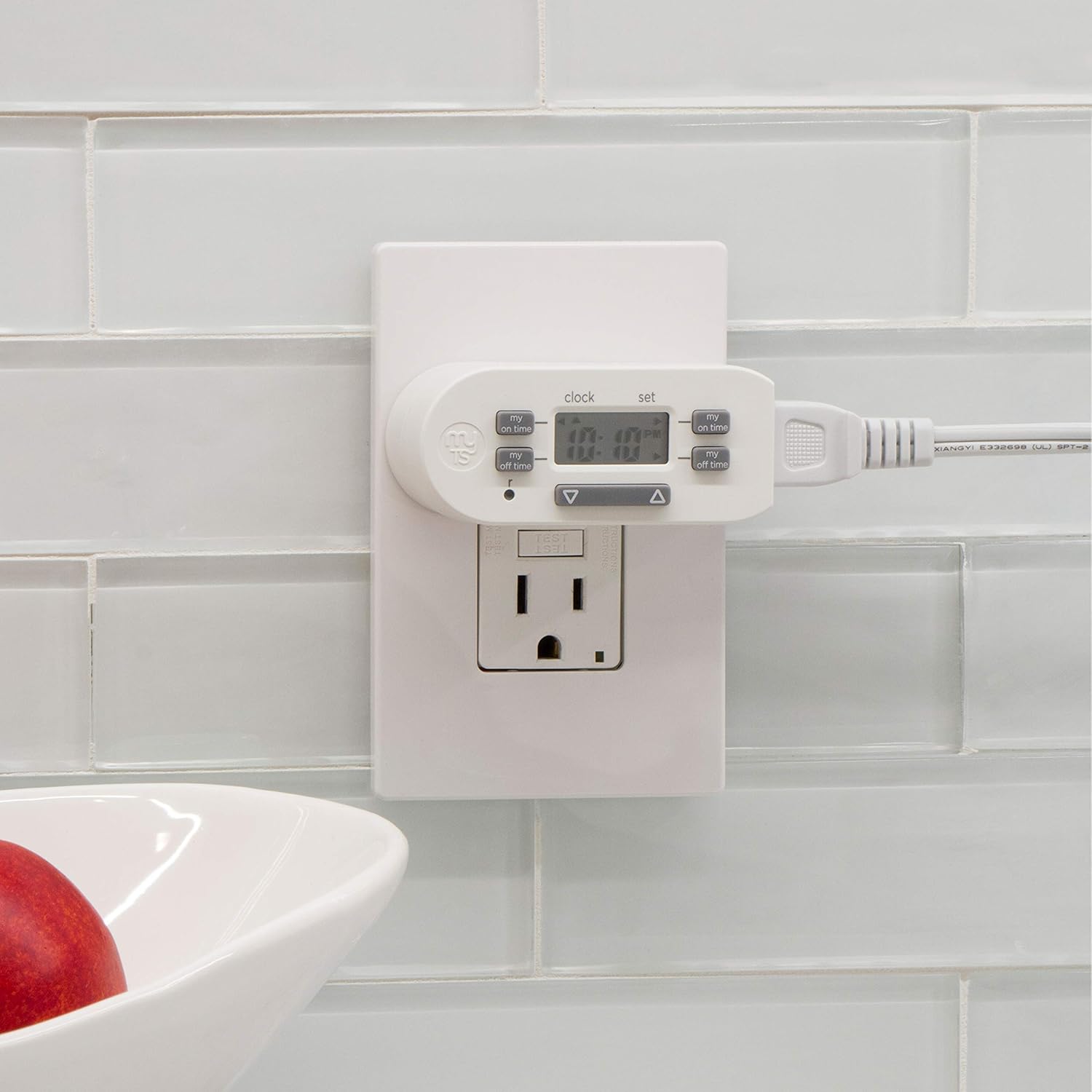

Сүрөттүн сүрөттөлүшү: The image shows the myTouchSmart Digital Bar Outlet Timer plugged into a standard wall outlet. A lamp's power cord is then plugged into the polarized outlet on the side of the timer, demonstrating how to connect a device for timed operation. The slim design of the timer is visible, not obstructing the second wall outlet.
Техникалык тейлөө
- Тазалоо: Disconnect the timer from the power outlet before cleaning. Wipe with a dry, soft cloth. Do not use liquid or abrasive cleaners.
- Батарея: The internal backup battery is not user-replaceable. If the display becomes dim or settings are not retained after charging, the unit may need replacement.
- Сактагыч: Таймерди колдонбогондо салкын, кургак жерде сактаңыз.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шайман программаланган убакытта КҮЙГҮЗҮЛБӨЙТ/ӨЧҮРБӨЙТ. |
|
|
| Дисплей күңүрт же бош. |
|
|
| Жөндөөлөр өчүрүлгөндөн кийин жоголотtage or unplugging. | Камдык батарея жетиштүү кубатталган эмес же иштөө мөөнөтү бүткөн. | Plug the timer into a live outlet for at least 30 minutes. If the issue persists, the internal battery may need replacement (unit replacement). |
Техникалык шарттар
- Модел: 26745
- Электрдик рейтинг: 125V AC, 60Гц
- Максималдуу жүк: 15A (1875W) General Purpose/Resistive
- Вольфрам жүгү: 5А (625W)
- Мотор жүктөө: 1 / 2 HP
- Соода түйүндөрү: 1 Polarized
- Өлчөмдөрү: Болжол менен 2 x 2.5 x 1.25 дюйм
- Тастыктоо: CSA
Кепилдик жана колдоо
This product is backed by a one-year limited warranty. For warranty claims or technical support, please contact myTouchSmart customer service. Refer to the product packaging or the manufacturer's webбайланыш маалыматы үчүн сайт.
Өндүрүүчү: Jasco Products Company, LLC
