Einhell TC-SY 600 S Electric Paint Spraying System User Manual

Introduction

The Einhell TC-SY 600 S electric paint spraying system is designed for efficient application of varnish, glaze, and indoor wall paints on medium to large work surfaces. This semi-stationary system offers flexibility and ease of use for various painting tasks. Its design prioritizes user comfort and straightforward cleaning, making it suitable for both novice and experienced users.

Please read this manual thoroughly before operating the device to ensure safe and effective use.

Коопсуздук нускамалары

Always observe general safety precautions when operating power tools. Wear appropriate personal protective equipment, including eye protection, gloves, and a respirator, especially when spraying paints. Ensure adequate ventilation in the work area. Keep children and pets away from the operating device. Disconnect the power supply before performing any cleaning or maintenance.

Продукт бүттүview жана компоненттер

The Einhell TC-SY 600 S system consists of a main unit with a motor, a spray gun, a flexible air hose, and various accessories to facilitate painting and maintenance.

Figure 1: Einhell TC-SY 600 S Electric Paint Spraying System, showing the main motor unit and the detached spray gun with paint container.

Камтылган компоненттер:

• Негизги мотор бирдиги
• Spray Gun with 800 ml Paint Container and Lid
• 1.8 m Air Hose
• Two Nozzles for different paint viscosities
• Viscosity Test Container
• Cleaning Brush for riser pipe
• Cleaning Needle for spray nozzle
• Колдонмо (бул колдонмо)

Figure 2: Included accessories, featuring cleaning tools, two different nozzles, a viscosity cup, and a container lid.

Жайгашуу

1. Иш аянтын даярдоо: Ensure the area is clean, well-ventilated, and protected from overspray. Cover any surfaces not intended for painting.
2. Боёкту даярдаңыз:
   • Боёкту жакшылап аралаштырыңыз.
   • Use the provided viscosity test container to check the paint's consistency. Fill the container with paint and time how long it takes for the paint to flow out completely. Refer to your paint manufacturer's recommendations for ideal viscosity.
   • If the paint is too thick, dilute it with the appropriate thinner (water for water-based paints, mineral spirits for oil-based paints) until the desired viscosity is achieved.
3. Боёк контейнерин толтуруңуз: Unscrew the paint container from the spray gun. Pour the prepared paint into the 800 ml container. Securely reattach the container to the spray gun.
4. Саңкычты тандоо жана орнотуу: Choose the appropriate nozzle based on the paint type and desired spray pattern. Attach it securely to the spray gun.
5. Аба түтүгүн туташтыруу: Connect one end of the 1.8 m air hose to the spray gun and the other end to the main motor unit. Ensure connections are firm.
6. Кубат туташуу: Plug the main motor unit into a suitable power outlet.

Иштөө нускамалары

1. Күйгүзүү: Switch on the main motor unit. The motor will start, and air will flow through the hose to the spray gun.
2. Spray үлгүсүн тууралоо: The spray nozzle can be adjusted to produce three different patterns:
   • Vertical Fan: Горизонталдуу беттер үчүн.
   • Horizontal Fan: Вертикалдуу беттер үчүн.
   • Circular Jet: For small areas or corners.
   Rotate the air cap on the spray gun to select the desired pattern.


Figure 3: Illustration of adjustable spray patterns: horizontal fan, vertical fan, and circular jet.

3. Adjust Paint Quantity: Use the integrated paint quantity control dial on the spray gun to regulate the amount of paint being sprayed. Start with a lower setting and increase as needed.
4. Сыноочу спрей: Before painting your actual project, perform a test spray on a piece of scrap material to check the spray pattern and paint flow. Adjust settings until satisfied.
5. Чачыруу техникасы:
   • Hold the spray gun at a consistent distance (typically 6-10 inches) from the surface.
   • Move the spray gun in smooth, even strokes, overlapping each pass slightly.
   • Боёктун топтолушун болтурбоо үчүн ар бир соккунун аягында триггерди бошотуңуз.
   • Apply multiple thin coats rather than one thick coat to prevent drips and ensure even coverage.
6. Өчүрүү: Once painting is complete, switch off the main motor unit.

Техникалык тейлөө

Proper cleaning after each use is essential for the longevity and optimal performance of your paint spraying system.

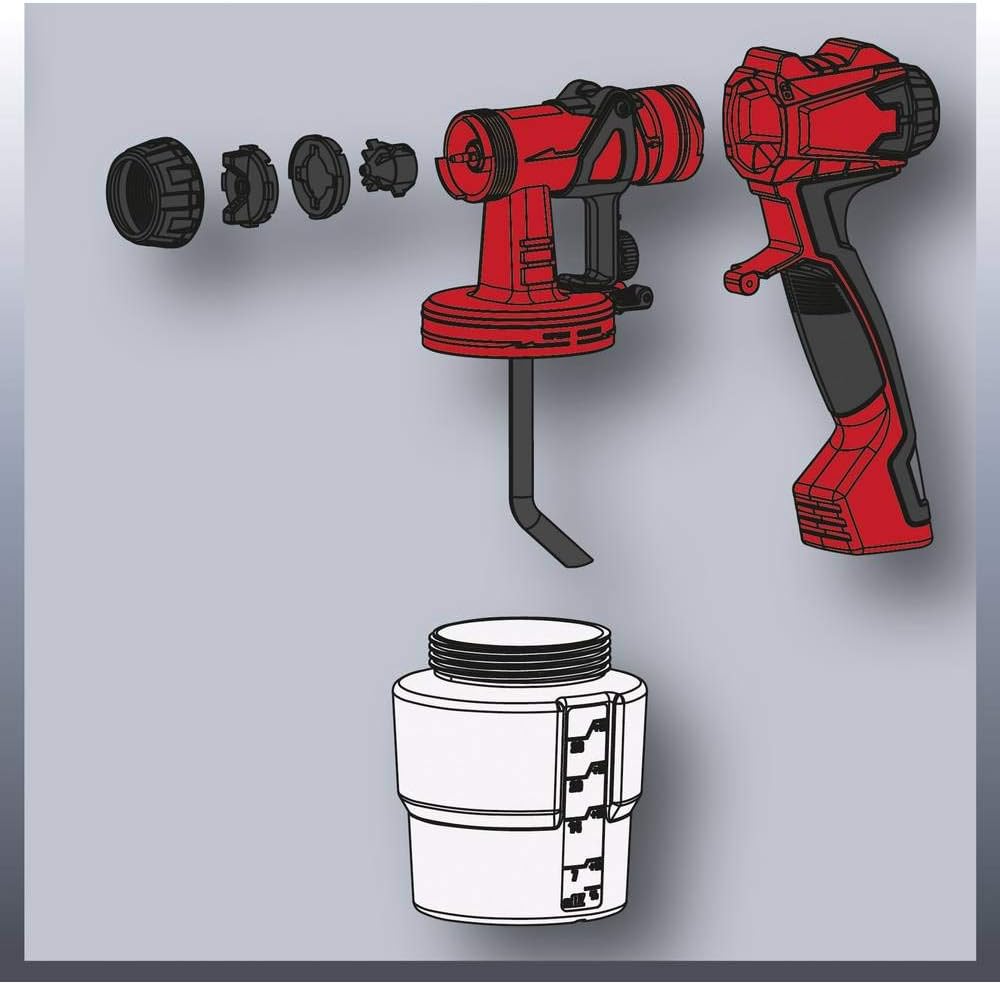

4-сүрөт: жарылган view of the spray gun components, illustrating parts that can be disassembled for thorough cleaning.

1. Боёктун бош контейнери: Disconnect the power. Unscrew the paint container and pour any remaining paint back into its original can or dispose of it properly.
2. Алгачкы чайкоо: Fill the empty paint container with the appropriate cleaning solution (water for water-based paints, thinner for oil-based paints). Reattach the container and spray the cleaning solution through the gun until it runs clear. Dispose of the cleaning solution responsibly.
3. Бөлүктөргө бөлүп алып, тазалаңыз:
   • Unscrew and remove the spray head and nozzle.
   • Use the provided cleaning brush to clean the riser pipe and the inside of the paint container.
   • Use the cleaning needle to clear any blockages in the spray nozzle.
   • Thoroughly clean all disassembled parts with the appropriate cleaning solution.
4. Кургатуу жана кайра чогултуу: Allow all components to dry completely before reassembling the spray gun.
5. Сактагыч: Store the paint spraying system in a clean, dry place, away from extreme temperatures and out of reach of children.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

For warranty information or technical support, please refer to the warranty card included with your product or contact Einhell customer service directly. Keep your purchase receipt as proof of purchase.
